FOCUS

FOCUS

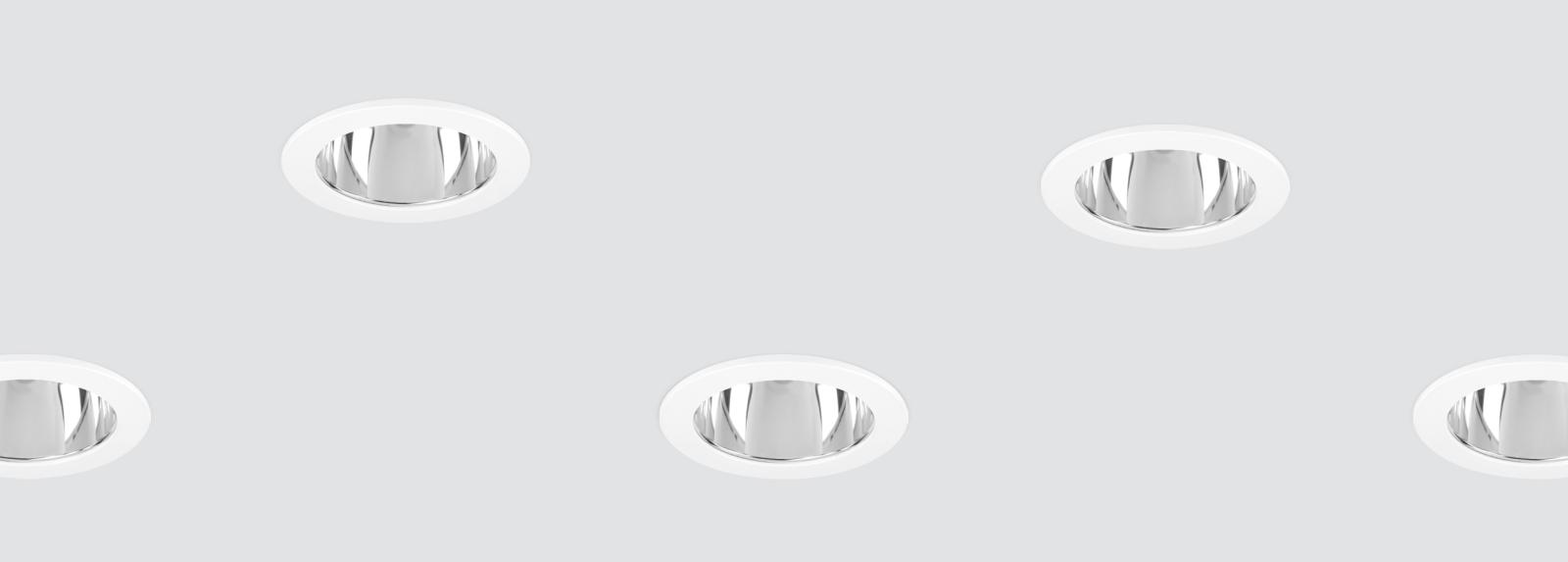

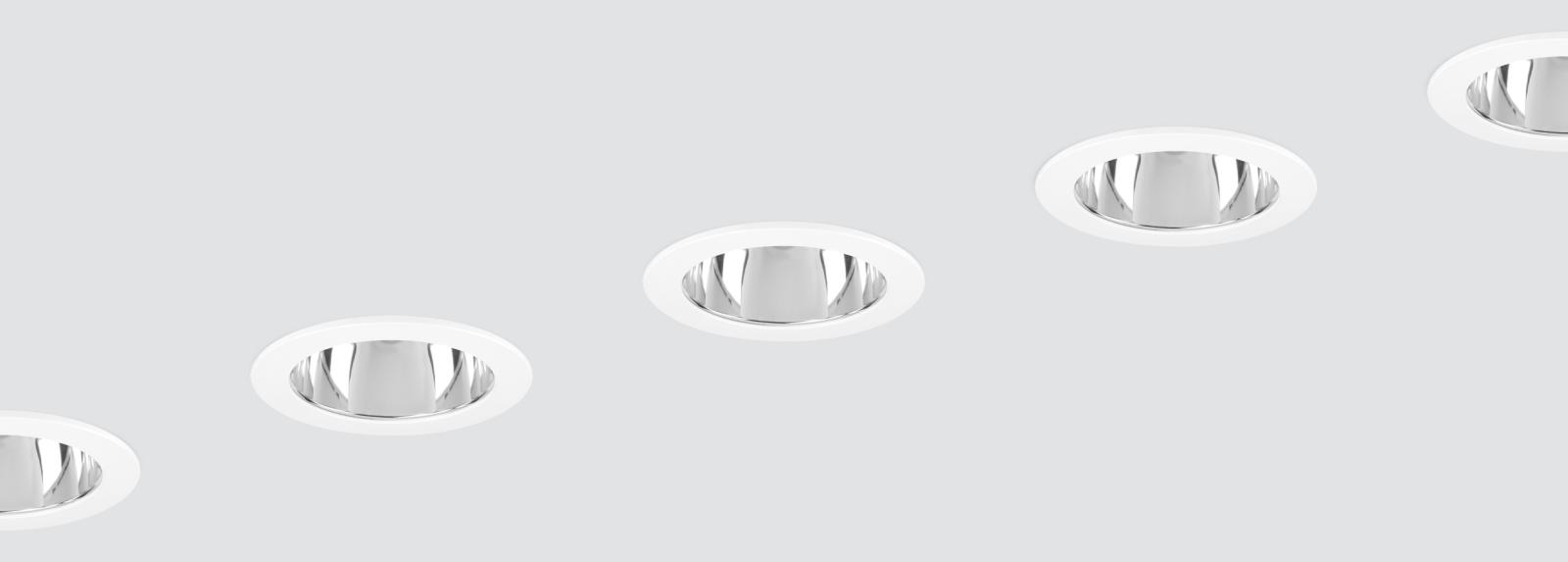

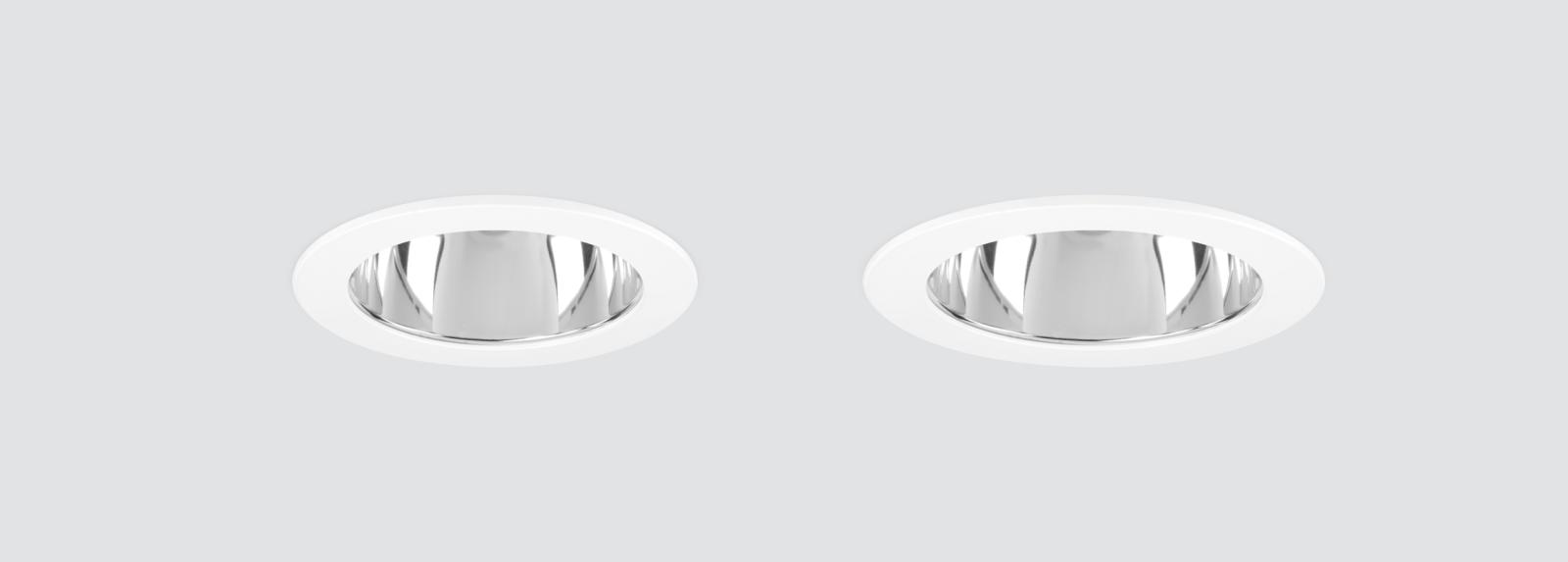

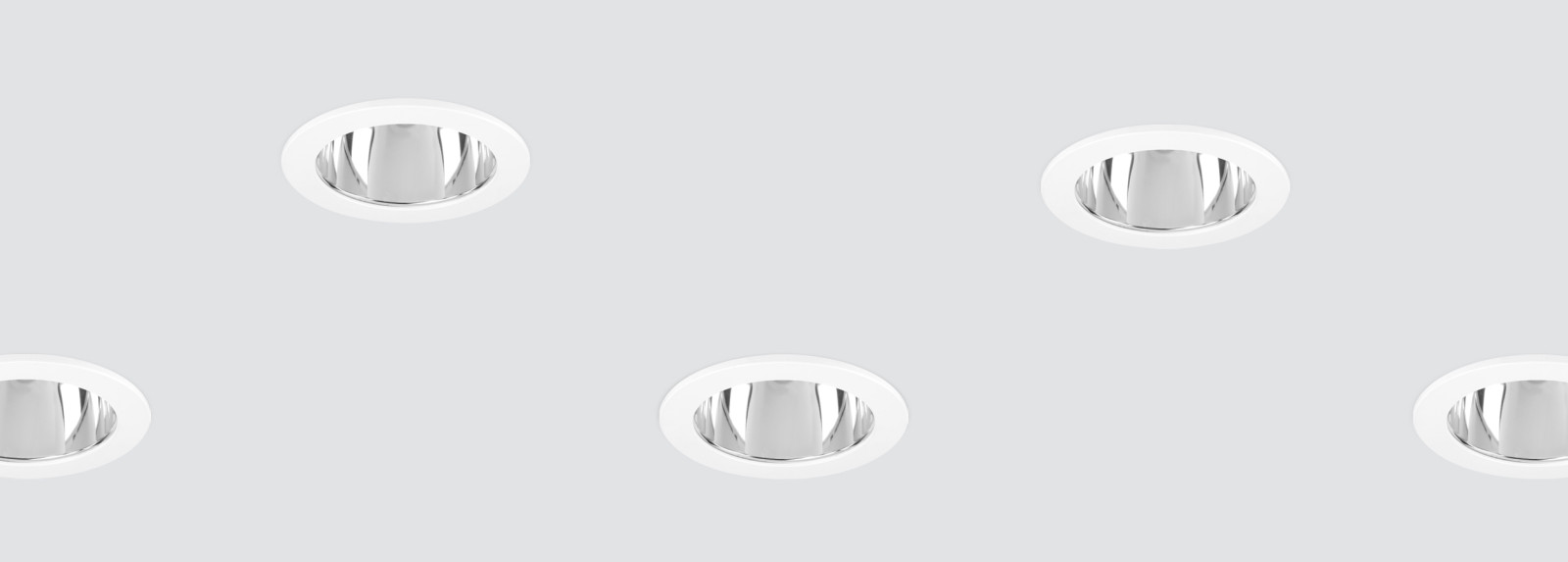

Recessed ceiling-mounted downlights with directional inner light source to achieve an effective task and accent lighting.

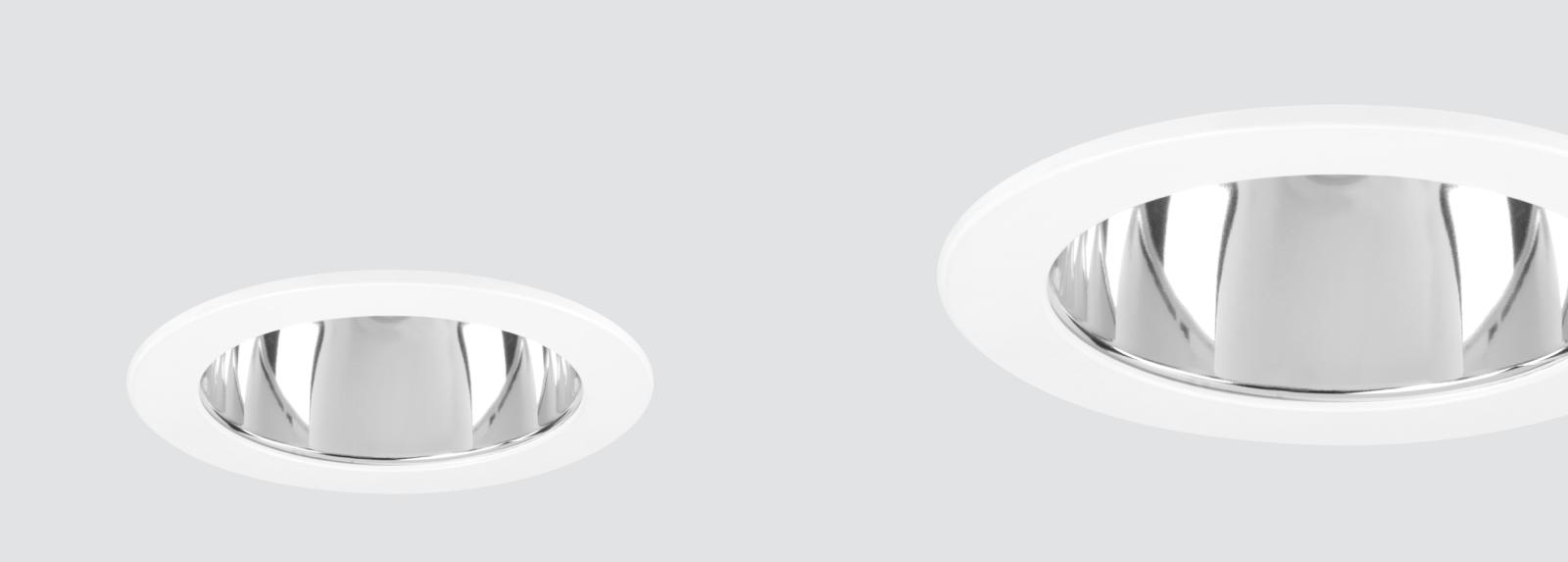

Adjustable to 30º. Circular design available in 2 diameters: 190mm and 220mm.
Total lighting control: high performance and high efficiency.
Large range of reflectors to obtain the best photometric results.
High-purity specular anodised aluminium reflector.
Interior reflector in assorted finishes: facetted metalized or sandblasted anodised depending on the beam angle outcome.
Powder painted die-cast aluminium trim available in assorted finishes, customized RAL under request.
Decorative accessory: LED ring available in several colours.
Glass accessory available to increase the protection rating to IP54 from underneath.
316L stainless steel trim accessory with flush glass and silicone rubber gasket to increase the protection rating to IP65 from underneath.
Remote driver supplied. Electrical standard options for lighting control: DALI/ DSI or 1-10V.
Emergency kit as option.

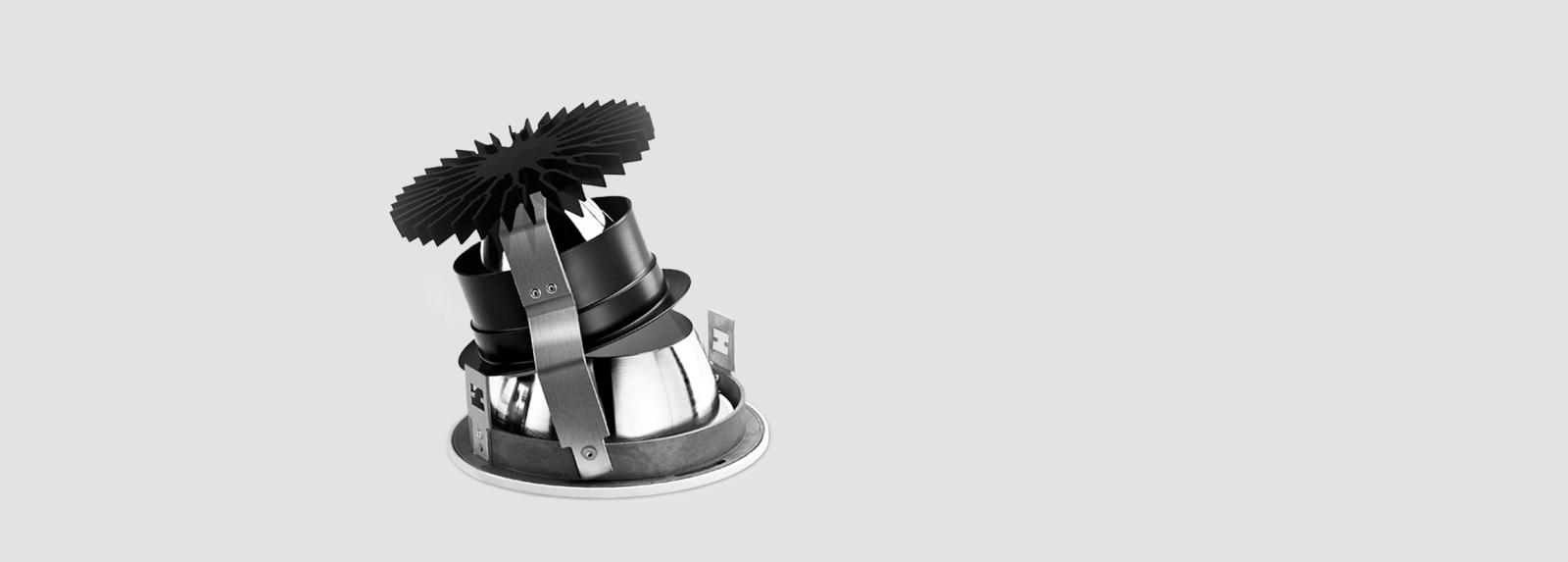

Passive temperature management: heat dissipation via heatpipes.
Ceiling-mounted using galvanised steel support with spring clamps, ceiling thicknesses up to 30mm.

Suggested applications: shops, hotels, sales areas, museums and similar installations. Areas where a point of interest is to be highlighted.

Products searcher

Tilt

Recessed diameter

Fixture diameter

Height

Colour Temperature

CRI

Beam angle

Watt

Accessories

Search results
Beam angle
Reference
Watt
F101FCS
13º
11W
>
101FCS.1-R191
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
F101FCS
13º
11W
>
101FCS.1-R192
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
F101FCS
13º
11W
>
101FCS.1-R193
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
F101FCS
13º
11W
>
101FCS.1-R194
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
F101FCS
13º
11W
>
101FCS.1-R195
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
F101FCS
13º
11W
>
101FCS.1-R196
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
F101FCS
28º
11W
>
102FCS.1-R191
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
F101FCS
28º
11W
>
102FCS.1-R192
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
F101FCS
28º
11W
>
102FCS.1-R193
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
F101FCS
28º
11W
>
102FCS.1-R194
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
F101FCS
28º
11W
>
102FCS.1-R195
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
F101FCS
28º
11W
>
102FCS.1-R196
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
F101FCS
13º
17W
>
101FCS.1-R197
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
F101FCS
13º
17W
>
101FCS.1-R198
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
F101FCS
13º
17W
>
101FCS.1-R199
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
