GRAVITY

GRAVITY

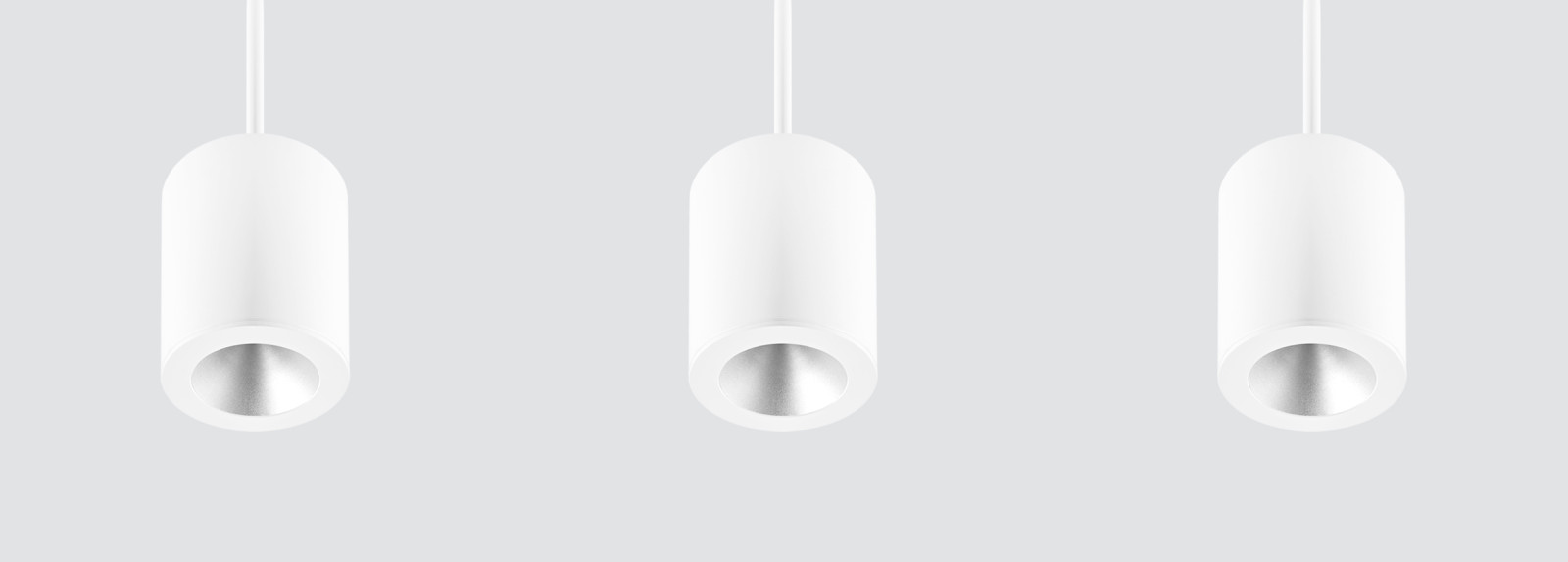

Pendant downlights with symmetrical light distribution to achieve an effective task, accent or general lighting.

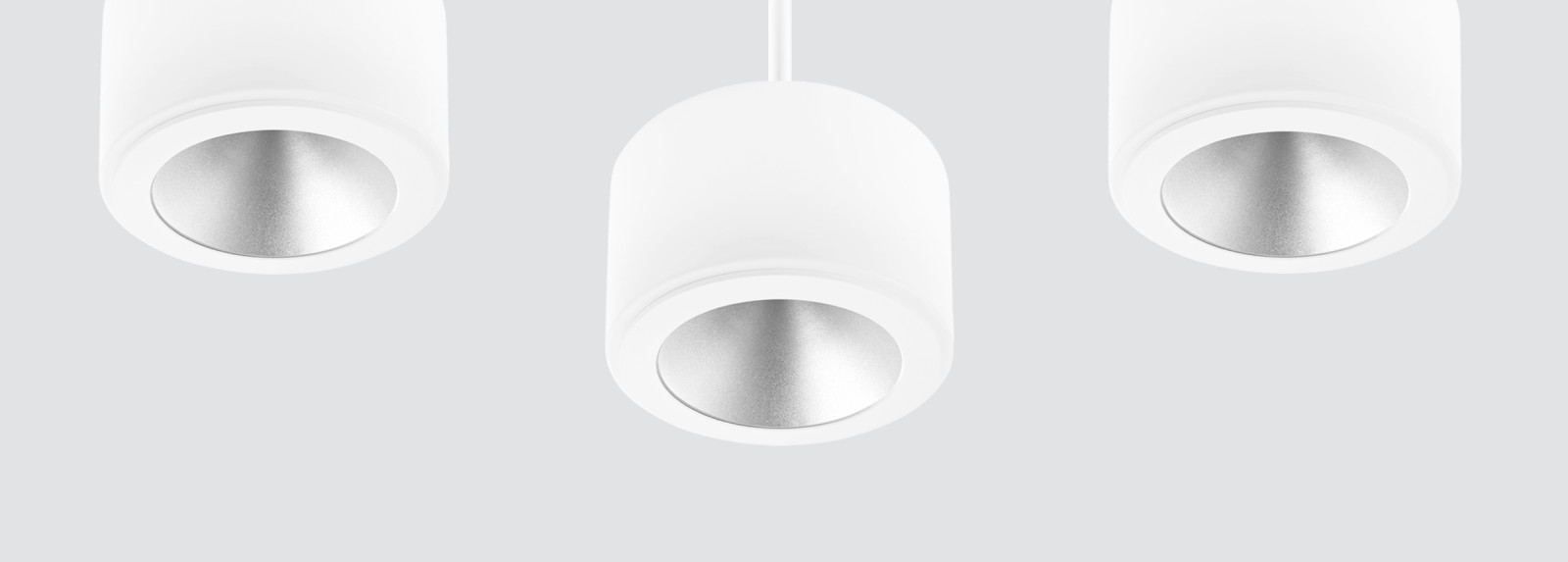

Neutral cylindrical body available in 6 diameters: 150mm, 190mm, 220mm, 235mm, 240mm and 260mm.
Total lighting control: high performance and high efficiency.
Large range of reflectors to obtain the best photometric results.
High-purity aluminium reflectors in assorted finishes: facetted metalized or sandblasted anodised depending on the beam angle outcome.

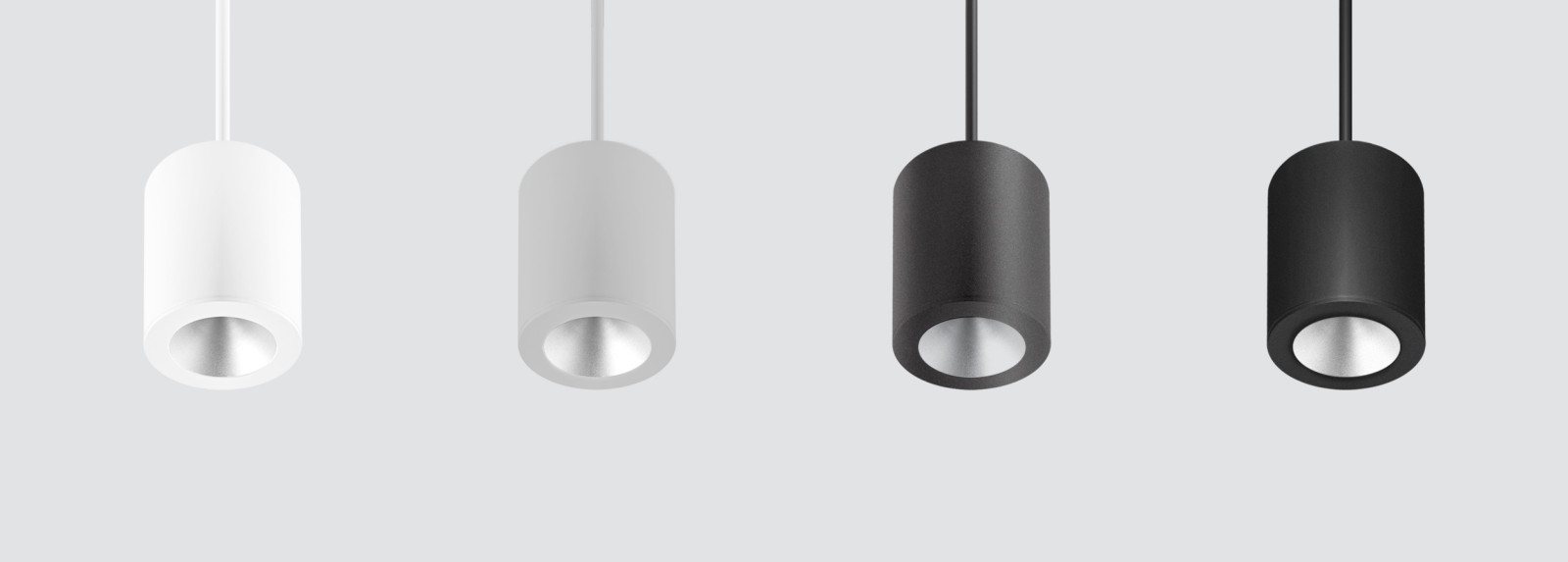

Powder painted aluminium profile available in various finishes, customized RAL under request.
Range of decorative and optical accessories.
Flush glass accessory available. Complete IP54 fixture by ordering flush glass and IP rated connector accessories.
Integral driver included. Electronic standard options for lighting control: DALI/ DSI.
Passive temperature management: heat dissipation flows through an aluminium heat sink and the fixture body itself.
Delivered with 1 meter powder painted metal rod as standard.
Mounted to the ceiling by cylindrical ceiling rose.
For a more dynamic result, it can be supplied with an adapter for three-phase track.

Matching products:

  • BASE surface-mounted downlights with cylindrical body.
  • GRAVITY EVOLUTION pendant downlights suspended by steel cords.
  • CUMULUS and CUMULUS EVOLUTION pendant downlights with cylindrical body and intermediate frosted glass.
  • FLOCCUS surface mounted downlight with intermediate frosted glass.
  • SATELLITE and GIROBAS surface-mounted adjustable downlights.

Suggested applications: restaurants, shops, apartments, halls, conference halls, meeting rooms, showrooms, religious buildings, banks and similar installations. Solid ceilings, where there is not enough space for recessed mounting. A very good solution for high ceilings because it enables the lighting point to be brought near to the work plane.

Product configurator

Tilt

Fixture diameter

Colour Temperature

CRI

UGR

Beam angle

Watt

Accessories

Search results
Beam angle
Reference
Watt
Luminous flux of the luminaire
CRI
Colour Temperature
Fixture diameter
Height

F101GRV
12
11W
1784lm
>80
2700K
150mm
210mm+ 1000mm
101GRV.1-I863
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101GRV
12
11W
1856lm
>80
3000K
150mm
210mm+ 1000mm
101GRV.1-I864
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101GRV
12
11W
1934lm
>80
4000K
150mm
210mm+ 1000mm
101GRV.1-I865
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101GRV
12
11W
1474lm
>90
2700K
150mm
210mm+ 1000mm
101GRV.1-I866
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101GRV
12
11W
1574lm
>90
3000K
150mm
210mm+ 1000mm
101GRV.1-I867
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101GRV
12
11W
1652lm
>90
4000K
150mm
210mm+ 1000mm
101GRV.1-I868
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101GRV
12
17W
2507lm
>80
2700K
150mm
210mm+ 1000mm
101GRV.1-I869
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101GRV
12
17W
2612lm
>80
3000K
150mm
210mm+ 1000mm
101GRV.1-I870
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101GRV
12
17W
2721lm
>80
4000K
150mm
210mm+ 1000mm
101GRV.1-I871
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101GRV
12
17W
2075lm
>90
2700K
150mm
210mm+ 1000mm
101GRV.1-I872
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101GRV
12
17W
2211lm
>90
3000K
150mm
210mm+ 1000mm
101GRV.1-I873
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101GRV
12
17W
2321lm
>90
4000K
150mm
210mm+ 1000mm
101GRV.1-I874
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101GRV
24
11W
1784lm
>80
2700K
150mm
210mm+ 1000mm
102GRV.1-I863
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101GRV
24
11W
1856lm
>80
3000K
150mm
210mm+ 1000mm
102GRV.1-I864
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101GRV
24
11W
1934lm
>80
4000K
150mm
210mm+ 1000mm
102GRV.1-I865
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE
