PLACE

PLACE

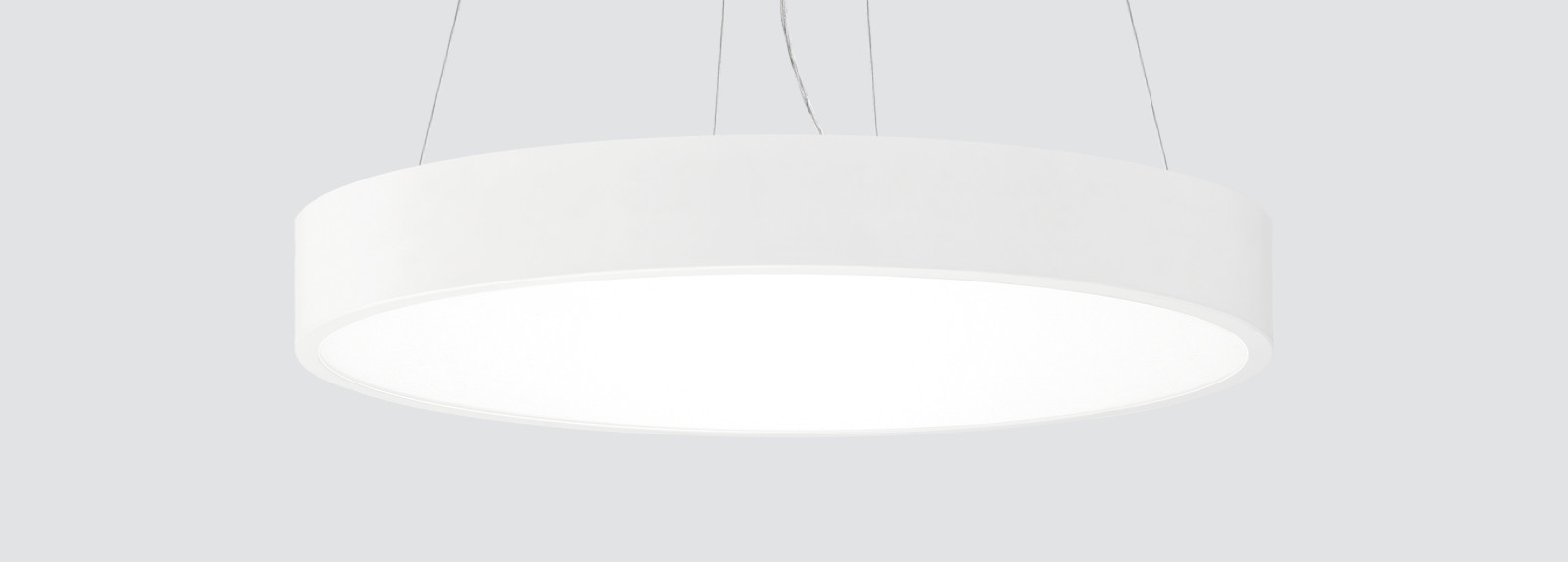

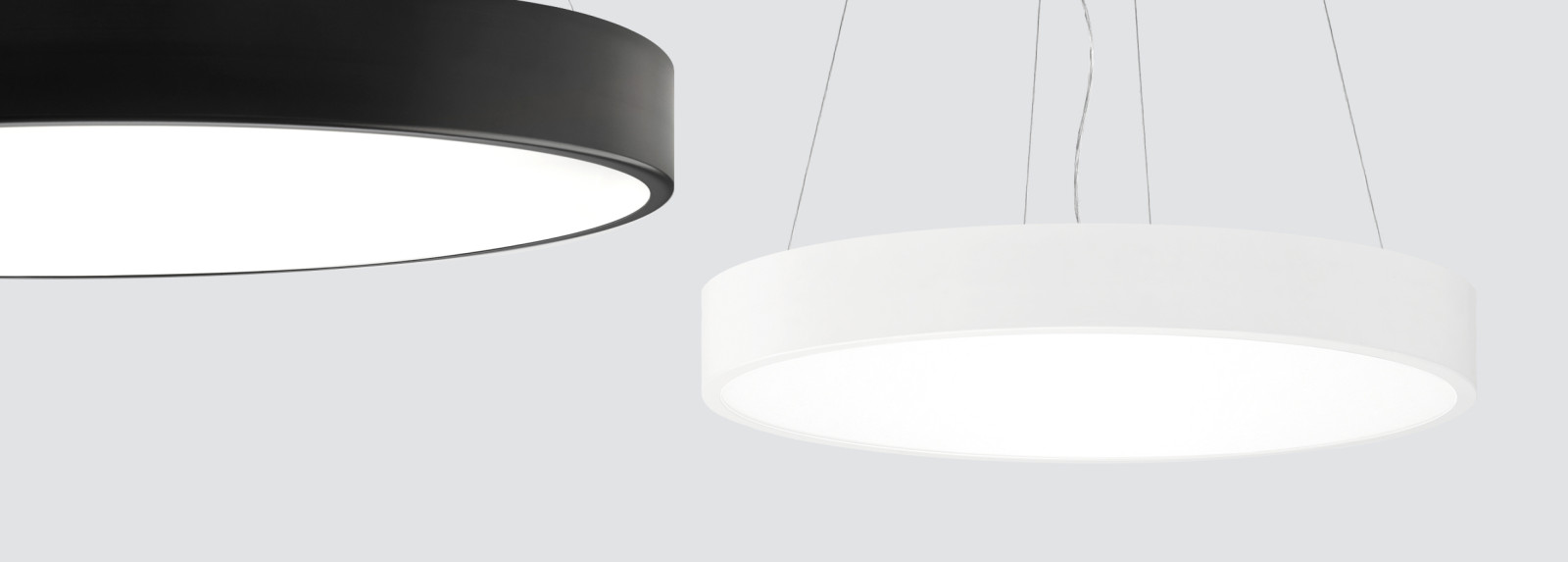

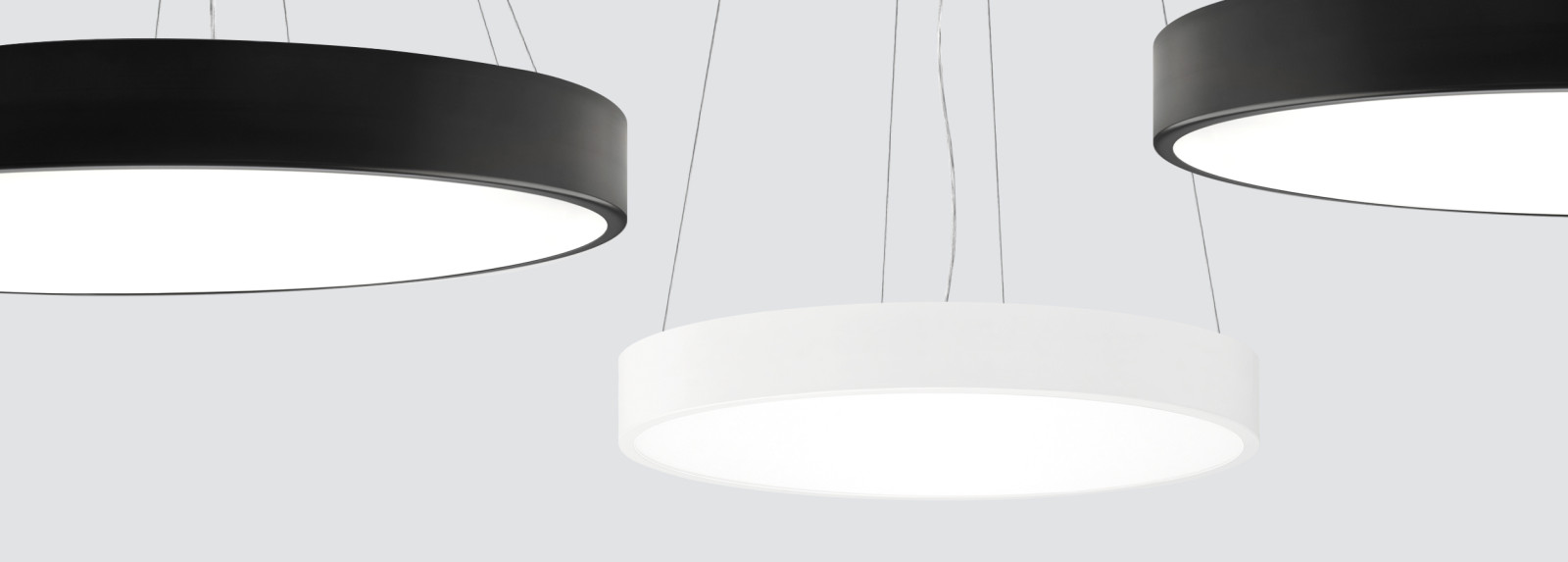

Pendant downlights with symmetrical light distribution to achieve an effective ambient lighting.
Circular design available in 4 diameters: 350mm, 553mm, 835mm and 1110mm.
Powder painted aluminium profile available in assorted finishes, customized RAL under request.
PMMA opal diffuser (thickness 3mm.)
Tridonic high energy efficiency printed circuit board.
Tridonic built-in driver, included.
Passive temperature management: heat dissipation flows through the fixture body itself.
Ceiling-mounted using ceiling rose. Suspended 1 meter by four steel cords. Transparent electrical wire.
PLACE can be combined with the LEDA surface-mounted fixtures and KUU and CANDRA recessed mounted lines to get an harmonious finish.

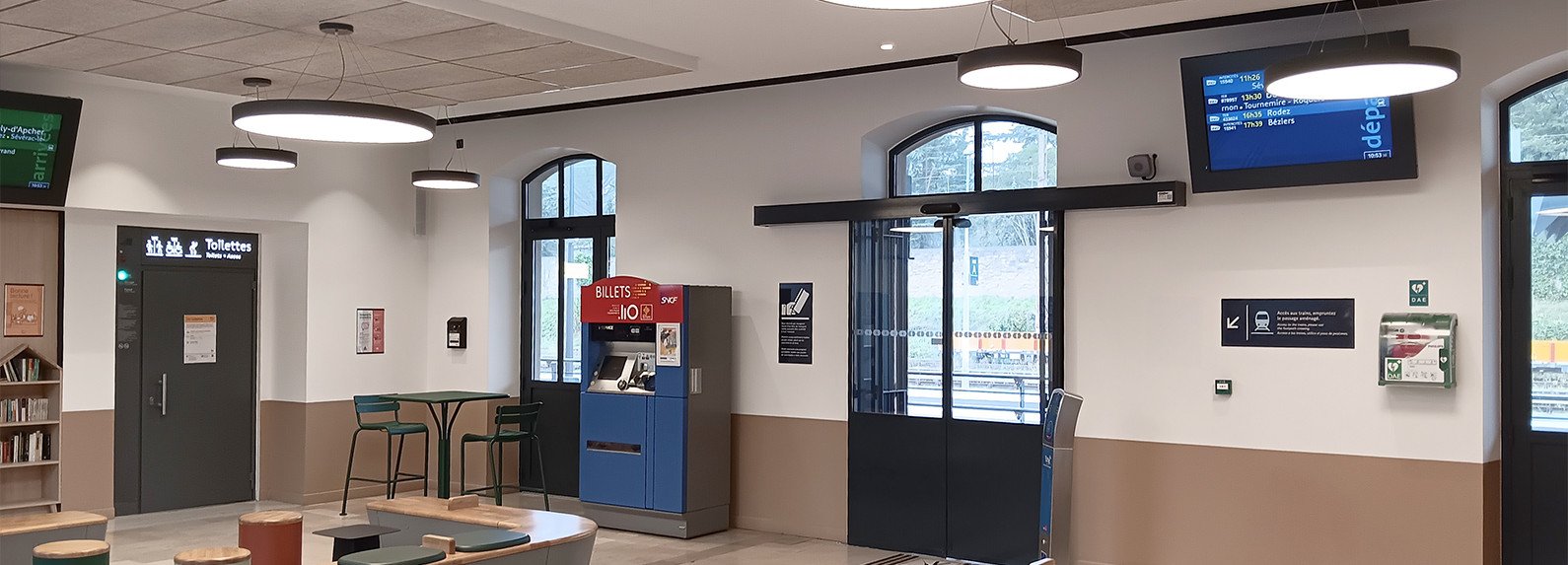

Suggested applications: shopping malls, hotel lobbies, offices, large atriums, airports, meeting rooms, coffees, showrooms and similar installations.

Product configurator

Tilt

Fixture diameter

Height

Colour Temperature

CRI

UGR

Beam angle

Accessories

Search results
Beam angle
Reference
Watt
Luminous flux of the luminaire
CRI
Colour Temperature
Fixture diameter
Height

F101PLC
114
17W
2262lm
>80
3000K
350mm
80mm+ 1000mm
108PLC.1.02-I637
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101PLC
114
17W
2507lm
>80
4000K
350mm
80mm+ 1000mm
108PLC.1.02-I638
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101PLC
114
23W
2903lm
>80
3000K
350mm
80mm+ 1000mm
108PLC.1.02-I645
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101PLC
114
23W
3208lm
>80
4000K
350mm
80mm+ 1000mm
108PLC.1.02-I646
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101PLC
106
17W
2984lm
>80
3000K
553mm
80mm+ 1000mm
109PLC.1.02-I1051
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101PLC
106
17W
3028lm
>80
4000K
553mm
80mm+ 1000mm
109PLC.1.02-I1052
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101PLC
106
24W
3909lm
>80
3000K
553mm
80mm+ 1000mm
109PLC.1.02-I1053
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101PLC
106
24W
3937lm
>80
4000K
553mm
80mm+ 1000mm
109PLC.1.02-I1054
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101PLC
106
30W
4816lm
>80
3000K
553mm
80mm+ 1000mm
109PLC.1.02-I1055
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101PLC
106
30W
4837lm
>80
4000K
553mm
80mm+ 1000mm
109PLC.1.02-I1056
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101PLC
108
47W
8064lm
>80
3000K
835mm
80mm+ 1000mm
110PLC.1.02-I1057
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101PLC
108
47W
8506lm
>80
4000K
835mm
80mm+ 1000mm
110PLC.1.02-I1058
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101PLC
108
59W
9940lm
>80
3000K
835mm
80mm+ 1000mm
110PLC.1.02-I1059
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101PLC
108
59W
10483lm
>80
4000K
835mm
80mm+ 1000mm
110PLC.1.02-I1060
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101PLC
108
96W
15985lm
>80
3000K
1110mm
80mm+ 1000mm
111PLC.1.02-I1061
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE
