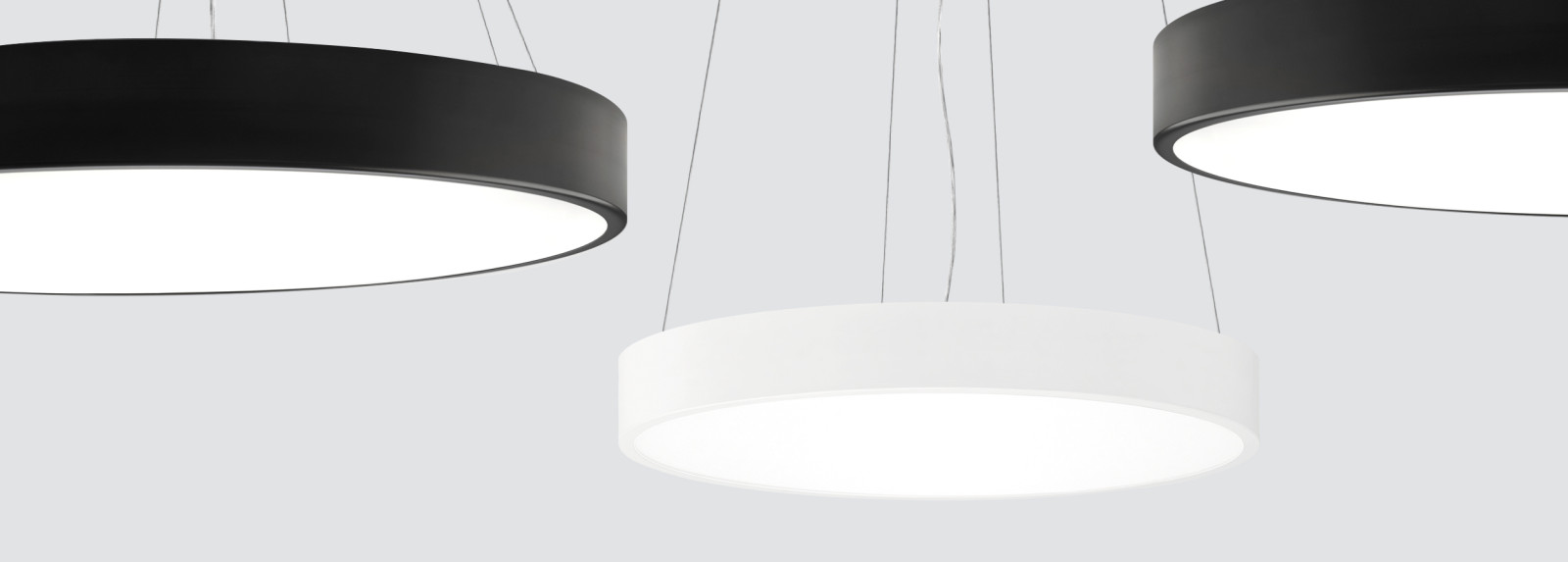

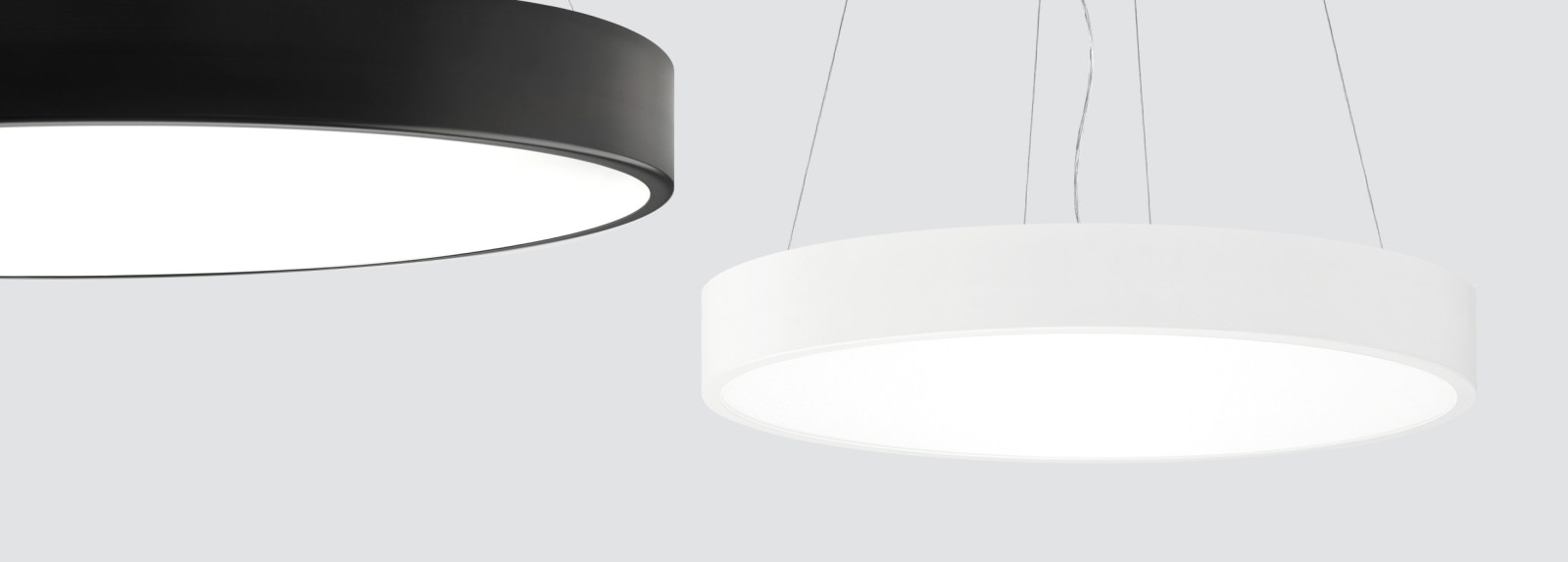

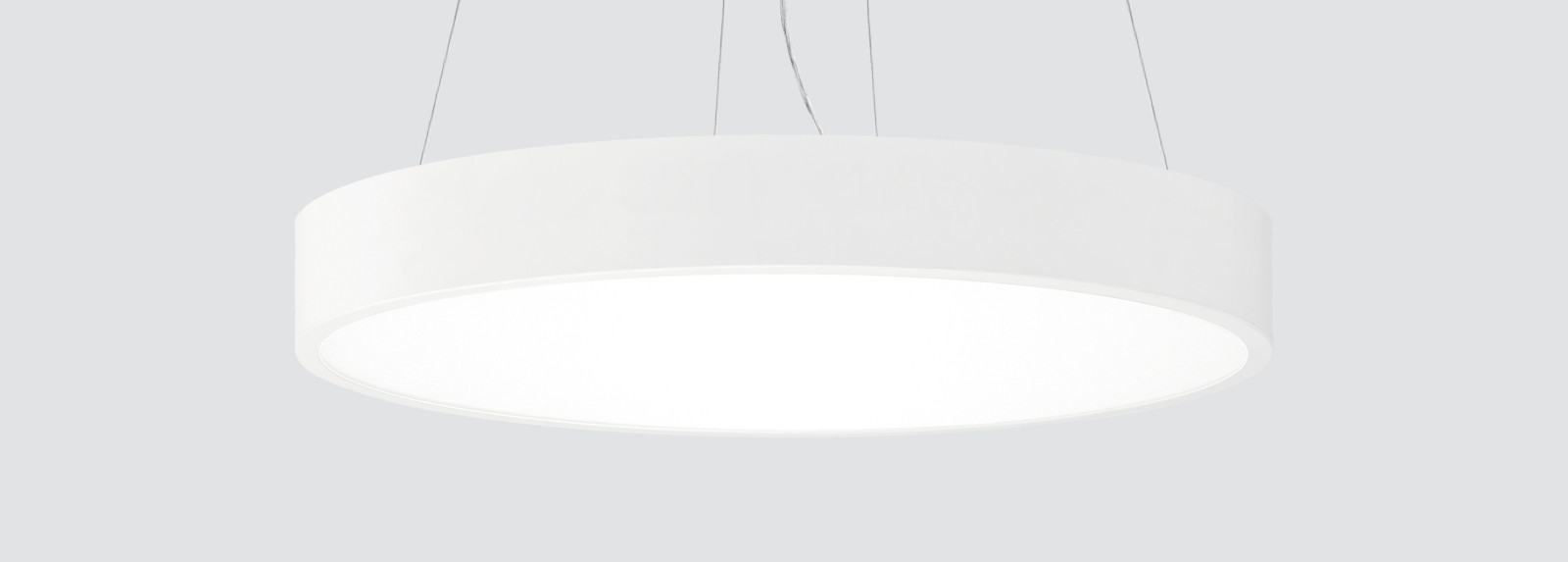

PLACE | Downlights suspendidos

Downlights suspendido con distribución simétrica de la luz para obtener una iluminación eficaz de ambiente.
Diseño circular disponible en 4 diámetros: 350mm, 553mm, 835mm y 1110mm.
Perfil de aluminio pintado en polvo disponible en distintos colores, RAL personalizado bajo pedido.
Difusor de PMMA opal de 3mm.
Placa de circuito impreso de alta eficiencia energética .
Driver inegrado suministrado. Opcions electrónicas estándares para el control de la iluminación: DALI-2 o Bluetooth.
Gestión pasiva de la temperatura: disipación térmica mediante el mismo cuerpo de la luminaria.
Instalación en techo mediante roseta cilíndrica. Suspensión de 1 metro mediante cuatro cables de acero. Cable eléctrico transparente.
PLACE se puede combinar con la línea de luminarias empotrables KUU y CANDRA y con las luminarias aparentes LEDA para conseguir un efecto uniforme.

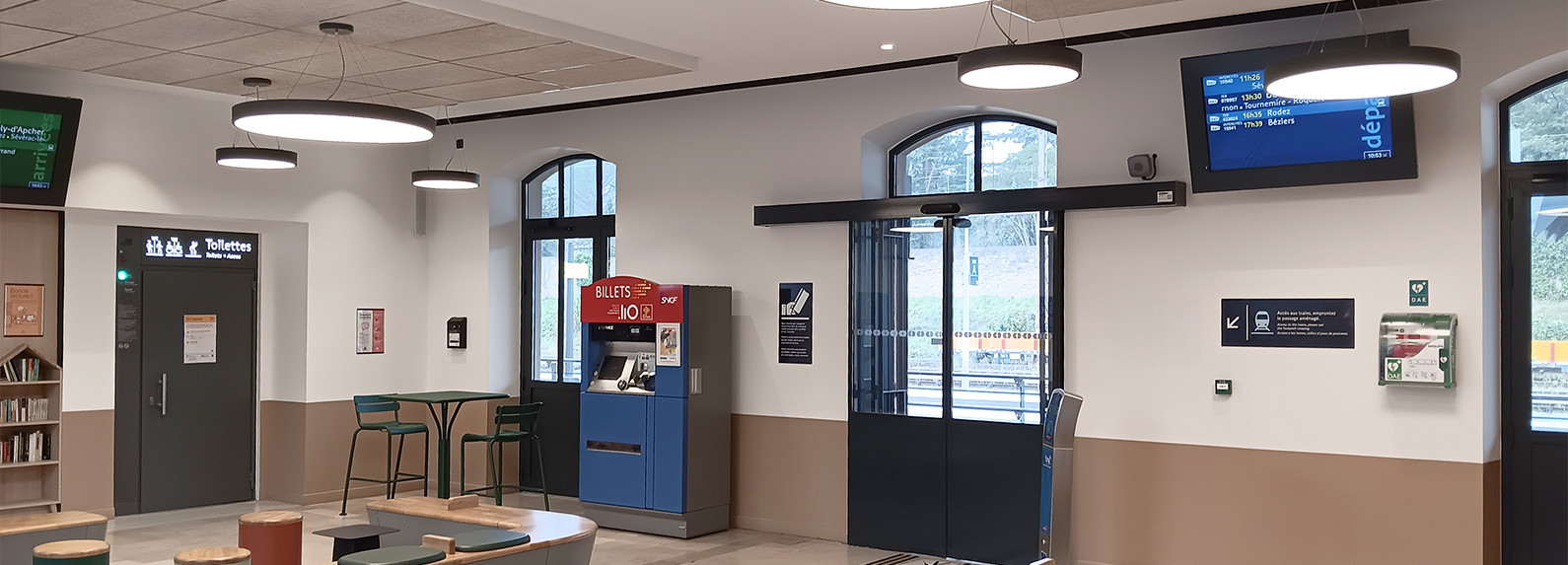

Aplicaciones recomendadas: centros comerciales, vestíbulos de hoteles, oficinas, grandes atrios, aeropuertos, salas de exposición, salas de reuniones, cafeterias e instalaciones similares.

Configurador de producto

FIJA | ORIENTABLE
DIÁMETRO EXTERIOR
ALTURA
TEMPERATURA DE COLOR
CRI
INTENSITAD LUMÍNICA DE LA LUMINARIA
ÁNGULO APERTURA
POTENCIA CONECTADA DE LA LUMINARIA
EQUIPO ELECTRÓNICO

Resultados de la búsqueda

Ángulo
up
Referencia
Potencia conectada de la luminaria
Intensitad lumínica de la luminaria
CRI
Temperatura de Color
Diámetro exterior
Altura
Pendant downlight suspended with four steel wire with opal diffuser F101PLC
gen_downlight5  114º
108PLC.1.02-I2800
17,5 W
2406lm
>80
3000K
350mm - edm
80+1000 mm
Pendant downlight suspended with four steel wire with opal diffuser F101PLC
gen_downlight5  114º
108PLC.1.02-I2801
17,5 W
2527lm
>80
4000K
350mm - edm
80+1000 mm
Pendant downlight suspended with four steel wire with opal diffuser F101PLC
gen_downlight5  114º
108PLC.1.02-I2802
23,6 W
3180lm
>80
3000K
350mm - edm
80+1000 mm
Pendant downlight suspended with four steel wire with opal diffuser F101PLC
gen_downlight5  114º
108PLC.1.02-I2803
23,6 W
3341lm
>80
4000K
350mm - edm
80+1000 mm
Pendant downlight suspended with four steel wire with opal diffuser F101PLC
gen_downlight5  106º
109PLC.1.02-I2804
19,19 W
3002lm
>80
3000K
553mm - edm
80+1000 mm
Pendant downlight suspended with four steel wire with opal diffuser F101PLC
gen_downlight5  106º
109PLC.1.02-I2805
19,19 W
3162lm
>80
4000K
553mm - edm
80+1000 mm
Pendant downlight suspended with four steel wire with opal diffuser F101PLC
gen_downlight5  106º
109PLC.1.02-I2806
25,76 W
4011lm
>80
3000K
553mm - edm
80+1000 mm
Pendant downlight suspended with four steel wire with opal diffuser F101PLC
gen_downlight5  106º
109PLC.1.02-I2807
25,76 W
4228lm
>80
4000K
553mm - edm
80+1000 mm
Pendant downlight suspended with four steel wire with opal diffuser F101PLC
gen_downlight5  106º
109PLC.1.02-I2808
32,38 W
5026lm
>80
3000K
553mm - edm
80+1000 mm
Pendant downlight suspended with four steel wire with opal diffuser F101PLC
gen_downlight5  106º
109PLC.1.02-I2809
32,38 W
5298lm
>80
4000K
553mm - edm
80+1000 mm
Pendant downlight suspended with four steel wire with opal diffuser F101PLC
gen_downlight4  102º
109PLC.1.02-I720
29,9 W
3470lm
>90
2700K-6500K
553mm - edm
80+1000 mm
Pendant downlight suspended with four steel wire with opal diffuser F101PLC
gen_downlight5  108º
110PLC.1.02-I2810
51,37 W
8200lm
>80
3000K
835mm - edm
80+1000 mm
Pendant downlight suspended with four steel wire with opal diffuser F101PLC
gen_downlight5  108º
110PLC.1.02-I2811
51,37 W
8642lm
>80
4000K
835mm - edm
80+1000 mm
Pendant downlight suspended with four steel wire with opal diffuser F101PLC
gen_downlight5  108º
110PLC.1.02-I2812
64,54 W
10271lm
>80
3000K
835mm - edm
80+1000 mm
Pendant downlight suspended with four steel wire with opal diffuser F101PLC
gen_downlight5  108º
110PLC.1.02-I2813
64,54 W
10822lm
>80
4000K
835mm - edm
80+1000 mm
Pendant downlight suspended with four steel wire with opal diffuser F101PLC
gen_downlight4  102º
110PLC.1.02-I721
59,9 W
6605lm
>90
2700K-6500K
835mm - edm
80+1000 mm
Pendant downlight suspended with four steel wire with opal diffuser F101PLC
gen_downlight5  108º
111PLC.1.02-I2814
98,73 W
16522lm
>80
3000K
1110mm - edm
80+1000 mm
Pendant downlight suspended with four steel wire with opal diffuser F101PLC
gen_downlight5  108º
111PLC.1.02-I2815
98,73 W
17406lm
>80
4000K
1110mm - edm
80+1000 mm
Pendant downlight suspended with four steel wire with opal diffuser F101PLC
gen_downlight5  108º
111PLC.1.02-I2816
126,82 W
20082lm
>80
3000K
1110mm - edm
80+1000 mm
Pendant downlight suspended with four steel wire with opal diffuser F101PLC
gen_downlight5  108º
111PLC.1.02-I2817
126,82 W
21160lm
>80
4000K
1110mm - edm
80+1000 mm
