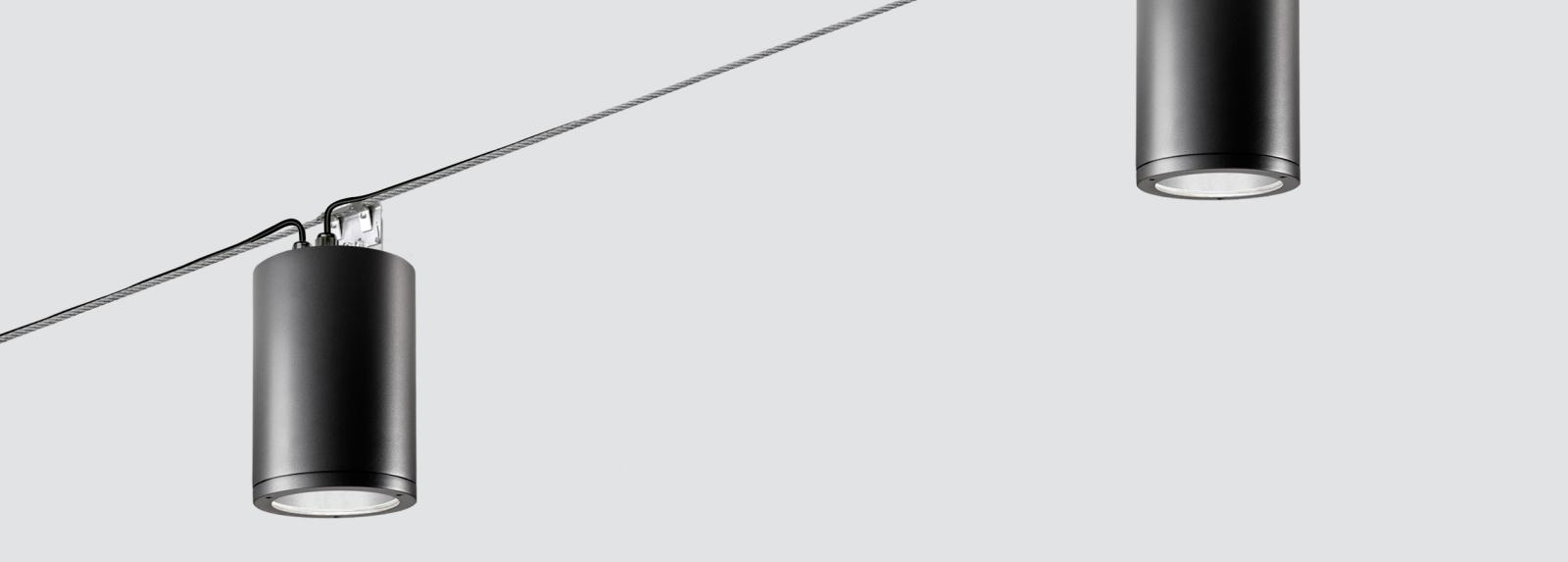

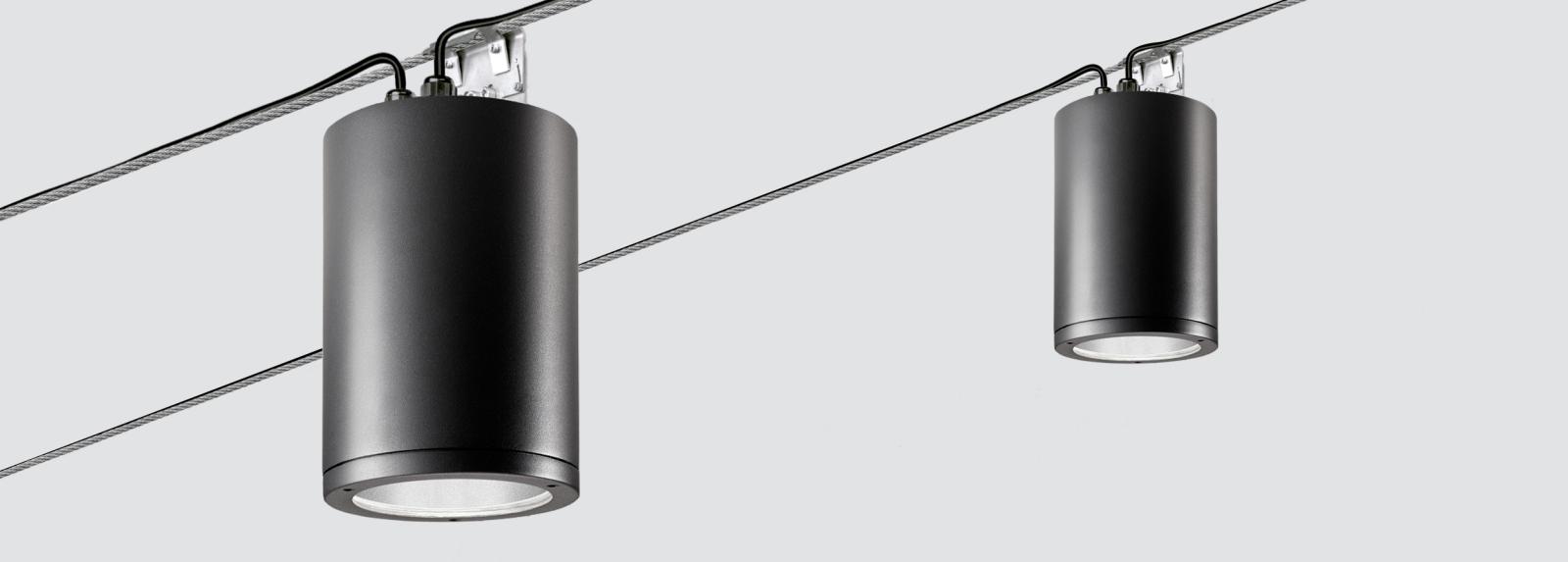

AERIAL | IP65 Pendant downlights for catenary systems

AERIAL | IP65 Pendant downlights for catenary systems

Pendant downlights with symmetrical light distribution.
Cylindrical design available in 2 diameters 180mm and 235mm.
Protection rating against dust and moisture: complete IP65.
Protection rating for resistance to harmful mechanical impacts: IK07.
Robust body and trim made of die-cast aluminium treated against corrosion and coated with polyester powder available in various colour finishes, customized RAL under request.
Special C5-M coating for environments with very high corrosivity is available under request.
High-purity aluminium reflectors in various finishes depending on the beam angle outcome.
5mm tempered protection glass clear as standard, other finishes under request.
Polycarbonate diffuser as option to get IK10 protection degree.
Temperature resistant silicone rubber gasket.
Anti-condensation device.
Optional supply of 304 stainless steel vandal-resistant screws.
Integral driver included.
Passive temperature management: heat dissipation via the fixture body itself.

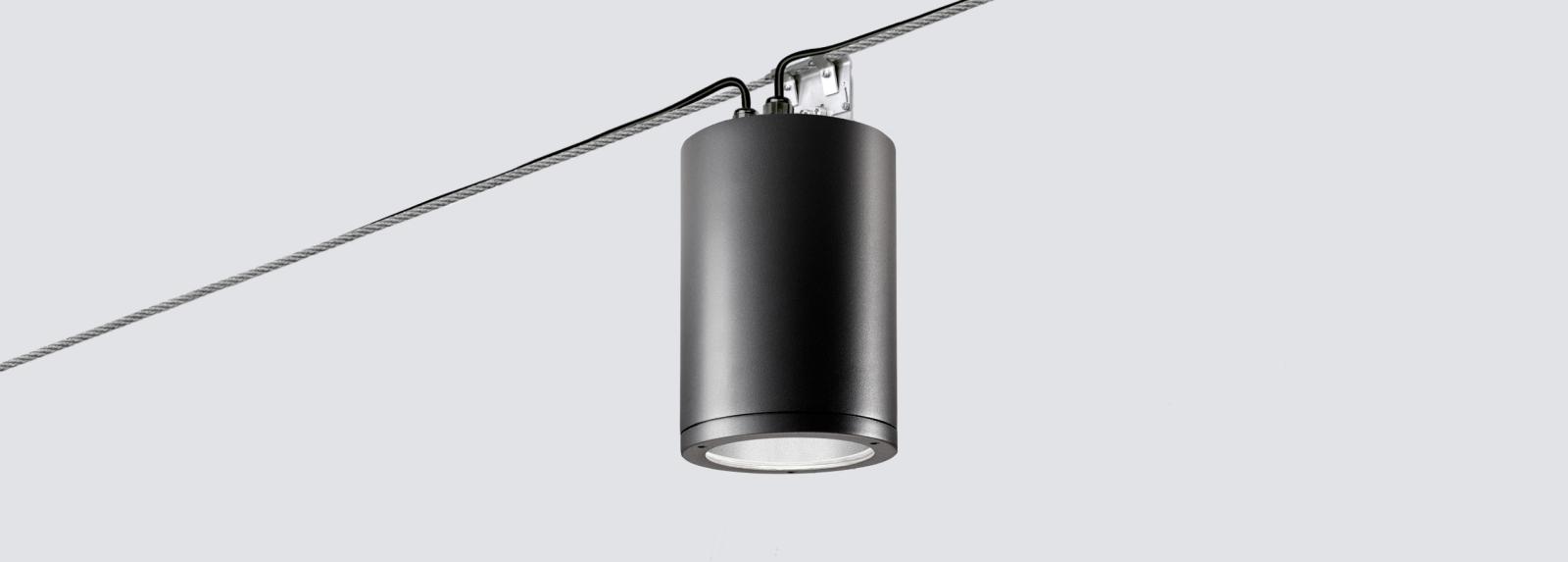

Cable hanger made in stainless steel 316L. Adjustable 0º, 5º, 10º,15º or 20º to compensate for sloping catenary system.
Double cable gland entry for installation in series.

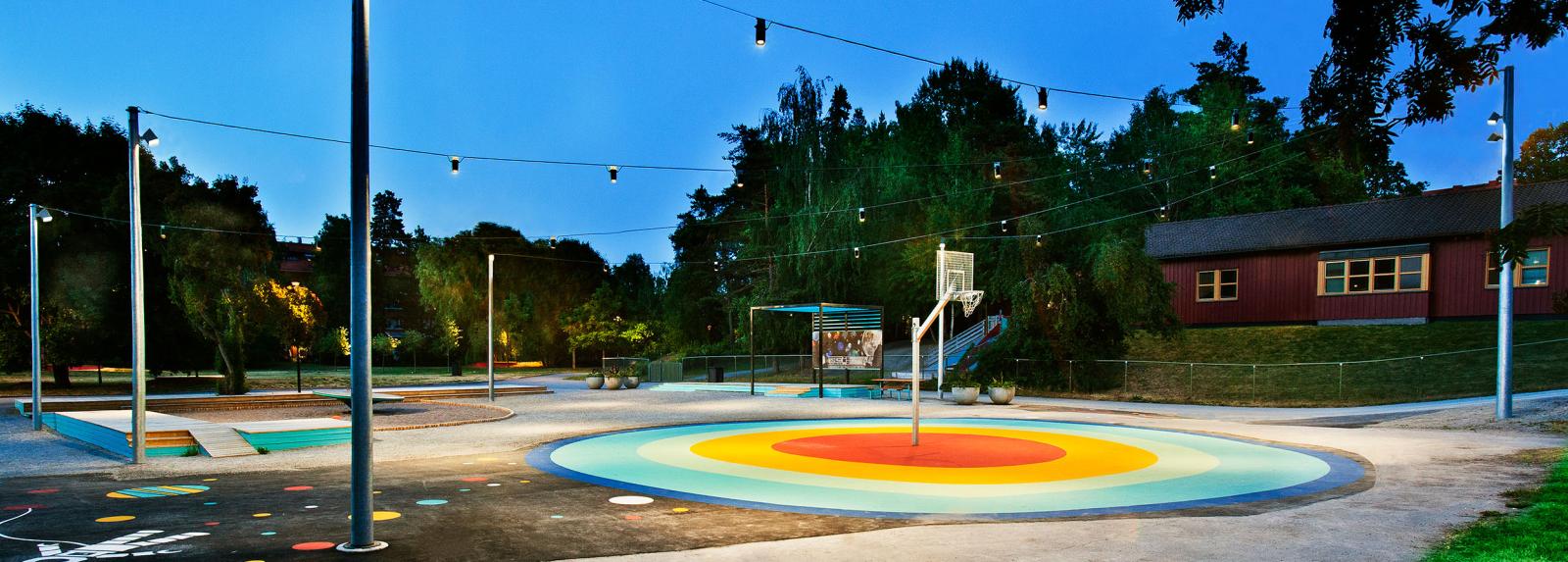

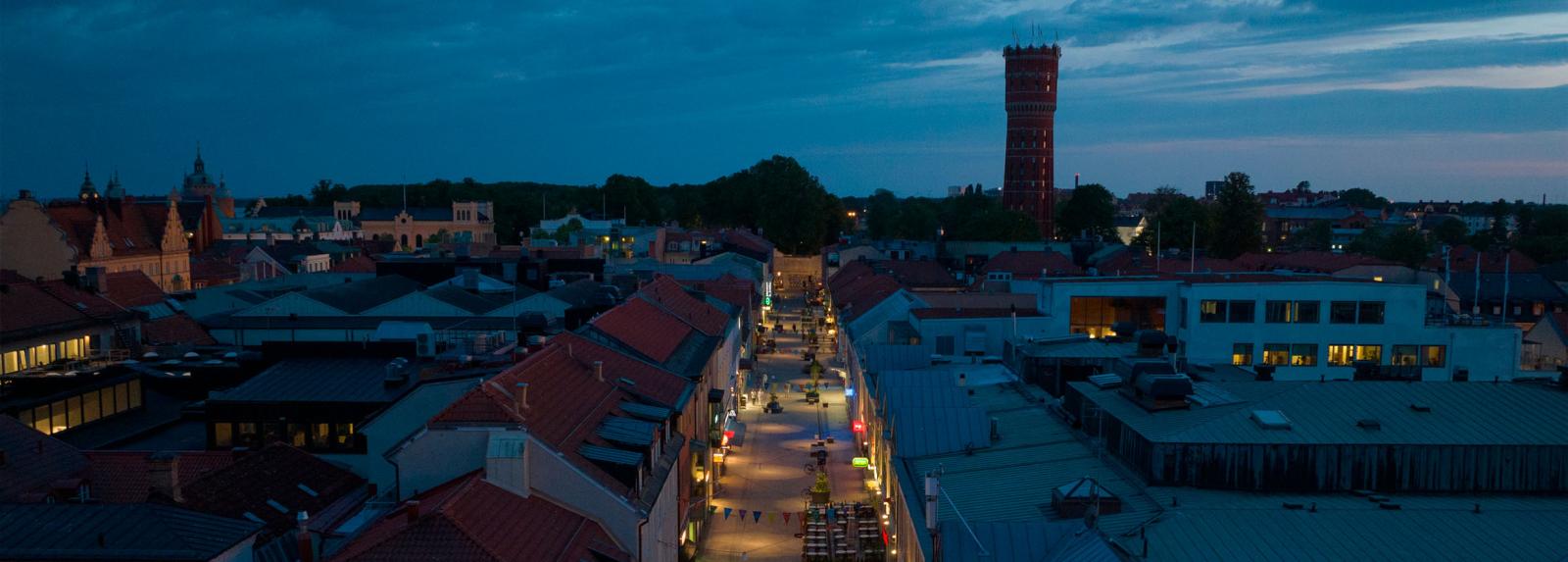

Suggested applications : arcades, galleries, passageways, streets.

PRODUKT KONFIGURATOR

EINSTELLBAR

Außendurchmesser

Höhe

Farbtemperatur

CRI

Leuchten Lichtstrom

Winkel

Watt

Elektronische Ausrüstung

SUCHERGEBNISSE

Winkel
Article
Watt
Leuchten Lichtstrom
CRI
Ähnlichste Farbtemperatu
Außendurchmesser
Einbautiefe
F122ARL_124ARL
acc_downlight2  19
122ARL.1.01-I1163
4.7W
571lm
>80
2700K
120mm
191mm
F122ARL_124ARL
acc_downlight2  19
122ARL.1.01-I1164
4.7W
594lm
>80
3000K
120mm
191mm
F122ARL_124ARL
acc_downlight2  19
122ARL.1.01-I1165
4.7W
617lm
>80
4000K
120mm
191mm
F122ARL_124ARL
acc_downlight2  19
122ARL.1.01-I1166
8W
949lm
>80
2700K
120mm
191mm
F122ARL_124ARL
acc_downlight2  19
122ARL.1.01-I1167
8W
989lm
>80
3000K
120mm
191mm
F122ARL_124ARL
acc_downlight2  19
122ARL.1.01-I1168
8W
1033lm
>80
4000K
120mm
191mm
F122ARL_124ARL
acc_downlight2  19
122ARL.1.01-I1169
9.7W
1142lm
>80
2700K
120mm
191mm
F122ARL_124ARL
acc_downlight2  19
122ARL.1.01-I1170
9.7W
1134lm
>80
3000K
120mm
191mm
F122ARL_124ARL
acc_downlight2  19
122ARL.1.01-I1171
9.7W
1229lm
>80
4000K
120mm
191mm
F122ARL_124ARL
acc_downlight2  25
123ARL.1.01-I1163
4.7W
571lm
>80
2700K
120mm
191mm
F122ARL_124ARL
acc_downlight2  25
123ARL.1.01-I1164
4.7W
594lm
>80
3000K
120mm
191mm
F122ARL_124ARL
acc_downlight2  25
123ARL.1.01-I1165
4.7W
617lm
>80
4000K
120mm
191mm
F122ARL_124ARL
acc_downlight2  25
123ARL.1.01-I1166
8W
949lm
>80
2700K
120mm
191mm
F122ARL_124ARL
acc_downlight2  25
123ARL.1.01-I1167
8W
989lm
>80
3000K
120mm
191mm
F122ARL_124ARL
acc_downlight2  25
123ARL.1.01-I1168
8W
1033lm
>80
4000K
120mm
191mm
F122ARL_124ARL
acc_downlight2  25
123ARL.1.01-I1169
9.7W
1142lm
>80
2700K
120mm
191mm
F122ARL_124ARL
acc_downlight2  25
123ARL.1.01-I1170
9.7W
1134lm
>80
3000K
120mm
191mm
F122ARL_124ARL
acc_downlight2  25
123ARL.1.01-I1171
9.7W
1229lm
>80
4000K
120mm
191mm
F122ARL_124ARL
gen_downlight3  34
124ARL.1.01-I1163
4.7W
540lm
>80
2700K
120mm
191mm
F122ARL_124ARL
gen_downlight3  34
124ARL.1.01-I1164
4.7W
563lm
>80
3000K
120mm
191mm
