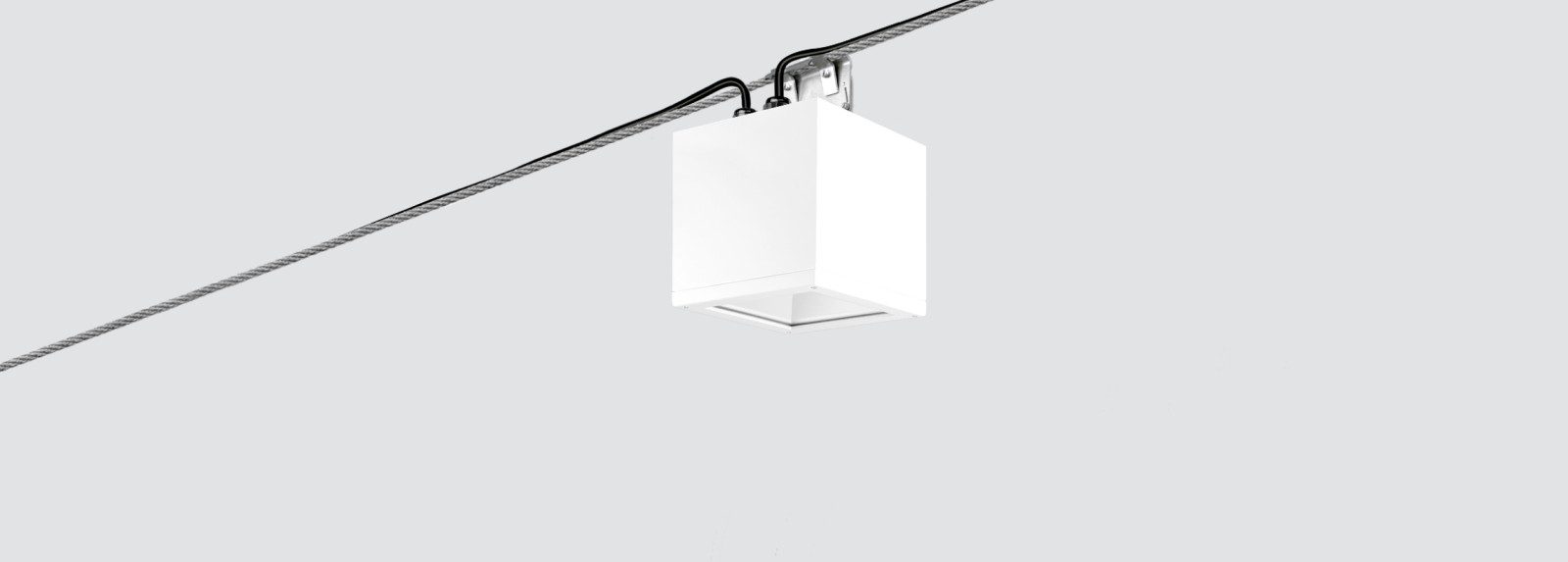

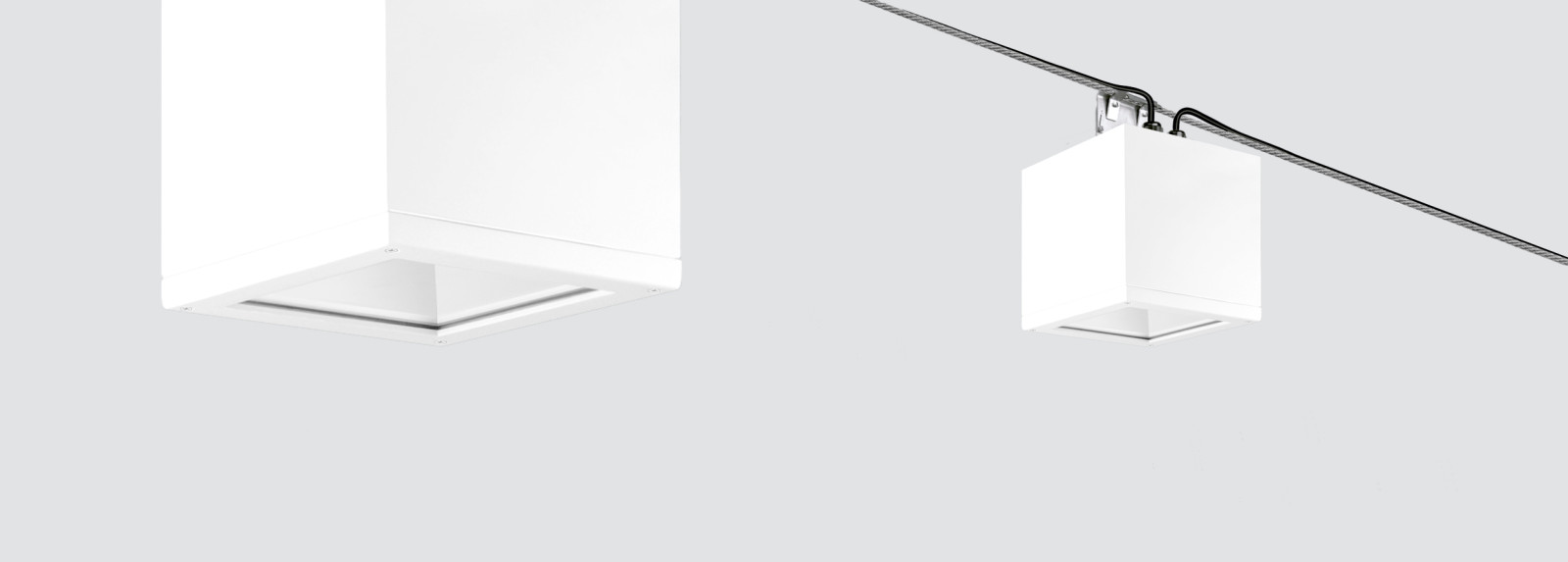

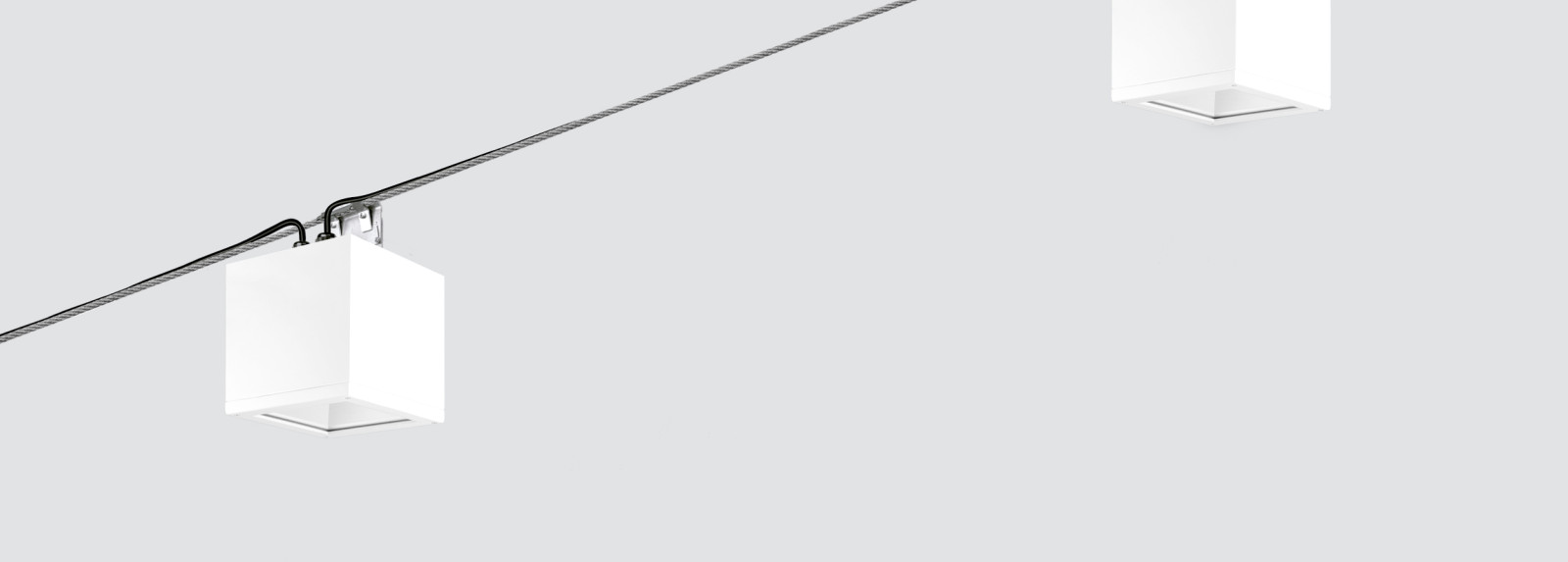

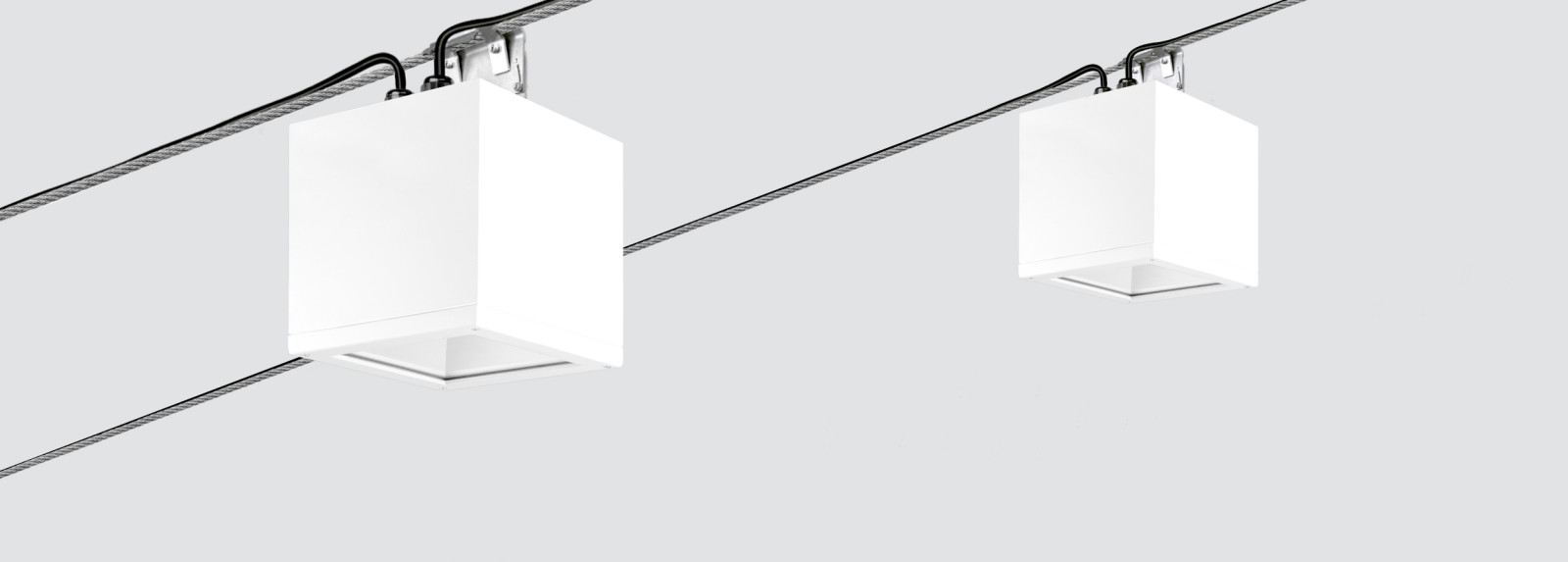

AERIAL SQ | IP65 Pendant downlights for catenary systems

AERIAL SQ | IP65 Pendant downlights for catenary systems

Pendant downlights with symmetrical light distribution.
Cubic design available in 2 sizes: 212mm x 212mm and 277mm x 277mm.
Protection rating against dust and moisture: complete IP65.
Protection rating for resistance to harmful mechanical impacts: IK07.
Robust body and trim made of die-cast aluminium treated against corrosion and coated with polyester powder available in various colour finishes, customized RAL under request.
Special C5-M coating for environments with very high corrosivity is available under request.
High-purity aluminium reflectors in various finishes depending on the beam angle outcome.
5mm tempered protection glass clear as standard, other finishes under request.
Polycarbonate diffuser as option to get IK10 protection degree.
Temperature resistant silicone rubber gasket.
Anti-condensation device.
Optional supply of 304 stainless steel vandal-resistant screws.
Integral driver included.
Passive temperature management: heat dissipation via the fixture body itself.
Cable hanger made in stainless steel 316L. Adjustable 0º, 5º, 10º,15º or 20º to compensate for sloping catenary system.
Double cable gland entry for installation in series.

Suggested applications : arcades, galleries, passageways, streets.

PRODUKT KONFIGURATOR

EINSTELLBAR

Außenmaße

Höhe

Farbtemperatur

CRI

Leuchten Lichtstrom

Winkel

Watt

Elektronische Ausrüstung

SUCHERGEBNISSE

Winkel
Article
Watt
Leuchten Lichtstrom
CRI
Ähnlichste Farbtemperatu
Außenabmessungen
Einbautiefe
F101ASQ
gen_downlight4  50
101ASQ.1.01-I863
11W
1235lm
>80
2700K
212mm x 212mm
199mm
F101ASQ
gen_downlight4  50
101ASQ.1.01-I864
11W
1285lm
>80
3000K
212mm x 212mm
199mm
F101ASQ
gen_downlight4  50
101ASQ.1.01-I865
11W
1339lm
>80
4000K
212mm x 212mm
199mm
F101ASQ
gen_downlight4  72
103ASQ.1.01-I863
11W
1450lm
>80
2700K
212mm x 212mm
199mm
F101ASQ
gen_downlight4  72
103ASQ.1.01-I864
11W
1510lm
>80
3000K
212mm x 212mm
199mm
F101ASQ
gen_downlight4  72
103ASQ.1.01-I865
11W
1573lm
>80
4000K
212mm x 212mm
199mm
F101ASQ
gen_downlight4  50
101ASQ.1.01-I869
17W
1736lm
>80
2700K
212mm x 212mm
199mm
F101ASQ
gen_downlight4  50
101ASQ.1.01-I870
17W
1808lm
>80
3000K
212mm x 212mm
199mm
F101ASQ
gen_downlight4  50
101ASQ.1.01-I871
17W
1884lm
>80
4000K
212mm x 212mm
199mm
F101ASQ
gen_downlight4  72
103ASQ.1.01-I869
17W
2039lm
>80
2700K
212mm x 212mm
199mm
F101ASQ
gen_downlight4  72
103ASQ.1.01-I870
17W
2124lm
>80
3000K
212mm x 212mm
199mm
F101ASQ
gen_downlight4  72
103ASQ.1.01-I871
17W
2213lm
>80
4000K
212mm x 212mm
199mm
F101ASQ
gen_downlight4  51
101ASQ.1.01-I881
23W
2145lm
>80
2700K
212mm x 212mm
199mm
F101ASQ
gen_downlight4  51
101ASQ.1.01-I882
23W
2233lm
>80
3000K
212mm x 212mm
199mm
F101ASQ
gen_downlight4  51
101ASQ.1.01-I883
23W
2329lm
>80
4000K
212mm x 212mm
199mm
F101ASQ
gen_downlight4  74
103ASQ.1.01-I881
23W
2613lm
>80
2700K
212mm x 212mm
199mm
F101ASQ
gen_downlight4  74
103ASQ.1.01-I882
23W
2720lm
>80
3000K
212mm x 212mm
199mm
F101ASQ
gen_downlight4  74
103ASQ.1.01-I883
23W
2837lm
>80
4000K
212mm x 212mm
199mm
F101ASQ
gen_downlight4  51
101ASQ.1.01-I888
35W
3270lm
>80
3000K
212mm x 212mm
199mm
F101ASQ
gen_downlight4  51
101ASQ.1.01-I887
35W
3141lm
>80
2700K
212mm x 212mm
199mm
