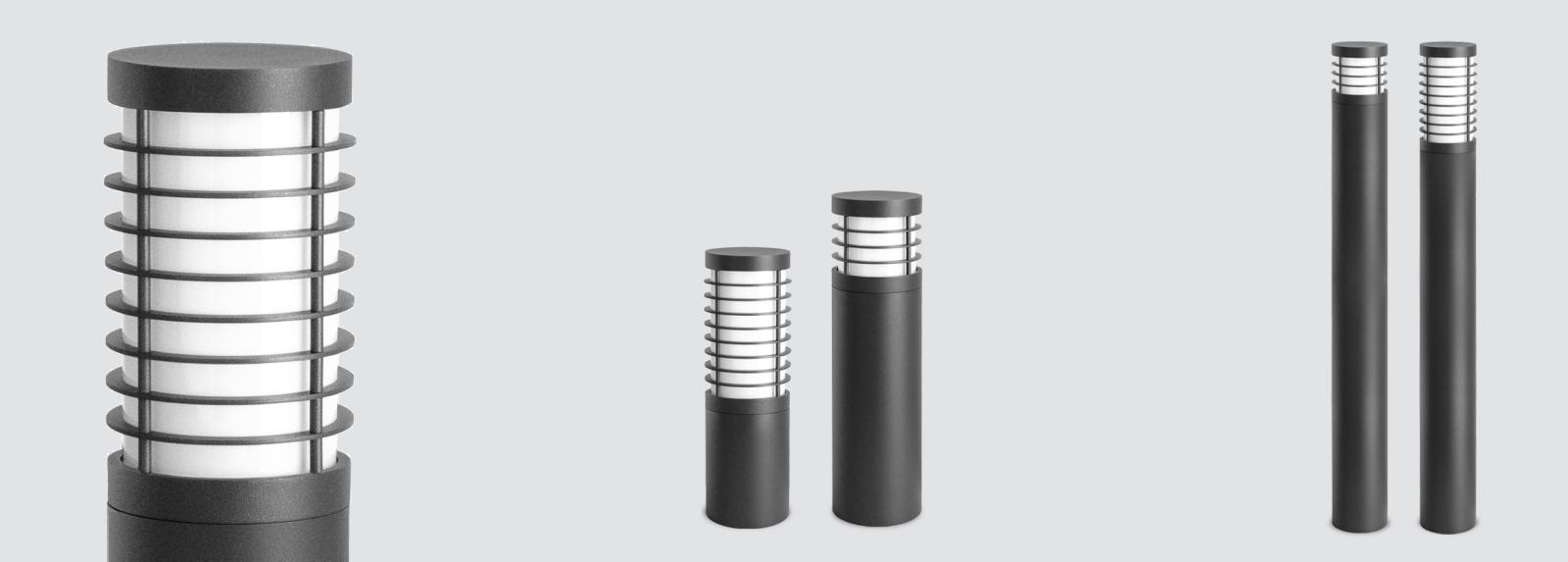

COLUTEA 100  |  IP66 Bollards with trims

COLUTEA 100 | IP66 Bollards with trims

Bollard with 360º light emission, radial beam.
Bollard head with a diameter of 110mm or 140mm.
Available in 4 heights.
Protection rating against dust and moisture: IP66 – full protection.
Protection rating for resistance against harmful mechanical impacts: IK10.
Die-cast aluminium body and top cover treated for corrosion resistance (nanophoresis) and covered with a polyester powder coating to guarantee durability. Textured paint finish.
Special coating for environments with very high corrosivity is available under request.
Extruded aluminium tube with corrosion resistance treatment and finish according to the head finish.
7mm òpal borosilicate glass or 5mm extruded polycarbonate diffuser made by resins UV rays stabilized with òpal finish.
Aluminium disks to get specific photometric results and to increase visual comfort.
Silicone gasket.
Anticondensation device.
PCB on the top of the fixture.
Built-in driver included.
Electronic options for light control : DALI.
Pre-wiring with 25cm of 3x1mm2 cable.
Double cable gland entry for installation in series.
IP68 connector not included, it can be ordered separately.

PRODUKT KONFIGURATOR

EINSTELLBAR

Außendurchmesser

Höhe

IK

Farbtemperatur

CRI

Leuchten Lichtstrom

Winkel

Diffusor

Watt

Elektronische Ausrüstung

SUCHERGEBNISSE

Winkel
Article
Watt
Leuchten Lichtstrom
CRI
Ähnlichste Farbtemperatu
Außendurchmesser
Einbautiefe
F120CLX_130CLX
360  360
120CLX.4-I1197
4.84W
321lm
80
3000K
110mm
300mm
F120CLX_130CLX
360  360
120CLX.4-I1198
4.84W
346lm
80
4000K
110mm
300mm
F120CLX_130CLX
360  360
120CLX.4-I1200
6.53W
426lm
80
3000K
110mm
300mm
F120CLX_130CLX
360  360
120CLX.4-I1201
6.53W
456lm
80
4000K
110mm
300mm
F120CLX_130CLX
360  360
120CLX.4-I1203
8.27W
524lm
80
3000K
110mm
300mm
F120CLX_130CLX
360  360
120CLX.4-I1204
8.27W
564lm
80
4000K
110mm
300mm
F122CLX_132CLX
360  360
122CLX.4-I1197
4.84W
321lm
80
3000K
110mm
500mm
F122CLX_132CLX
360  360
122CLX.4-I1198
4.84W
346lm
80
4000K
110mm
500mm
F122CLX_132CLX
360  360
122CLX.4-I1200
6.53W
426lm
80
3000K
110mm
500mm
F122CLX_132CLX
360  360
122CLX.4-I1201
6.53W
456lm
80
4000K
110mm
500mm
F122CLX_132CLX
360  360
122CLX.4-I1203
8.27W
524lm
80
3000K
110mm
500mm
F122CLX_132CLX
360  360
122CLX.4-I1204
8.27W
564lm
80
4000K
110mm
500mm
F124CLX_134CLX
360  360
124CLX.4-I1197
4.84W
321lm
80
3000K
110mm
1000mm
F124CLX_134CLX
360  360
124CLX.4-I1198
4.84W
346lm
80
4000K
110mm
1000mm
F124CLX_134CLX
360  360
124CLX.4-I1200
6.53W
426lm
80
3000K
110mm
1000mm
F124CLX_134CLX
360  360
124CLX.4-I1201
6.53W
456lm
80
4000K
110mm
1000mm
F124CLX_134CLX
360  360
124CLX.4-I1203
8.27W
524lm
80
3000K
110mm
1000mm
F124CLX_134CLX
360  360
124CLX.4-I1204
8.27W
564lm
80
4000K
110mm
1000mm
F126CLX_136CLX
360  360
126CLX.4-I1197
4.84W
321lm
80
3000K
110mm
1500mm
F126CLX_136CLX
360  360
126CLX.4-I1198
4.84W
346lm
80
4000K
110mm
1500mm
