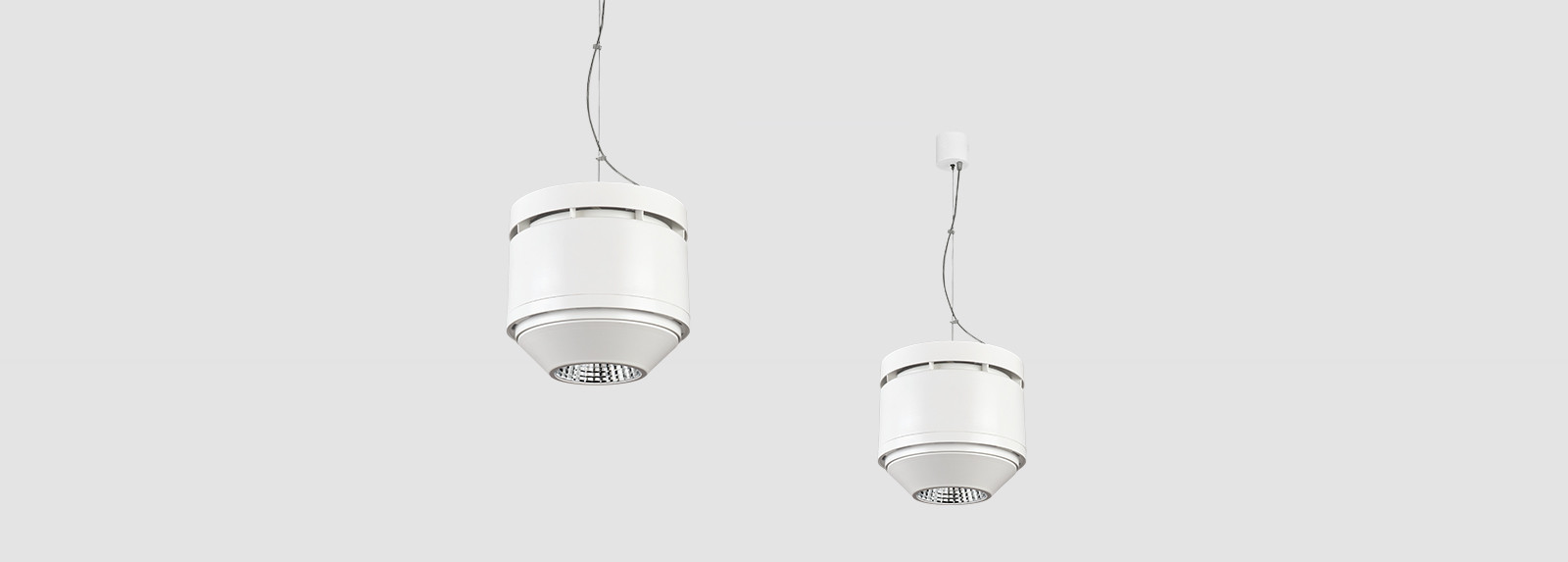

SUMMIT

SUMMIT


Pendant downlights with symmetrical light distribution to achieve an effective task or general lighting.
Aluminium reflector to control and direct the light. Powder painted aluminium body available in various finishes, customized RAL under request.
Integral driver included. Electronic standard options for lighting control: DALI/ DSI or 1-10V.
Passive temperature management: heat dissipation flows through an aluminium heat sink and the fixture body itself.
Delivered with 1 meter steel cord suspension as standard.
Mounted to the ceiling by cylindrical ceiling rose.
For a more dynamic result, it can be supplied with an adapter for three-phase track.

Suggested applications: shopping centers, leisure areas, showrooms, sport centers, cafeterias, industrial facilities and similar installations. Solid ceilings, where there is not enough space for recessed mounting. A very good solution for high ceilings because it enables the lighting point to be brought near to the work plane.

Produkt konfigurator

EINSTELLBAR

Außendurchmesser

Ähnlichste Farbtemperatur

Farbwiedergabeindex

UGR

Winkel

Watt

ZUBEHÖR

Suchergebnisse
Winkel
Article
Watt
Leuchten Lichtstrom
Farbwiedergabeindex
Ähnlichste Farbtemperatur
Außendurchmesser
Einbautiefe

12º
11W
1784lm
>80
2700K
215mm
224mm+ 1000mm
101SMM.1-I863
Datenblatt
Photometrie IES
Photometrie LDT


12º
17W
2507lm
>80
2700K
215mm
224mm+ 1000mm
101SMM.1-I869
Datenblatt
Photometrie IES
Photometrie LDT


12º
11W
1856lm
>80
3000K
215mm
224mm+ 1000mm
101SMM.1-I864
Datenblatt
Photometrie IES
Photometrie LDT


12º
17W
2612lm
>80
3000K
215mm
224mm+ 1000mm
101SMM.1-I870
Datenblatt
Photometrie IES
Photometrie LDT


12º
11W
1934lm
>80
4000K
215mm
224mm+ 1000mm
101SMM.1-I865
Datenblatt
Photometrie IES
Photometrie LDT


12º
17W
2721lm
>80
4000K
215mm
224mm+ 1000mm
101SMM.1-I871
Datenblatt
Photometrie IES
Photometrie LDT


12º
11W
1474lm
>90
2700K
215mm
224mm+ 1000mm
101SMM.1-I866
Datenblatt
Photometrie IES
Photometrie LDT


12º
17W
2075lm
>90
2700K
215mm
224mm+ 1000mm
101SMM.1-I872
Datenblatt
Photometrie IES
Photometrie LDT


12º
11W
1574lm
>90
3000K
215mm
224mm+ 1000mm
101SMM.1-I867
Datenblatt
Photometrie IES
Photometrie LDT


12º
17W
2211lm
>90
3000K
215mm
224mm+ 1000mm
101SMM.1-I873
Datenblatt
Photometrie IES
Photometrie LDT


12º
11W
1652lm
>90
4000K
215mm
224mm+ 1000mm
101SMM.1-I868
Datenblatt
Photometrie IES
Photometrie LDT


12º
17W
2321lm
>90
4000K
215mm
224mm+ 1000mm
101SMM.1-I874
Datenblatt
Photometrie IES
Photometrie LDT


24º
11W
1784lm
>80
2700K
215mm
224mm+ 1000mm
102SMM.1-I863
Datenblatt
Photometrie IES
Photometrie LDT


24º
17W
2507lm
>80
2700K
215mm
224mm+ 1000mm
102SMM.1-I869
Datenblatt
Photometrie IES
Photometrie LDT


24º
11W
1856lm
>80
3000K
215mm
224mm+ 1000mm
102SMM.1-I864
Datenblatt
Photometrie IES
Photometrie LDT
