BOLET 101BLT.4-I1193





Semi-recessed buried fixture with 360º light emission, radial beam to achieve an effective ground illumination.
Circular design available in a diameter of 140mm.
Protection rating against dust and moisture: complete IP67.
Protection rating for resistance to harmful mechanical impacts: IK10.
Robust and corrosion-resistant because of its black painted die-cast aluminium housing with C5-M special coating for environments with very high corrosivity.
Cover made of die-cast aluminium treated against corrosion and coated with polyester powder available in several colour finishes, customized RAL under request.
5mm extruded polycarbonate diffuser made by resins UV stabilized. Opal finish.
Temperature resistant silicone rubber gasket.
Integral driver included.
Electronic standard options for lighting control: DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
Passive temperature management: heat dissipation flows through the fixture body itself.
Supplied with aluminium insertion tube as standard.
Ground mounted by two fixing holes.
Pre-wiring of 0.5 metres cable 3x1mm2.
IP68 connector not included, it can be ordered separately: F3.A3. (On/Off) / F3.A5. (DALI).

DESCARGAS
ACCESORIOS Y ACABADOS

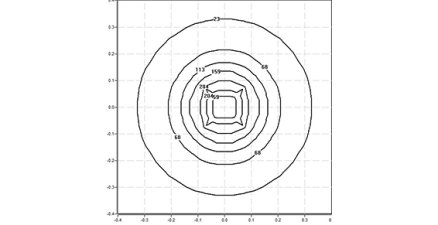

CARACTERÍSTICAS FOTOMÉTRICAS
- Leuchten Lichtstrom: 143lm
- Leuchten Lichtausbeute: 7.6 lm/W
- Lichtquelle Lichtstrom: 2159lm
- CRI: 90
- Ähnlichste Farbtemperatu: 2700K
- Farborttoleranz: MacAdam 3
- Dieses Produkt enthält eine Lichtquelle der Energieeffizienzklasse: E
- Bemessene Lebensdauer der LEDs bei Ta = 25ºC: 53.000h L80B10

DATOS TÉCNICOS
- Klasse: I
- IP: 67
- Glühdraht: 850 ºC
- Deckenausschnitt: 140mm
- Außendurchmesser: 148mm
- Gewicht: 2.65 Kg


CARACTERÍSTICAS ELÉCTRICAS
- Leuchten Anschlussleistung: 18.8 W
- Lichtquelle Watt: 16.84 W
- mA: 500 mA
ELEKTRONISCHE AUSRÜSTUNG:
-
S: On/Off (AC/DC, NOT looping through capable)
-
D: DALI-2/switchDIM/corridorFUNCTION
-
B: Bluetooth-Casambi [ 5m ]
ACABADOS ESTÁNDARES
-
80 Corten -
90 : RAL6005 Moogrün -
7: RAL9006: Weißaluminium -
4: RAL7016: Anthrazitgrau -
2: RAL9005: Tiefschwarz -
1: RAL9010: Reinweiß
Todos los colores RAL están disponibles bajo pedido.
DATOS TÉCNICOS
- Klasse: I
- IP: 67
- Glühdraht: 850 ºC
- Deckenausschnitt: 140mm
- Außendurchmesser: 148mm
- Gewicht: 2.65 Kg


ACABADOS ESTÁNDARES
-
80 Corten -
90 : RAL6005 Moogrün -
7: RAL9006: Weißaluminium -
4: RAL7016: Anthrazitgrau -
2: RAL9005: Tiefschwarz -
1: RAL9010: Reinweiß
Todos los colores RAL están disponibles bajo pedido.
