SAUCER 102SCR.1.01-I2104

CLASS1 IP65 IK10 FIL850 ACDC +RAL CE

Vandal-resistant pendant downlights with symmetrical light distribution.
Circular design in diameter 345mm.
Protection rating against dust and moisture: complete IP65.
Protection rating for resistance to harmful mechanical impacts: IK10.
Robust body made of die-cast aluminium and trim coated with polyester powder along with C4 treatment for corrosion resistance to guarantee further durability. Textured paint finish. Different RAL colour finishes available under request. C5-M special coating for highly corrosive environments is available under request.
Sandablasted metallized aluminium reflector.
Impact resistant cover made of clear polycarbonate (IK10) as standard.
Temperature resistant silicone rubber gasket.
IP67 breathing valve to reduce condensation.
A4 stainless steel locking screw. Optional supply of A2 stainless steel vandal-resistant screws [reference F2.A0345+F2.A1].
Built-in driver, included. Ambient temperature: up to 50ºC.
Electronic options for lighting control: DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
Passive temperature management: heat dissipation via the fixture body itself.
Cable hanger made in stainless steel 316L. Adjustable 0º, 5º, 10º,15º or 20º to compensate for sloping catenary system.
Cable entry from the top of the fixture. Double cable gland entry for installation in series.

F102SCR

DESCARGAS

Datenblatt
Produkt Beschreibung
Photometrie IES
Photometrie LDT
CE Konformitätserklärung
Montageanleitung
Maßskizze
Produktabbildung
Descargar todo

ACCESORIOS Y ACABADOS

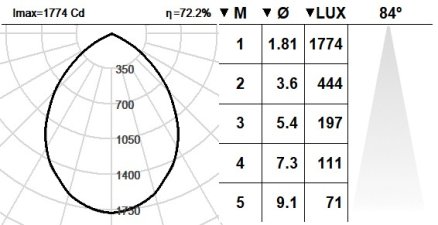

CARACTERÍSTICAS FOTOMÉTRICAS

  • Leuchten Lichtstrom: 3092lm
  • Leuchten Lichtausbeute: 128 lm/W
  • Lichtquelle Lichtstrom: 4295lm
  • CRI: >80
  • Ähnlichste Farbtemperatu: 4000K
  • Farborttoleranz: MacAdam 3
  • Winkel: 84
  • Dieses Produkt enthält eine Lichtquelle der Energieeffizienzklasse: C
  • Bemessene Lebensdauer der LEDs bei Ta = 25ºC: 100.000h L90B10
  • Cd/Klm: 413
102SCR.1.01-I2104

DATOS TÉCNICOS

  • Klasse: I
  • IP: 65
  • Glühdraht: 850 ºC
  • Außendurchmesser: 345mm
  • Gewicht: 3.84 Kg
D102SCR DP102SCR

CARACTERÍSTICAS ELÉCTRICAS

  • Leuchten Anschlussleistung: 24,2 W
  • Lichtquelle Watt: 21,8 W
  • mA: 700 mA

ELEKTRONISCHE AUSRÜSTUNG:

  • S: On/Off (AC/DC, NOT looping through capable)

  • SE: On/Off (AC/DC) + Battery 3h

  • D: DALI-2/switchDIM/corridorFUNCTION

  • DE: DALI-2/switchDIM/corridorFUNCTION + 3 hours battery

  • B: Bluetooth-Casambi [ 15m ]

Actualizable, sustituible, reparable
Actualizable, sustituible, reparable icono 2 Actualizable, sustituible, reparable icono 1

ACABADOS ESTÁNDARES

  • 80 Corten 80 Corten
  • 90 : RAL6005 Moogrün 90 : RAL6005 Moogrün
  • 7: RAL9006: Weißaluminium 7: RAL9006: Weißaluminium
  • 4: RAL7016: Anthrazitgrau 4: RAL7016: Anthrazitgrau
  • 2: RAL9005: Tiefschwarz 2: RAL9005: Tiefschwarz
  • 1: RAL9010: Reinweiß 1: RAL9010: Reinweiß

Todos los colores RAL están disponibles bajo pedido.

DATOS TÉCNICOS

  • Klasse: I
  • IP: 65
  • Glühdraht: 850 ºC
  • Außendurchmesser: 345mm
  • Gewicht: 3.84 Kg
D102SCR DP102SCR

ACABADOS ESTÁNDARES

  • 80 Corten 80 Corten
  • 90 : RAL6005 Moogrün 90 : RAL6005 Moogrün
  • 7: RAL9006: Weißaluminium 7: RAL9006: Weißaluminium
  • 4: RAL7016: Anthrazitgrau 4: RAL7016: Anthrazitgrau
  • 2: RAL9005: Tiefschwarz 2: RAL9005: Tiefschwarz
  • 1: RAL9010: Reinweiß 1: RAL9010: Reinweiß

Todos los colores RAL están disponibles bajo pedido.
