MOVE 100 107MOV.1-R2073
Recessed spots with symmetrical light distribution to achieve an effective task, accent or general lighting.
Cylindrical design in diameter 120mm.
Articulated arm adjustable 0º,15º, 30º, 45º, 60º, 75º and 90º and with 355º rotation around the vertical axis.
Facetted metalized or sandblasted metalized aluminium reflector.
Powder painted aluminium body and arm available in assorted finishes, customized RAL under request.
Die-cast aluminium recessed base supplied with the same finish as the light fixture.
Optional anti-glare accessories for more visual comfort.
Remote driver included.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
Passive temperature management: heat dissipation flows through aluminium heat sink.
Mounted to the ceiling by two fixing points.
Leuchten Lichtstrom: 2625lm
Leuchten Anschlussleistung: 17,1 W
Leuchten Lichtausbeute: 154 lm/W
Lichtquelle Lichtstrom: 2885lm
Lichtquelle Watt: 15,43 W
mA: 500 mA
Ähnlichste Farbtemperatu: 3000K
Farborttoleranz: MacAdam 3
CRI: >80

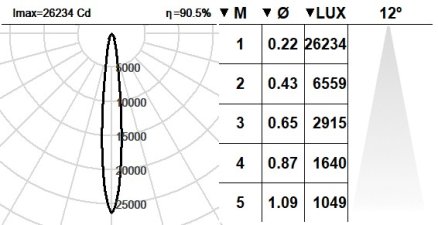

Winkel: 12
Photobiologisches Risiko: 1
Dieses Produkt enthält eine Lichtquelle der Energieeffizienzklasse: C
Bemessene Lebensdauer der LEDs bei Ta = 25ºC: 57000h L90B10 >60000h L90B50
Klasse: 2
IP: 20
Glühdraht: 850
Deckenausschnitt: 77mm
Außendurchmesser: 120mm
Elektronisches Zubehör:
K: On/Off (basic)
S: On/Off (AC/DC)
SE: On/Off (AC/DC) + Battery 3h
D: DALI-2/switchDIM/corridorFUNCTION
DE: DALI-2/switchDIM + 3h battery
B: Bluetooth-Casambi
-
1: RAL9010: Reinweiß -
2: RAL9005: Tiefschwarz -
4: RAL7016: Anthrazitgrau -
7: RAL9006: Weißaluminium
Todos los colores RAL están disponibles bajo pedido.
-
1: RAL9010: Reinweiß -
2: RAL9005: Tiefschwarz -
4: RAL7016: Anthrazitgrau -
7: RAL9006: Weißaluminium
Todos los colores RAL están disponibles bajo pedido.
