KORAMU 100 120KRM.4-I1458
Bollard with frontal light emission, symmetrical distribution.
Bollard height 675mm.
Protection rating against dust and moisture: IP66 – full protection.
Protection rating for resistance against harmful mechanical impacts: IK10.
Extruded aluminium profile coated with polyester powder along with C4 treatment for corrosion resistance to guarantee further durability. Textured paint finish. Different RAL colour finishes available under request. C5-M special coating for highly corrosive environments is available under request.
4mm frontal polycarbonate diffuser.
Interior opal diffuser.
IP67 breathing valve to reduce condensation.
Silicone gasket.
Highly efficient linear printed circuit board.
Integrierter Treiber enthalten. Ambient temperature: up to 50ºC.
Electronic options for light control: DALI-2 und Bluetooth.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
A4 stainless steel locking screw. Optional supply of A2 stainless steel vandal-resistant screws.
IP68 connector not included, it can be ordered separately: F3.A3 (On/Off) / F3.A5 (DALI).
Pre-wiring of 35cm cable 3x1mm2.
Mounting plate for floor installation supplied with the fixture.
Accessory for concrete installation reference F3.P1.KRM.
Accessory for grass installation reference F3.O1.KRM.
Bollard height 675mm.
Protection rating against dust and moisture: IP66 – full protection.
Protection rating for resistance against harmful mechanical impacts: IK10.
Extruded aluminium profile coated with polyester powder along with C4 treatment for corrosion resistance to guarantee further durability. Textured paint finish. Different RAL colour finishes available under request. C5-M special coating for highly corrosive environments is available under request.
4mm frontal polycarbonate diffuser.
Interior opal diffuser.
IP67 breathing valve to reduce condensation.
Silicone gasket.
Highly efficient linear printed circuit board.
Integrierter Treiber enthalten. Ambient temperature: up to 50ºC.
Electronic options for light control: DALI-2 und Bluetooth.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
A4 stainless steel locking screw. Optional supply of A2 stainless steel vandal-resistant screws.
IP68 connector not included, it can be ordered separately: F3.A3 (On/Off) / F3.A5 (DALI).
Pre-wiring of 35cm cable 3x1mm2.
Mounting plate for floor installation supplied with the fixture.
Accessory for concrete installation reference F3.P1.KRM.
Accessory for grass installation reference F3.O1.KRM.
DOWNLOADS
ZUBEHÖR UND OBERFLÄCHEN

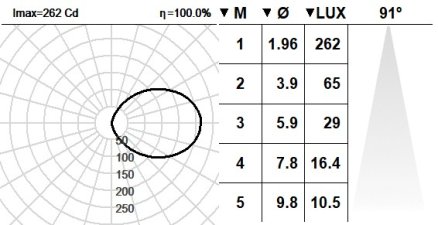

PHOTOMETRISCHE DATEN
- Leuchten Lichtstrom: 583lm
- Leuchten Lichtausbeute: 82 lm/W
- Lichtquelle Lichtstrom: 1295lm
- CRI: >80
- Ähnlichste Farbtemperatu: 4000K
- Farborttoleranz: MacAdam 3
- Winkel: 91 º
- Dieses Produkt enthält eine Lichtquelle der Energieeffizienzklasse: C
- Bemessene Lebensdauer der LEDs bei Ta = 25ºC: 100.000h L80B10
TECHNISCHE DATEN
- Klasse: I
- IP: 66
- Glühdraht: 850 ºC
- Außenabmessungen: 62x65mm
- Höhe: 675 mm Kg
- Gewicht: 2.4 Kg
ELEKTRISCHE DATEN
- Leuchten Anschlussleistung: 7,08 W
- Lichtquelle Watt: 6,4 W
- mA: 150 mA
ELEKTRONISCHE DATEN:
-
S: On/Off (AC/DC, NOT looping through capable)
-
D: DALI-2/switchDIM/corridorFUNCTION
-
B: Bluetooth-Casambi [ 15m ]
Aufrüstbar, austauschbar, reparierbar
STANDARDAUSFÜHRUNGEN
-
80 Corten -
90 : RAL6005 Moogrün -
7: RAL9006: Weißaluminium -
4: RAL7016: Anthrazitgrau -
2: RAL9005: Tiefschwarz -
1: RAL9010: Reinweiß
Alle RAL-Farben sind auf Anfrage erhältlich
TECHNISCHE DATEN
- Klasse: I
- IP: 66
- Glühdraht: 850 ºC
- Außenabmessungen: 62x65mm
- Höhe: 675 mm
- Gewicht: 2.4 Kg
STANDARDAUSFÜHRUNGEN
-
80 Corten -
90 : RAL6005 Moogrün -
7: RAL9006: Weißaluminium -
4: RAL7016: Anthrazitgrau -
2: RAL9005: Tiefschwarz -
1: RAL9010: Reinweiß
Alle RAL-Farben sind auf Anfrage erhältlich
