KORAMU 100 120KXS.4-I1402
Bollard with frontal light emission, symmetrical distribution.
Bollard height 255mm.
Protection rating against dust and moisture: complete IP66.
Protection rating for resistance to harmful mechanical impacts: IK10.
Extruded aluminium profile coated with polyester powder along with C4 treatment for corrosion resistance to guarantee further durability. Textured paint finish. Different RAL colour finishes available under request. C5-M special coating for highly corrosive environments is available under request.
A4 stainless steel locking screw. Optional A2 stainless steel vandal-proof screw.
Highly efficient linear printed circuit board.
Protection polycarbonate diffuser in 4mm.
Interior opal diffuser.
Silicone gasket.
Built-in driver, included. Ambient temperature: up to 50ºC.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
IP67 breathing valve to reduce condensation.
IP68 connector not included, it can be ordered separately: F3.A3.
Pre-wiring of 35cm cable 3x1mm2.
Mounting plate for floor installation supplied with the fixture.
Accessory for concrete installation reference F3.P1.KRM.
Accessory for grass installation reference F3.P1.KRM.
Bollard height 255mm.
Protection rating against dust and moisture: complete IP66.
Protection rating for resistance to harmful mechanical impacts: IK10.
Extruded aluminium profile coated with polyester powder along with C4 treatment for corrosion resistance to guarantee further durability. Textured paint finish. Different RAL colour finishes available under request. C5-M special coating for highly corrosive environments is available under request.
A4 stainless steel locking screw. Optional A2 stainless steel vandal-proof screw.
Highly efficient linear printed circuit board.
Protection polycarbonate diffuser in 4mm.
Interior opal diffuser.
Silicone gasket.
Built-in driver, included. Ambient temperature: up to 50ºC.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
IP67 breathing valve to reduce condensation.
IP68 connector not included, it can be ordered separately: F3.A3.
Pre-wiring of 35cm cable 3x1mm2.
Mounting plate for floor installation supplied with the fixture.
Accessory for concrete installation reference F3.P1.KRM.
Accessory for grass installation reference F3.P1.KRM.
DOWNLOADS
ZUBEHÖR UND OBERFLÄCHEN

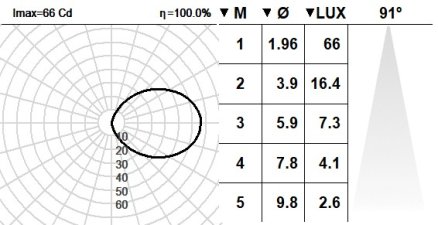

PHOTOMETRISCHE DATEN
- Leuchten Lichtstrom: 146lm
- Leuchten Lichtausbeute: 36 lm/W
- Lichtquelle Lichtstrom: 325lm
- CRI: >80
- Ähnlichste Farbtemperatu: 4000K
- Farborttoleranz: MacAdam 3
- Winkel: 91 º
- Dieses Produkt enthält eine Lichtquelle der Energieeffizienzklasse: B
- Bemessene Lebensdauer der LEDs bei Ta = 25ºC: 100.000h L80B10
TECHNISCHE DATEN
- Klasse: I
- IP: 66
- Glühdraht: 650 ºC
- Außenabmessungen: 62x65mm
- Höhe: 255 mm Kg
ELEKTRISCHE DATEN
- Leuchten Anschlussleistung: 4,1 W
- Lichtquelle Watt: 1,6 W
- mA: 150 mA
ELEKTRONISCHE DATEN:
-
S: On/Off
-
D: DALI-2/switchDIM
Aufrüstbar, austauschbar, reparierbar
STANDARDAUSFÜHRUNGEN
-
80 Corten -
90 : RAL6005 Moogrün -
7: RAL9006: Weißaluminium -
4: RAL7016: Anthrazitgrau -
2: RAL9005: Tiefschwarz -
1: RAL9010: Reinweiß
Alle RAL-Farben sind auf Anfrage erhältlich
TECHNISCHE DATEN
- Klasse: I
- IP: 66
- Glühdraht: 650 ºC
- Außenabmessungen: 62x65mm
- Höhe: 255 mm
STANDARDAUSFÜHRUNGEN
-
80 Corten -
90 : RAL6005 Moogrün -
7: RAL9006: Weißaluminium -
4: RAL7016: Anthrazitgrau -
2: RAL9005: Tiefschwarz -
1: RAL9010: Reinweiß
Alle RAL-Farben sind auf Anfrage erhältlich
