ESOR 100 123ESR.1-I1621
Specially developed to solve the installation difficulties in the process of replacing old linear fluorescent light fixtures in metal ceiling systems.
Customized exterior dimensions depending on the installation needs.
Powder painted extruded aluminium profile available in assorted finishes, customized RAL under request.
The adaptation sheet is fixed to the light fixture to create a single body for easier installation.
Range of PMMA optics to achieve specific photometric results.
Highly efficient linear printed circuit board.
Built-in driver, included.
Electronic standard options for lighting control: DALI-2 und Bluetooth.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
Passive temperature management.
The fixture rests on the main metal grid.
Pre-wiring of 35cm cable 3x1mm2.
It is possible to combine different lengths to create customized design.
DOWNLOADS
ZUBEHÖR UND OBERFLÄCHEN

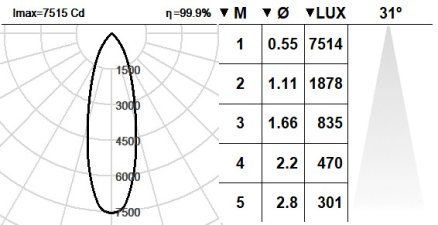

PHOTOMETRISCHE DATEN
- Leuchten Lichtstrom: 3647lm
- Leuchten Lichtausbeute: 153 lm/W
- Lichtquelle Lichtstrom: 3760lm
- CRI: 80
- Ähnlichste Farbtemperatu: 3000K
- Farborttoleranz: MacAdam 3
- Winkel: 31 º
- Dieses Produkt enthält eine Lichtquelle der Energieeffizienzklasse: C
- Bemessene Lebensdauer der LEDs bei Ta = 25ºC: 54.000h L80B10
- Cd/Klm: 2060
UGR: C0º = 18,1 | C90º = 18,1 unter den unten angegebenen Parametern
Raumabmessungen X=4H/Y=8H
Reflexion 20% | 50% | 70%
Leuchtenabstandes = 0.25
TECHNISCHE DATEN
- Klasse: I
- IP: 20
- Glühdraht: 650 ºC
- Einbettungsmaße: (883+x)x(78+y)
- Außenabmessungen: (883+x)x(78+y)
- Höhe: 80 mm Kg
ELEKTRISCHE DATEN
- Leuchten Anschlussleistung: 23,9 W
- Lichtquelle Watt: 20,7 W
- mA: 500 mA
ELEKTRONISCHE DATEN:
-
S: On/Off (AC/DC, NOT looping through capable)
-
D: DALI-2/switchDIM/corridorFUNCTION
-
B: Bluetooth-Casambi
STANDARDAUSFÜHRUNGEN
-
1: RAL9010: Reinweiß -
2: RAL9005: Tiefschwarz -
4: RAL7016: Anthrazitgrau -
7: RAL9006: Weißaluminium
Alle RAL-Farben sind auf Anfrage erhältlich
TECHNISCHE DATEN
- Klasse: I
- IP: 20
- Glühdraht: 650 ºC
- Einbettungsmaße: (883+x)x(78+y)
- Außenabmessungen: (883+x)x(78+y)
- Höhe: 80 mm
STANDARDAUSFÜHRUNGEN
-
1: RAL9010: Reinweiß -
2: RAL9005: Tiefschwarz -
4: RAL7016: Anthrazitgrau -
7: RAL9006: Weißaluminium
Alle RAL-Farben sind auf Anfrage erhältlich
