RAINA 100 151RNA.1-I2465
Wall or ceiling mounted recessed linear fixtures with symmetrical light distribution to achieve an effective task or general lighting.
Linear fixture in 585mm length and in a width of 68mm.
Powder painted extruded aluminium profile available in assorted finishes, customized RAL under request.
Opal polycarbonate diffuser.
Highly efficient linear printed circuit board.
Built-in driver, included.
Electronic options for lighting control: DALI-2 und Bluetooth.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
Passive temperature management.
Ceiling-mounted using steel support with screws.
End caps must be ordered separately, reference M5.E0068.
It is possible to combine different lengths to create customized design. The connection accessory must be ordered separately, reference M5.Q0068.
Linear fixture in 585mm length and in a width of 68mm.
Powder painted extruded aluminium profile available in assorted finishes, customized RAL under request.
Opal polycarbonate diffuser.
Highly efficient linear printed circuit board.
Built-in driver, included.
Electronic options for lighting control: DALI-2 und Bluetooth.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
Passive temperature management.
Ceiling-mounted using steel support with screws.
End caps must be ordered separately, reference M5.E0068.
It is possible to combine different lengths to create customized design. The connection accessory must be ordered separately, reference M5.Q0068.
DOWNLOADS
ZUBEHÖR UND OBERFLÄCHEN

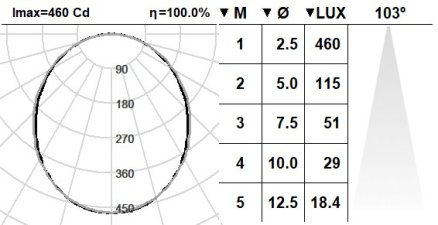

PHOTOMETRISCHE DATEN
- Leuchten Lichtstrom: 1269lm
- Leuchten Lichtausbeute: 106 lm/W
- Lichtquelle Lichtstrom: 2115lm
- CRI: >80
- Ähnlichste Farbtemperatu: 4000K
- Farborttoleranz: MacAdam 3
- Winkel: 103 º
- Dieses Produkt enthält eine Lichtquelle der Energieeffizienzklasse: B
- Bemessene Lebensdauer der LEDs bei Ta = 25ºC: 100.000h L80B10
TECHNISCHE DATEN
- Klasse: I
- IP: 40
- Glühdraht: 650 ºC
- Einbettungsmaße: 577x58mm
- Außenabmessungen: 585x68mm
- Höhe: 83 mm Kg
ELEKTRISCHE DATEN
- Leuchten Anschlussleistung: 12,02 W
- Lichtquelle Watt: 10,82 W
- mA: 250 mA
ELEKTRONISCHE DATEN:
-
S: On/Off (AC/DC, NOT looping through capable)
-
D: DALI-2/switchDIM/corridorFUNCTION
-
B: Bluetooth-Casambi
Aufrüstbar, austauschbar, reparierbar
STANDARDAUSFÜHRUNGEN
-
1: RAL9010: Reinweiß -
2: RAL9005: Tiefschwarz -
4: RAL7016: Anthrazitgrau -
7: RAL9006: Weißaluminium
Alle RAL-Farben sind auf Anfrage erhältlich
TECHNISCHE DATEN
- Klasse: I
- IP: 40
- Glühdraht: 650 ºC
- Einbettungsmaße: 577x58mm
- Außenabmessungen: 585x68mm
- Höhe: 83 mm
STANDARDAUSFÜHRUNGEN
-
1: RAL9010: Reinweiß -
2: RAL9005: Tiefschwarz -
4: RAL7016: Anthrazitgrau -
7: RAL9006: Weißaluminium
Alle RAL-Farben sind auf Anfrage erhältlich
