MOVE 300 OPTIMAL DISPLAY 307MOV.1-I690
Special LED module created to be the optimal solution for specific projects.
Cylindrical design in diameter 120mm.
Articulated arm adjustable 0º,15º, 30º, 45º, 60º, 75º and 90º and with 355º rotation around the vertical axis.
Facetted metalized or sandblasted metalized aluminium reflector.
Powder painted aluminium body and arm available in assorted finishes, customized RAL under request.
Aluminium base for attachment to the ceiling supplied with the same finish as the light fixture.
Optional anti-glare accessories for more visual comfort.
Integral driver included.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
Passive temperature management: heat dissipation flows through aluminium heat sink.
Mounted to the ceiling by two fixing points.
Leuchten Lichtstrom: 1219lm
Leuchten Anschlussleistung: 18,33 W
Leuchten Lichtausbeute: 67 lm/W
Lichtquelle Lichtstrom: 1340lm
Lichtquelle Watt: 17 W
mA: 500 mA
Ähnlichste Farbtemperatu: FRESH MEAT
Farborttoleranz: MacAdam 4

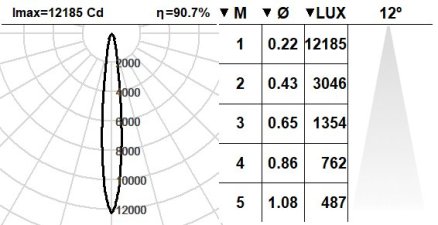

Winkel: 12
UGR: <16
Photobiologisches Risiko: 1
Mittlere Bemessungslebensdauer: 50000h L90B50
Klasse: 1
IP: 20
Glühdraht: 850
Außendurchmesser: 120mm
Elektronisches Zubehör:
K: On/Off (basic)
S: On/Off (AC/DC)
D: DALI-2/switchDIM/corridorFUNCTION
-
1: RAL9010: Reinweiß -
2: RAL9005: Tiefschwarz -
4: RAL7016: Anthrazitgrau -
7: RAL9006: Weißaluminium
Todos los colores RAL están disponibles bajo pedido.
