MOVE 300 311MOV.1-I2135

CLASS1 IP20 FIL850 +RAL CE
Surface-mounted spots with symmetrical light distribution to achieve an effective task, accent or general lighting.
Cylindrical design in diameter 140 mm.
Articulated arm adjustable 0º,15º, 30º, 45º, 60º, 75º and 90º and with 355º rotation around the vertical axis.
Facetted metalized or sandblasted metalized aluminium reflector.
Powder painted aluminium body and arm available in assorted finishes, customized RAL under request.
Aluminium base for attachment to the ceiling supplied with the same finish as the light fixture.
Optional anti-glare accessories for more visual comfort.
Integral driver included.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
Passive temperature management: heat dissipation flows through aluminium heat sink.
Mounted to the ceiling by two fixing points.
F311MOV_314MOV

DESCARGAS

Datenblatt
Photometrie IES
Photometrie LDT
Montageanleitung
Maßskizze
Produktabbildung
Descargar todo

ACCESORIOS Y ACABADOS

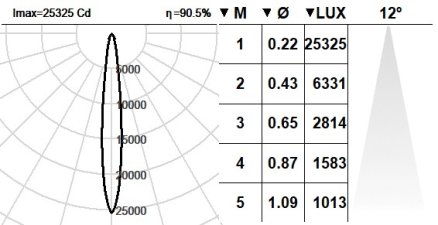

CARACTERÍSTICAS FOTOMÉTRICAS

  • Leuchten Lichtstrom: 2534lm
  • Leuchten Lichtausbeute: 148 lm/W
  • Lichtquelle Lichtstrom: 2785lm
  • CRI: >80
  • Ähnlichste Farbtemperatu: 2700K
  • Farborttoleranz: MacAdam 3
  • Winkel: 12
  • Dieses Produkt enthält eine Lichtquelle der Energieeffizienzklasse: D
  • Bemessene Lebensdauer der LEDs bei Ta = 25ºC: 57000h L90B10 >60000h L90B50
311MOV.1-I2135

DATOS TÉCNICOS

  • Klasse: I
  • IP: 20
  • Glühdraht: 850 ºC
  • Außendurchmesser: 140mm
D311MOV_314MOV DP311MOV_314MOV

CARACTERÍSTICAS ELÉCTRICAS

  • Leuchten Anschlussleistung: 17,1 W
  • Lichtquelle Watt: 15,43 W
  • mA: 500 mA

ELEKTRONISCHE AUSRÜSTUNG:

  • K: On/Off (basic)

  • S: On/Off (AC/DC, NOT looping through capable)

  • D: DALI-2/switchDIM/corridorFUNCTION

Actualizable, sustituible, reparable
Actualizable, sustituible, reparable icono 2 Actualizable, sustituible, reparable icono 1

ACABADOS ESTÁNDARES

  • 1: RAL9010: Reinweiß 1: RAL9010: Reinweiß
  • 2: RAL9005: Tiefschwarz 2: RAL9005: Tiefschwarz
  • 4: RAL7016: Anthrazitgrau 4: RAL7016: Anthrazitgrau
  • 7: RAL9006: Weißaluminium 7: RAL9006: Weißaluminium

Todos los colores RAL están disponibles bajo pedido.

DATOS TÉCNICOS

  • Klasse: I
  • IP: 20
  • Glühdraht: 850 ºC
  • Außendurchmesser: 140mm
D311MOV_314MOV DP311MOV_314MOV

ACABADOS ESTÁNDARES

  • 1: RAL9010: Reinweiß 1: RAL9010: Reinweiß
  • 2: RAL9005: Tiefschwarz 2: RAL9005: Tiefschwarz
  • 4: RAL7016: Anthrazitgrau 4: RAL7016: Anthrazitgrau
  • 7: RAL9006: Weißaluminium 7: RAL9006: Weißaluminium

Todos los colores RAL están disponibles bajo pedido.
