FACKEL 420FKL.4-I1456






Wall-mounted fixture with symmetrical light distribution.
Luminaire height 764mm with 30º inclination from the vertical axis.
Protection rating against dust and moisture: IP66 – full protection.
Protection rating for resistance against harmful mechanical impacts: IK10.
Extruded aluminium profile coated with polyester powder along with C4 treatment for corrosion resistance to guarantee further durability. Textured paint finish. Different RAL colour finishes available under request. C5-M special coating for highly corrosive environments is available under request.
4mm frontal polycarbonate diffuser.
Interior opal diffuser.
IP67 breathing valve to reduce condensation.
Silicone gasket.
Highly efficient linear printed circuit board.
Integrierter Treiber enthalten. Ambient temperature: up to 50ºC.
Electronic options for light control: DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
A4 stainless steel locking screw. Optional supply of A2 stainless steel vandal-resistant screws.
IP68 connector not included, it can be ordered separately: F3.A3 (On/Off) / F3.A5 (DALI).
Mounting plate for wall installation supplied with the fixture.
Pre-wiring of 35cm cable 3x1mm2.
Luminaire height 764mm with 30º inclination from the vertical axis.
Protection rating against dust and moisture: IP66 – full protection.
Protection rating for resistance against harmful mechanical impacts: IK10.
Extruded aluminium profile coated with polyester powder along with C4 treatment for corrosion resistance to guarantee further durability. Textured paint finish. Different RAL colour finishes available under request. C5-M special coating for highly corrosive environments is available under request.
4mm frontal polycarbonate diffuser.
Interior opal diffuser.
IP67 breathing valve to reduce condensation.
Silicone gasket.
Highly efficient linear printed circuit board.
Integrierter Treiber enthalten. Ambient temperature: up to 50ºC.
Electronic options for light control: DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
A4 stainless steel locking screw. Optional supply of A2 stainless steel vandal-resistant screws.
IP68 connector not included, it can be ordered separately: F3.A3 (On/Off) / F3.A5 (DALI).
Mounting plate for wall installation supplied with the fixture.
Pre-wiring of 35cm cable 3x1mm2.

DESCARGAS
ACCESORIOS Y ACABADOS

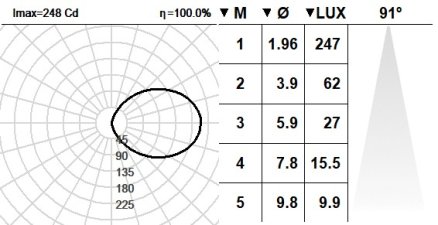

CARACTERÍSTICAS FOTOMÉTRICAS
- Leuchten Lichtstrom: 551lm
- Leuchten Lichtausbeute: 78 lm/W
- Lichtquelle Lichtstrom: 1225lm
- CRI: >80
- Ähnlichste Farbtemperatu: 2700K
- Farborttoleranz: MacAdam 3
- Winkel: 91
- Dieses Produkt enthält eine Lichtquelle der Energieeffizienzklasse: C
- Bemessene Lebensdauer der LEDs bei Ta = 25ºC: 100.000h L80B10

DATOS TÉCNICOS
- Klasse: I
- IP: 66
- Glühdraht: 850 ºC
- Außenabmessungen: 62x65mm
- Gewicht: 2.4 Kg


CARACTERÍSTICAS ELÉCTRICAS
- Leuchten Anschlussleistung: 7,08 W
- Lichtquelle Watt: 6,4 W
- mA: 150 mA
ELEKTRONISCHE AUSRÜSTUNG:
-
S: On/Off (AC/DC, NOT looping through capable)
-
D: DALI-2/switchDIM/corridorFUNCTION
-
B: Bluetooth-Casambi [ 15m ]
Actualizable, sustituible, reparable
ACABADOS ESTÁNDARES
-
80 Corten -
90 : RAL6005 Moogrün -
7: RAL9006: Weißaluminium -
4: RAL7016: Anthrazitgrau -
2: RAL9005: Tiefschwarz -
1: RAL9010: Reinweiß
Todos los colores RAL están disponibles bajo pedido.
DATOS TÉCNICOS
- Klasse: I
- IP: 66
- Glühdraht: 850 ºC
- Außenabmessungen: 62x65mm
- Gewicht: 2.4 Kg


ACABADOS ESTÁNDARES
-
80 Corten -
90 : RAL6005 Moogrün -
7: RAL9006: Weißaluminium -
4: RAL7016: Anthrazitgrau -
2: RAL9005: Tiefschwarz -
1: RAL9010: Reinweiß
Todos los colores RAL están disponibles bajo pedido.
