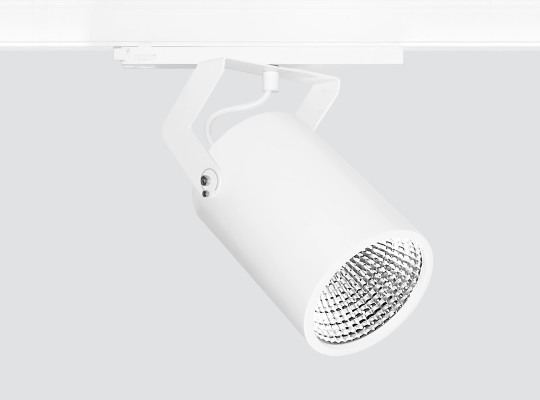

MOVE 900 907MOV.1-T1147
Track spots with symmetrical light distribution to achieve an effective task, accent or general lighting.
Special LED module created to be the optimal solution for specific projects.
Cylindrical design in diameter 120mm.
Articulated arm adjustable 0º,15º, 30º, 45º, 60º, 75º and 90º and with 355º rotation around the vertical axis.
Facetted metalized or sandblasted metalized aluminium reflector.
Powder painted aluminium body and arm available in assorted finishes, customized RAL under request. Track adaptor available in white, black or grey.
Optional anti-glare accessories for more visual comfort.
Driver built into the track adaptor. Consult compatible tracks with the track adaptor.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
Passive temperature management: heat dissipation flows through aluminium heat sink.
Three-phase tracks are available as well as accessories to create a custom system.
Special LED module created to be the optimal solution for specific projects.
Cylindrical design in diameter 120mm.
Articulated arm adjustable 0º,15º, 30º, 45º, 60º, 75º and 90º and with 355º rotation around the vertical axis.
Facetted metalized or sandblasted metalized aluminium reflector.
Powder painted aluminium body and arm available in assorted finishes, customized RAL under request. Track adaptor available in white, black or grey.
Optional anti-glare accessories for more visual comfort.
Driver built into the track adaptor. Consult compatible tracks with the track adaptor.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
Passive temperature management: heat dissipation flows through aluminium heat sink.
Three-phase tracks are available as well as accessories to create a custom system.
DESCARGAS
ACCESORIOS Y ACABADOS

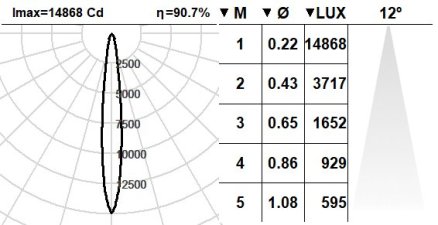

CARACTERÍSTICAS FOTOMÉTRICAS
- Leuchten Lichtstrom: 1488lm
- Leuchten Lichtausbeute: 118 lm/W
- Lichtquelle Lichtstrom: 1635lm
- CRI: >90
- Ähnlichste Farbtemperatu: GOLD
- Farborttoleranz: MacAdam 3
- Winkel: 12 º
- Dieses Produkt enthält eine Lichtquelle der Energieeffizienzklasse: E
- Bemessene Lebensdauer der LEDs bei Ta = 25ºC: 50000h L90B50
DATOS TÉCNICOS
- Klasse: I
- IP: 20
- Glühdraht: 850 ºC
- Außendurchmesser: 120mm
- Höhe: 175 mm Kg
CARACTERÍSTICAS ELÉCTRICAS
- Leuchten Anschlussleistung: 12.61 W
- Lichtquelle Watt: 11 W
- mA: 350 mA
ELEKTRONISCHE AUSRÜSTUNG:
-
S: On/Off
-
D: DALI-2/switchDIM/corridorFUNCTION
-
B: Bluetooth-Casambi
Actualizable, sustituible, reparable
ACABADOS ESTÁNDARES
-
1: RAL9010: Reinweiß -
2: RAL9005: Tiefschwarz -
4: RAL7016: Anthrazitgrau -
7: RAL9006: Weißaluminium
Todos los colores RAL están disponibles bajo pedido.
DATOS TÉCNICOS
- Klasse: I
- IP: 20
- Glühdraht: 850 ºC
- Außendurchmesser: 120mm
- Höhe: 175 mm
ACABADOS ESTÁNDARES
-
1: RAL9010: Reinweiß -
2: RAL9005: Tiefschwarz -
4: RAL7016: Anthrazitgrau -
7: RAL9006: Weißaluminium
Todos los colores RAL están disponibles bajo pedido.
