BARIS 200

BARIS 200


Recessed linear downlights with symmetrical light distribution to achieve an effective task or general lighting.

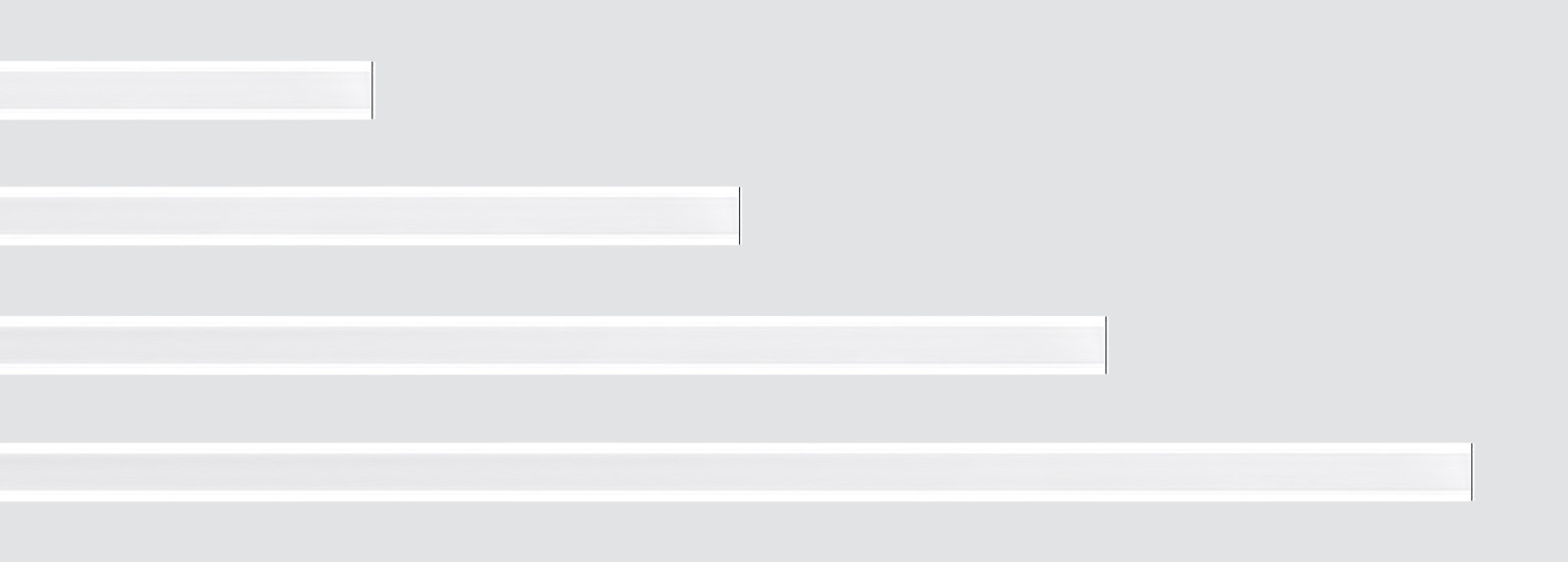

Frameless linear fixtures available in 5 lengths 568mm, 848mm, 1128mm, 1408mm and 2808mm in a width of 44mm and height of 78mm.
Protection rating against dust and moisture: complete IP54.
Powder painted extruded aluminium profile available in assorted finishes, customized RAL under request.

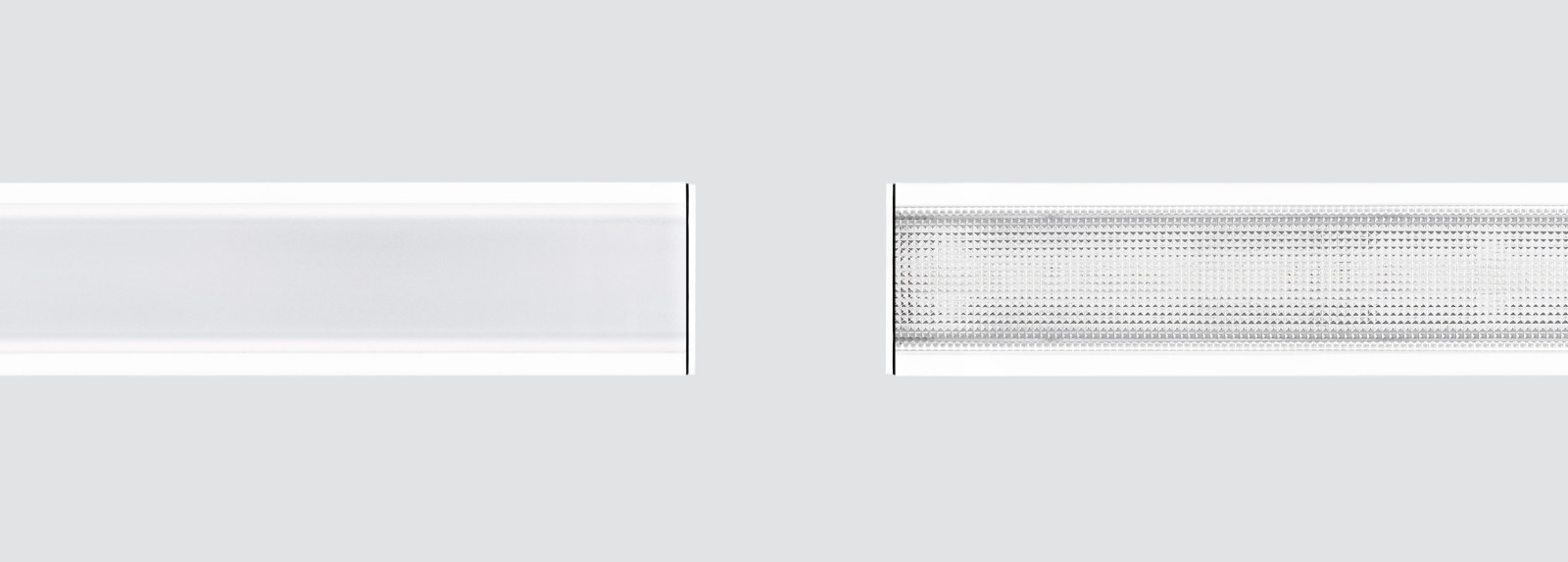

Opal or microprismatic polycarbonate diffuser.
Highly efficient linear printed circuit board.
Built-in driver.
Passive temperature management.
Ceiling-mounted using steel support with screws.


Suggested applications: private residences, offices, schools and universities, retail, showrooms, conference halls, meeting rooms, banks, bars, restaurants, hotel receptions and similar installations.

Product configurator

Tilt

Dimensions recessed

Height

Colour Temperature

CRI

UGR

Beam angle

Diffuser

mA

Accessories

Search results
Beam angle
Reference
Watt
Luminous flux of the luminaire
CRI
Colour Temperature
Embedding dimensions
Outer dimensions
Height

F101RDA
100
6W
618lm
80
2700K
569x47
568x44
78mm
251BRS.1-I723
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101ARA
98
6W
793lm
80
2700K
569x47
568x44
78mm
261BRS.1-I723
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101RDA
100
3.21W
318lm
80
2700K
288x47
287x44
78mm
250BRS.1-I1122
DATA SHEET
Photometric IES
Technical drawing
Photometric LDT


F101ARA
98
3.21W
408lm
80
2700K
288x47
287x44
78mm
260BRS.1-I1122
DATA SHEET
Photometric IES
Technical drawing
Photometric LDT


F101RDA
100
6W
637lm
80
3000K
569x47
568x44
78mm
251BRS.1-I724
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101ARA
98
6W
817lm
80
3000K
569x47
568x44
78mm
261BRS.1-I724
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101RDA
100
3.21W
331lm
80
3000K
288x47
287x44
78mm
250BRS.1-I1123
DATA SHEET
Photometric IES
Technical drawing
Photometric LDT


F101ARA
98
3.21W
425lm
80
3000K
288x47
287x44
78mm
260BRS.1-I1123
DATA SHEET
Photometric IES
Technical drawing
Photometric LDT


F101RDA
100
6W
667lm
80
4000K
569x47
568x44
78mm
251BRS.1-I725
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101ARA
98
6W
855lm
80
4000K
569x47
568x44
78mm
261BRS.1-I725
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101RDA
100
3.21W
350lm
80
4000K
288x47
287x44
78mm
250BRS.1-I1124
DATA SHEET
Photometric IES
Technical drawing
Photometric LDT


F101ARA
98
3.21W
449lm
80
4000K
288x47
287x44
78mm
260BRS.1-I1124
DATA SHEET
Photometric IES
Technical drawing
Photometric LDT


F101RDA
100
6W
667lm
80
5000K
569x47
568x44
78mm
251BRS.1-I726
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101ARA
98
6W
855lm
80
5000K
569x47
568x44
78mm
261BRS.1-I726
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101RDA
100
3.21W
352lm
80
5000K
288x47
287x44
78mm
250BRS.1-I1125
DATA SHEET
Photometric IES
Technical drawing
Photometric LDT
