COLUTEA 200

COLUTEA 200

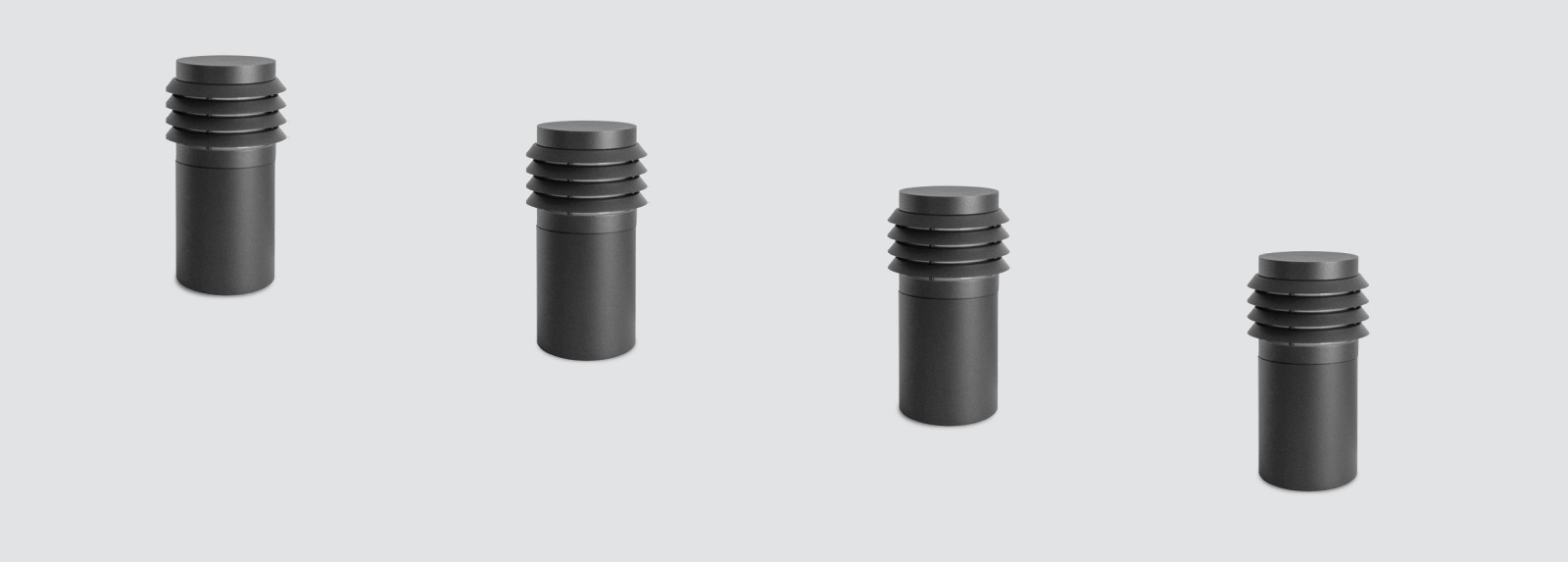

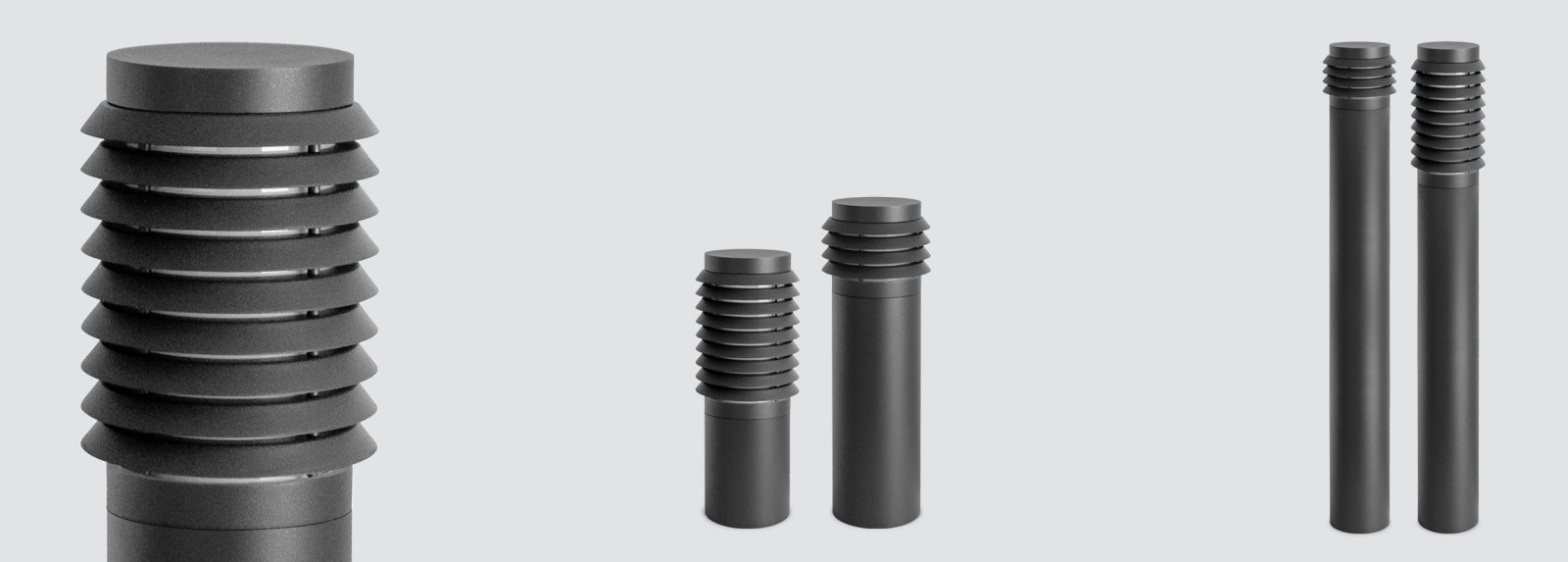

Bollard with 360º light emission, radial beam.
Bollard head with a diameter of 140mm.

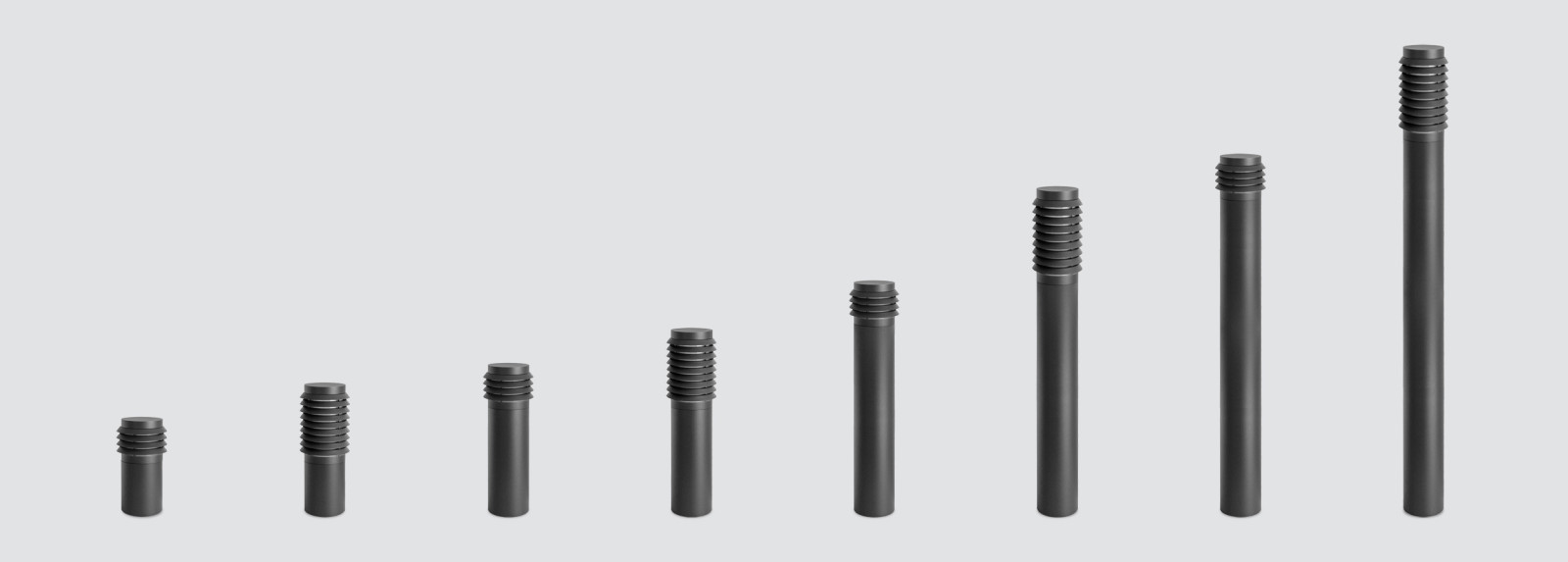

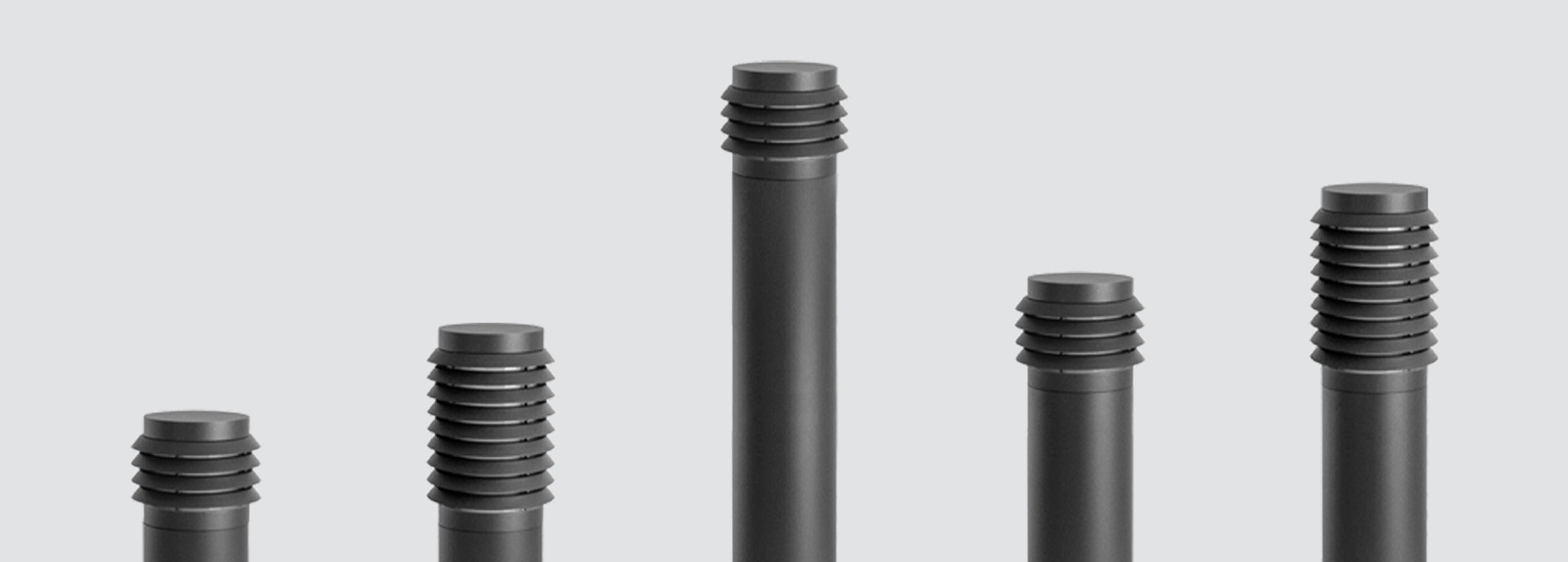

Available in 4 heights.
Protection rating against dust and moisture: IP66 – full protection.
Protection rating for resistance against harmful mechanical impacts: IK10.
Die-cast aluminium body and top cover treated for corrosion resistance (nanophoresis) and covered with a polyester powder coating to guarantee durability. Textured paint finish.
Special coating for environments with very high corrosivity is available under request.
Extruded aluminium tube with corrosion resistance treatment and finish according to the head finish.
7mm opal borosilicate glass or 5mm extruded polycarbonate diffuser made by resins UV rays stabilized with opal finish.
Aluminium disks to get specific photometric results and to increase visual comfort.
Silicone gasket.
Anticondensation device.
PCB on the top of the fixture.
Built-in driver included.
Electronic options for light control : DALI.
Pre-wiring with 25cm of 3x1mm2 cable.
Double cable gland entry for installation in series.
IP68 connector not included, it can be ordered separately.

Product configurator

Tilt

Fixture diameter

IK

Colour Temperature

CRI

UGR

Luminous flux of the fixture

Beam angle

Diffuser

Accessories

Search results
Beam angle
Reference
Watt
Luminous flux of the luminaire
CRI
Colour Temperature
Fixture diameter
Height

F220CLX_230CLX
360
4.84W
118lm
80
3000K
110
300
220CLX.4-I1197
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F220CLX_230CLX
360
4.84W
127lm
80
4000K
110
300
220CLX.4-I1198
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F220CLX_230CLX
360
6.53W
157lm
80
3000K
110
300
220CLX.4-I1200
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F220CLX_230CLX
360
6.53W
168lm
80
4000K
110
300
220CLX.4-I1201
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F220CLX_230CLX
360
8.27W
193lm
80
3000K
110
300
220CLX.4-I1203
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F220CLX_230CLX
360
8.27W
208lm
80
4000K
110
300
220CLX.4-I1204
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F222CLX_232CLX
360
4.84W
118lm
80
3000K
110
500
222CLX.4-I1197
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F222CLX_232CLX
360
4.84W
127lm
80
4000K
110
500
222CLX.4-I1198
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F222CLX_232CLX
360
6.53W
157lm
80
3000K
110
500
222CLX.4-I1200
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F222CLX_232CLX
360
6.53W
168lm
80
4000K
110
500
222CLX.4-I1201
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F222CLX_232CLX
360
8.27W
193lm
80
3000K
110
500
222CLX.4-I1203
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F222CLX_232CLX
360
8.27W
208lm
80
4000K
110
500
222CLX.4-I1204
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F224CLX_234CLX
360
4.84W
118lm
80
3000K
110
1000
224CLX.4-I1197
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F224CLX_234CLX
360
4.84W
127lm
80
4000K
110
1000
224CLX.4-I1198
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F224CLX_234CLX
360
6.53W
157lm
80
3000K
110
1000
224CLX.4-I1200
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
