COLUTEA 500

COLUTEA 500

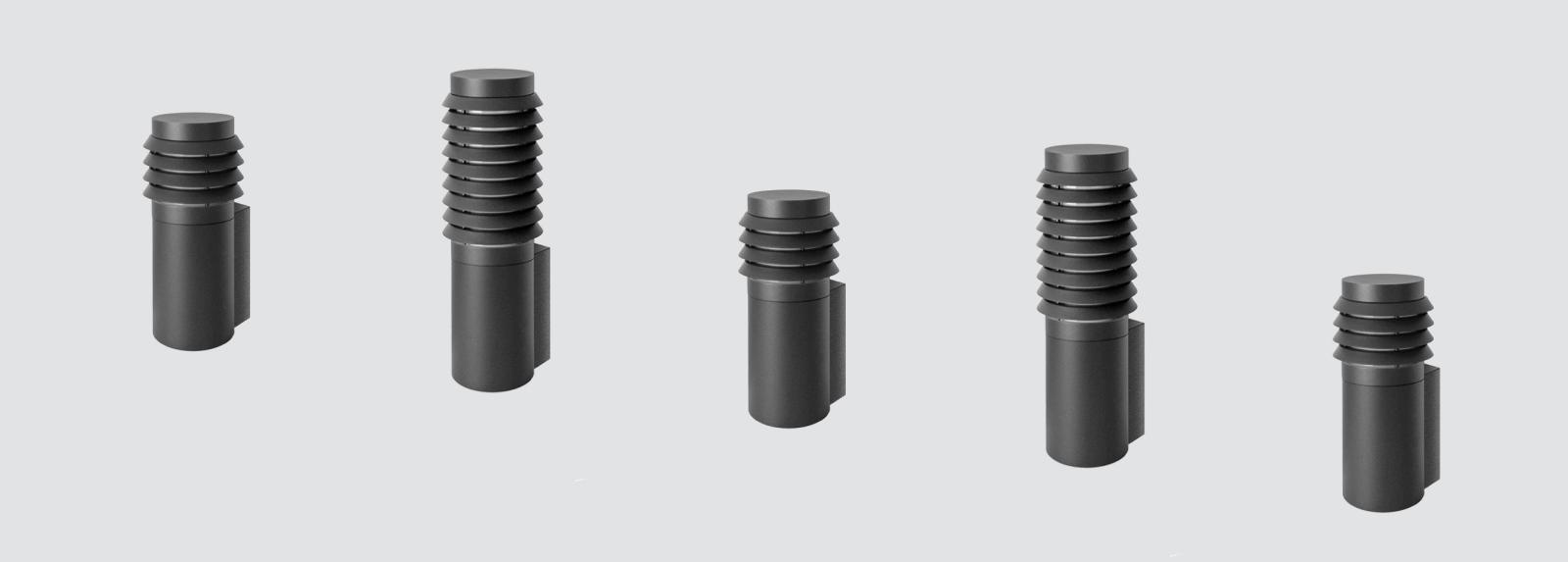

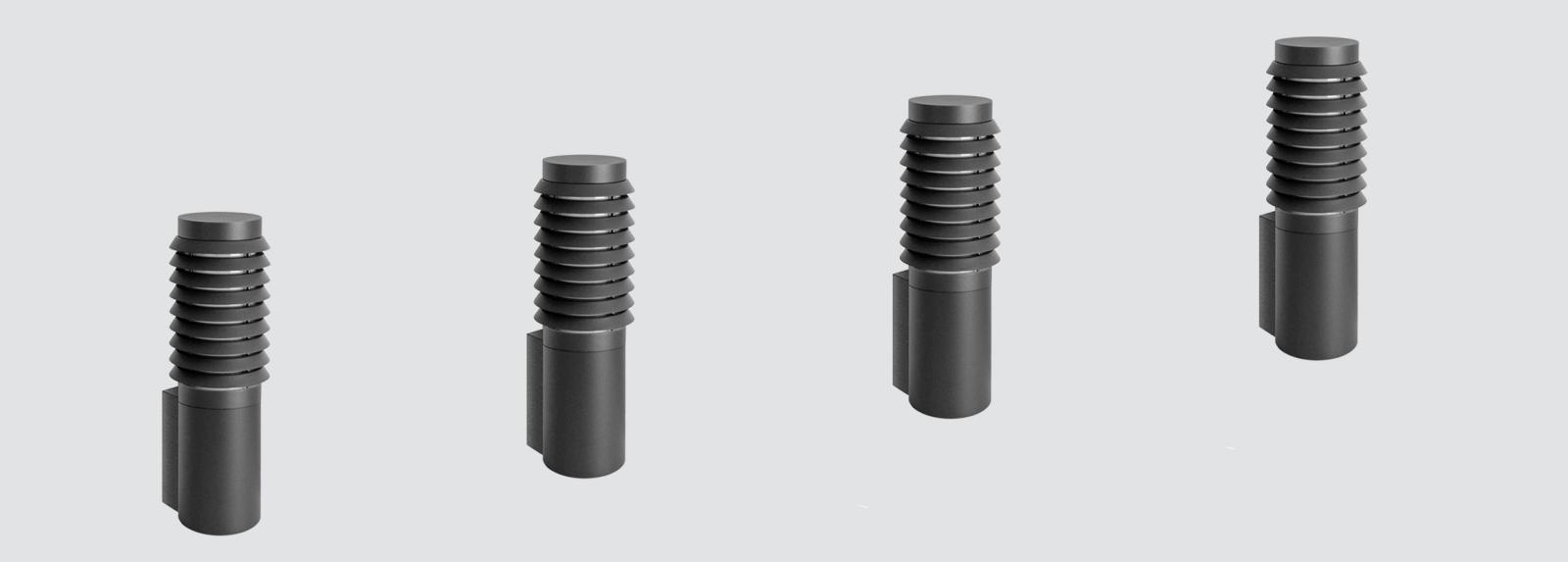

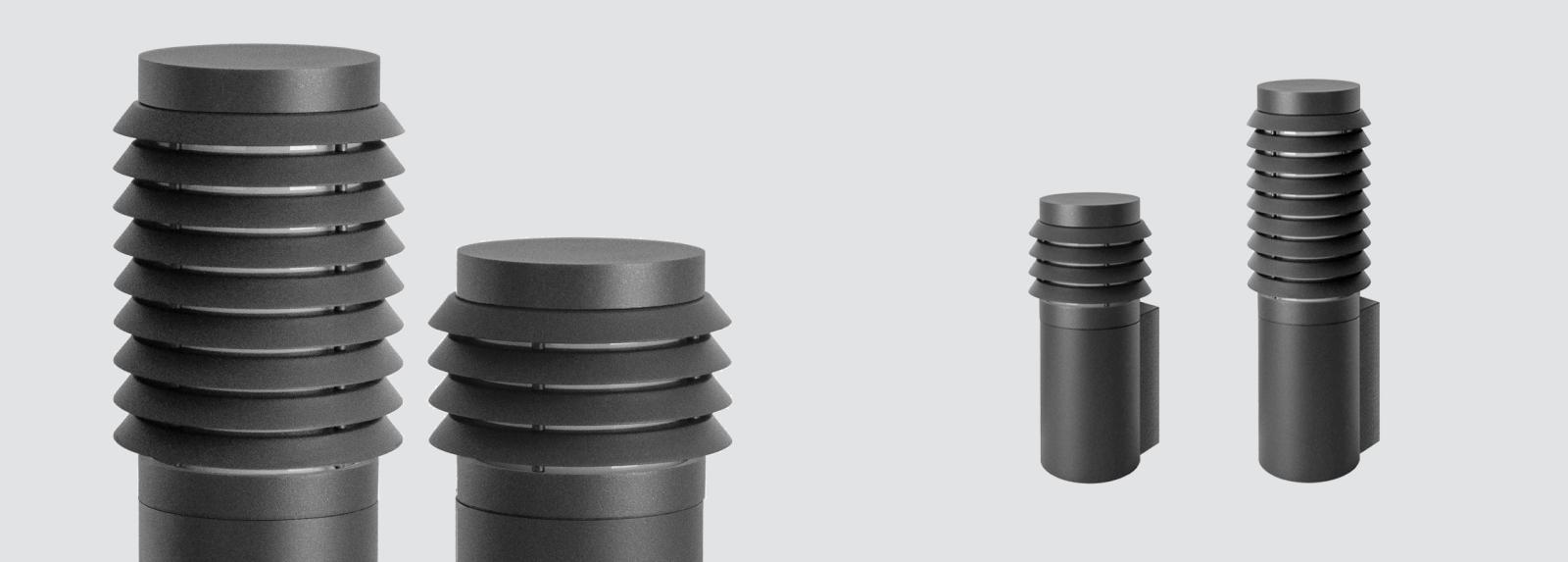

Wall-mounted fixture with 360º light emission, radial beam.
Fixture with a diameter of 140mm.
Protection rating against dust and moisture: IP66 – full protection.
Protection rating for resistance against harmful mechanical impacts: IK10.
Die-cast aluminium body and top cover treated for corrosion resistance (nanophoresis) and covered with a polyester powder coating to guarantee durability. Textured paint finish.
Special coating for environments with very high corrosivity is available under request.
7mm opal borosilicate glass or 5mm extruded polycarbonate diffuser made by resins UV rays stabilized with opal finish.
Aluminium disks to get specific photometric results and to increase visual comfort.
Silicone gasket.
Anticondensation device.
PCB on the top of the fixture.
Built-in driver included.
Electronic options for light control : DALI.
Pre-wiring with 25cm of 3x1mm2 cable.
Double cable gland entry for installation in series.
IP68 connector not included, it can be ordered separately.
Mounting to the wall through mounting plate with two fixing holes. Cable entry from the mounting plate.

Product configurator

Tilt

Fixture diameter

Height

Colour Temperature

CRI

UGR

Luminous flux of the fixture

Beam angle

Reflector

Accessories

Electronic equipment

Search results
Beam angle
Reference
Watt
Luminous flux of the luminaire
CRI
Colour Temperature
Fixture diameter
Height

F520CLX
360
4.84W
118lm
80
3000K
110
300
520CLX.4-I1197
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Photometric LDT


F520CLX
360
4.84W
127lm
80
4000K
110
300
520CLX.4-I1198
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Photometric LDT


F520CLX
360
6.53W
157lm
80
3000K
110
300
520CLX.4-I1200
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Photometric LDT


F520CLX
360
6.53W
168lm
80
4000K
110
300
520CLX.4-I1201
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Photometric LDT


F520CLX
360
8.27W
193lm
80
3000K
110
300
520CLX.4-I1203
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Photometric LDT


F520CLX
360
8.27W
208lm
80
4000K
110
300
520CLX.4-I1204
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Photometric LDT


F520CLX
360
4.84W
118lm
80
3000K
110
300
530CLX.4-I1197
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Photometric LDT


F520CLX
360
4.84W
127lm
80
4000K
110
300
530CLX.4-I1198
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Photometric LDT


F520CLX
360
6.53W
157lm
80
3000K
110
300
530CLX.4-I1200
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Photometric LDT


F520CLX
360
6.53W
168lm
80
4000K
110
300
530CLX.4-I1201
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Photometric LDT


F520CLX
360
8.27W
193lm
80
3000K
110
300
530CLX.4-I1203
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Photometric LDT


F520CLX
360
8.27W
208lm
80
4000K
110
300
530CLX.4-I1204
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Photometric LDT


F520CLT
360
7W
129lm
55
1795K
140
300
520CLT.4-I1173
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F520CLT
360
6.44W
109lm
90
2700K
140
300
520CLT.4-I1187
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F520CLT
360
6.44W
139lm
80
3000K
140
300
520CLT.4-I1188
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
