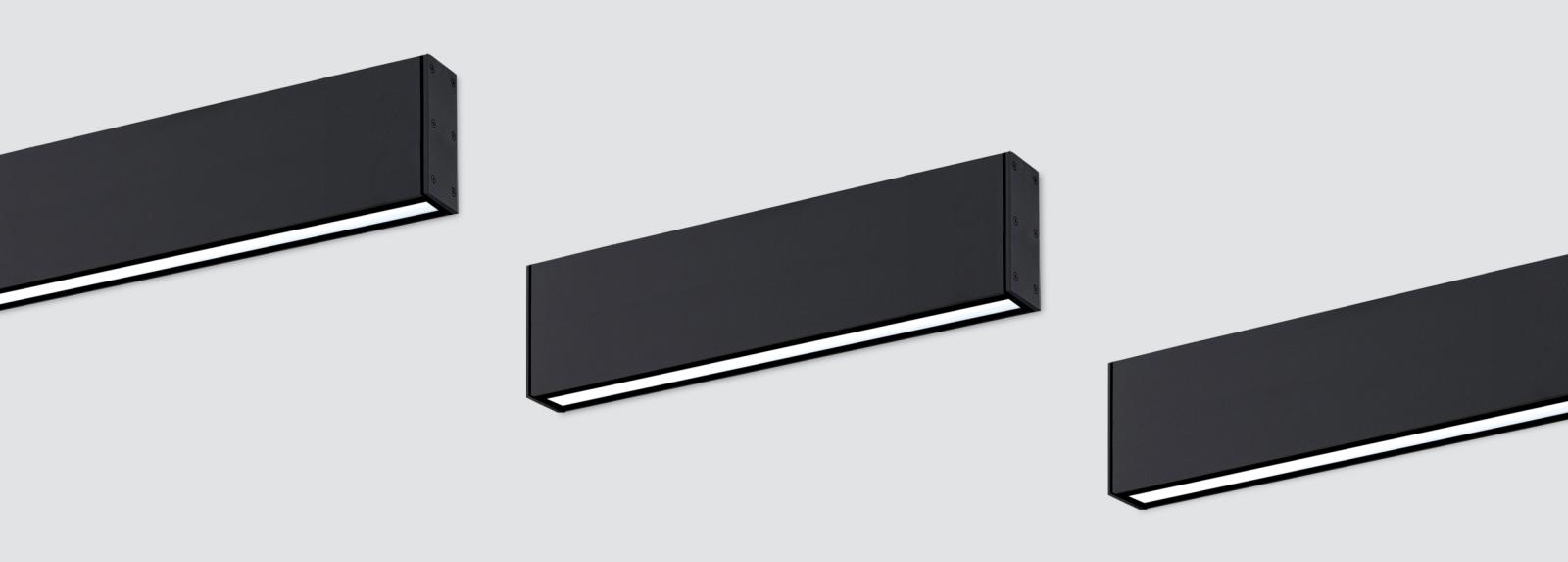

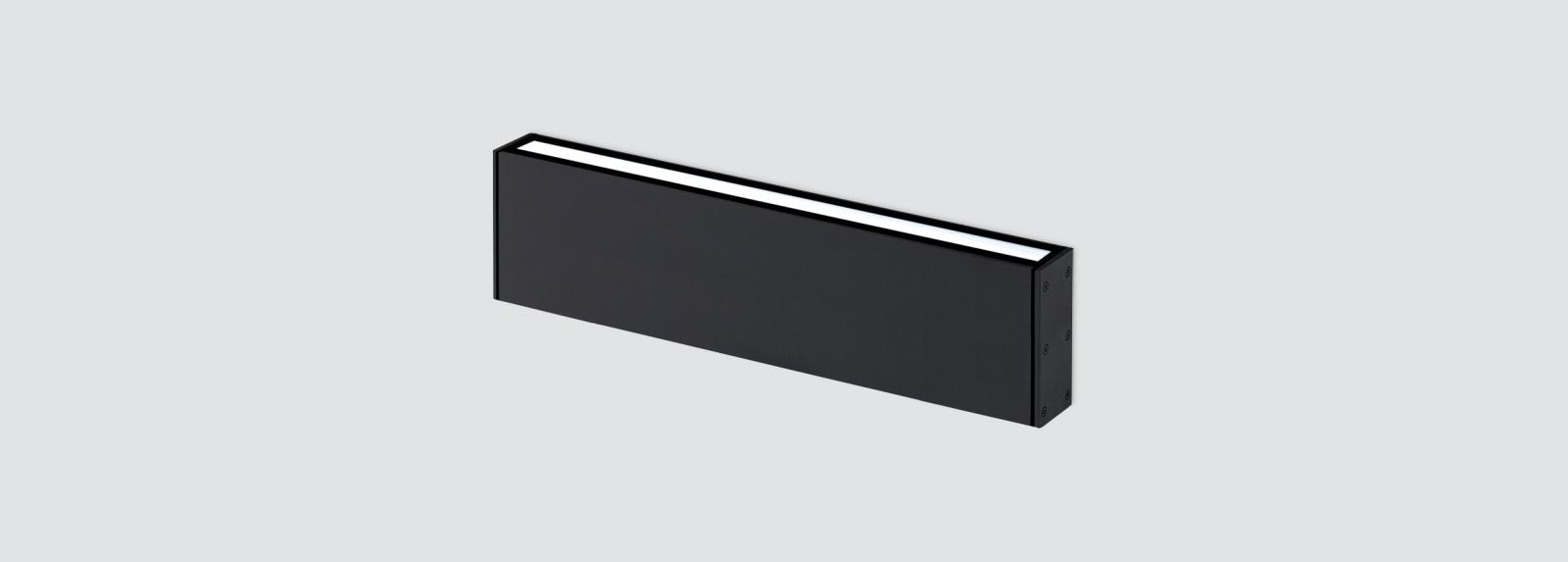

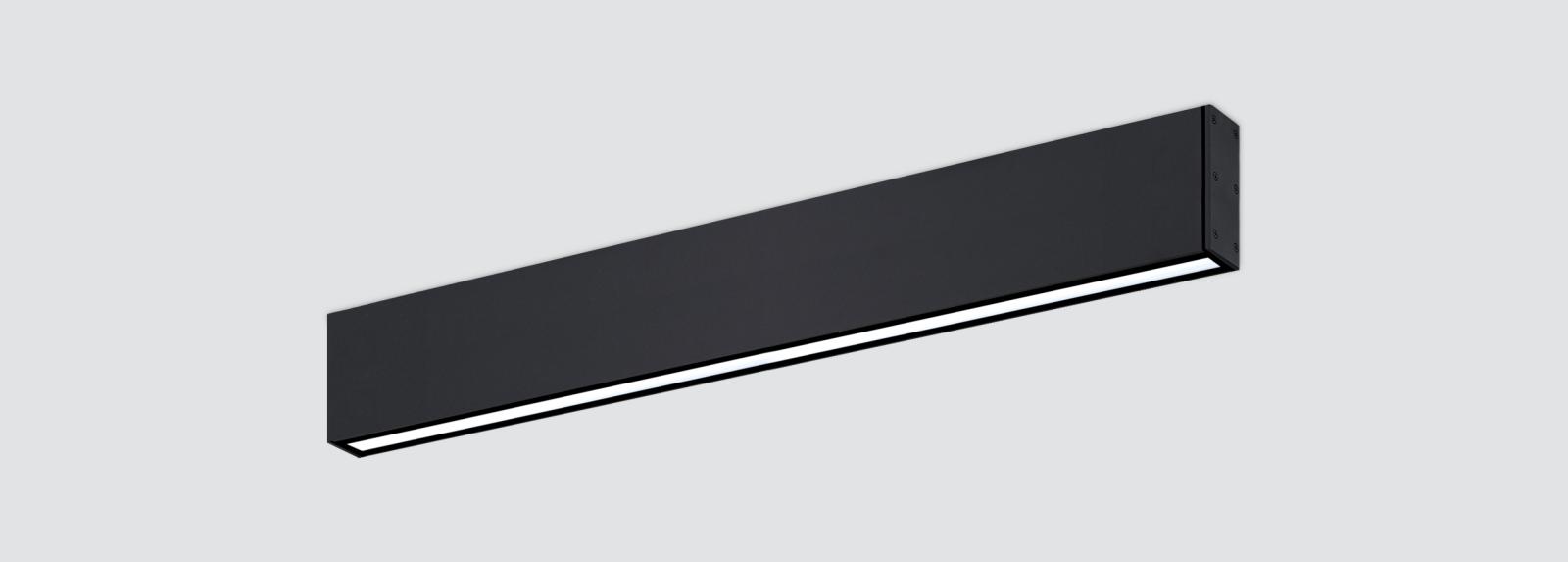

DISTRICT 700 | IP66 IK10 Two sided-emission wall-mounted linear luminaires

DISTRICT 700 | IP66 IK10 Two sided-emission wall-mounted linear luminaires

Wall mounted linear fixtures with symmetrical light distribution. Double light emission: up and down.

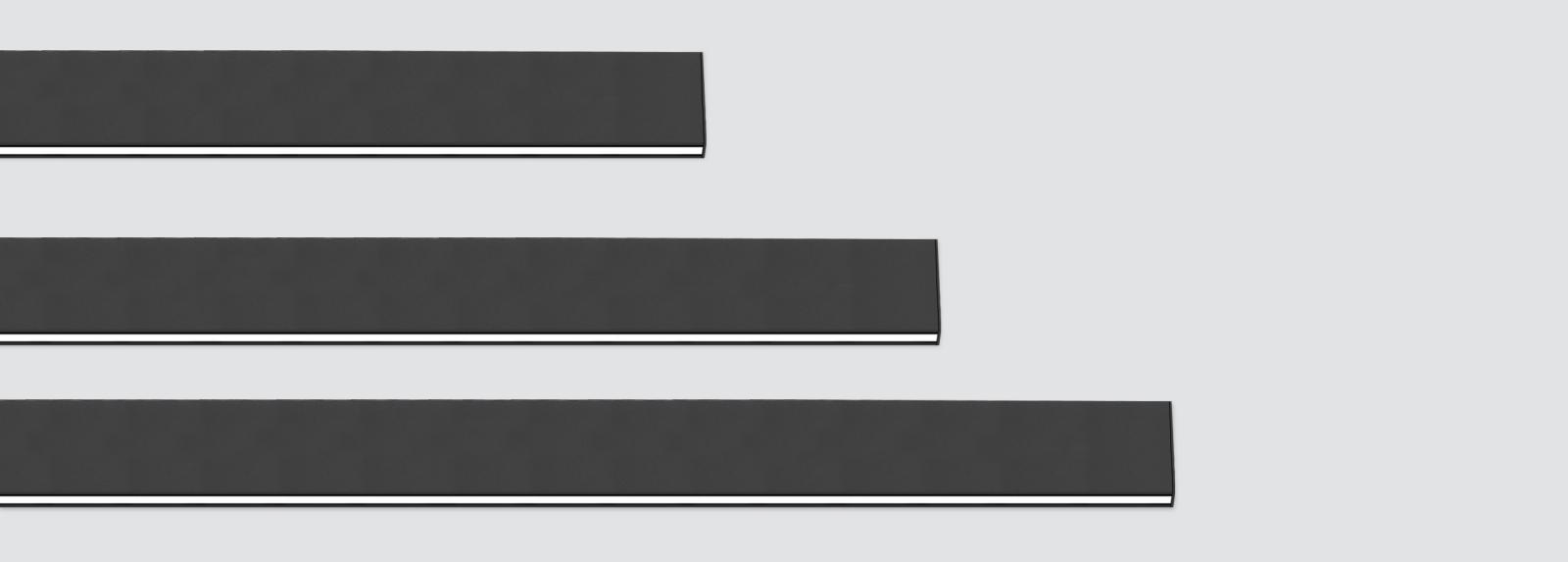

Linear fixtures available in 7 standard lengths 155mm, 295mm, 575mm, 855mm, 1135mm, 1415mm and 2816mm in a width of 62mm and height of 128mm.
Protection rating against dust and moisture: complete IP66.
Protection rating for resistance to harmful mechanical impacts: IK10.
Powder painted extruded aluminium profile available in assorted finishes, customized RAL under request.
Highly efficient linear printed circuit board.
Protection polycarbonate diffuser in 4mm.
Built-in driver.
Anti-condensation device.
Wall-mounted by mounting brackets. 316L stainless steel 316L mounting brackets.
Cable inlet hole on one side of the light fixture. Can also be supplied with two cable inlets, one on each side for serial installation.
Passive temperature management.

It is possible to specify individual luminous flux, beam angle and colour temperature for each luminaire side, downlight and uplight side.


Suggested applications: porches, shopping centres, leisure areas, car parks, service stations, industrial facilities, outdoor ceilings in high humidity areas, or interior spaces that require low-maintenance. Solid ceilings or where there is not space for recessed mounting.

PRODUCT CONFIGURATOR

Tilt

Outer dimensions

Height

Color Temperature

CRI

Luminous flux of the fixture

Beam angle

Diffuser

Power

mA

Electronic equipment

SEARCH RESULTS

Beam angle
Reference
Power
Luminous flux of the luminaire
CRI
Colour temperature
Outer dimensions
Height
F73DSX
acc_twosides1  43
734DSX.4.01-I1401
2x1,6W
2x 2lm
>80
3000K
155mm x 62mm
128mm
F73DSX
acc_twosides1  43
734DSX.4.01-I1400
2x1,6W
2x 2lm
>80
2700K
155mm x 62mm
128mm
F73DSX
acc_twosides1  43
734DSX.4.01-I1403
2x1,6W
2x 2lm
>80
5000K
155mm x 62mm
128mm
F73DSX
acc_twosides1  43
734DSX.4.01-I1402
2x1,6W
2x 2lm
>80
4000K
155mm x 62mm
128mm
F73DSX
acc_twosides1  43
734DSX.4.01-I1407
2x2,7W
2x 2lm
>80
2700K
155mm x 62mm
128mm
F73DSX
acc_twosides1  43
734DSX.4.01-I1408
2x2,7W
2x 2lm
>80
3000K
155mm x 62mm
128mm
F73DSX
acc_twosides1  43
734DSX.4.01-I1410
2x2,7W
2x 2lm
>80
5000K
155mm x 62mm
128mm
F73DSX
acc_twosides1  43
734DSX.4.01-I1409
2x2,7W
2x 2lm
>80
4000K
155mm x 62mm
128mm
F73DSX
acc_twosides1  43
734DSX.4.01-I1414
2x3,85W
2x 2lm
>80
2700K
155mm x 62mm
128mm
F73DSX
acc_twosides1  43
734DSX.4.01-I1421
2x5,02W
2x 2lm
>80
2700K
155mm x 62mm
128mm
F73DSX
acc_twosides1  43
734DSX.4.01-I1415
2x3,85W
2x 2lm
>80
3000K
155mm x 62mm
128mm
F73DSX
acc_twosides1  43
734DSX.4.01-I1422
2x5,02W
2x 2lm
>80
3000K
155mm x 62mm
128mm
F73DSX
acc_twosides1  43
734DSX.4.01-I1416
2x3,85W
2x 2lm
>80
4000K
155mm x 62mm
128mm
F73DSX
acc_twosides1  43
734DSX.4.01-I1423
2x5,02W
2x 2lm
>80
4000K
155mm x 62mm
128mm
F73DSX
acc_twosides1  43
734DSX.4.01-I1424
2x5,02W
2x 2lm
>80
5000K
155mm x 62mm
128mm
F73DSX
acc_twosides1  43
734DSX.4.01-I1417
2x3,85W
2x 2lm
>80
5000K
155mm x 62mm
128mm
F75DSX
acc_twosides1  100
754DSX.4.01-I1400
2x1,6W
2x 2lm
>80
2700K
155mm x 62mm
128mm
F75DSX
acc_twosides1  100
754DSX.4.01-I1401
2x1,6W
2x 2lm
>80
3000K
155mm x 62mm
128mm
F75DSX
acc_twosides1  100
754DSX.4.01-I1402
2x1,6W
2x 2lm
>80
4000K
155mm x 62mm
128mm
F75DSX
acc_twosides1  100
754DSX.4.01-I1403
2x1,6W
2x 2lm
>80
5000K
155mm x 62mm
128mm
