DISTRICT XS 100

DISTRICT XS 100

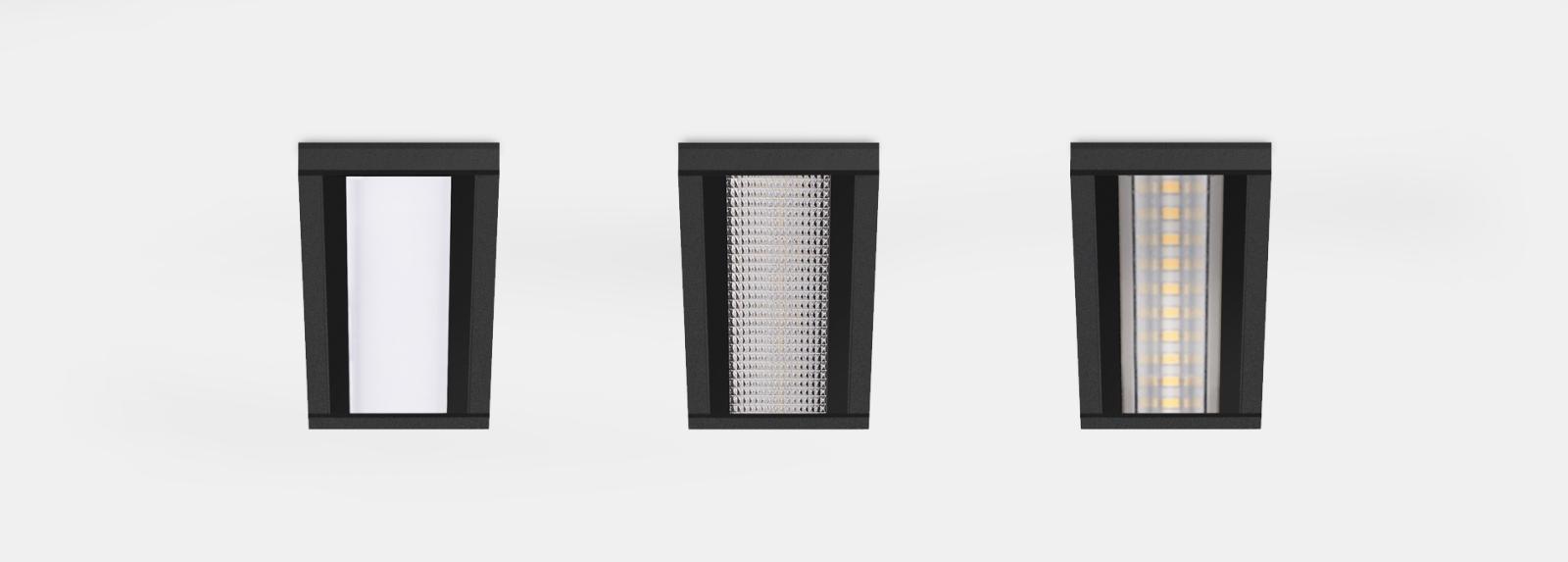

Recessed linear downlights with symmetrical and asymmetrical light distribution.
Linear fixtures available in 2 lengths 169mm and 309mm in a width of 62mm and height of 85mm.
Protection rating against dust and moisture: complete IP66.
Protection rating for resistance to harmful mechanical impacts: IK10.
Powder painted extruded aluminium profile available in assorted finishes, customized RAL under request.
Highly efficient linear printed circuit board.
Protection polycarbonate diffuser in 4mm.
Built-in driver.
Anti-condensation device.
Ceiling-mounted using steel support with screws.
Cable inlet hole on one side of the light fixture. Can also be supplied with two cable inlets, one on each side for serial installation.
Passive temperature management.
Matching products:

  • Surface-mounted: DISTRICT XS 300.
  • Wall-mounted: DISTRICT XS 600.
  • Two-sided emission wall-mounted: DISTRICT XS 700.
  • Projector: DISTRICT XS 800.
Suggested applications: porches, shopping centres, leisure areas, car parks, service stations, industrial facilities, outdoor ceilings in high humidity areas, or interior spaces that require low-maintenance. Solid ceilings or where there is not space for recessed mounting.

Product configurator

Tilt

Dimensions recessed

Outer dimensions

Height

Colour Temperature

CRI

UGR

Beam angle

mA

Accessories

Electronic equipment

Search results
Beam angle
Reference
Watt
Luminous flux of the luminaire
CRI
Colour Temperature
Embedding dimensions
Outer dimensions
Height

F13DSX
43
1.6W
264lm
>80
3000K
159x65
169x75
85mm
134DSX.4.01-I1116
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F13DSX
43
1.6W
281lm
>80
4000K
159x65
169x75
85mm
134DSX.4.01-I1117
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F13DSX
43
2.7W
434lm
>80
3000K
159x65
169x75
85mm
134DSX.4.01-I1118
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F13DSX
43
2.7W
455lm
>80
4000K
159x65
169x75
85mm
134DSX.4.01-I1119
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F13DSX
43
3.9W
587lm
>80
3000K
159x65
169x75
85mm
134DSX.4.01-I1120
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F13DSX
43
3.9W
616lm
>80
4000K
159x65
169x75
85mm
134DSX.4.01-I1121
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F15DSX
100
1.6W
140lm
>80
3000K
159x65
169x75
85mm
154DSX.4.01-I1116
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F15DSX
100
1.6W
149lm
>80
4000K
159x65
169x75
85mm
154DSX.4.01-I1117
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F15DSX
100
2.7W
230lm
>80
3000K
159x65
169x75
85mm
154DSX.4.01-I1118
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F15DSX
100
2.7W
241lm
>80
4000K
159x65
169x75
85mm
154DSX.4.01-I1119
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F15DSX
100
3.9W
311lm
>80
3000K
159x65
169x75
85mm
154DSX.4.01-I1120
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F15DSX
100
3.9W
326lm
>80
4000K
159x65
169x75
85mm
154DSX.4.01-I1121
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F16DSX
69
1.6W
167lm
>80
3000K
159x65
169x75
85mm
164DSX.4.01-I1116
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F16DSX
69
1.6W
178lm
>80
4000K
159x65
169x75
85mm
164DSX.4.01-I1117
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F16DSX
69
2.7W
275lm
>80
3000K
159x65
169x75
85mm
164DSX.4.01-I1118
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE
