DRAK 100

DRAK 100

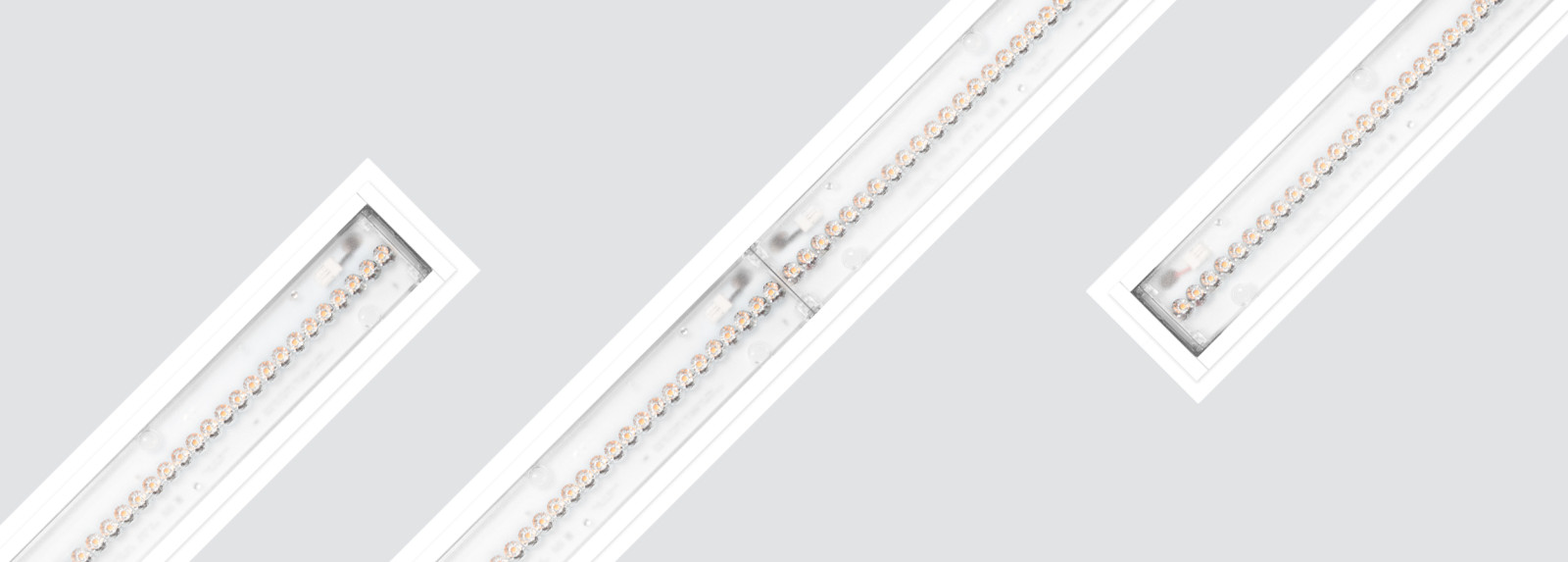

Recessed ceiling mounted linear downlights with symmetrical light distribution to achieve an effective task or general lighting.
Specially developed to solve the installation difficulties in the process of replacing linear luminaires using old fluorescent lamps.

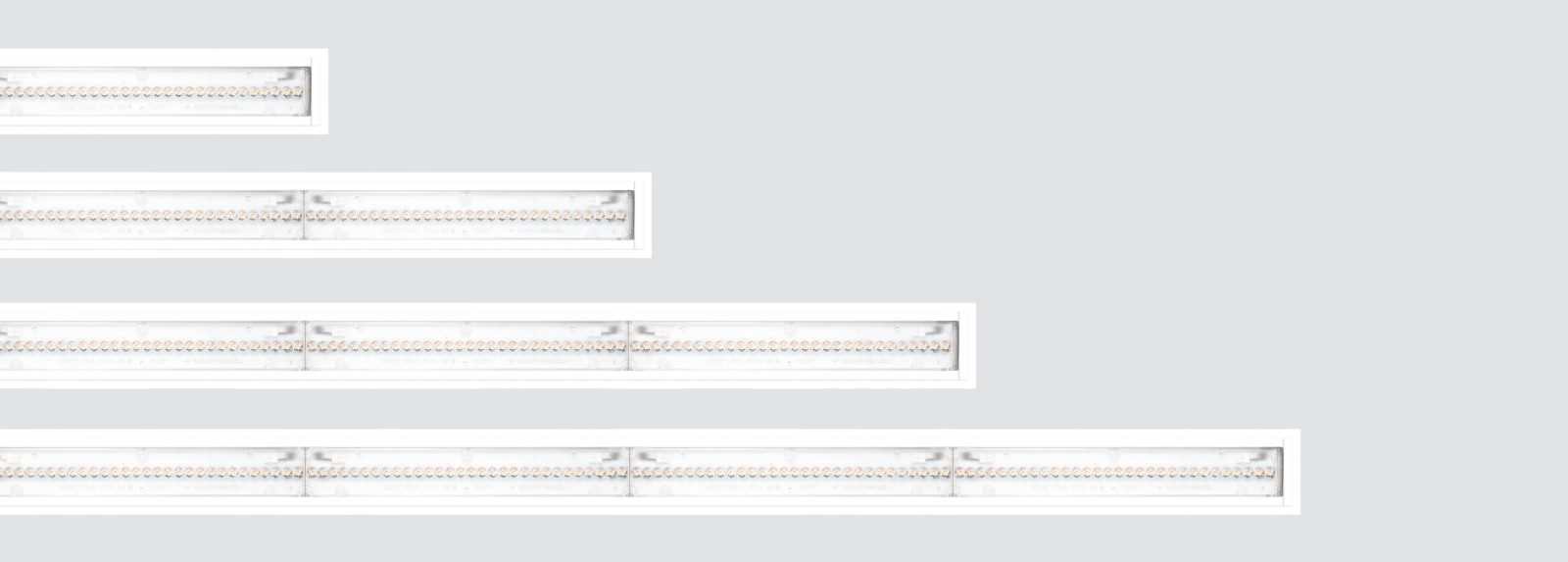

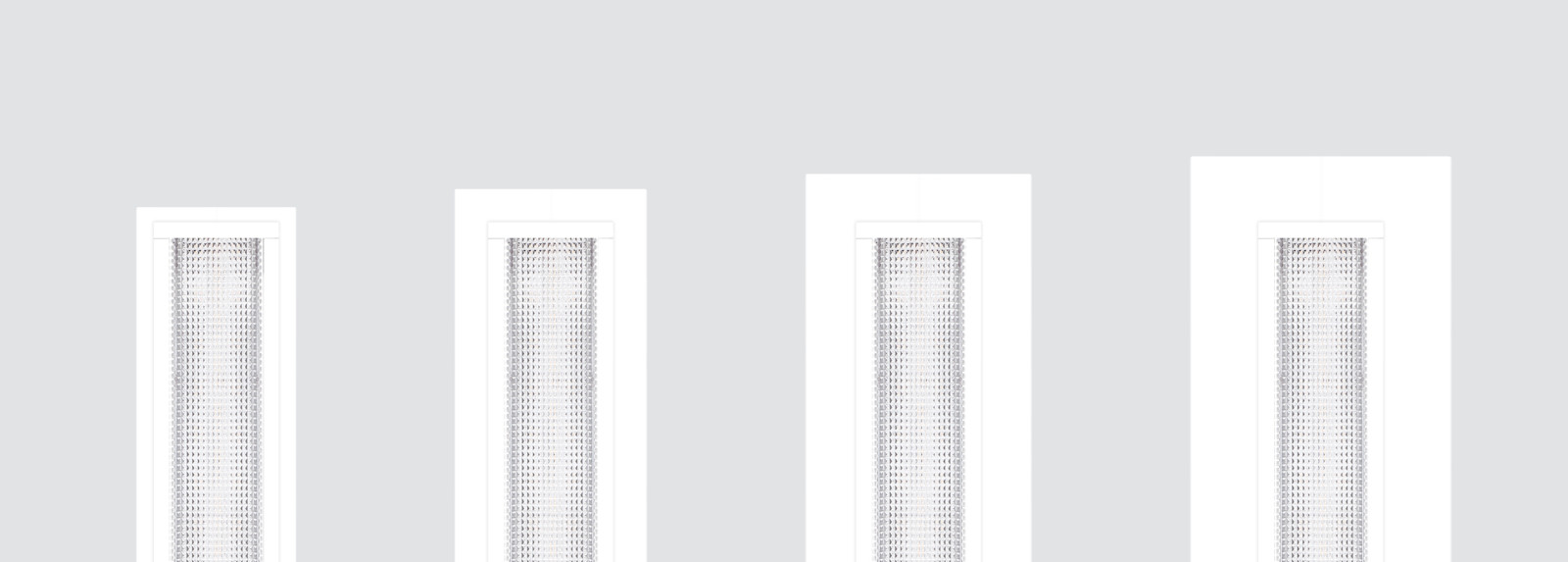

Customized exterior dimensions depending on the installation needs.
Powder painted extruded aluminium profile available in assorted finishes, customized RAL under request.
The adaptation sheet is fixed to the light fixture to create a single body for easier installation.

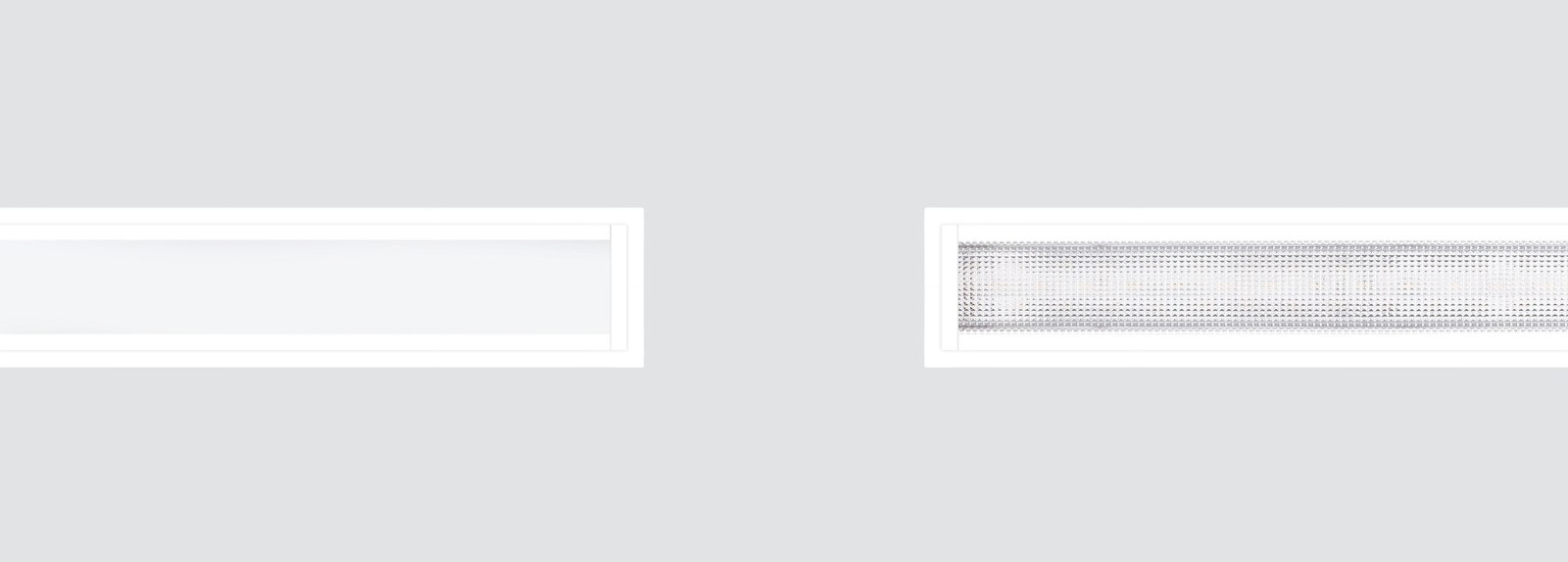

Range of PMMA optics  and opal or microprismatic polycarbonate diffuser to achieve specific photometric results.

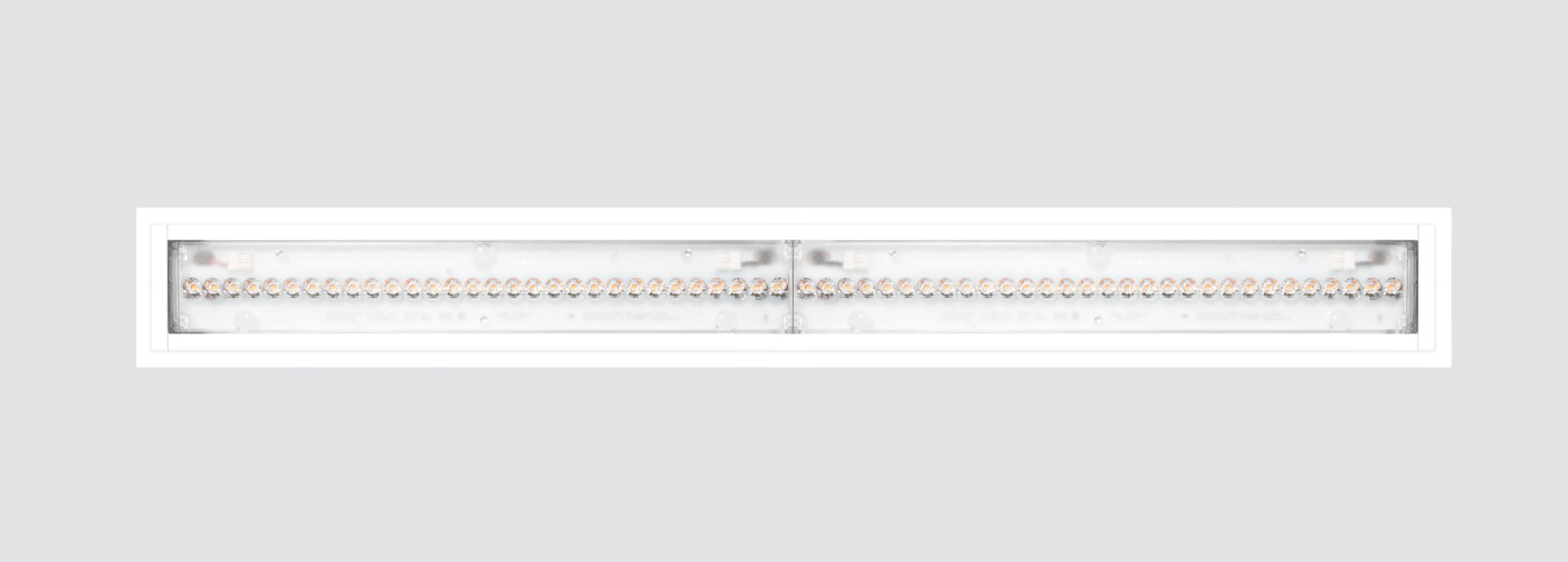

Highly efficient linear printed circuit board.
Built-in driver, included.
Passive temperature management.
Ceiling-mounted using galvanized steel support with screws.

Product configurator

Tilt

Height

Colour Temperature

CRI

UGR

Beam angle

Accessories

Search results
Beam angle
Reference
Watt
Luminous flux of the luminaire
CRI
Colour Temperature
Embedding dimensions
Outer dimensions
Height

F13DRK
31
10W
1630lm
80
3000K
(602+x)x(78+y)
(602+x)x(78+y)
105mm
121DRK.1-I976
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F13DRK
78
10W
1546lm
80
3000K
(602+x)x(78+y)
(602+x)x(78+y)
105mm
151DRK.1-I976
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F13DRK
93
10W
1546lm
80
3000K
(602+x)x(78+y)
(602+x)x(78+y)
105mm
161DRK.1-I976
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F13DRK
96
10W
1394lm
80
3000K
(602+x)x(78+y)
(602+x)x(78+y)
105mm
171DRK.1-I976
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F13DRK
31
10W
1746lm
80
4000K
(602+x)x(78+y)
(602+x)x(78+y)
105mm
121DRK.1-I977
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F13DRK
78
10W
1656lm
80
4000K
(602+x)x(78+y)
(602+x)x(78+y)
105mm
151DRK.1-I977
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F13DRK
93
10W
1656lm
80
4000K
(602+x)x(78+y)
(602+x)x(78+y)
105mm
161DRK.1-I977
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F13DRK
96
10W
1494lm
80
4000K
(602+x)x(78+y)
(602+x)x(78+y)
105mm
171DRK.1-I977
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F13DRK
31
10W
1775lm
80
5000K
(602+x)x(78+y)
(602+x)x(78+y)
105mm
121DRK.1-I978
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F13DRK
78
10W
1684lm
80
5000K
(602+x)x(78+y)
(602+x)x(78+y)
105mm
151DRK.1-I978
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F13DRK
93
10W
1684lm
80
5000K
(602+x)x(78+y)
(602+x)x(78+y)
105mm
161DRK.1-I978
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F13DRK
96
10W
1519lm
80
5000K
(602+x)x(78+y)
(602+x)x(78+y)
105mm
171DRK.1-I978
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F13DRK
31
14W
2270lm
80
3000K
(602+x)x(78+y)
(602+x)x(78+y)
105mm
121DRK.1-I981
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F13DRK
78
14W
2153lm
80
3000K
(602+x)x(78+y)
(602+x)x(78+y)
105mm
151DRK.1-I981
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F13DRK
93
14W
2153lm
80
3000K
(602+x)x(78+y)
(602+x)x(78+y)
105mm
161DRK.1-I981
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
