GIROBAS

GIROBAS

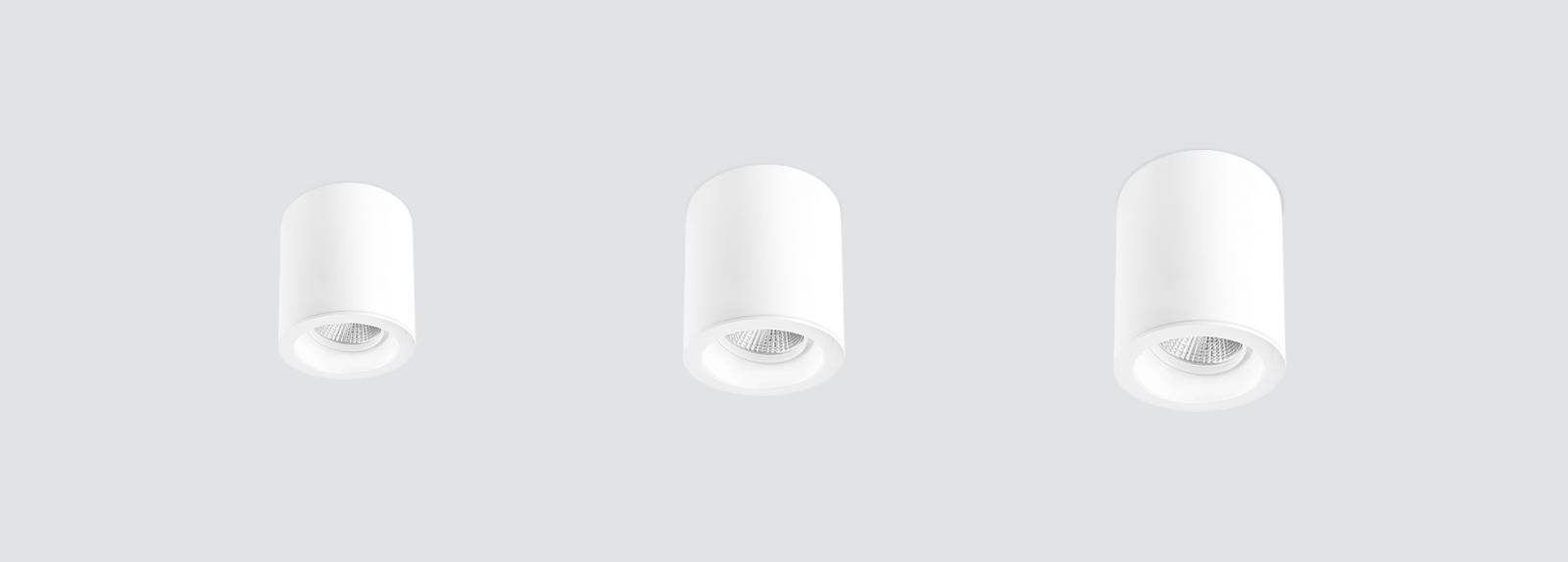

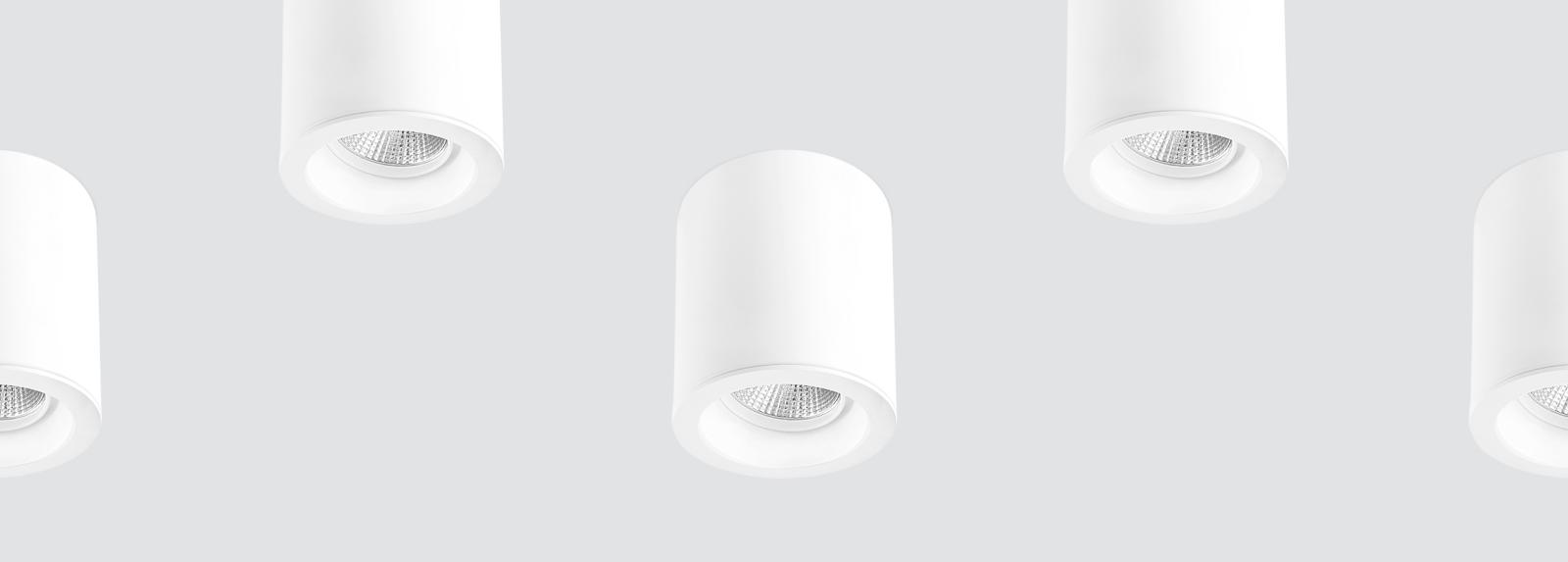

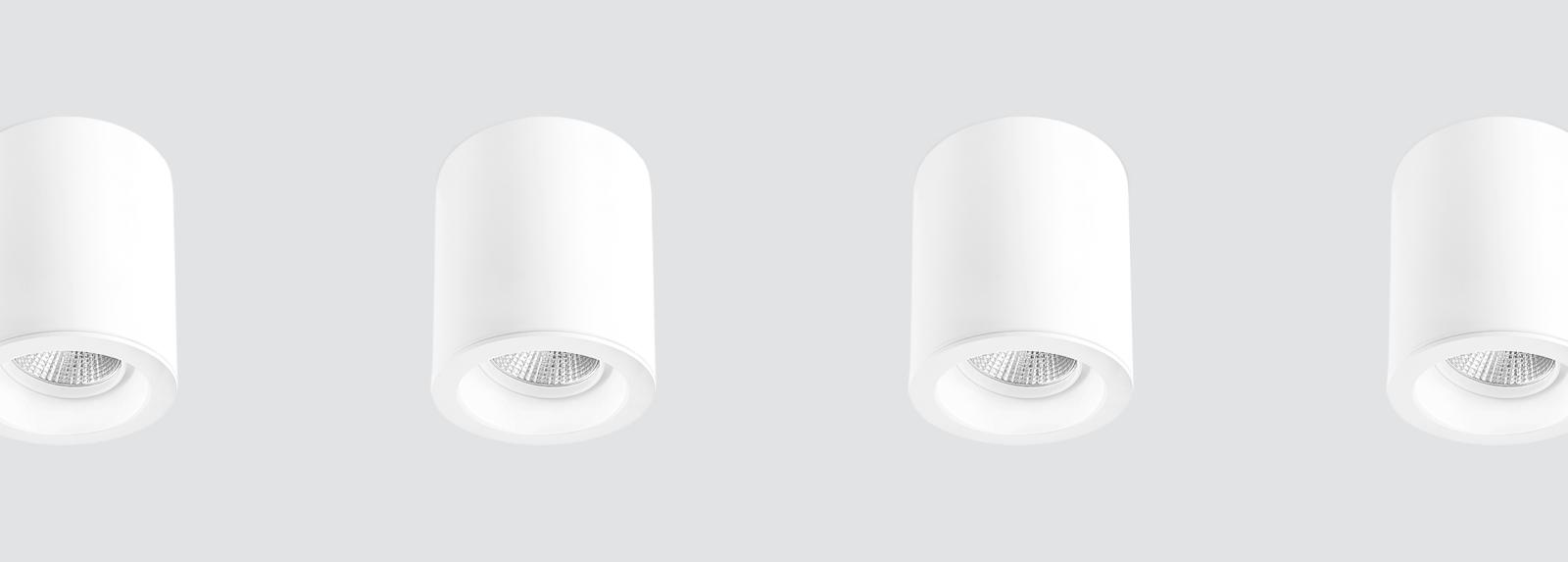

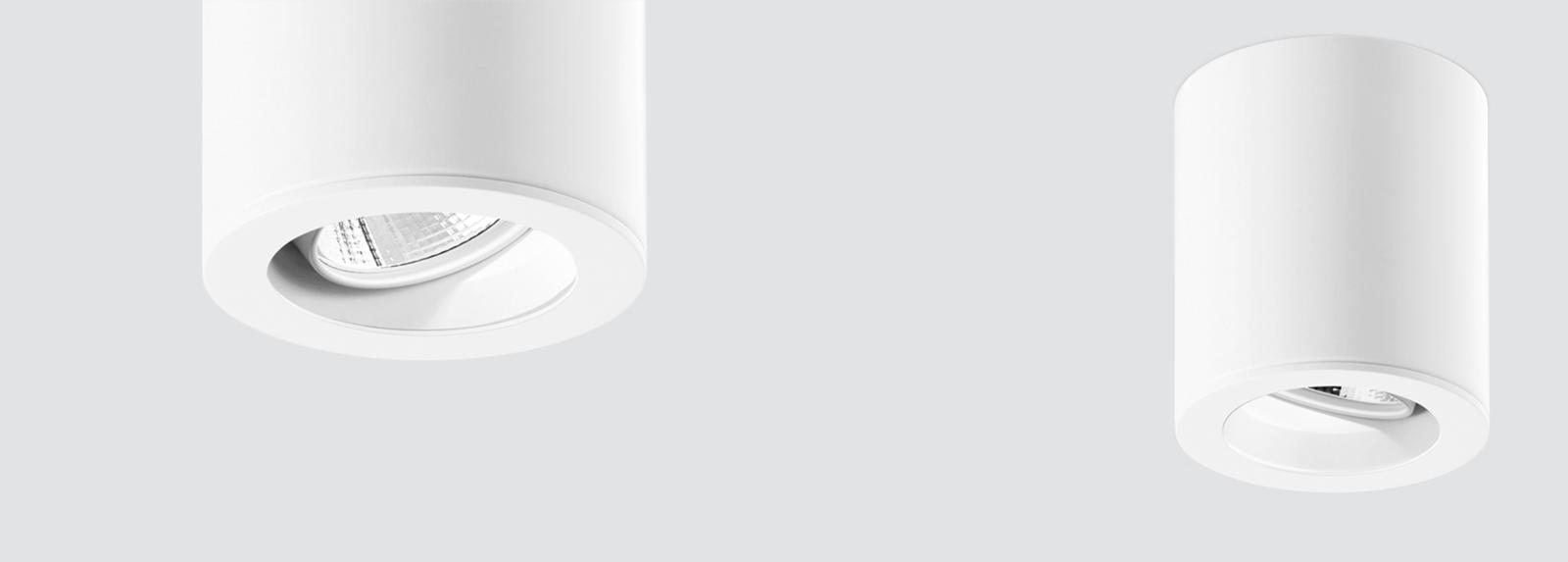

Surface-mounted downlight with symmetrical light distribution to achieve an effective task, accent or ambient lighting.
Neutral cylindrical body in diameter 150mm, 190mm, 220mm and 240mm.
Adjustable to 20º.
High-purity aluminium reflector in assorted finishes: specular anodised, facetted metalized or sandblasted anodised depending on the beam angle outcome.
Powder painted aluminium body available in assorted finishes, customized RAL under request.
Built-in driver, included.
Electronic options for lighting control: DALI/ DSI.
Passive temperature management: heat dissipation flows through an aluminium heat sink and the fixture body itself.
Mounting to the ceiling plate with two securing points.
Cable entry from the top of the fixture.

Matching products:

  • BASE surface mounted downlights with cylindrical body.
  • GRAVITY and GRAVITY EVOLUTION pendant downlights with cylindrical body.
  • CUMULUS and CUMULUS EVOLUTION pendant downlights with cylindrical body and intermediate frosted glass.
  • FLOCCUS surface mounted downlight with intermediate frosted glass.
  • SATELLITE surface-mounted adjustable downlights.


Suggested applications: shopping centers, hotels, offices, airports, service stations, restaurants, shops, workplaces, universities, conference halls, meeting rooms and similar installations. Solution for solid ceilings or where there is not enough space for recessed mounting.

Product configurator

Tilt

Fixture diameter

Height

Colour Temperature

CRI

UGR

Beam angle

Watt

Accessories

Electronic equipment

Search results
Beam angle
Reference
Watt
Luminous flux of the luminaire
CRI
Colour Temperature
Fixture diameter
Height

F104GRB_107GRB
12
11W
1784lm
>80
2700K
190mm
240mm
104GRB.1-I863
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F104GRB_107GRB
12
17W
2507lm
>80
2700K
190mm
240mm
104GRB.1-I869
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F104GRB_107GRB
12
11W
1856lm
>80
3000K
190mm
240mm
104GRB.1-I864
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F104GRB_107GRB
12
17W
2612lm
>80
3000K
190mm
240mm
104GRB.1-I870
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F104GRB_107GRB
12
11W
1934lm
>80
4000K
190mm
240mm
104GRB.1-I865
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F104GRB_107GRB
12
17W
2721lm
>80
4000K
190mm
240mm
104GRB.1-I871
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F104GRB_107GRB
12
11W
1474lm
>90
2700K
190mm
240mm
104GRB.1-I866
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F104GRB_107GRB
12
17W
2075lm
>90
2700K
190mm
240mm
104GRB.1-I872
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F104GRB_107GRB
12
11W
1574lm
>90
3000K
190mm
240mm
104GRB.1-I867
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F104GRB_107GRB
12
17W
2211lm
>90
3000K
190mm
240mm
104GRB.1-I873
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F104GRB_107GRB
12
11W
1652lm
>90
4000K
190mm
240mm
104GRB.1-I868
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F104GRB_107GRB
12
17W
2321lm
>90
4000K
190mm
240mm
104GRB.1-I874
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F104GRB_107GRB
24
11W
1784lm
>80
2700K
190mm
240mm
105GRB.1-I863
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F104GRB_107GRB
24
17W
2507lm
>80
2700K
190mm
240mm
105GRB.1-I869
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F104GRB_107GRB
24
11W
1856lm
>80
3000K
190mm
240mm
105GRB.1-I864
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE
