GOWEL 900

GOWEL 900

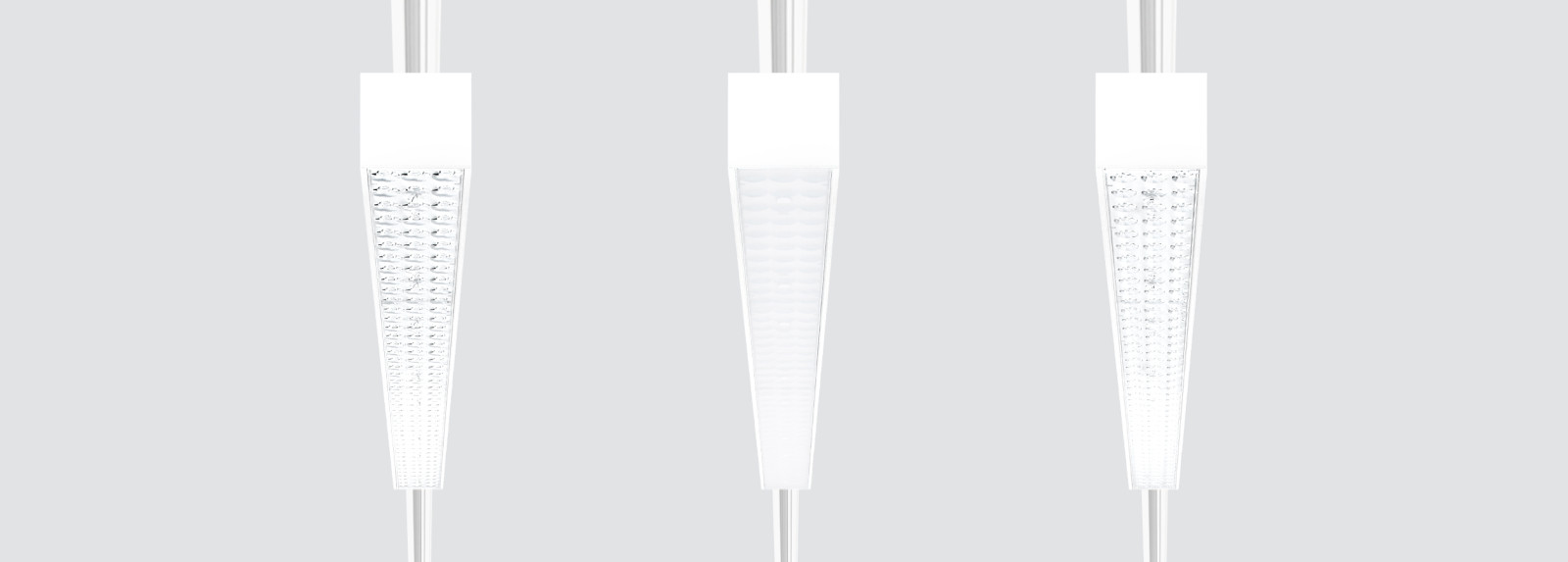

Linear downlights with 3-phase track adapter with symmetrical and asymmetrical light distribution to achieve an effective task or general lighting.

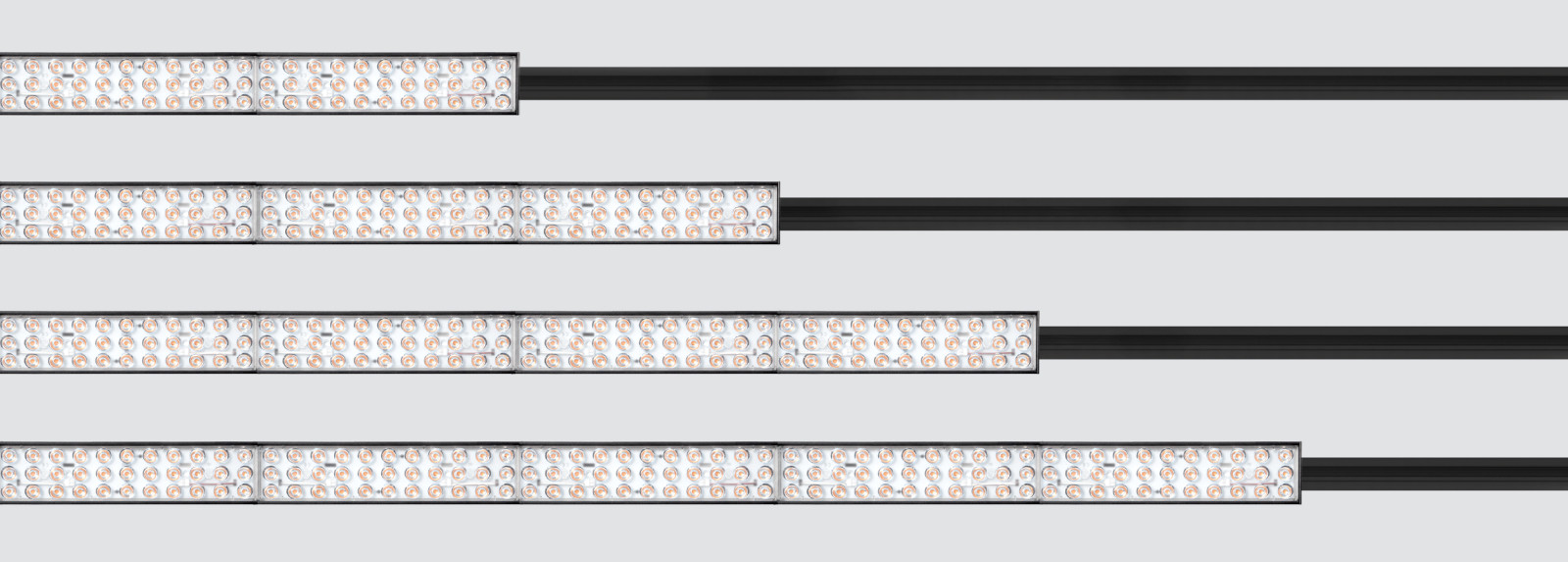

Linear fixtures available in 5 lengths 581mm, 868mm, 1154mm, 1441mm and 2875mm and in a width of 70mm..
Powder painted extruded aluminium profile available in assorted finishes, customized RAL under request.
Range of PMMA optics to achieve specific photometric results.
Highly efficient linear printed circuit board.
Built-in driver.
Passive temperature management.

The track version offers complete flexibility as the light sources may be moved all along the track.

Suggested applications: offices, boutiques, showrooms, leisure facilities, restaurants, hotels, shopping centers and similiar applications. Suggested applications: shopping malls, hospitals, laboratories, warehouses, industrial facilities, schools and universities, offices, retail, showrooms, leisure facilities, gyms and similar installations. Solid ceilings, where it is not possible a recessed installation.

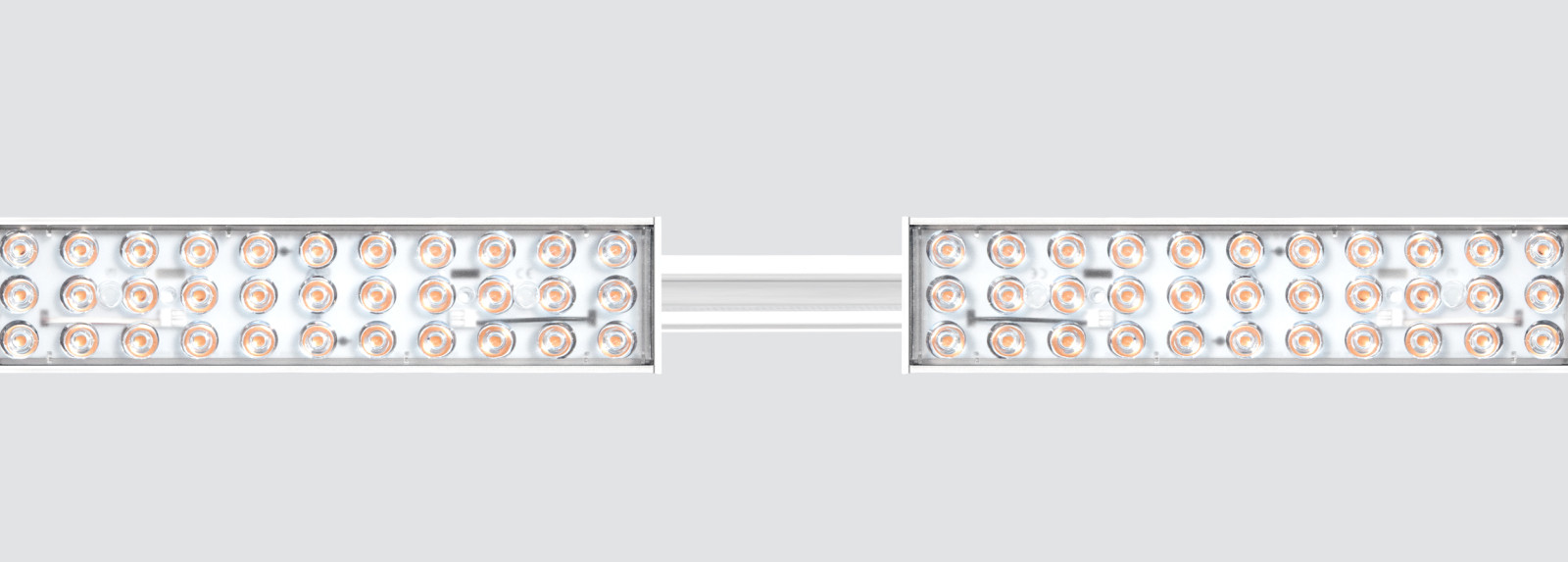

It is possible to combine different lengths and junction modules in different ways to create customized systems.

Product configurator

Tilt

Outer dimensions

Height

Colour Temperature

CRI

UGR

Beam angle

mA

Accessories

Search results
Beam angle
Reference
Watt
Luminous flux of the luminaire
CRI
Colour Temperature
Outer dimensions
Height

F95GWL
17
9W
1447lm
80
3000K
581x70
65mm
901GWL.1-I727
DATA SHEET
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F95GWL
17
9W
1556lm
80
4000K
581x70
65mm
901GWL.1-I734
DATA SHEET
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F95GWL
17
9W
1583lm
80
5000K
581x70
65mm
901GWL.1-I741
DATA SHEET
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F95GWL
17
19W
2776lm
80
3000K
581x70
65mm
901GWL.1-I748
DATA SHEET
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F95GWL
17
19W
2985lm
80
4000K
581x70
65mm
901GWL.1-I755
DATA SHEET
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F95GWL
17
19W
3030lm
80
5000K
581x70
65mm
901GWL.1-I762
DATA SHEET
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F95GWL
17
32W
4450lm
80
3000K
581x70
65mm
901GWL.1-I769
DATA SHEET
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F95GWL
17
32W
4787lm
80
4000K
581x70
65mm
901GWL.1-I776
DATA SHEET
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F95GWL
17
32W
4850lm
80
5000K
581x70
65mm
901GWL.1-I783
DATA SHEET
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F95GWL
65
9W
1479lm
80
3000K
581x70
65mm
931GWL.1-I727
DATA SHEET
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F95GWL
65
9W
1590lm
80
4000K
581x70
65mm
931GWL.1-I734
DATA SHEET
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F95GWL
65
9W
1618lm
80
5000K
581x70
65mm
931GWL.1-I741
DATA SHEET
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F95GWL
65
19W
2837lm
80
3000K
581x70
65mm
931GWL.1-I748
DATA SHEET
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F95GWL
65
19W
3050lm
80
4000K
581x70
65mm
931GWL.1-I755
DATA SHEET
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F95GWL
65
19W
3097lm
80
5000K
581x70
65mm
931GWL.1-I762
DATA SHEET
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
