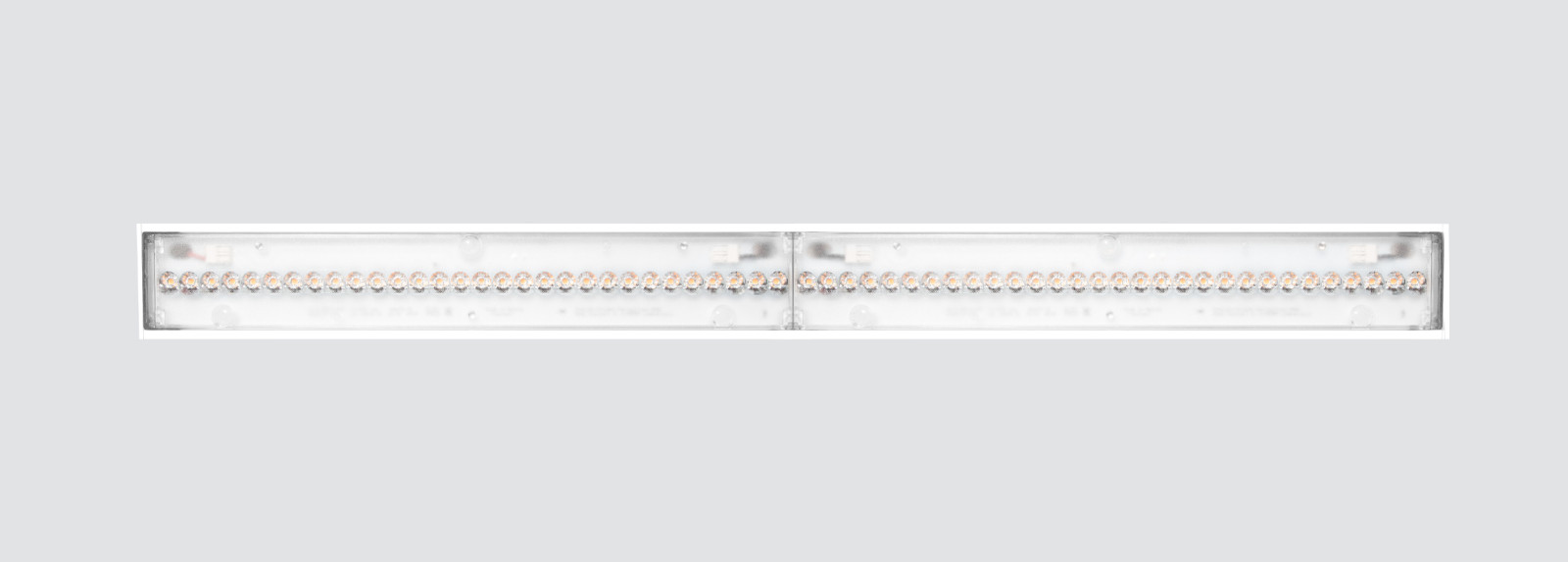

HORIZON 200 | Frameless recessed linear downlights

HORIZON 200 | Frameless recessed linear downlights

Recessed ceiling mounted linear downlights with symmetrical and asymmetrical light distribution to achieve an effective task or general lighting.

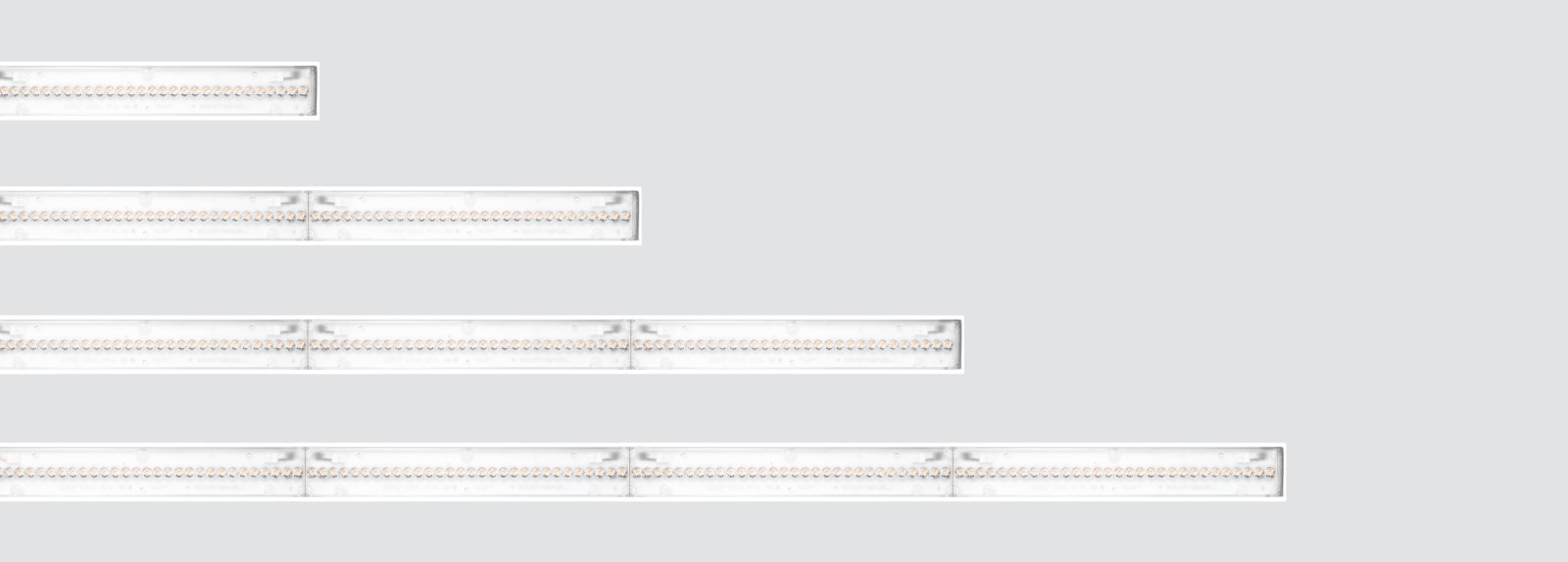

Frameless linear fixtures available in 6 standard lengths: 295mm, 576mm, 857mm, 1138mm, 1419mm and 2824mm and in a width of 50mm.
Powder painted extruded aluminium profile available in assorted finishes, customized RAL under request.
Range of PMMA optics to achieve specific photometric results.
Highly efficient linear printed circuit board.
Built-in driver.
Passive temperature management.
Ceiling-mounted using steel support with screws.

Suggested applications: offices, schools and universities, retail, showrooms, leisure facilities, shopping malls, gyms, hospitals, laboratories, warehouses, industrial facilities and similar installations.

It is possible to combine different lengths and junction modules in different ways to create customized systems.

PRODUCT CONFIGURATOR

Tilt

Recessed dimensions

Outer dimensions

Height

Color Temperature

CRI

UGR

Luminous flux of the fixture

Beam angle

Diffuser

Power

mA

Electronic equipment

SEARCH RESULTS

Beam angle
Reference
Power
Luminous flux of the luminaire
CRI
Colour temperature
Embedding dimensions
Outer dimensions
Height
F101HRN
acc_downlight3  31
221HRN.1-I976
10W
1630lm
80
3000K
577mm x 53mm
576mm x 50mm
65mm
F101HRN
acc_downlight3  31
220HRN.1-I1271
4,7W
863lm
80
3000K
296mm x 53mm
295mm x 50mm
65mm
F101HRW
WW_downlight  ASY
281HRN.1-I976
10W
1394lm
80
3000K
577mm x 53mm
576mm x 50mm
65mm
F101HRN
acc_downlight3  31
221HRN.1-I977
10W
1746lm
80
4000K
577mm x 53mm
576mm x 50mm
65mm
F101HRN
acc_downlight3  31
220HRN.1-I1272
4,7W
922lm
80
4000K
296mm x 53mm
295mm x 50mm
65mm
F101HRW
WW_downlight  ASY
281HRN.1-I977
10W
1494lm
80
4000K
577mm x 53mm
576mm x 50mm
65mm
F101HRW
WW_downlight  ASY
281HRN.1-I978
10W
1519lm
80
5000K
577mm x 53mm
576mm x 50mm
65mm
F101HRN
acc_downlight3  31
221HRN.1-I978
10W
1775lm
80
5000K
577mm x 53mm
576mm x 50mm
65mm
F101HRN
acc_downlight3  31
220HRN.1-I1273
4,7W
922lm
80
5000K
296mm x 53mm
295mm x 50mm
65mm
F101HRN
acc_downlight3  31
220HRN.1-I1274
6,9W
1217lm
80
3000K
296mm x 53mm
295mm x 50mm
65mm
F101HRN
acc_downlight3  31
220HRN.1-I1275
6,9W
1314lm
80
4000K
296mm x 53mm
295mm x 50mm
65mm
F101HRN
acc_downlight3  31
220HRN.1-I1276
6,9W
1314lm
80
5000K
296mm x 53mm
295mm x 50mm
65mm
F101HRN
acc_downlight3  31
220HRN.1-I1277
9,9W
1673lm
80
3000K
296mm x 53mm
295mm x 50mm
65mm
F101HRN
acc_downlight3  31
221HRN.1-I981
14W
2270lm
80
3000K
577mm x 53mm
576mm x 50mm
65mm
F101HRW
WW_downlight  ASY
281HRN.1-I981
14W
1942lm
80
3000K
577mm x 53mm
576mm x 50mm
65mm
F101HRN
acc_downlight3  31
220HRN.1-I1278
9,9W
1780lm
80
4000K
296mm x 53mm
295mm x 50mm
65mm
F101HRN
acc_downlight3  31
221HRN.1-I982
14W
2444lm
80
4000K
577mm x 53mm
576mm x 50mm
65mm
F101HRN
acc_downlight3  31
220HRN.1-I1279
9,9W
1780lm
80
5000K
296mm x 53mm
295mm x 50mm
65mm
F101HRW
WW_downlight  ASY
281HRN.1-I982
14W
2092lm
80
4000K
577mm x 53mm
576mm x 50mm
65mm
F101HRW
WW_downlight  ASY
281HRN.1-I983
14W
2117lm
80
5000K
577mm x 53mm
576mm x 50mm
65mm
