HORIZON 500

HORIZON 500


Pendant linear fixtures with symmetrical and asymmetrical light distribution to achieve an effective task or general lighting. Double light emission: up and down.

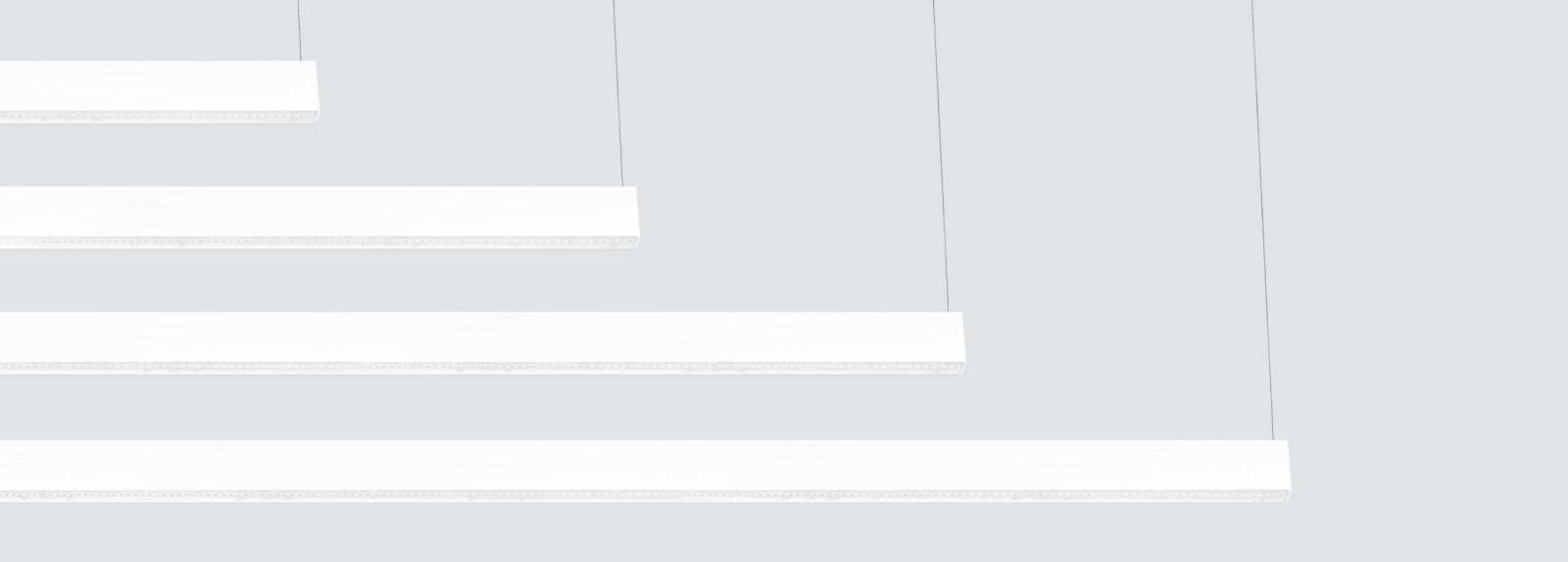

Luminaires available in 5 lengths 576mm, 857mm, 1138mm, 1419mm and 2824mm and in a width of 50mm.

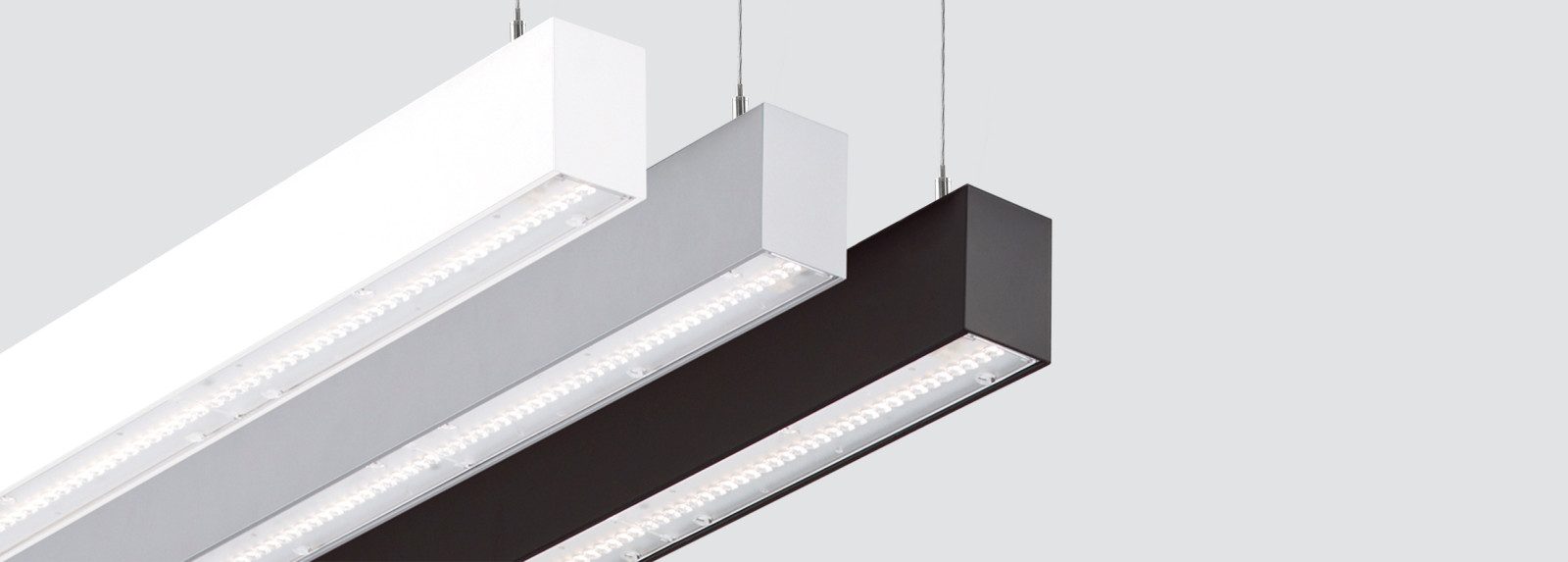

Powder painted extruded aluminium profile available in assorted finishes, customized RAL under request.
Range of PMMA optics to achieve specific photometric results.

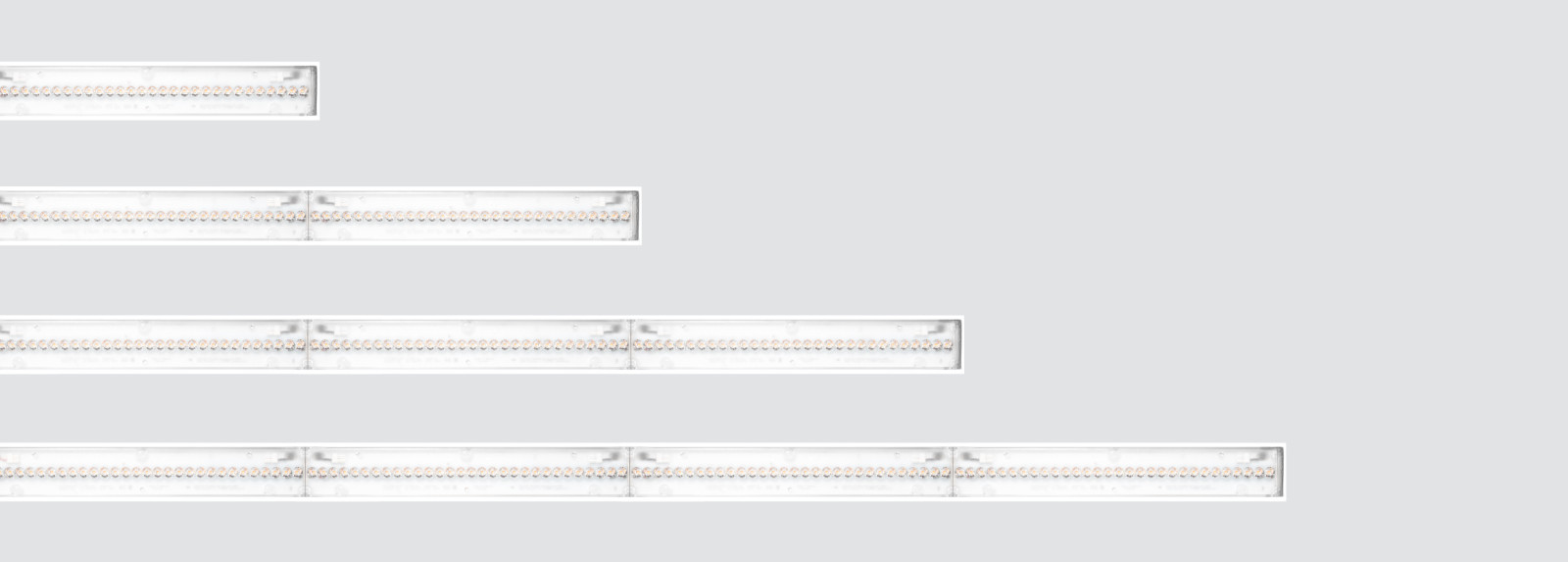

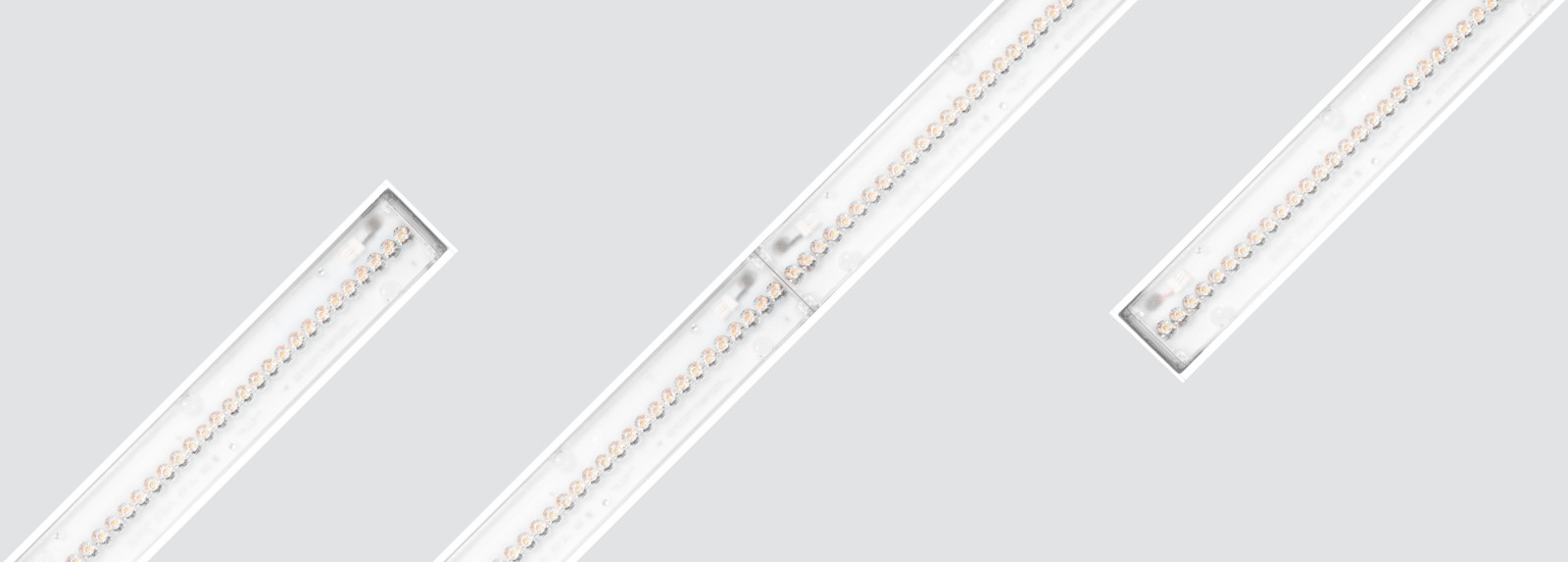

Highly efficient linear printed circuit board.
Built-in driver, separate switching up and down.
Passive temperature management.
Ceiling-mounted with adjustable steel wire suspension ( 1m ) and transparent electrical wire. Different suspension length on request.
Matching products:

  • HORIZON 100 recessed.
  • HORIZON 200 frameless recessed.
  • HORIZON 300 surface mounted.
  • HORIZON 400 and HORIZON 500 pendant.
  • HORIZON 600 and HORIZON 700 wall-mounted.
  • HORIZON 800 projectors.
Suggested applications: offices, schools and universities, retail, showrooms, leisure facilities, shopping malls, gyms, hospitals, laboratories, warehouses, industrial facilities and similar installations. A good solution for high ceilings because it enables the lighting fixture to be brought near where there needs to be.

It is possible to combine different lengths and junction modules in different ways to create customized systems.

Product configurator

Tilt

Outer dimensions

Height

Colour Temperature

CRI

UGR

Beam angle

mA

Accessories

Search results
Beam angle
Reference
Watt
Luminous flux of the luminaire
CRI
Colour Temperature
Outer dimensions
Height

F101TRP
31
10W
1630lm
80
3000K
576x50
65mm
521HRN.1-I976
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101TRP
31
10W
1746lm
80
4000K
576x50
65mm
521HRN.1-I977
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101TRP
31
10W
1775lm
80
5000K
576x50
65mm
521HRN.1-I978
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101TRP
31
14W
2270lm
80
3000K
576x50
65mm
521HRN.1-I981
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101TRP
31
14W
2444lm
80
4000K
576x50
65mm
521HRN.1-I982
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101TRP
31
14W
2474lm
80
5000K
576x50
65mm
521HRN.1-I983
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101TRP
31
20W
3114lm
80
3000K
576x50
65mm
521HRN.1-I986
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101TRP
31
20W
3347lm
80
4000K
576x50
65mm
521HRN.1-I987
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101TRP
31
20W
3385lm
80
5000K
576x50
65mm
521HRN.1-I988
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101TRP
78
10W
1546lm
80
3000K
576x50
65mm
551HRN.1-I976
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101TRP
78
10W
1656lm
80
4000K
576x50
65mm
551HRN.1-I977
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101TRP
78
10W
1684lm
80
5000K
576x50
65mm
551HRN.1-I978
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101TRP
78
14W
2153lm
80
3000K
576x50
65mm
551HRN.1-I981
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101TRP
78
14W
2318lm
80
4000K
576x50
65mm
551HRN.1-I982
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101TRP
78
14W
2346lm
80
5000K
576x50
65mm
551HRN.1-I983
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE
