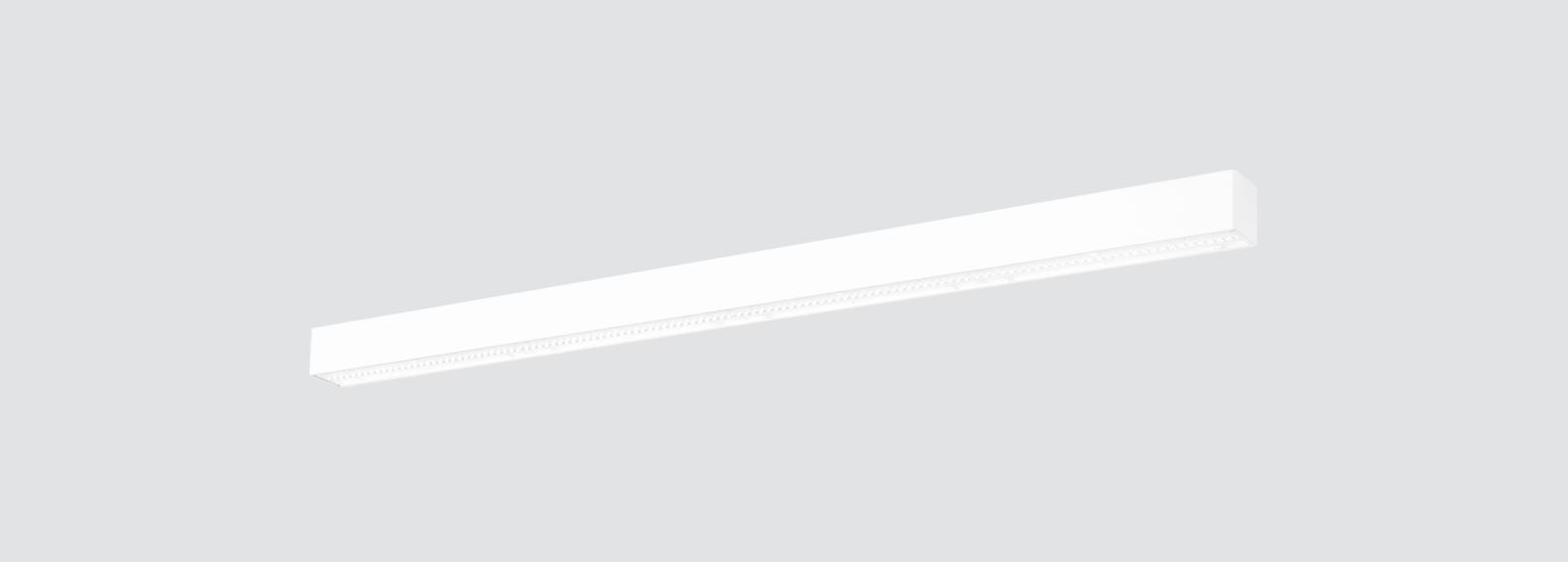

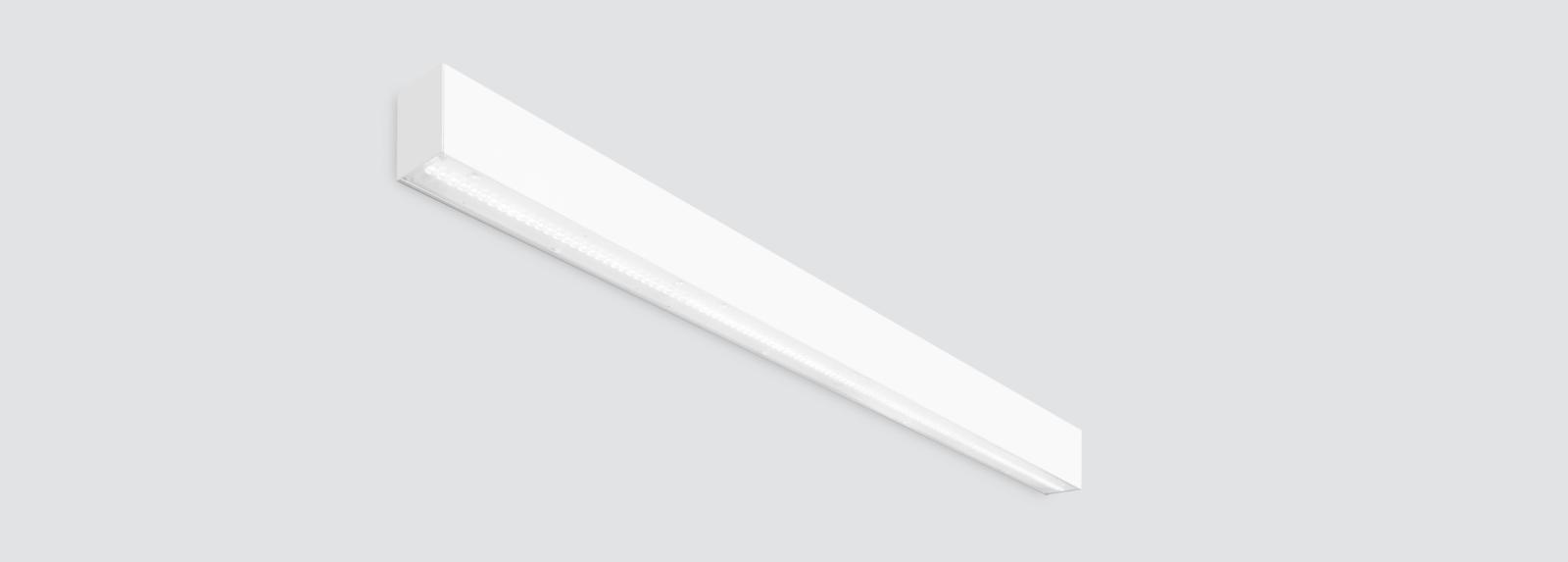

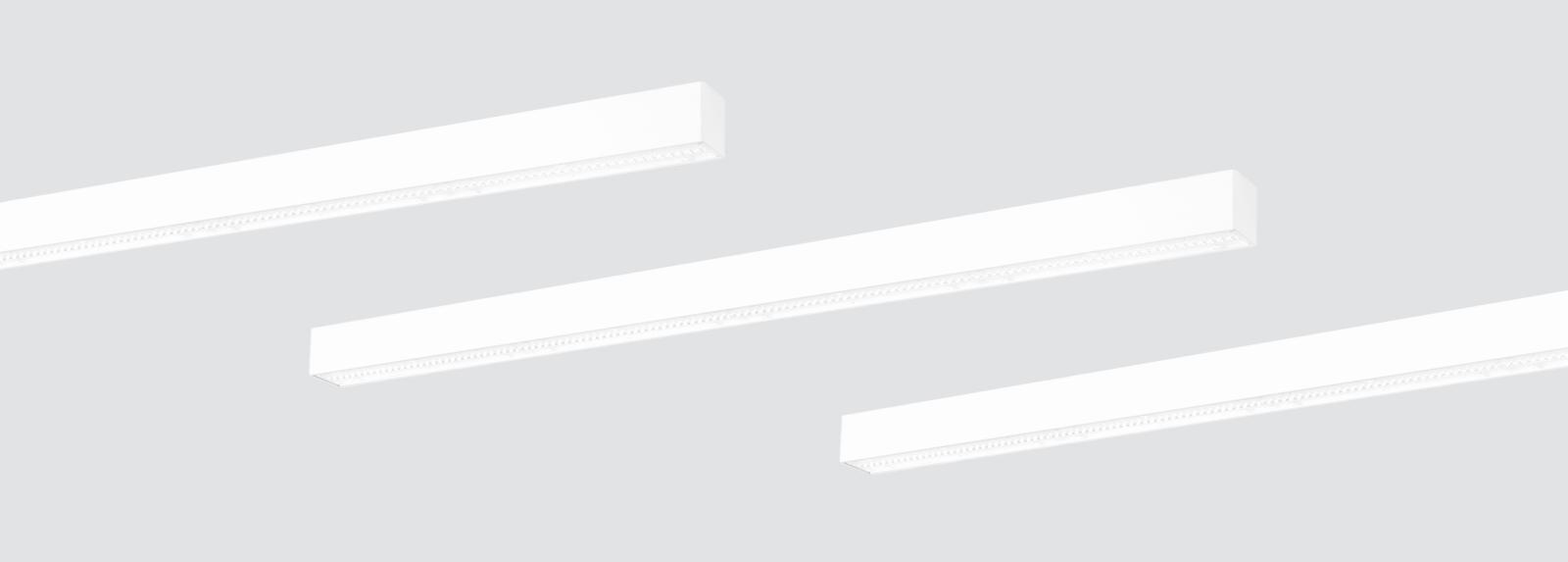

HORIZON 700 | Two sided-emission wall-mounted linear luminaires

HORIZON 700 | Two sided-emission wall-mounted linear luminaires

Wall-mounted linear fixtures with symmetrical and asymmetrical light distribution to achieve an effective task or general lighting. Double light emission: up and down.

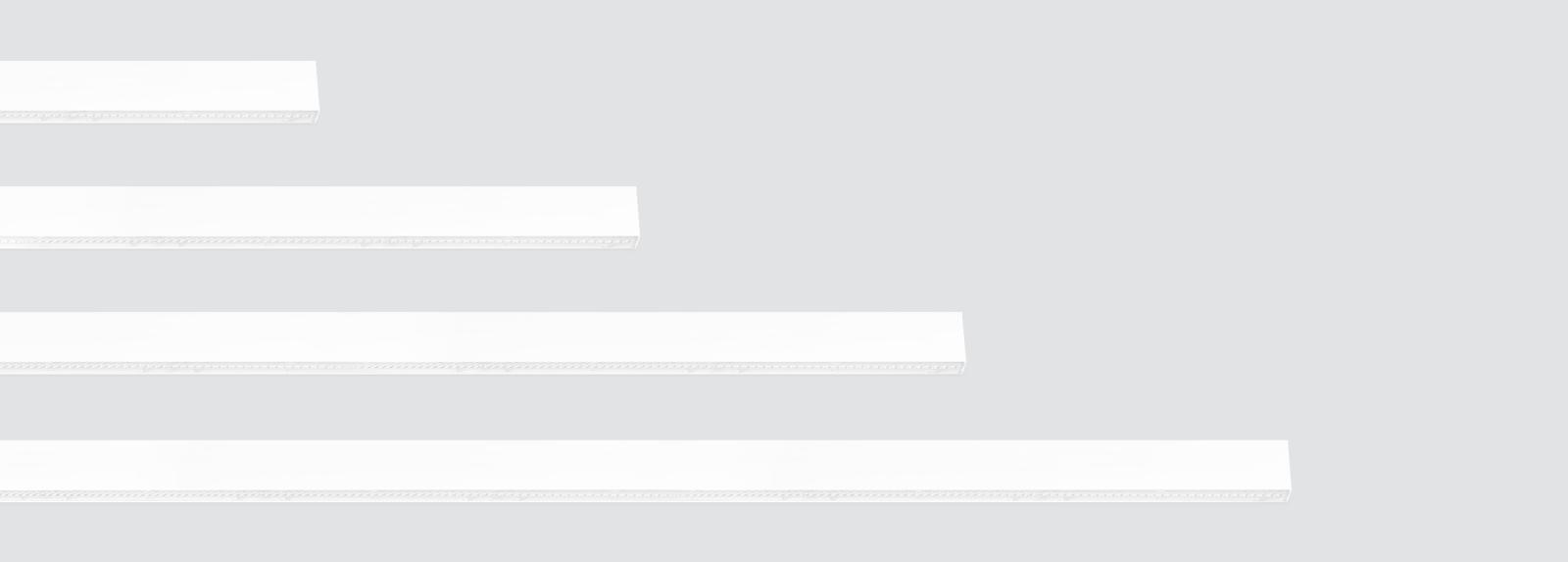

Linear fixtures available in 4 lengths 857mm, 1138mm, 1419mm and 2824mm and in a width of 50mm.
Powder painted extruded aluminium profile available in assorted finishes, customized RAL under request.
Range of PMMA optics to achieve specific photometric results.
Highly efficient linear printed circuit board.
Built-in driver, separate switching up and down.
Passive temperature management.
Wall mounted by mounting brackets.

Suggested applications: offices, schools and universities, retail, showrooms, leisure facilities, shopping malls, gyms, hospitals, laboratories, warehouses, industrial facilities and similar installations.

PRODUCT CONFIGURATOR

Tilt

Outer dimensions

Height

Color Temperature

CRI

Luminous flux of the fixture

Beam angle

Power

mA

Electronic equipment

SEARCH RESULTS

Beam angle
Reference
Power
Luminous flux of the luminaire
CRI
Colour temperature
Outer dimensions
Height
F101WND
acc_twosides1  31
723HRN.1-I1618
14,1+7W
3309lm
80
3000K
857mm x 50mm
65mm
F101WND
acc_twosides1  31
723HRN.1-I1624
29,7+7W
5729lm
80
3000K
857mm x 50mm
65mm
F101WND
acc_twosides1  31
723HRN.1-I1619
14,1+6,65W
3445lm
80
4000K
857mm x 50mm
65mm
F101WND
acc_twosides1  31
723HRN.1-I1625
30+6,65W
6020lm
80
4000K
857mm x 50mm
65mm
F101WND
acc_twosides1  31
723HRN.1-I1620
14,1+8W
3559lm
80
5000K
857mm x 50mm
65mm
F101WND
acc_twosides1  31
723HRN.1-I1626
30+8W
6134lm
80
5000K
857mm x 50mm
65mm
F101WND
acc_twosides1  31
723HRN.1-I1621
20,7+7W
4361lm
80
3000K
857mm x 50mm
65mm
F101WND
acc_twosides1  31
723HRN.1-I1622
21+6,65W
4560lm
80
4000K
857mm x 50mm
65mm
F101WND
acc_twosides1  31
723HRN.1-I1623
21+8W
4674lm
80
5000K
857mm x 50mm
65mm
F101WND
acc_twosides1  78
753HRN.1-I1618
14,1+7W
3175lm
80
3000K
857mm x 50mm
65mm
F101WND
acc_twosides1  78
753HRN.1-I1624
29,7+7W
5470lm
80
3000K
857mm x 50mm
65mm
F101WND
acc_twosides1  78
753HRN.1-I1619
14,1+6,65W
3302lm
80
4000K
857mm x 50mm
65mm
F101WND
acc_twosides1  78
753HRN.1-I1625
30+6,65W
5745lm
80
4000K
857mm x 50mm
65mm
F101WND
acc_twosides1  78
753HRN.1-I1620
14,1+8W
3416lm
80
5000K
857mm x 50mm
65mm
F101WND
acc_twosides1  78
753HRN.1-I1626
30+8W
5859lm
80
5000K
857mm x 50mm
65mm
F101WND
acc_twosides1  78
753HRN.1-I1621
20,7+7W
4173lm
80
3000K
857mm x 50mm
65mm
F101WND
acc_twosides1  78
753HRN.1-I1622
21+6,65W
4360lm
80
4000K
857mm x 50mm
65mm
F101WND
acc_twosides1  78
753HRN.1-I1623
21+8W
4474lm
80
5000K
857mm x 50mm
65mm
F101WND
acc_twosides1  93
763HRN.1-I1624
29,7+7W
5470lm
80
3000K
857mm x 50mm
65mm
F101WND
acc_twosides1  93
763HRN.1-I1618
14,1+7W
3175lm
80
3000K
857mm x 50mm
65mm
