HORIZON 900

HORIZON 900

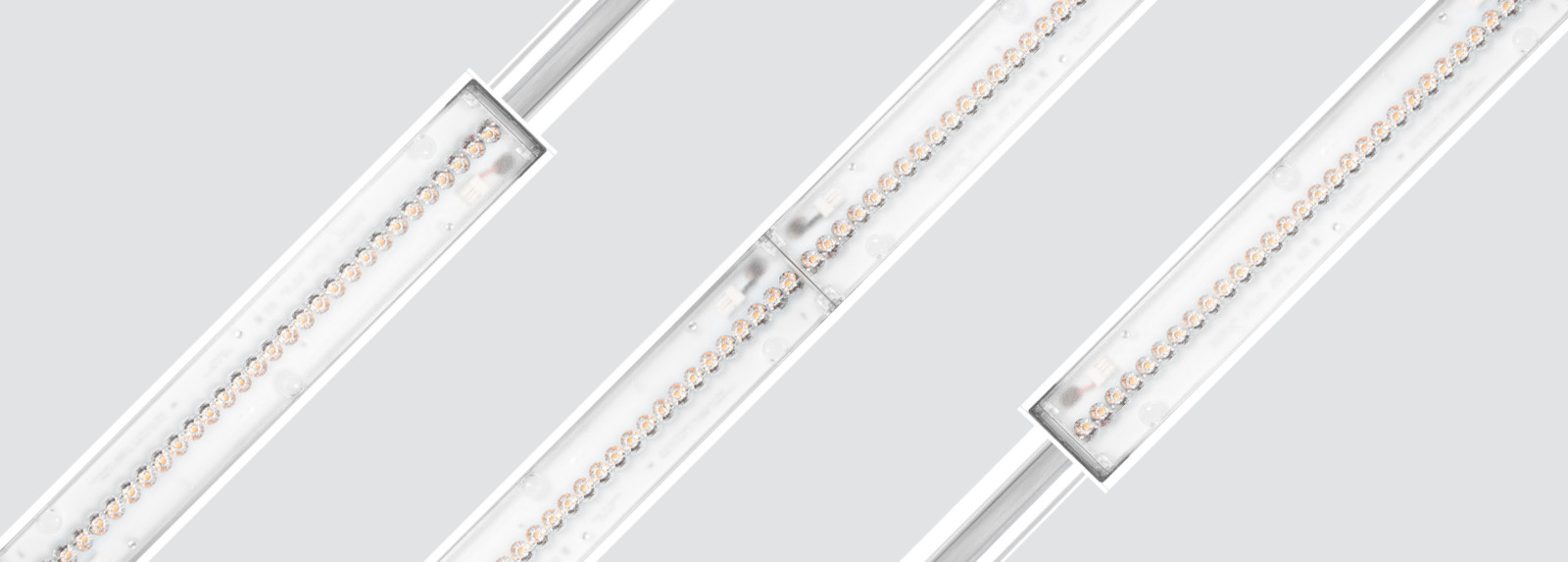

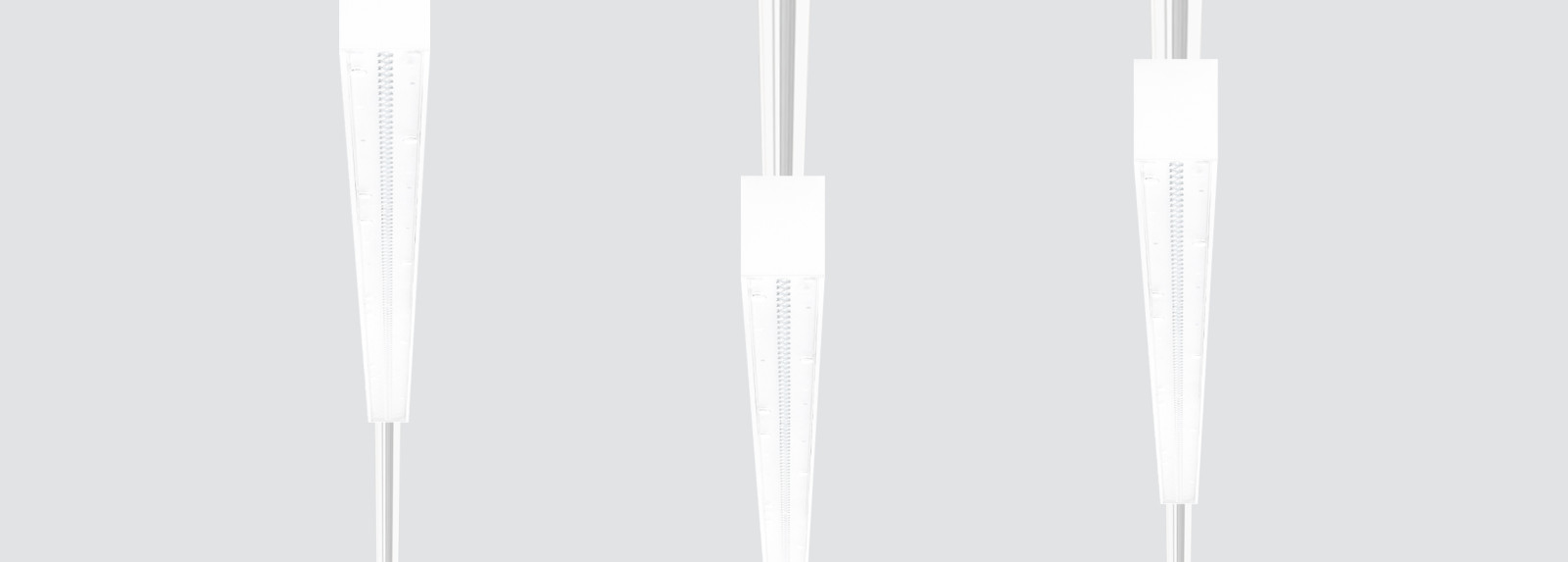

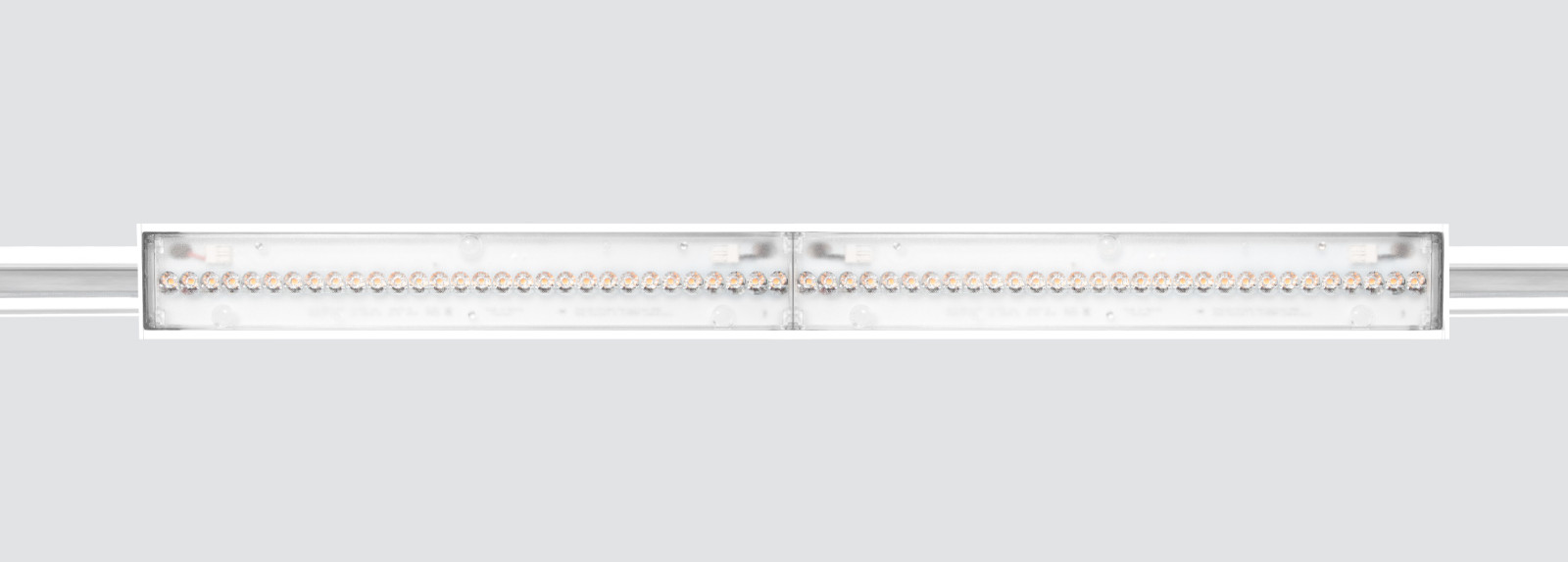

Linear downlights with 3-phase track adapter with symmetrical and asymmetrical light distribution to achieve an effective task or general lighting.

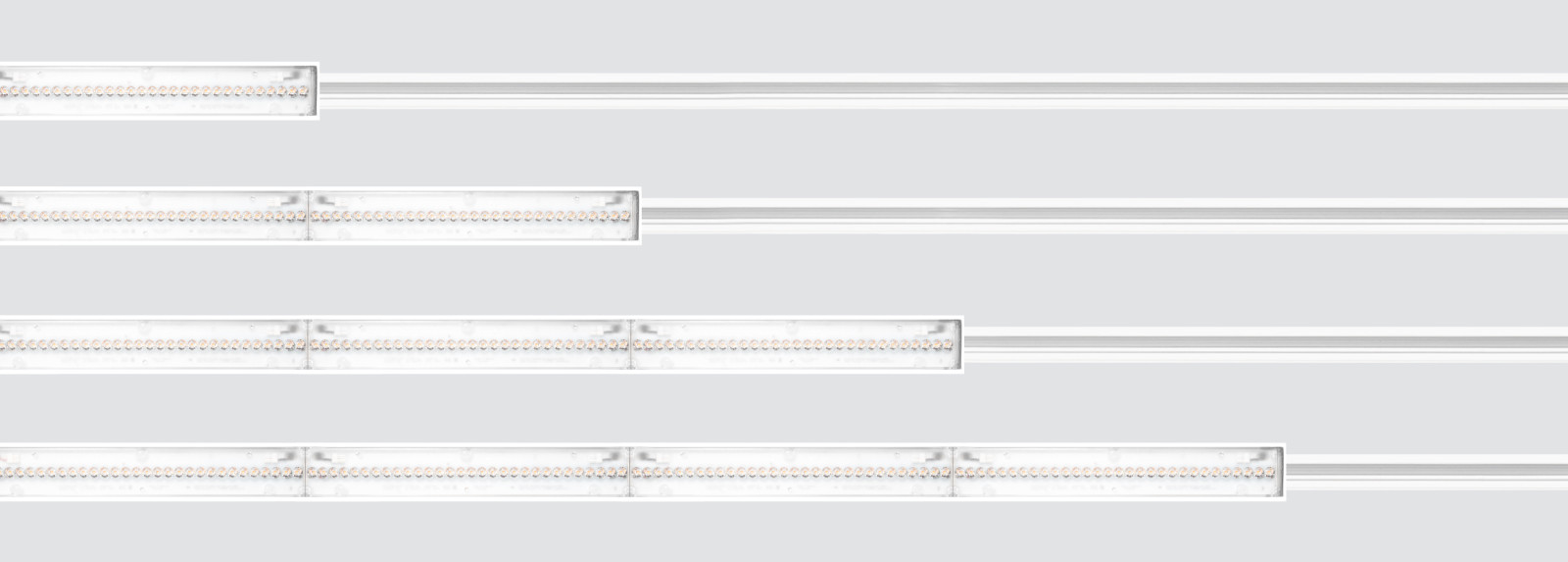

Frameless linear downlights available in 4 lengths 576mm, 857mm, 1138mm and 1419mm in a width of 50mm.
Powder painted extruded aluminium profile available in assorted finishes, customized RAL under request.
Range of PMMA optics to achieve specific photometric results.
Highly efficient linear printed circuit board.
Built-in driver.
Passive temperature management.

The track version offers complete flexibility as the light sources may be moved all along the track.

Suggested applications: offices, boutiques, showrooms, leisure facilities, restaurants, hotels, shopping centers and similiar applications. Suggested applications: offices, schools and universities, retail, showrooms, leisure facilities, shopping malls, gyms, hospitals, laboratories, warehouses, industrial facilities and similar installations.

Product configurator

Tilt

Outer dimensions

Height

Colour Temperature

CRI

UGR

Beam angle

mA

Accessories

Search results
Beam angle
Reference
Watt
Luminous flux of the luminaire
CRI
Colour Temperature
Outer dimensions
Height

F95HRN
31
10W
1630lm
80
3000K
576x50
65mm
921HRN.1-I976
DATA SHEET
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F95HRN
ASY
10W
1394lm
80
3000K
576x50
65mm
981HRN.1-I976
DATA SHEET
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F95HRN
31
10W
1746lm
80
4000K
576x50
65mm
921HRN.1-I977
DATA SHEET
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F95HRN
ASY
10W
1494lm
80
4000K
576x50
65mm
981HRN.1-I977
DATA SHEET
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F95HRN
31
10W
1775lm
80
5000K
576x50
65mm
921HRN.1-I978
DATA SHEET
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F95HRN
ASY
10W
1519lm
80
5000K
576x50
65mm
981HRN.1-I978
DATA SHEET
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F95HRN
31
14W
2270lm
80
3000K
576x50
65mm
921HRN.1-I981
DATA SHEET
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F95HRN
ASY
14W
1942lm
80
3000K
576x50
65mm
981HRN.1-I981
DATA SHEET
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F95HRN
31
14W
2444lm
80
4000K
576x50
65mm
921HRN.1-I982
DATA SHEET
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F95HRN
ASY
14W
2092lm
80
4000K
576x50
65mm
981HRN.1-I982
DATA SHEET
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F95HRN
31
14W
2474lm
80
5000K
576x50
65mm
921HRN.1-I983
DATA SHEET
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F95HRN
ASY
14W
2117lm
80
5000K
576x50
65mm
981HRN.1-I983
DATA SHEET
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F95HRN
31
20W
3114lm
80
3000K
576x50
65mm
921HRN.1-I986
DATA SHEET
Photometric IES
Technical drawing
Photometric LDT


F95HRN
ASY
20W
2664lm
80
3000K
576x50
65mm
981HRN.1-I986
DATA SHEET
Photometric IES
Technical drawing
Photometric LDT


F95HRN
31
20W
3347lm
80
4000K
576x50
65mm
921HRN.1-I987
DATA SHEET
Photometric IES
Technical drawing
Photometric LDT
