KAUTTA 200

KAUTTA 200


Recessed ceiling mounted linear downlights with symmetrical and asymmetrical light distribution to achieve an effective task or general lighting.
Frameless linear fixtures available in 5 lengths 568mm, 848mm, 1128mm, 1408mm and 2808mm and in a width of 44mm.
Powder painted extruded aluminium profile available in assorted finishes, customized RAL under request.

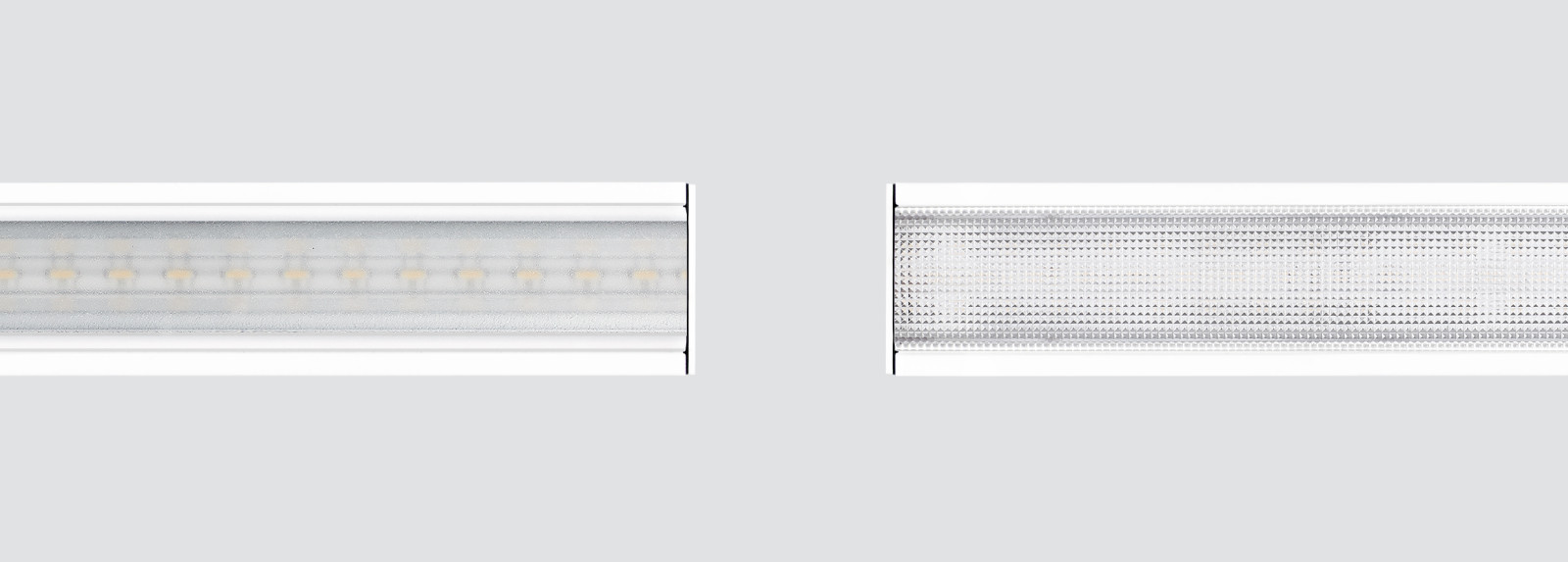

Range of diffusers to achieve specific photometric results.
Highly efficient linear printed circuit board.
Built-in driver.
Passive temperature management.
Ceiling-mounted using steel support with screws.
Matching products:

  • surface mounted.
  • pendant.
  • wall-mounted.
  • projector.
Suggested applications: offices, schools and universities, retail, showrooms, leisure facilities, shopping malls, gyms, hospitals, laboratories, warehouses, industrial facilities and similar installations.

It is possible to combine different lengths and junction modules in different ways to create customized systems.

Product configurator

Tilt

Dimensions recessed

Height

Colour Temperature

CRI

UGR

Beam angle

mA

Accessories

Search results
Beam angle
Reference
Watt
Luminous flux of the luminaire
CRI
Colour Temperature
Embedding dimensions
Outer dimensions
Height

F23KTA
43
27,7W
>90
2700K - 6500K
569x47
568x44
78mm
231KTA.1-I677
DATA SHEET
Description .txt
Installation sheet
Technical drawing


F23KTA
ASY
27,7W
>90
2700K - 6500K
569x47
568x44
78mm
281KTA.1-I677
DATA SHEET
Description .txt
Installation sheet
Technical drawing


F23KTA
DASY
27,7W
>90
2700K - 6500K
569x47
568x44
78mm
291KTA.1-I677
DATA SHEET
Description .txt
Installation sheet
Technical drawing


F23KTA
43
3.21W
558lm
80
2700K
288x47
287x44
78mm
DATA SHEET
Photometric IES
Technical drawing
Photometric LDT


F23KTA
43
6W
1084lm
80
2700K
569x47
568x44
78mm
231KTA.1-I723
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F23KTA
43
10W
1627lm
80
2700K
849x47
848x44
78mm
233KTA.1-I751
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F23KTA
43
13W
2169lm
80
2700K
1129x47
1128x44
78mm
235KTA.1-I779
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F23KTA
43
16W
2711lm
80
2700K
1409x47
1408x44
78mm
236KTA.1-I807
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F23KTA
43
32W
5422lm
80
2700K
2809x47
2808x44
78mm
239KTA.1-I835
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F23KTA
43
6W
1118lm
80
3000K
569x47
568x44
78mm
231KTA.1-I724
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F23KTA
43
10W
1677lm
80
3000K
849x47
848x44
78mm
233KTA.1-I752
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F23KTA
43
13W
2236lm
80
3000K
1129x47
1128x44
78mm
235KTA.1-I780
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F23KTA
43
16W
2795lm
80
3000K
1409x47
1408x44
78mm
236KTA.1-I808
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F23KTA
43
32W
5589lm
80
3000K
2809x47
2808x44
78mm
239KTA.1-I836
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F23KTA
43
3.21W
581lm
80
3000K
288x47
287x44
78mm
DATA SHEET
Photometric IES
Technical drawing
Photometric LDT
