KAUTTA 500 | Two-sided emission linear luminaires

KAUTTA 500 | Two-sided emission linear luminaires

Pendant linear fixtures with symmetrical and asymmetrical light distribution to achieve an effective task or general lighting. Double light emission: up and down.

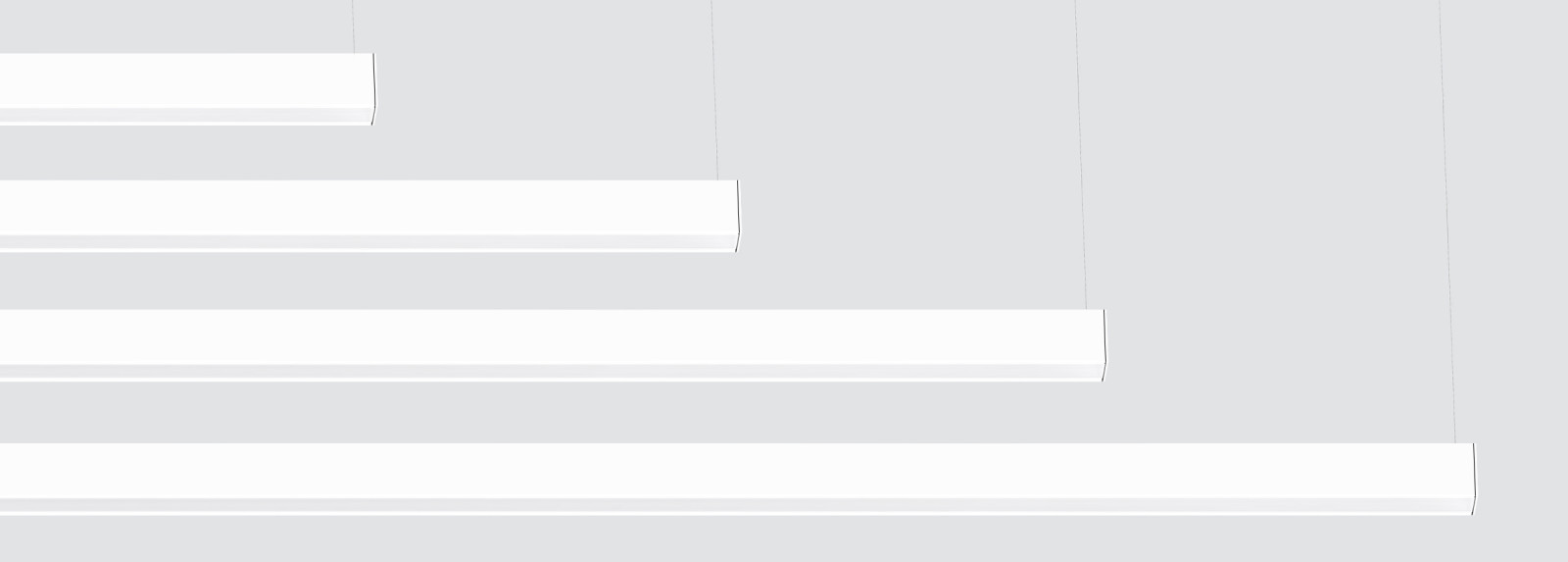

Luminaires available in 4 standard lengths: 848mm, 1128mm, 1408mm and 2808mm and in a width of 44mm.
Powder painted extruded aluminium profile available in assorted finishes, customized RAL under request.

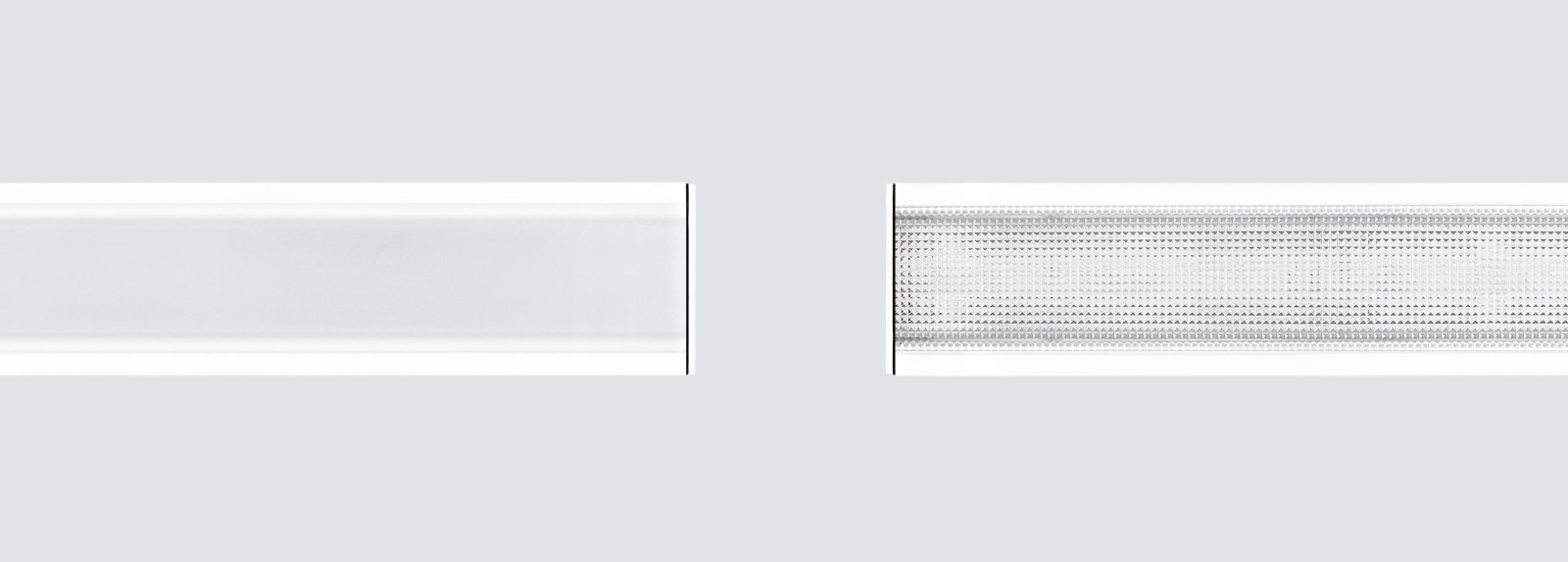

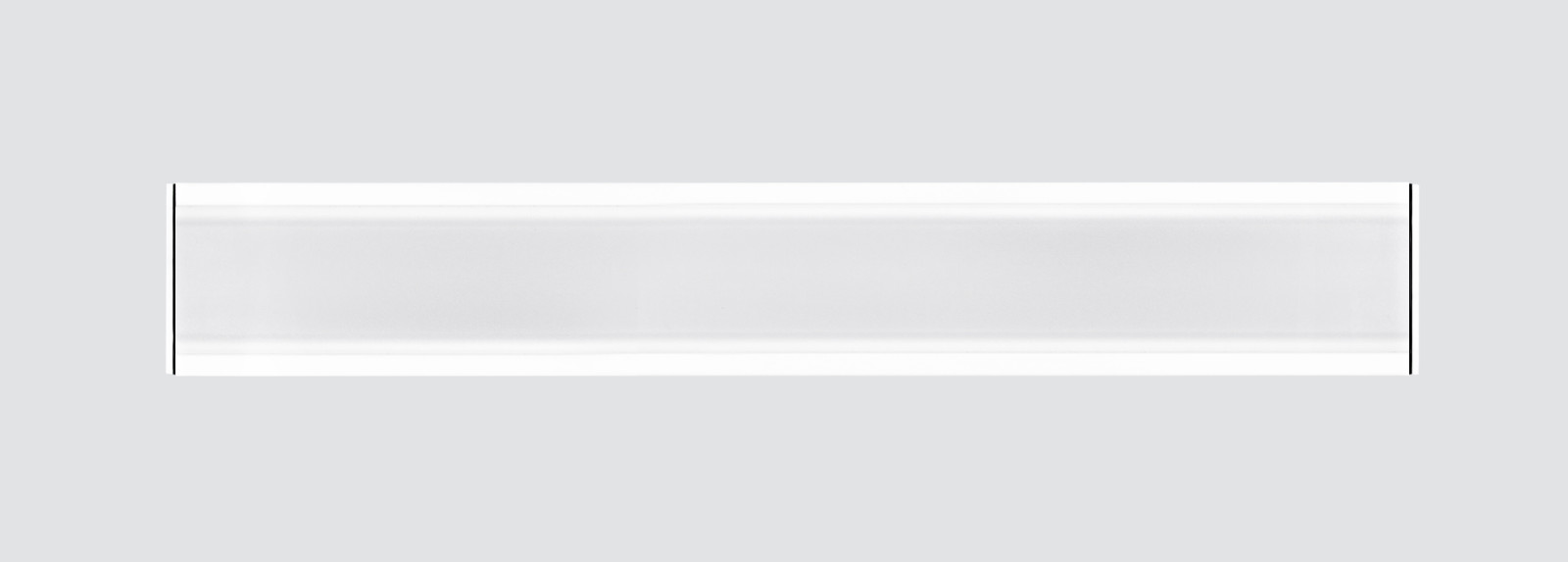

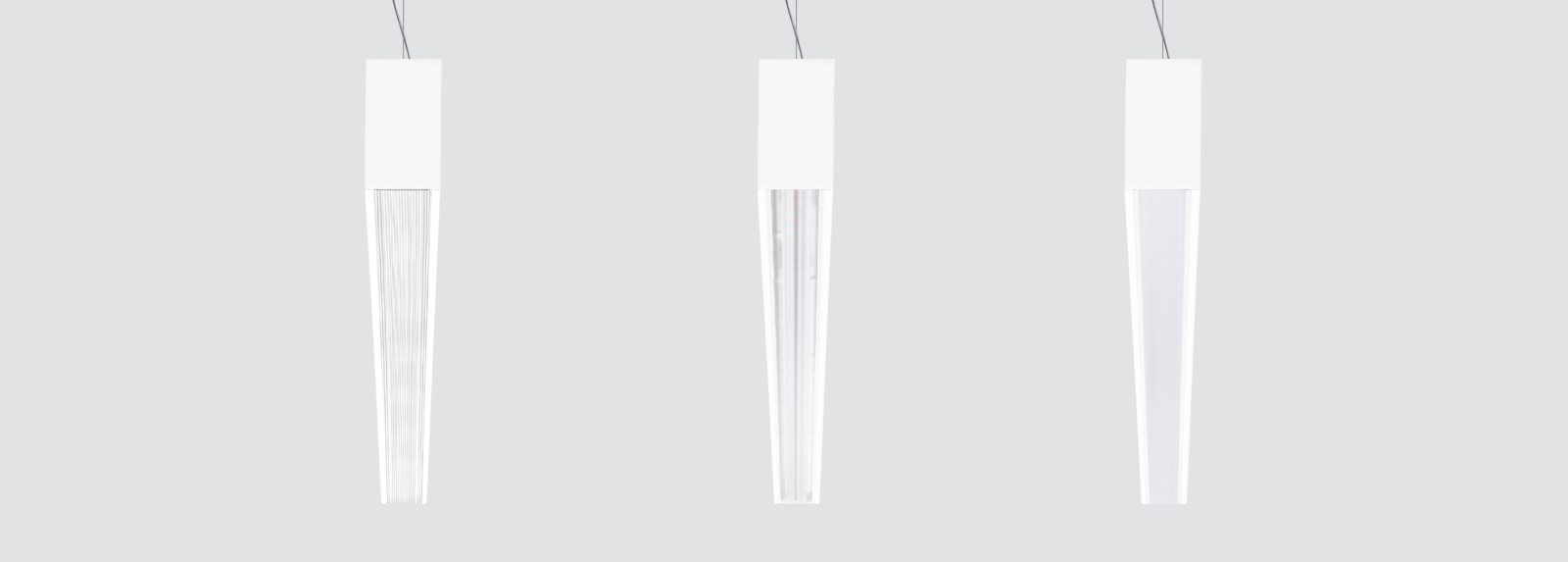

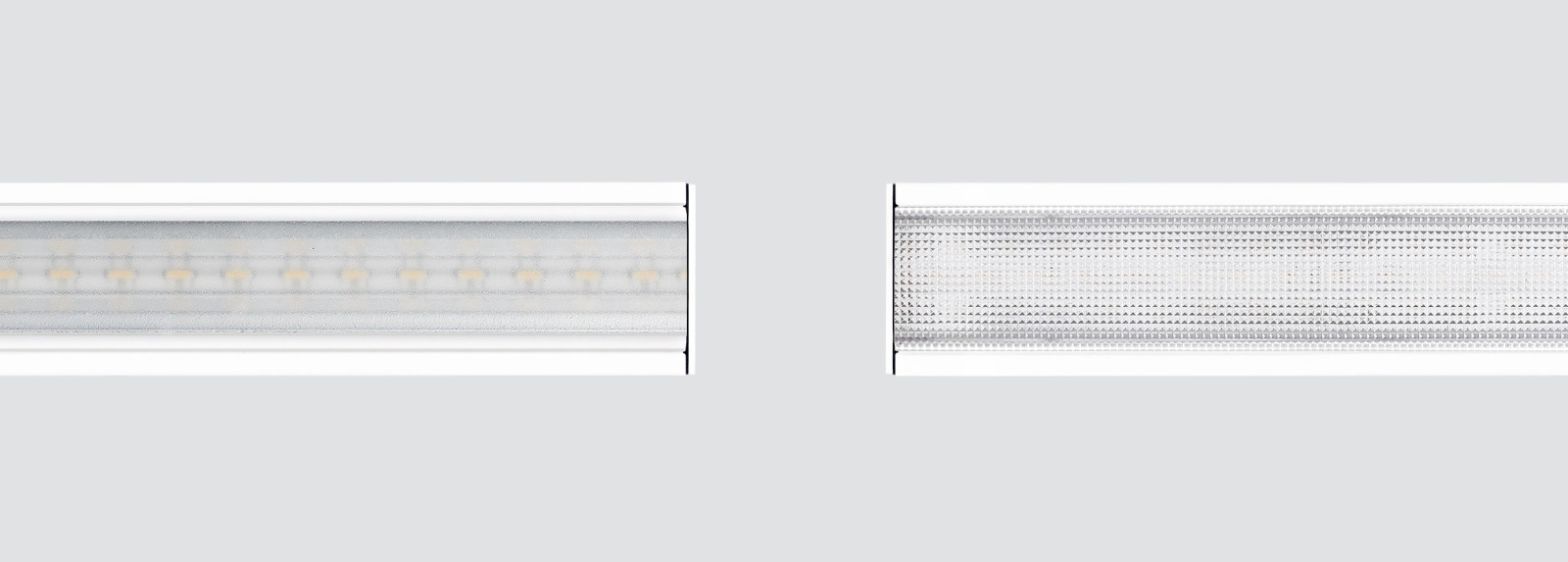

Range of diffusers to achieve specific photometric results.
Highly efficient linear printed circuit board.
Built-in driver, separate switching up and down.
Passive temperature management.
Ceiling-mounted with adjustable steel wire suspension ( 1m ) and transparent electrical wire. Different suspension length on request.

Suggested applications: offices, schools and universities, retail, showrooms, leisure facilities, shopping malls, gyms, hospitals, laboratories, warehouses, industrial facilities and similar installations. A good solution for high ceilings because it enables the lighting fixture to be brought near where there needs to be.

It is possible to combine different lengths and junction modules in different ways to create customized systems.

PRODUCT CONFIGURATOR

Tilt

Outer dimensions

Height

Color Temperature

CRI

Luminous flux of the fixture

Beam angle

Diffuser

Power

mA

Electronic equipment

SEARCH RESULTS

Beam angle
Reference
Power
Luminous flux of the luminaire
CRI
Colour temperature
Outer dimensions
Height
F43KTA
gen_downlight4  43
535KTA.1-I1512
12,8+11W
3274lm
>80
2700K
1128mm x 44mm
78mm+1000mm
F43KTA
gen_downlight4  43
536KTA.1-I1540
16+13W
4122lm
>80
2700K
1408mm x 44mm
78mm+1000mm
F43KTA
gen_downlight4  43
533KTA.1-I1484
9,6+7W
2404lm
>80
2700K
848mm x 44mm
78mm+1000mm
F43KTA
gen_downlight4  43
539KTA.1-I1568
32+26W
8182lm
>80
2700K
2808mm x 44mm
78mm+1000mm
F43KTA
gen_downlight4  43
536KTA.1-I1541
16+13W
4112lm
>80
3000K
1408mm x 44mm
78mm+1000mm
F43KTA
gen_downlight4  43
539KTA.1-I1569
32+26W
8225lm
>80
3000K
2808mm x 44mm
78mm+1000mm
F43KTA
gen_downlight4  43
533KTA.1-I1485
9,6+7W
2416lm
>80
3000K
848mm x 44mm
78mm+1000mm
F43KTA
gen_downlight4  43
535KTA.1-I1513
12,8+10,4W
3290lm
>80
3000K
1128mm x 44mm
78mm+1000mm
F43KTA
gen_downlight4  43
536KTA.1-I1542
16+12W
4224lm
>80
4000K
1408mm x 44mm
78mm+1000mm
F43KTA
gen_downlight4  43
539KTA.1-I1570
32+24W
8447lm
>80
4000K
2808mm x 44mm
78mm+1000mm
F43KTA
gen_downlight4  43
533KTA.1-I1486
9,6+6,65W
2484lm
>80
4000K
848mm x 44mm
78mm+1000mm
F43KTA
gen_downlight4  43
535KTA.1-I1514
12,8+10W
3381lm
>80
4000K
1128mm x 44mm
78mm+1000mm
F43KTA
gen_downlight4  43
533KTA.1-I1487
9,6+8W
2589lm
>80
5000K
848mm x 44mm
78mm+1000mm
F43KTA
gen_downlight4  43
536KTA.1-I1543
16+14W
4266lm
>80
5000K
1408mm x 44mm
78mm+1000mm
F43KTA
gen_downlight4  43
535KTA.1-I1515
12,8+11W
3524lm
>80
5000K
1128mm x 44mm
78mm+1000mm
F43KTA
gen_downlight4  43
539KTA.1-I1571
32+28W
8450lm
>80
5000K
2808mm x 44mm
78mm+1000mm
F43KTA
gen_downlight4  43
539KTA.1-I1573
32+26W
7407lm
>90 R9 57
3000K
2808mm x 44mm
78mm+1000mm
F43KTA
gen_downlight4  43
535KTA.1-I1517
12,8+10,4W
2965lm
>90 R9 57
3000K
1128mm x 44mm
78mm+1000mm
F43KTA
gen_downlight4  43
536KTA.1-I1545
16+13W
3703lm
>90 R9 57
3000K
1408mm x 44mm
78mm+1000mm
F43KTA
gen_downlight4  43
533KTA.1-I1489
9,6+7W
2141lm
>90 R9 57
3000K
848mm x 44mm
78mm+1000mm
