KAUTTA 900

KAUTTA 900

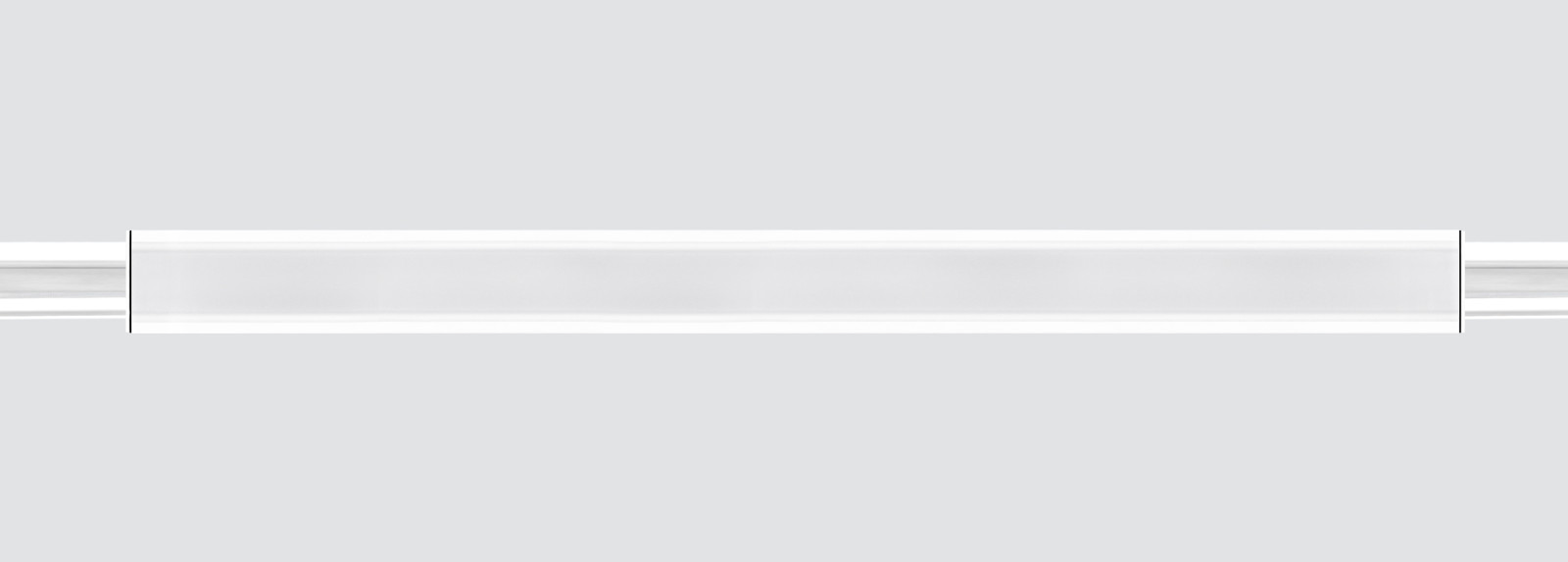

Linear downlights with 3-phase track adapter with symmetrical and asymmetrical light distribution to achieve an effective task or general lighting.

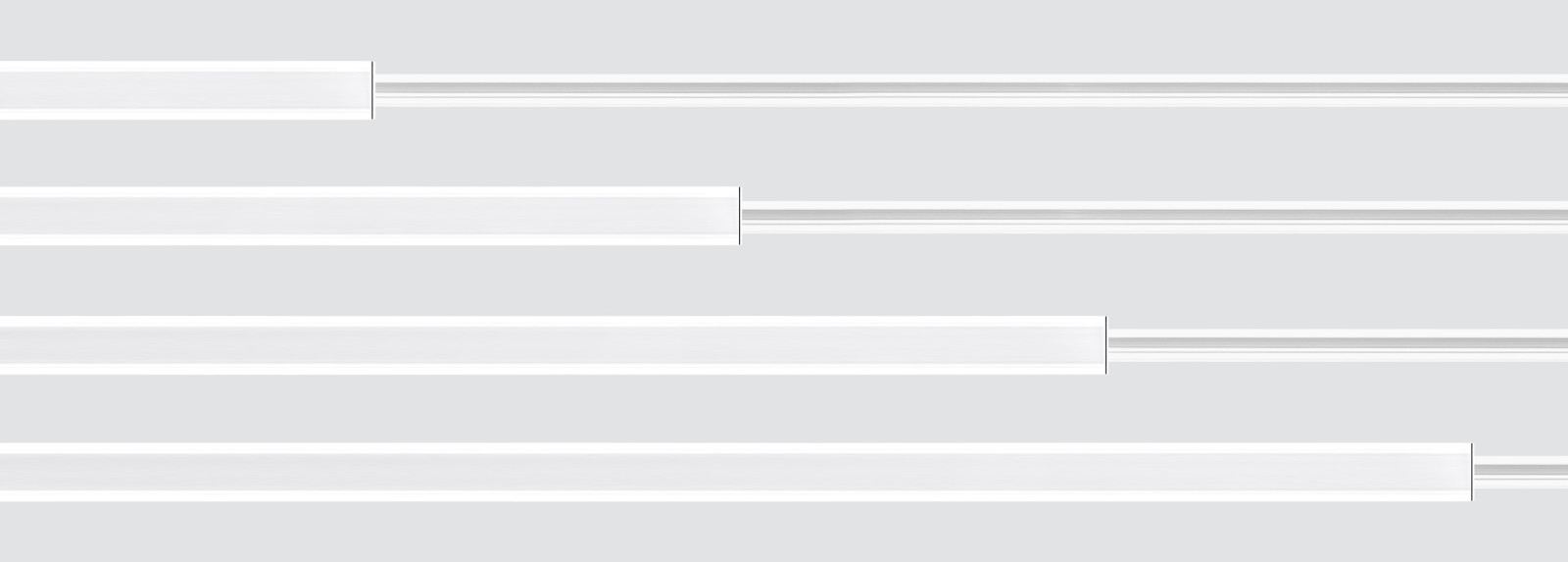

Linear downlights available in 4 lengths 568mm, 848mm, 1128mm and 1408mm and in a width of 44mm.
Powder painted extruded aluminium profile available in assorted finishes, customized RAL under request.

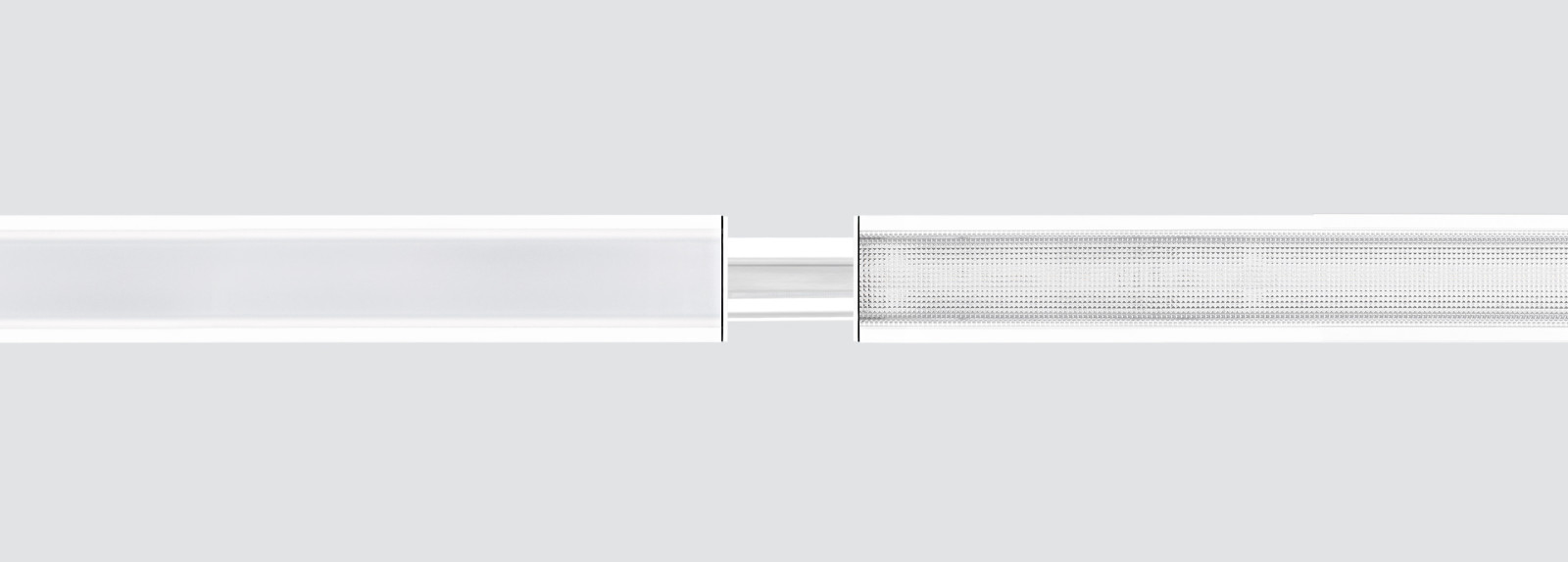

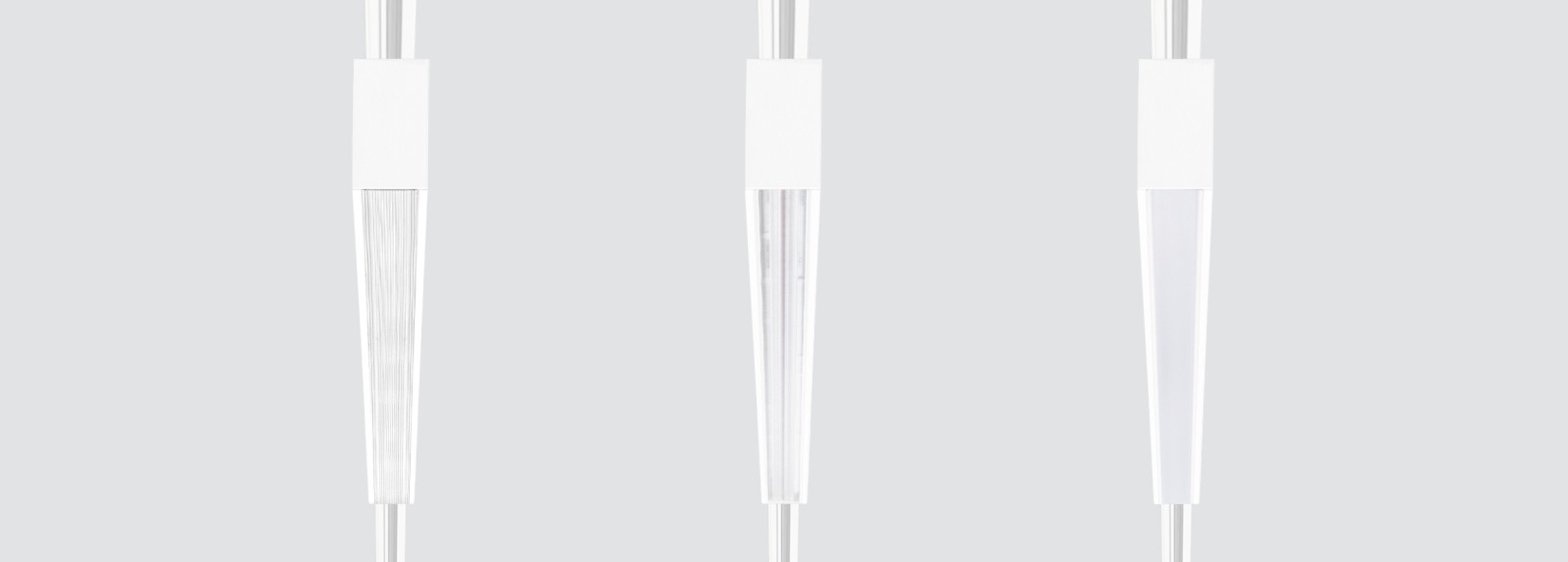

Range of diffusers to achieve specific photometric results.
Highly efficient linear printed circuit board.
Built-in driver.
Passive temperature management.

The track version offers complete flexibility as the light sources may be moved all along the track.

Suggested applications: offices, boutiques, showrooms, leisure facilities, restaurants, hotels, shopping centers and similiar applications.

Product configurator

Tilt

Outer dimensions

Height

Colour Temperature

CRI

UGR

Beam angle

mA

Accessories

Search results
Beam angle
Reference
Watt
Luminous flux of the luminaire
CRI
Colour Temperature
Outer dimensions
Height

F93KTA
43
6W
1084lm
80
2700K
568x44
78mm
931KTA.1-I723
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F93KTA
43
10W
1627lm
80
2700K
848x44
78mm
933KTA.1-I751
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F93KTA
43
13W
2169lm
80
2700K
1128x44
78mm
935KTA.1-I779
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F93KTA
43
16W
2711lm
80
2700K
1408x44
78mm
936KTA.1-I807
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F93KTA
43
32W
5422lm
80
2700K
2808x44
78mm
939KTA.1-I835
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F93KTA
43
6W
1118lm
80
3000K
568x44
78mm
931KTA.1-I724
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F93KTA
43
10W
1677lm
80
3000K
848x44
78mm
933KTA.1-I752
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F93KTA
43
13W
2236lm
80
3000K
1128x44
78mm
935KTA.1-I780
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F93KTA
43
16W
2795lm
80
3000K
1408x44
78mm
936KTA.1-I808
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F93KTA
43
32W
5589lm
80
3000K
2808x44
78mm
939KTA.1-I836
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F93KTA
43
6W
1170lm
80
4000K
568x44
78mm
931KTA.1-I725
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F93KTA
43
10W
1755lm
80
4000K
848x44
78mm
933KTA.1-I753
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F93KTA
43
13W
2340lm
80
4000K
1128x44
78mm
935KTA.1-I781
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F93KTA
43
16W
2925lm
80
4000K
1408x44
78mm
936KTA.1-I809
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F93KTA
43
32W
5850lm
80
4000K
2808x44
78mm
939KTA.1-I837
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
