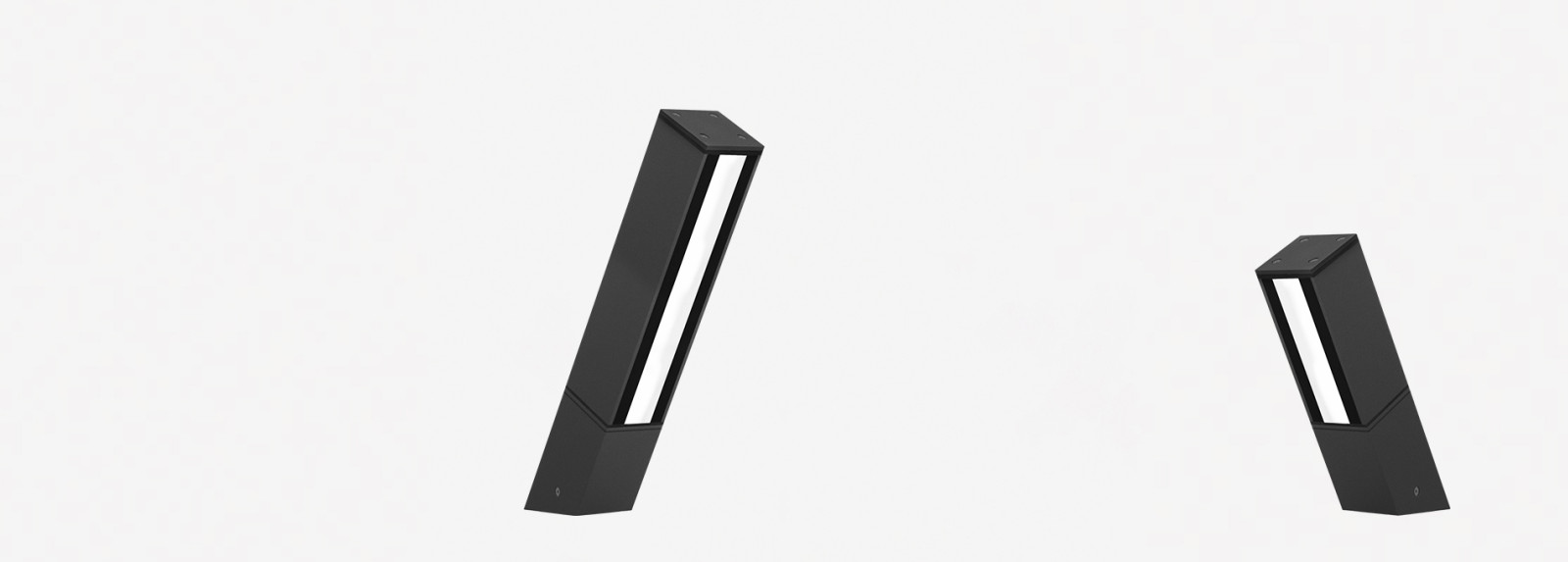

Bollard with frontal light emission, symmetrical distribution.
Available in 2 heights and with 60º inclination from the horizontal axis.
Protection rating against dust and moisture: IP66 – full protection.
Protection rating for resistance against harmful mechanical impacts: IK10.
Powder painted extruded aluminium profile treated for corrosion resistance (nanophoresis) and covered with a polyester powder coating to guarantee durability. Textured paint finish.
Special coating for environments with very high corrosivity is available under request.
4mm frontal polycarbonate diffuser.
Interior opal diffuser.
A4 stainless steel locking screw. Optional supply of A2 stainless steel vandal-resistant screw.
Anticondensation device.
Silicone gasket.
Highly efficient linear printed circuit board.
Built-in driver included.
IP68 connector not included, it can be ordered separately.
Mounting plate for floor installation supplied with the fixture.

Product configurator

Tilt

Outer dimensions

Height

IK

Colour Temperature

CRI

UGR

Beam angle

Diffuser

Accessories

Electronic equipment

Search results
Beam angle
Reference
Watt
Luminous flux of the luminaire
CRI
Colour Temperature
Outer dimensions
Height

F220KXS
100
1.6W
140lm
>80
3000K
62x65
240mm
220KXS.4-I1116
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F220KXS
100
1.6W
149lm
>80
4000K
62x65
240mm
220KXS.4-I1117
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F220KXS
100
2.7W
230lm
>80
3000K
62x65
240mm
220KXS.4-I1118
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F220KXS
100
2.7W
241lm
>80
4000K
62x65
240mm
220KXS.4-I1119
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F220KXS
100
3.9W
311lm
>80
3000K
62x65
240mm
220KXS.4-I1120
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F220KXS
100
3.9W
326lm
>80
4000K
62x65
240mm
220KXS.4-I1121
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F222KXS
100
3.2W
270lm
2700K
62x65
380mm
222KXS.4-I1122
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F222KXS
100
5.5W
439lm
>80
2700K
62x65
380mm
222KXS.4-I1128
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F222KXS
100
5.5W
459lm
>80
3000K
62x65
380mm
222KXS.4-I1129
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F222KXS
100
3.2W
281lm
>80
3000K
62x65
380mm
222KXS.4-I1123
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F222KXS
100
5.5W
484lm
>80
4000K
62x65
380mm
222KXS.4-I1130
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F222KXS
100
3.2W
315lm
>80
4000K
62x65
380mm
222KXS.4-I1124
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F222KXS
100
3.2W
299lm
>80
5000K
62x65
380mm
222KXS.4-I1125
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F222KXS
100
5.5W
488lm
>80
5000K
62x65
380mm
222KXS.4-I1131
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F222KXS
100
7.8W
594lm
>80
2700K
62x65
380mm
222KXS.4-I1134
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE
