LYNX

LYNX


Vandal-resistant surface-mounted fixtures for wall or ceiling with symmetrical light distribution.
Circular design available in 2 diameters: 265mm and 345mm.
Protection rating against dust and moisture: complete IP65.
Protection rating for resistance to harmful mechanical impacts: IK10.

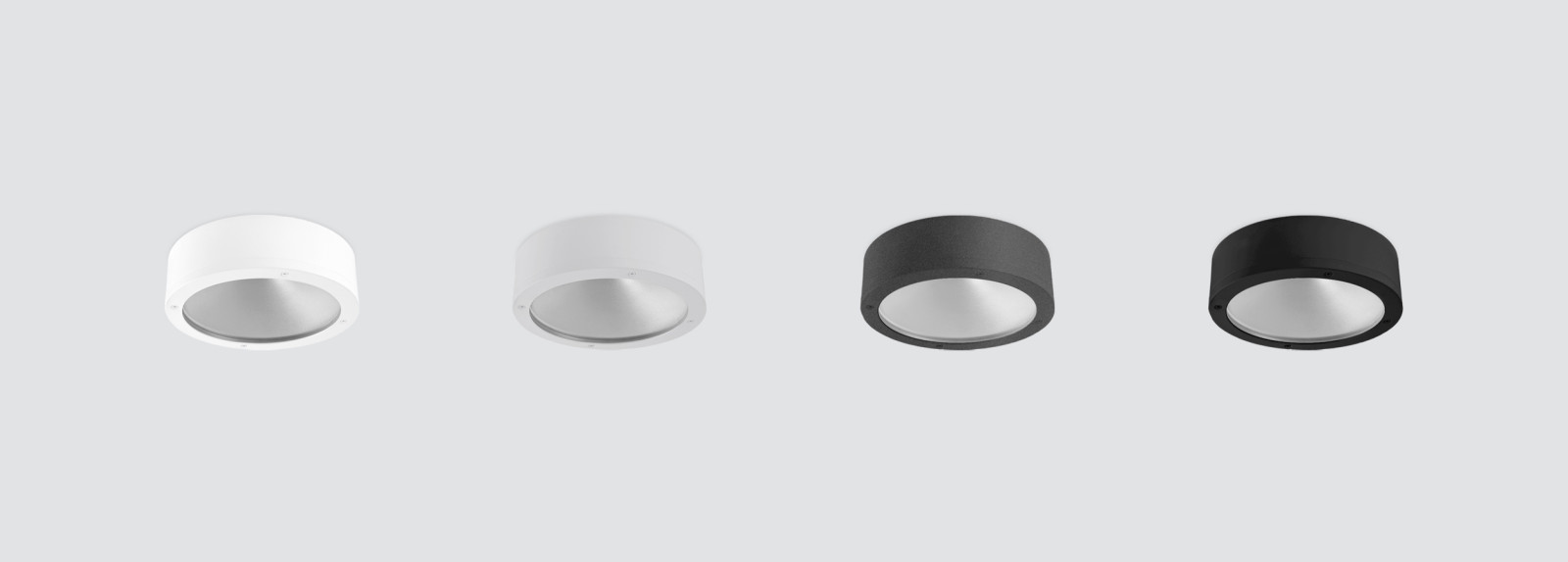

Robust body made of die-cast aluminium, treated against corrosion and coated with polyester powder available in various colour finishes, customized RAL under request.
Total lighting control: high performance and high efficiency.
High purity sandblasted anodised aluminium reflector.
Impact resistant cover made of clear polycarbonate (IK10).
Optional clear glass diffuser (IK05). Frosted or painted diffuser finishes under request.
Temperature resistant silicone rubber gasket.
Anti-condensation device.
Optional supply of 304 stainless steel vandal-resistant screws.
Integral driver included. Electrical standard options for the driver: DALI/DSI.
Optional emergency kit.
Passive temperature management: heat dissipation via the fixture body itself.
Mounting to the ceiling by three securing holes.
Cable entry from the top of the fixture.

Suggested applications: indoor and outdoor spaces in schools, sport areas, healthcare centres, car parks and similar installations.

Products searcher

Tilt

Fixture diameter

Height

Colour Temperature

CRI

Beam angle

Watt

Accessories

Search results
Beam angle
Reference
Watt
F101LNX
102º
11W
>
101LNX.1.01-I191
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
F101LNX
102º
11W
>
101LNX.1.01-I192
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
F101LNX
102º
11W
>
101LNX.1.01-I193
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
F101LNX
102º
17W
>
101LNX.1.01-I197
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
F101LNX
102º
17W
>
101LNX.1.01-I198
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
F101LNX
102º
17W
>
101LNX.1.01-I199
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
F102LNX
85º
11W
>
102LNX.1.01-I191
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
F102LNX
85º
11W
>
102LNX.1.01-I192
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
F102LNX
85º
11W
>
102LNX.1.01-I193
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
F102LNX
85º
17W
>
102LNX.1.01-I197
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
F102LNX
85º
17W
>
102LNX.1.01-I198
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
F102LNX
85º
17W
>
102LNX.1.01-I199
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
F102LNX
84º
23W
>
102LNX.1.01-I323
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
F102LNX
84º
23W
>
102LNX.1.01-I209
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
F102LNX
84º
23W
>
102LNX.1.01-I210
DATA SHEET
Photometric IES
Photometric LDT
Description .txt
Declaration conformity CE
EU regulation label.
Installation instruction
Technical drawing
