PIVOT

PIVOT

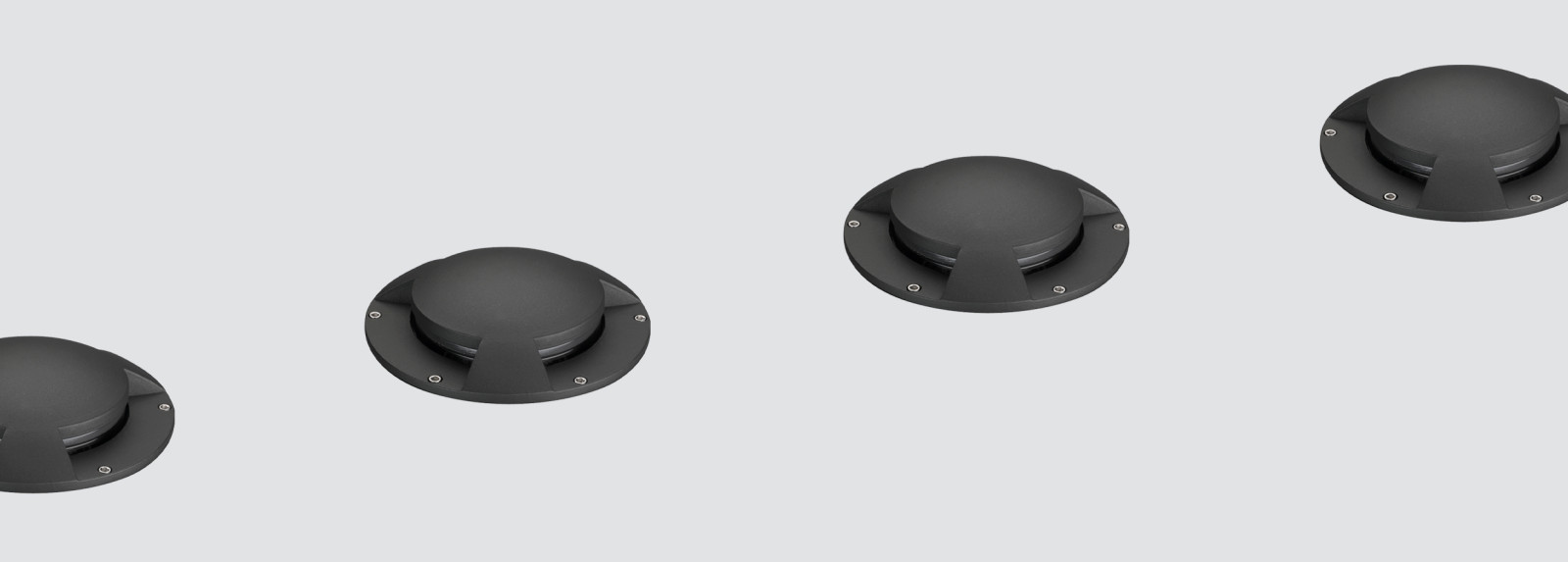

Semi-recessed buried fixture with grazing light distribution to achieve an effective ground illumination.
Circular design available in a diameter of 235mm.
IP68 protection rating that enables it to resist immersion to a depth of 1m.
Protection rating for resistance to harmful mechanical impacts: IK10.
Load supported: 4100Kg and 6000Kg. Can be driven over by vehicles with pneumatic tyres.
Robust and corrosion-resistant because of its 18μ anodised aluminium housing.
Cover made of die-cast aluminium treated against corrosion and coated with polyester powder available in several colour finishes, customized RAL under request.

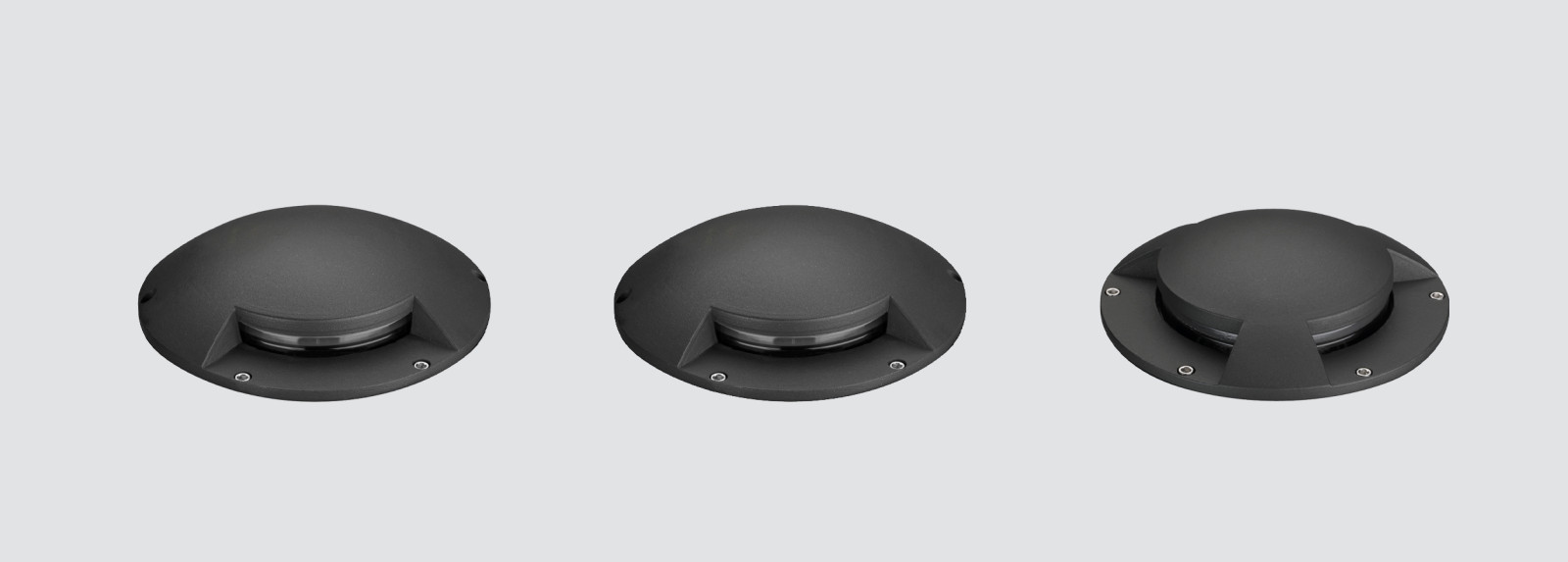

1, 2, 3 or 4 light sectors.
Total lighting control: high performance and efficiency.
High purity sandblasted anodised aluminium reflector.
Temperature resistant silicone rubber gasket.
Optional supply of 304 stainless steel vandal-resistant screws.
Integral driver included.
Electronic standard options for lighting control: DALI/ DSI.
Passive temperature management: heat dissipation flows through the fixture body itself.
Supplied with aluminium insertion tube as standard.
Ground mounted by two fixing holes.
Double cable gland entry for installation in series.
Pre-wiring of 1.5 metres cable 3x1,5mm2.
IP68 connector to be ordered separately.

Suggested applications: outdoor spaces: gardens, parks, pathways, hotel and building entrances that may be affected by temporary flooding. Suitable for installation in concrete, pavement and lawn.

Product configurator

Tilt

Recessed diameter

Fixture diameter

Depth

Colour Temperature

CRI

UGR

Beam angle

Watt

Accessories

Search results
Beam angle
Reference
Watt
Luminous flux of the luminaire
CRI
Colour Temperature
Recessed diameter
Fixture diameter
Depth

F101PVT
11W
>80
2700K
240mm
235mm
110mm
105PVT.4-I863
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101PVT
11W
>80
3000K
240mm
235mm
110mm
105PVT.4-I864
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101PVT
11W
>80
4000K
240mm
235mm
110mm
105PVT.4-I865
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101PVT
17W
>80
2700K
240mm
235mm
110mm
105PVT.4-I869
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101PVT
17W
>80
3000K
240mm
235mm
110mm
105PVT.4-I870
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101PVT
17W
>80
4000K
240mm
235mm
110mm
105PVT.4-I871
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101PVT
19W
>80
2700K
240mm
235mm
110mm
105PVT.4-I970
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101PVT
19W
>80
3000K
240mm
235mm
110mm
105PVT.4-I971
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101PVT
19W
>80
4000K
240mm
235mm
110mm
105PVT.4-I972
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F102PVT
11W
>80
2700K
240mm
235mm
110mm
106PVT.4-I863
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F102PVT
11W
>80
3000K
240mm
235mm
110mm
106PVT.4-I864
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F102PVT
11W
>80
4000K
240mm
235mm
110mm
106PVT.4-I865
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F102PVT
17W
>80
2700K
240mm
235mm
110mm
106PVT.4-I869
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F102PVT
17W
>80
3000K
240mm
235mm
110mm
106PVT.4-I870
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F102PVT
17W
>80
4000K
240mm
235mm
110mm
106PVT.4-I871
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE
