QUERCUS 100

QUERCUS 100

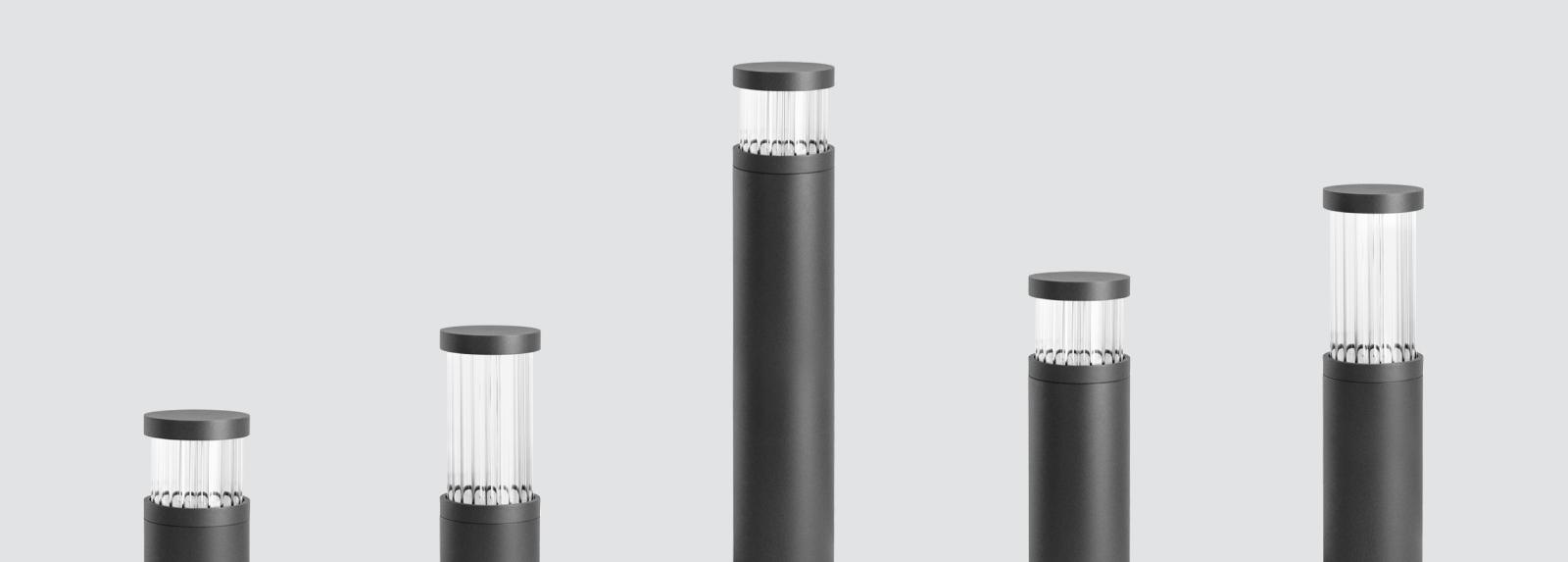

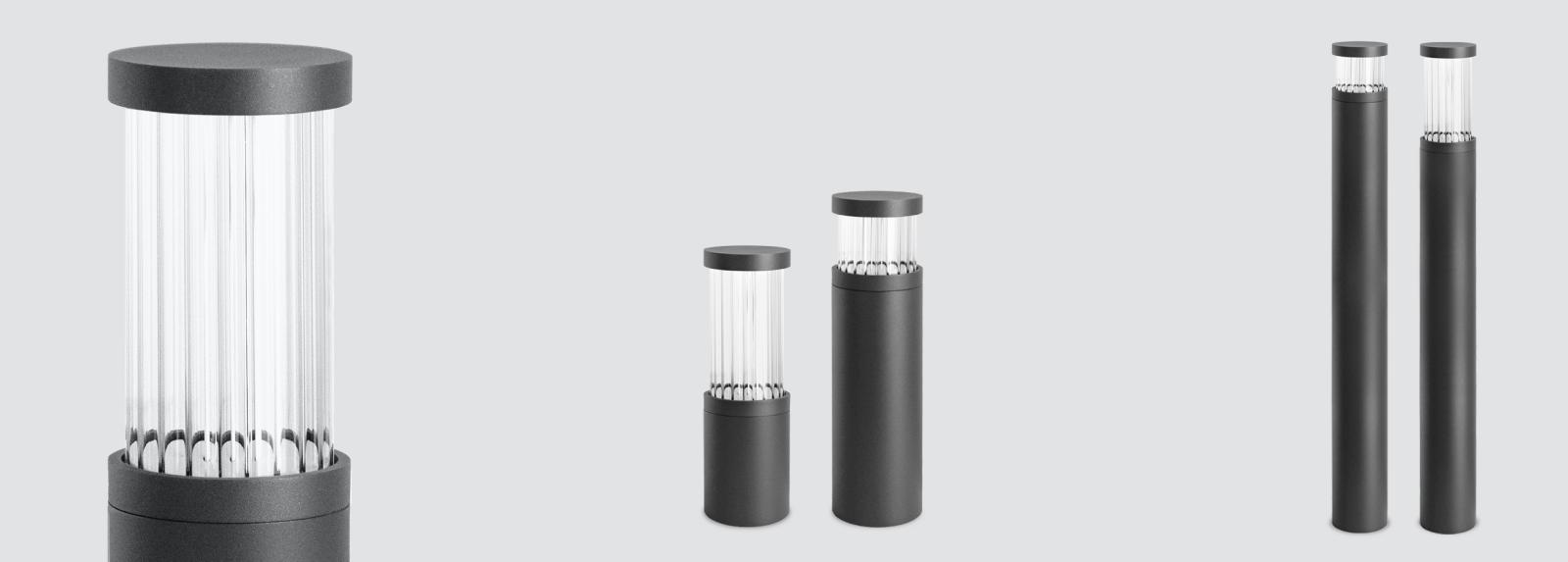

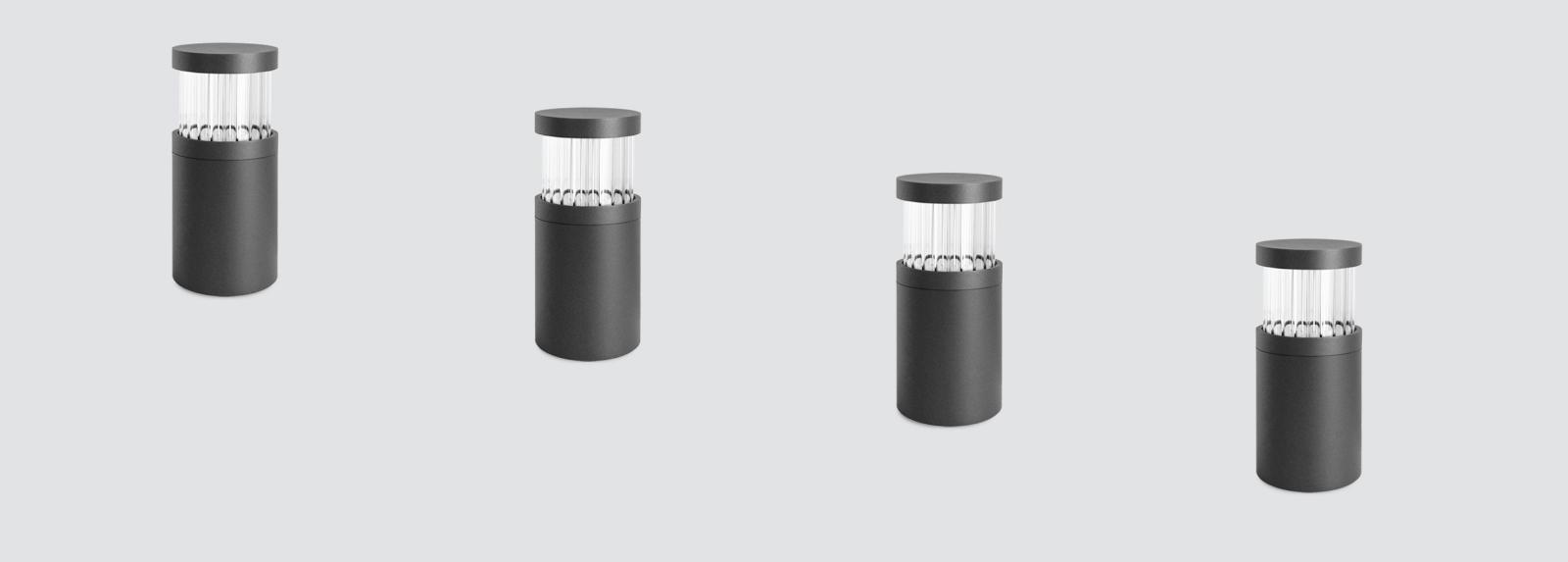

Bollard with 360º light emission, radial beam.
Bollard head with a diameter of 140mm.
Available in 4 heights.
Protection rating against dust and moisture: IP66 – full protection.
Protection rating for resistance against harmful mechanical impacts: IK07.
Die-cast aluminium body and top cover treated for corrosion resistance (nanophoresis) and covered with a polyester powder coating to guarantee durability. Textured paint finish.
Special coating for environments with very high corrosivity is available under request.
Extruded aluminium tube with corrosion resistance treatment and finish according to the head finish.
5mm fluted clear borosilicate glass.
Silicone gasket.
Anticondensation device.
PCB on the top of the fixture.
Built-in driver included.
Electronic options for light control : DALI.
Pre-wiring with 25cm of 3x1mm2 cable.
Double cable gland entry for installation in series.
IP68 connector not included, it can be ordered separately.

Product configurator

Tilt

Fixture diameter

IK

Colour Temperature

CRI

UGR

Beam angle

Diffuser

Accessories

Electronic equipment

Search results
Beam angle
Reference
Watt
Luminous flux of the luminaire
CRI
Colour Temperature
Fixture diameter
Height

F120QRC
360
7W
752lm
55
1795K
140
300
120QRC.4-I1173
DATA SHEET
Photometric IES
Technical drawing
Photometric LDT


F120QRC
360
6.44W
634lm
90
2700K
140
300
DATA SHEET
Photometric IES
Technical drawing
Photometric LDT


F120QRC
360
6.44W
811lm
80
3000K
140
300
DATA SHEET
Photometric IES
Technical drawing
Photometric LDT


F120QRC
360
6.44W
851lm
80
4000K
140
300
DATA SHEET
Photometric IES
Technical drawing
Photometric LDT


F120QRC
360
10W
1070lm
55
1795K
140
300
120QRC.4-I1175
DATA SHEET
Photometric IES
Technical drawing
Photometric LDT


F120QRC
360
11.53W
1087lm
90
2700K
140
300
DATA SHEET
Photometric IES
Technical drawing
Photometric LDT


F120QRC
360
11.53W
1389lm
80
3000K
140
300
DATA SHEET
Photometric IES
Technical drawing
Photometric LDT


F120QRC
360
11.53W
1457lm
80
4000K
140
300
DATA SHEET
Photometric IES
Technical drawing
Photometric LDT


F120QRC
360
16.84W
1511lm
90
2700K
140
300
DATA SHEET
Photometric IES
Technical drawing
Photometric LDT


F120QRC
360
16.84W
1931lm
80
3000K
140
300
DATA SHEET
Photometric IES
Technical drawing
Photometric LDT


F120QRC
360
16.84W
2027lm
80
4000K
140
300
DATA SHEET
Photometric IES
Technical drawing
Photometric LDT


F130QRC
360
7W
881lm
55
1795K
140
416
130QRC.4-I1173
DATA SHEET
Photometric IES
Technical drawing
Photometric LDT


F130QRC
360
6.44W
743lm
90
2700K
140
416
DATA SHEET
Photometric IES
Technical drawing
Photometric LDT


F130QRC
360
6.44W
950lm
80
3000K
140
416
DATA SHEET
Photometric IES
Technical drawing
Photometric LDT


F130QRC
360
6.44W
996lm
80
4000K
140
416
DATA SHEET
Photometric IES
Technical drawing
Photometric LDT
