QUERCUS 400

QUERCUS 400

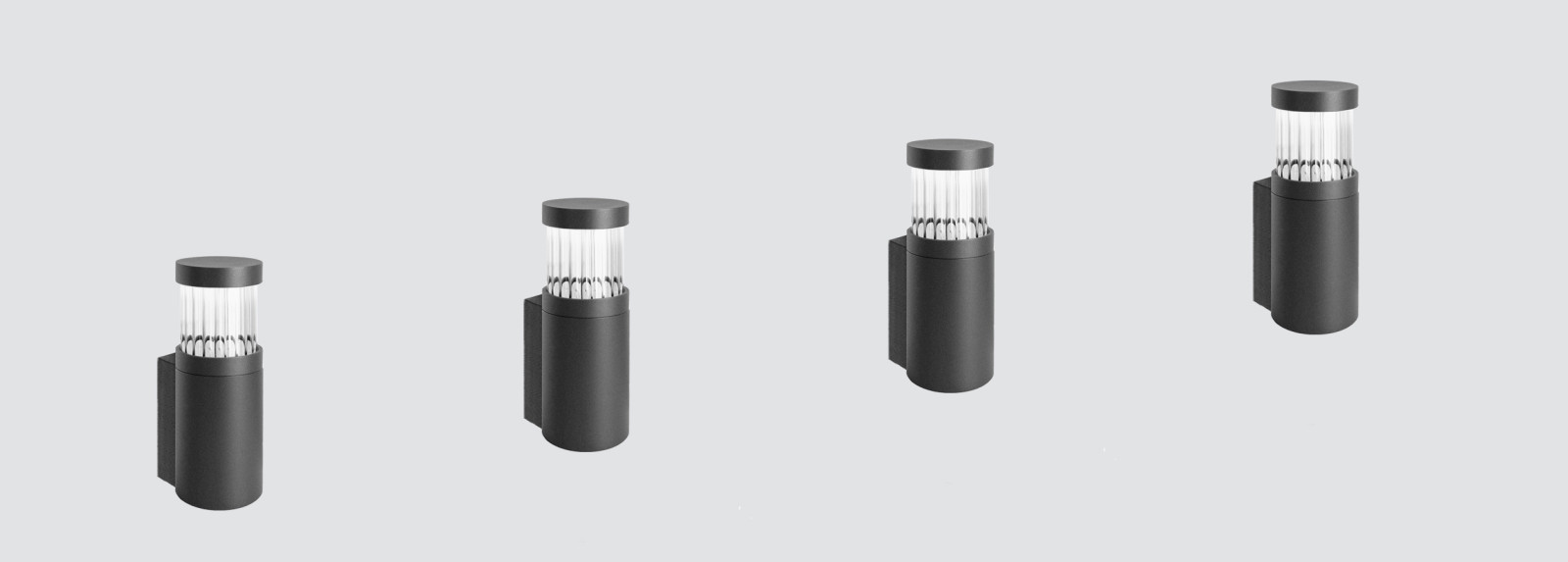

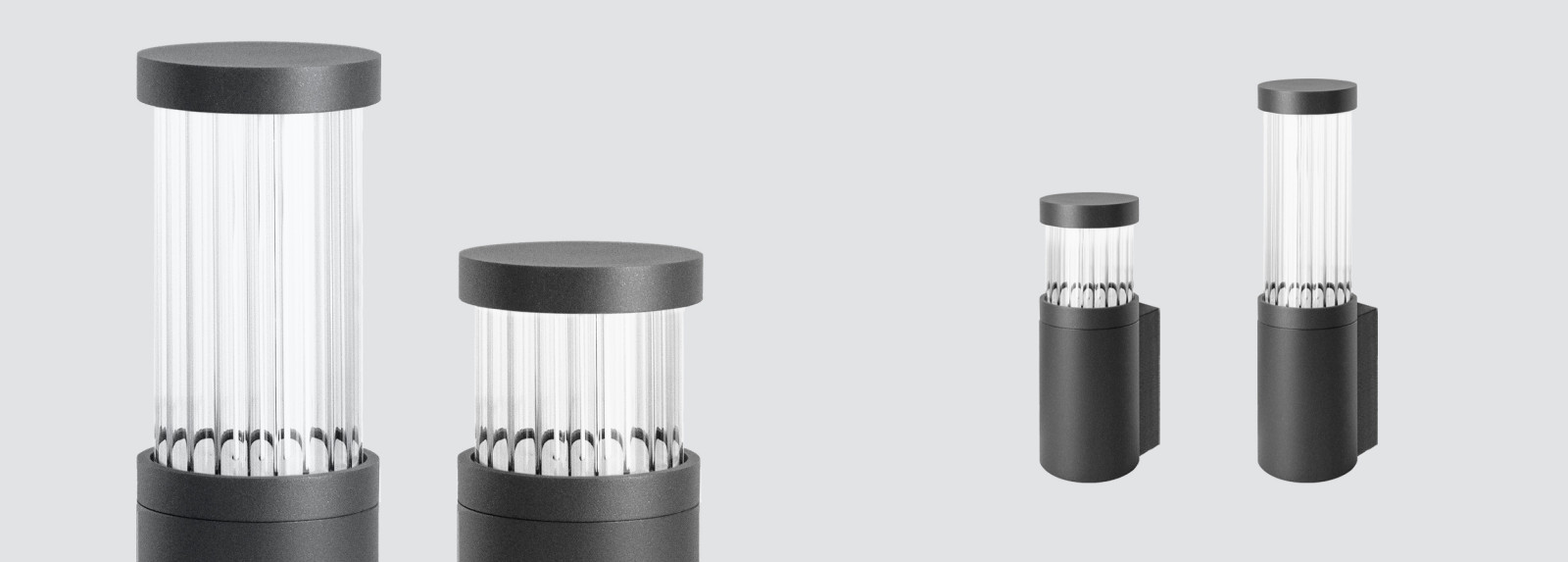

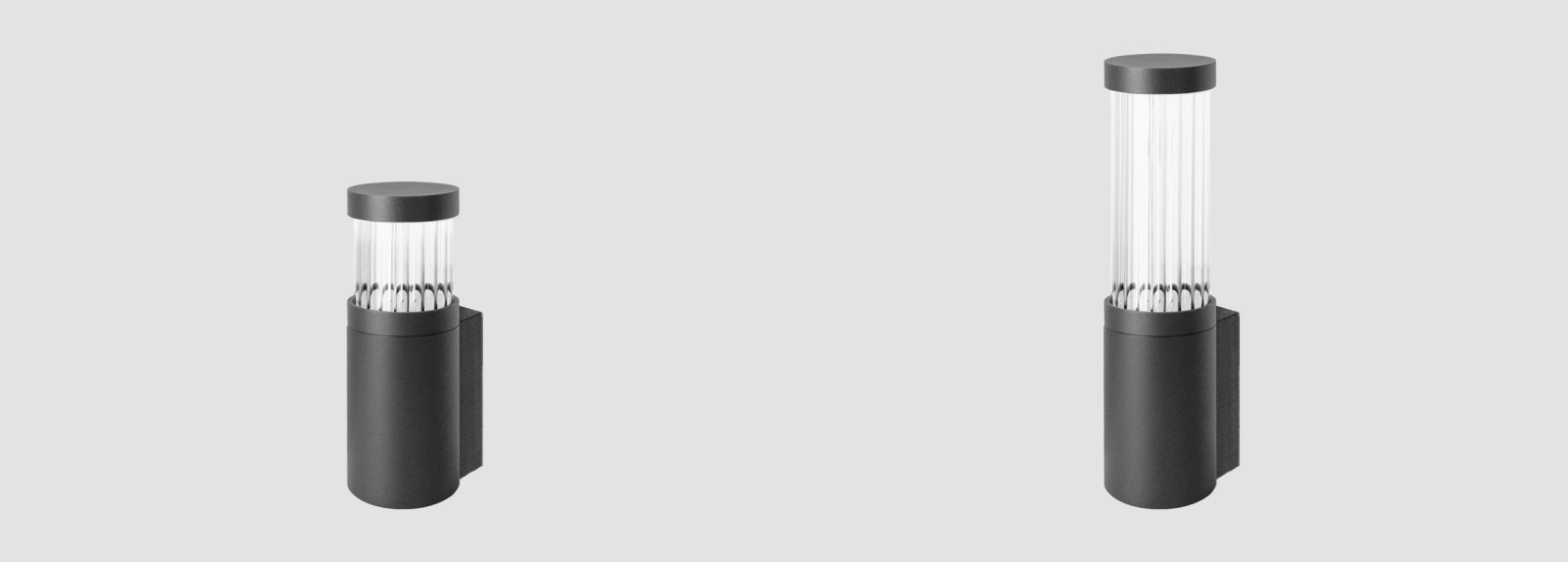

Wall-mounted fixture with 360º light emission, radial beam.
Fixture with a diameter of 140mm.
Protection rating against dust and moisture: IP66 – full protection.
Protection rating for resistance against harmful mechanical impacts: IK07.
Die-cast aluminium body and top cover treated for corrosion resistance (nanophoresis) and covered with a polyester powder coating to guarantee durability. Textured paint finish.
Special coating for environments with very high corrosivity is available under request.
5mm fluted clear borosilicate glass.
Silicone gasket.
Anticondensation device.
PCB on the top of the fixture.
Built-in driver included.
Electronic options for light control : DALI.
Pre-wiring with 25cm of 3x1mm2 cable.
Double cable gland entry for installation in series.
IP68 connector not included, it can be ordered separately.
Mounting to the wall through mounting plate with two fixing holes. Cable entry from the mounting plate.

Product configurator

Tilt

Fixture diameter

Height

Colour Temperature

CRI

UGR

Beam angle

Reflector

Accessories

Electronic equipment

Search results
Beam angle
Reference
Watt
Luminous flux of the luminaire
CRI
Colour Temperature
Fixture diameter
Height

F420QRC
360
7W
752lm
55
1795K
140
300
DATA SHEET
Photometric IES
Photometric LDT


F430QRC
360
7W
881lm
55
1795K
140
416
DATA SHEET


F420QRC
360
6.44W
634lm
90
2700K
140
300
420QRC.4-I1187
DATA SHEET
Photometric IES
Photometric LDT


F430QRC
360
6.44W
743lm
90
2700K
140
416
430QRC.4-I1187
DATA SHEET


F420QRC
360
6.44W
811lm
80
3000K
140
300
420QRC.4-I1188
DATA SHEET
Photometric IES
Photometric LDT


F430QRC
360
6.44W
950lm
80
3000K
140
416
430QRC.4-I1188
DATA SHEET


F420QRC
360
6.44W
851lm
80
4000K
140
300
420QRC.4-I1189
DATA SHEET
Photometric IES
Photometric LDT


F430QRC
360
6.44W
996lm
80
4000K
140
416
430QRC.4-I1189
DATA SHEET


F420QRC
360
10W
1070lm
55
1795K
140
300
DATA SHEET
Photometric IES
Photometric LDT


F430QRC
360
10W
1254lm
55
1795K
140
416
DATA SHEET


F420QRC
360
11.53W
1087lm
90
2700K
140
300
420QRC.4-I1190
DATA SHEET
Photometric IES
Photometric LDT


F430QRC
360
11.53W
1273lm
90
2700K
140
416
430QRC.4-I1190
DATA SHEET


F420QRC
360
11.53W
1389lm
80
3000K
140
300
420QRC.4-I1191
DATA SHEET
Photometric IES
Photometric LDT


F430QRC
360
11.53W
1627lm
80
3000K
140
416
430QRC.4-I1191
DATA SHEET


F420QRC
360
11.53W
1457lm
80
4000K
140
300
420QRC.4-I1192
DATA SHEET
Photometric IES
Photometric LDT
