TIRET 200

TIRET 200

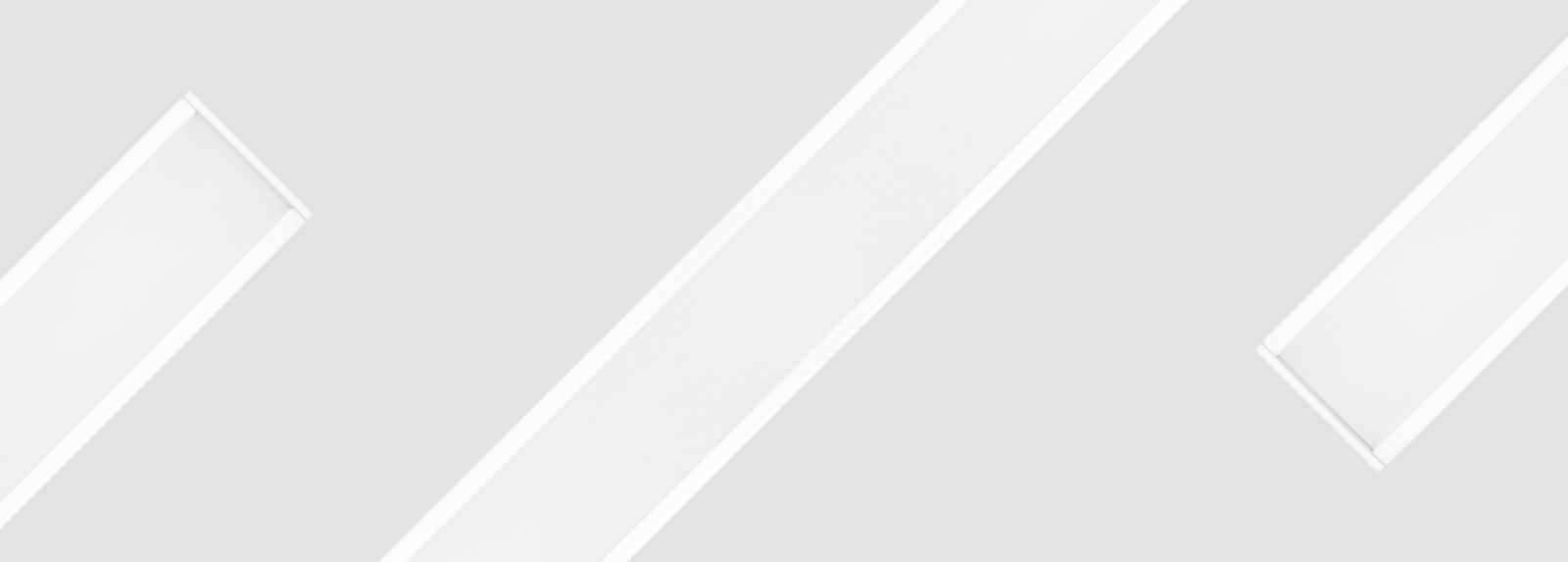

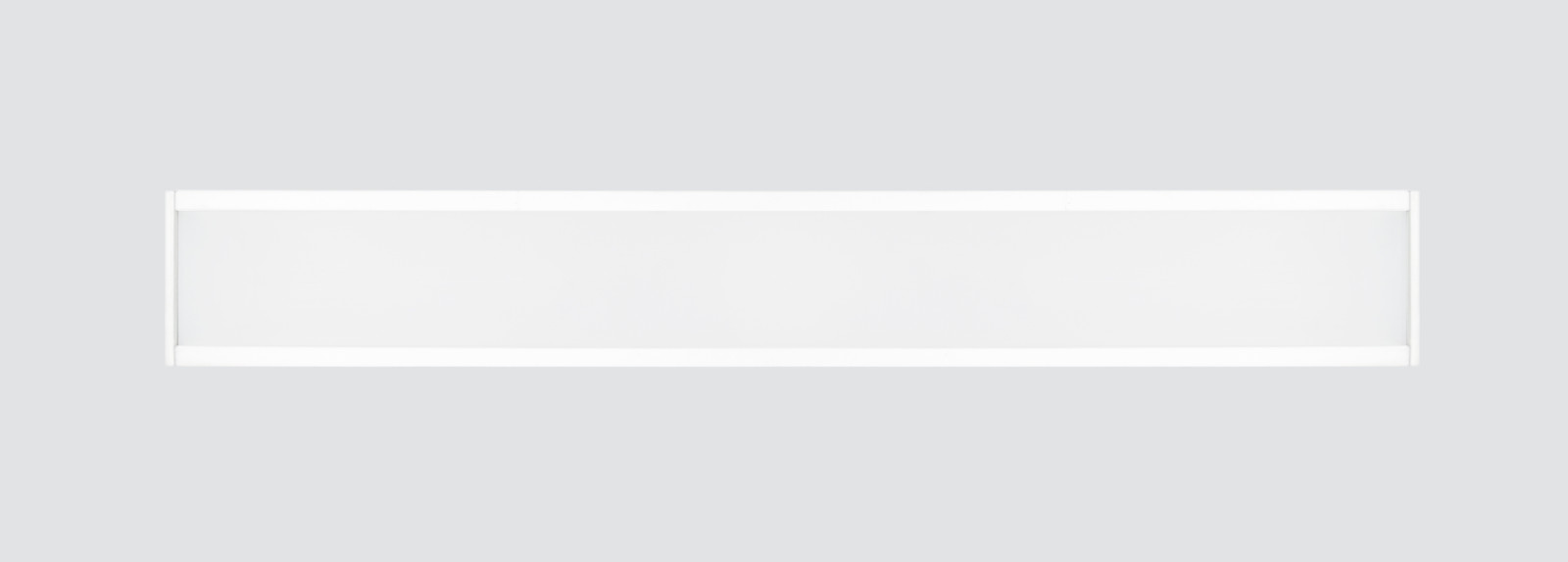

Wall or ceiling mounted recessed linear fixtures with symmetrical light distribution to achieve an effective task or general lighting.

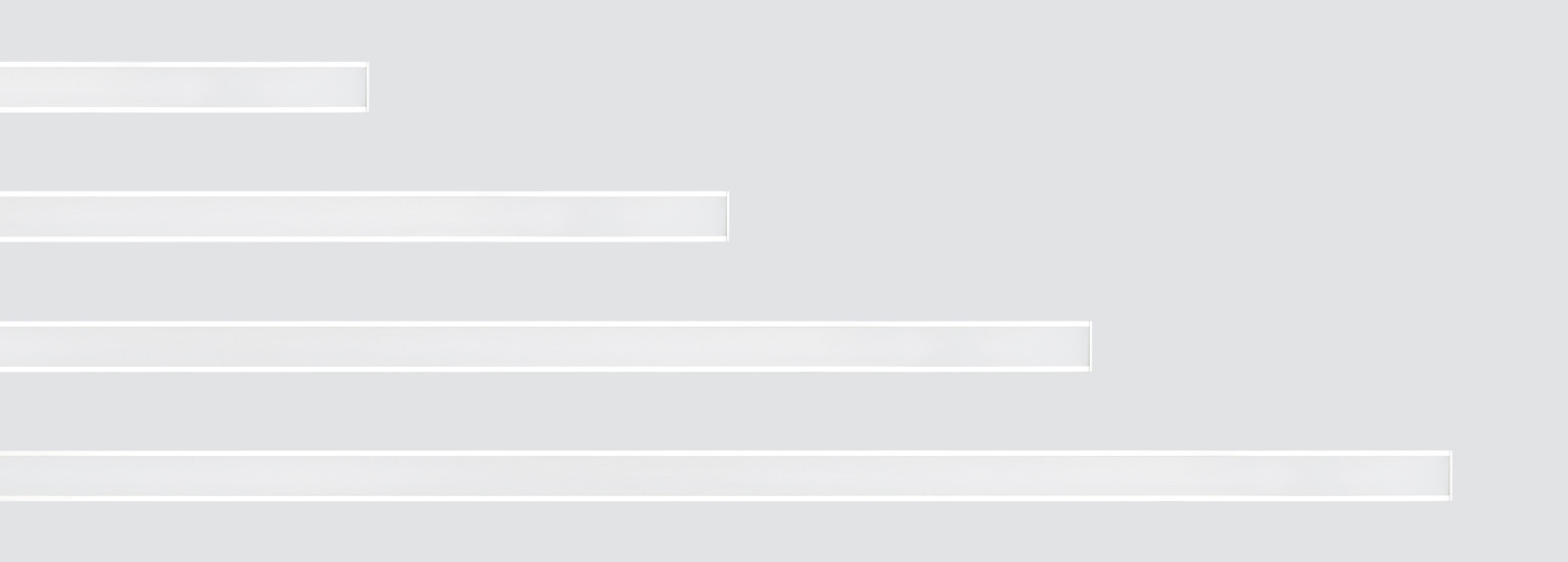

Frameless linear fixtures available in 5 lengths 566mm, 846mm, 1126mm, 1406mm and 2806mm and in a width of 40mm.
Powder painted extruded aluminium profile available in assorted finishes, customized RAL under request.
Opal extruded polycarbonate diffuser.
Highly efficient linear printed circuit board.
Built-in driver.
Passive temperature management.
Ceiling-mounted using steel support with screws.

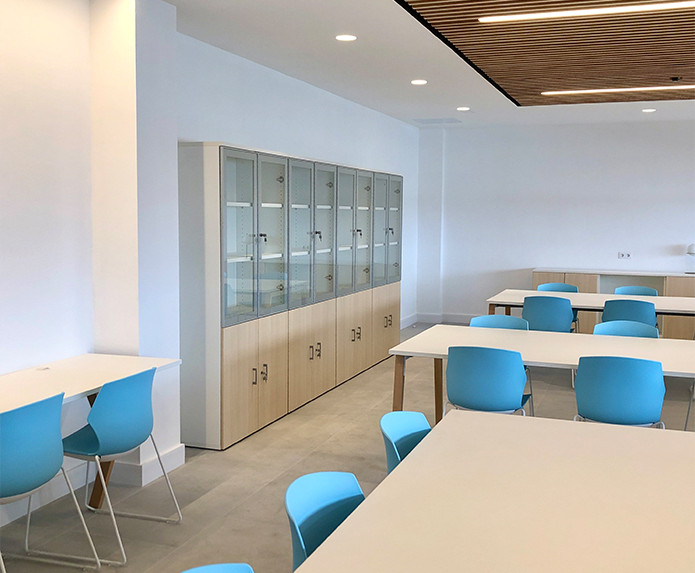

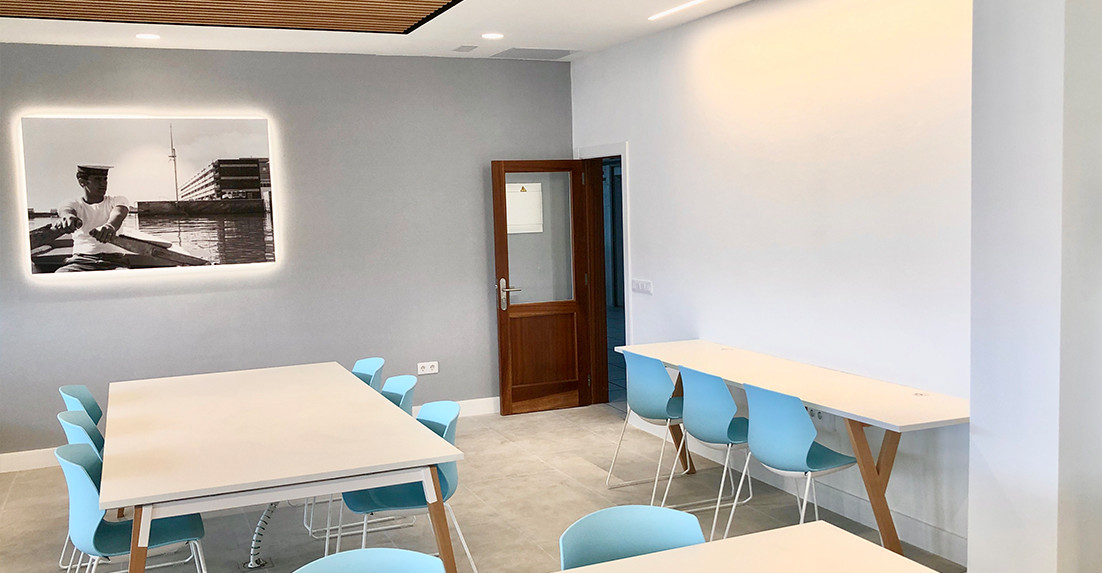

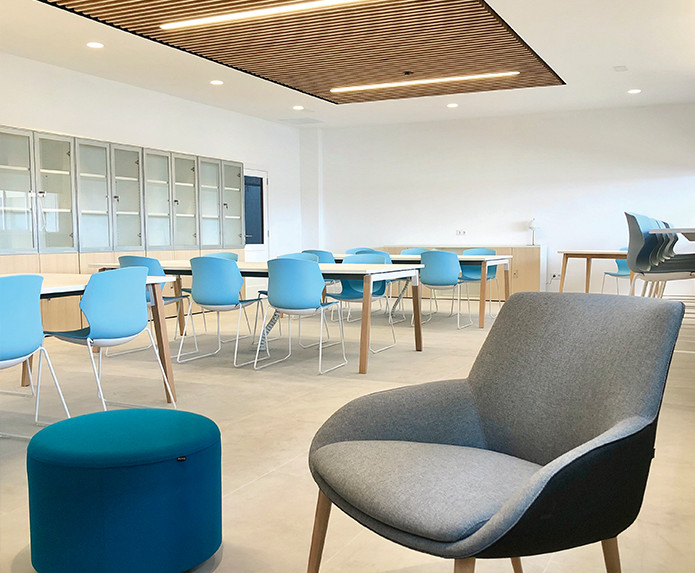

Suggested applications: private residences, offices, schools and universities, retail, showrooms, galleries, museums, conference halls, meeting rooms, banks, bars, restaurants, hotel receptions and similar installations.

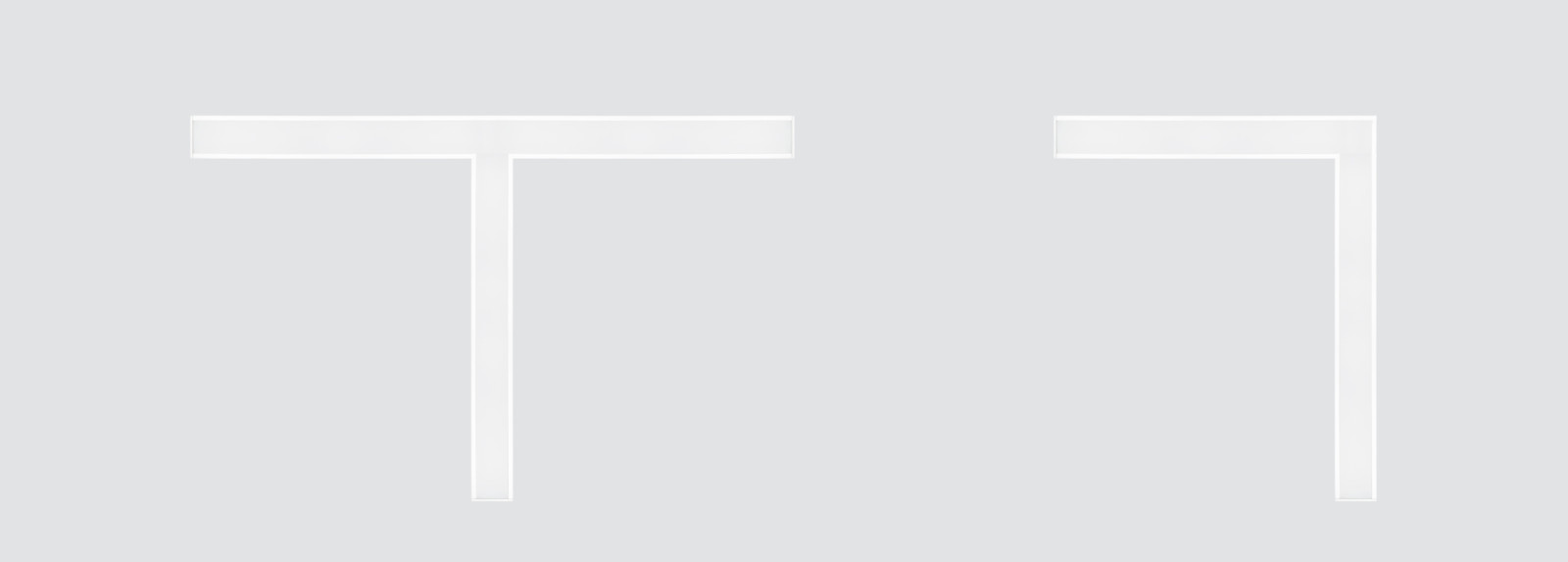

It is possible to combine different lengths and junction modules in different ways to create customized systems.

Product configurator

Tilt

Dimensions recessed

Outer dimensions

Height

Colour Temperature

CRI

UGR

Beam angle

mA

Accessories

Search results
Beam angle
Reference
Watt
Luminous flux of the luminaire
CRI
Colour Temperature
Embedding dimensions
Outer dimensions
Height

F101NLI
91
6W
735lm
80
2700K
567x43
566x40
75mm
251TRT.1-I723
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101NLI
91
6W
756lm
80
3000K
567x43
566x40
75mm
251TRT.1-I724
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101NLI
91
6W
794lm
80
4000K
567x43
566x40
75mm
251TRT.1-I725
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101NLI
91
6W
794lm
80
5000K
567x43
566x40
75mm
251TRT.1-I726
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101NLI
91
6W
655lm
90
3000K
567x43
566x40
75mm
251TRT.1-I728
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101NLI
91
6W
680lm
90
4000K
567x43
566x40
75mm
251TRT.1-I729
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101NLI
91
11W
1197lm
80
2700K
567x43
566x40
75mm
251TRT.1-I730
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101NLI
91
11W
1235lm
80
3000K
567x43
566x40
75mm
251TRT.1-I731
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101NLI
91
11W
1292lm
80
4000K
567x43
566x40
75mm
251TRT.1-I732
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101NLI
91
11W
1292lm
80
5000K
567x43
566x40
75mm
251TRT.1-I733
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101NLI
91
11W
1065lm
90
3000K
567x43
566x40
75mm
251TRT.1-I735
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101NLI
91
11W
1109lm
90
4000K
567x43
566x40
75mm
251TRT.1-I736
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101NLI
91
16W
1622lm
80
2700K
567x43
566x40
75mm
251TRT.1-I737
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101NLI
91
16W
1670lm
80
3000K
567x43
566x40
75mm
251TRT.1-I738
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101NLI
91
16W
1748lm
80
4000K
567x43
566x40
75mm
251TRT.1-I739
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE
