TIRET 500

TIRET 500


Pendant linear fixtures with symmetrical light distribution to achieve an effective task or general lighting. Double light emission: up and down.

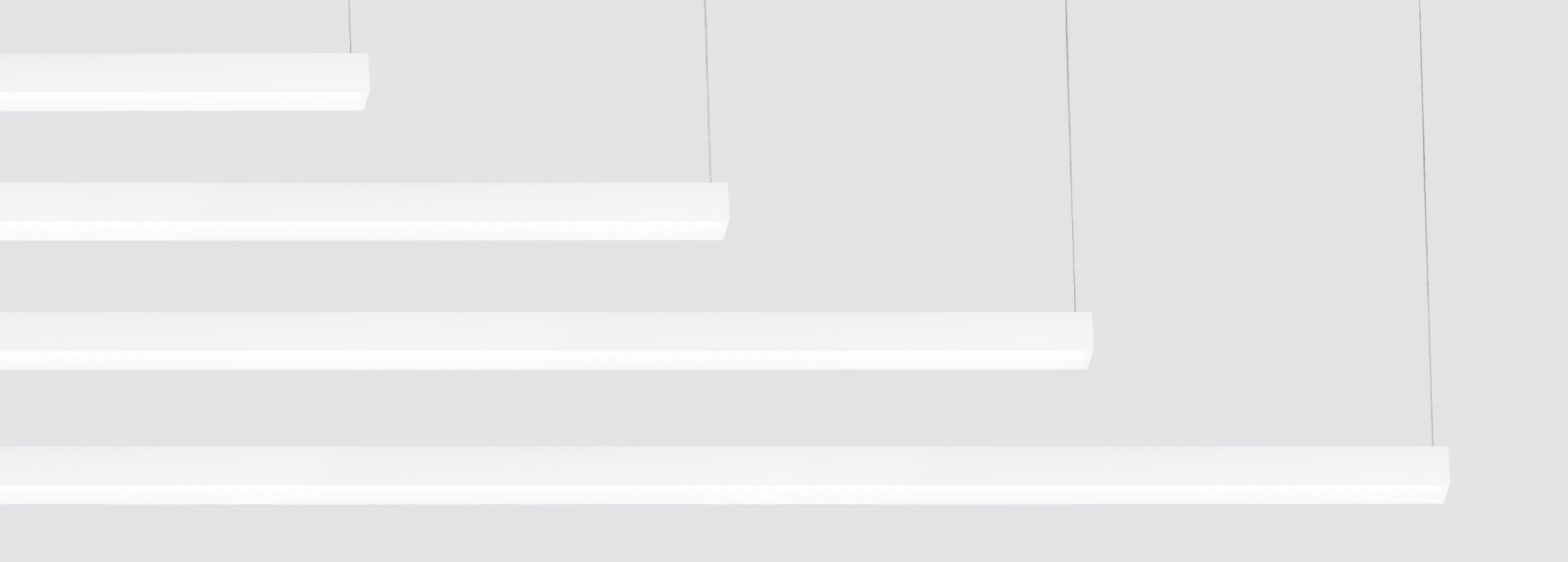

Luminaires available in 5 lengths 566mm, 846mm, 1126mm, 1406mm and 2806mm and in a width of 40mm.
Powder painted extruded aluminium profile available in assorted finishes, customized RAL under request.
Opal extruded polycarbonate diffuser.
Highly efficient linear printed circuit board.
Built-in driver, separate switching up and down.
Passive temperature management.
Ceiling-mounted with adjustable steel wire suspension ( 1m ) and transparent electrical wire. Different suspension length on request
Suggested applications: private residences, offices, schools and universities, retail, showrooms, galleries, museums, conference halls, meeting rooms, banks, bars, restaurants, hotel receptions and similar installations. A good solution for high ceilings because it enables the lighting fixture to be brought near where there needs to be.

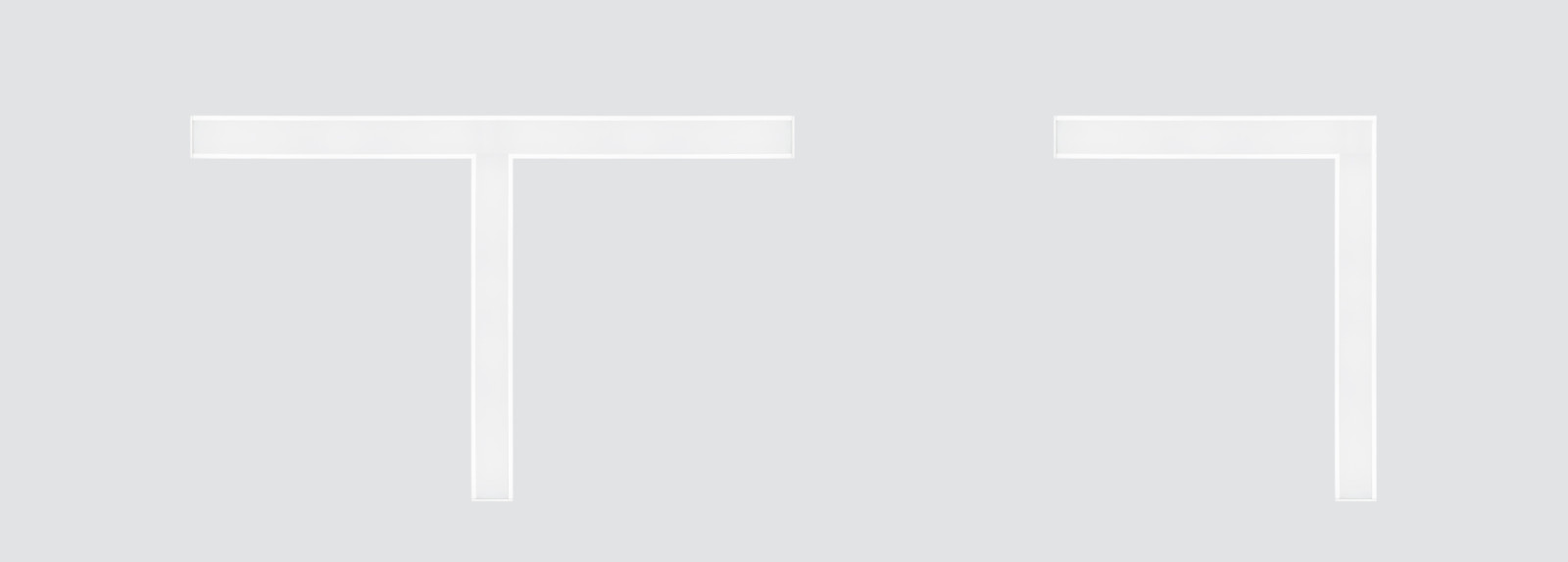

It is possible to combine different lengths and junction modules in different ways to create customized systems.

Product configurator

Tilt

Outer dimensions

Height

Colour Temperature

CRI

UGR

Beam angle

mA

Accessories

Search results
Beam angle
Reference
Watt
Luminous flux of the luminaire
CRI
Colour Temperature
Outer dimensions
Height

F101VLK
91
11W
1065lm
90
3000K
566x40
75mm
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101VLK
91
11W
1109lm
90
4000K
566x40
75mm
551TRT.1-I736
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101VLK
91
6W
735lm
80
2700K
566x40
75mm
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101VLK
91
6W
756lm
80
3000K
566x40
75mm
551TRT.1-I724
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101VLK
91
6W
794lm
80
4000K
566x40
75mm
551TRT.1-I725
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101VLK
91
6W
794lm
80
5000K
566x40
75mm
551TRT.1-I726
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101VLK
91
6W
655lm
90
3000K
566x40
75mm
551TRT.1-I728
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101VLK
91
6W
680lm
90
4000K
566x40
75mm
551TRT.1-I729
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101VLK
91
11W
1197lm
80
2700K
566x40
75mm
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101VLK
91
11W
1235lm
80
3000K
566x40
75mm
551TRT.1-I731
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101VLK
91
11W
1292lm
80
4000K
566x40
75mm
551TRT.1-I732
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101VLK
91
11W
1292lm
80
5000K
566x40
75mm
551TRT.1-I733
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101VLK
91
16W
1622lm
80
2700K
566x40
75mm
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101VLK
91
16W
1670lm
80
3000K
566x40
75mm
551TRT.1-I738
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101VLK
91
16W
1748lm
80
4000K
566x40
75mm
551TRT.1-I739
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE
