TIRET 900

TIRET 900


Linear downlights with 3-phase track adapter with symmetrical light distribution to achieve an effective task or general lighting.

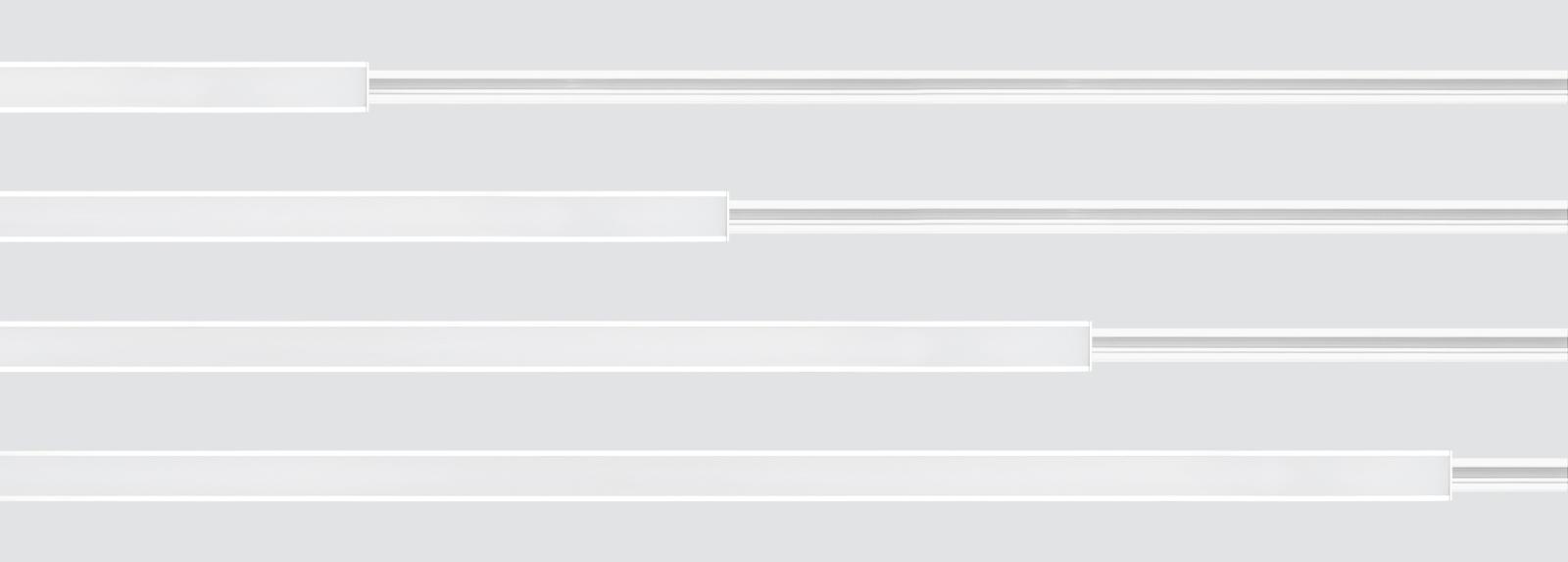

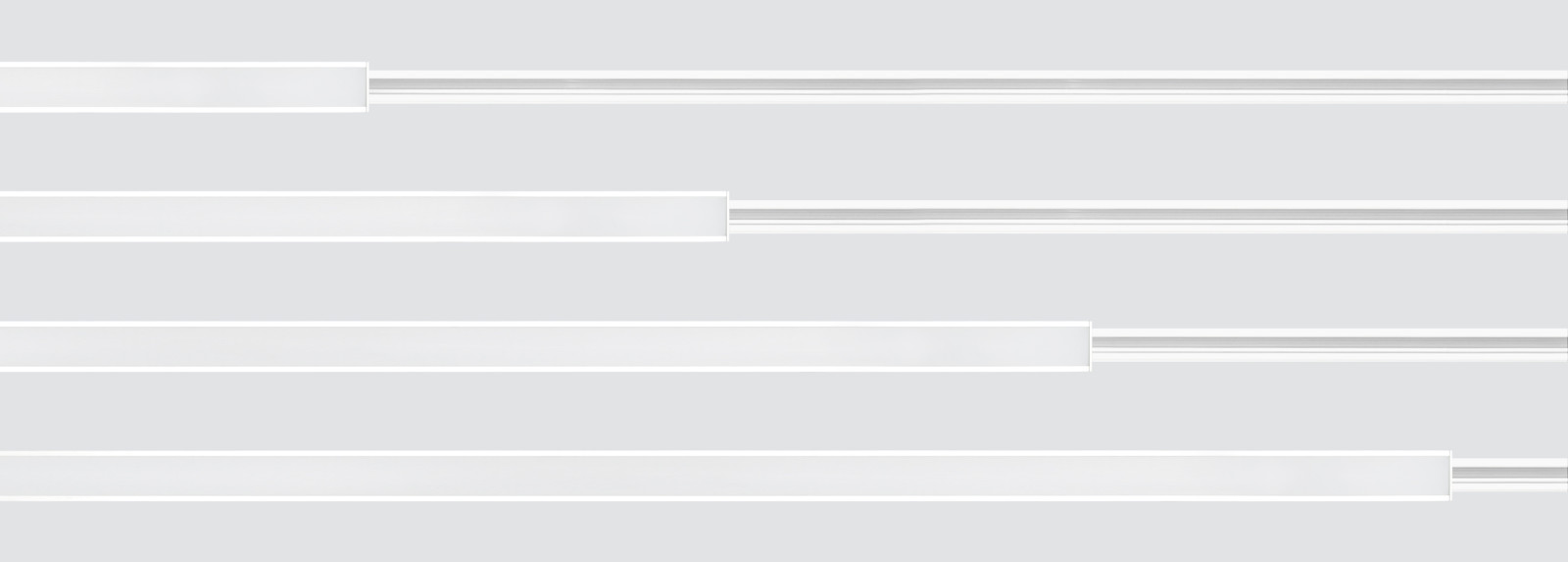

Linear downlights available in 4 lengths 566mm, 846mm, 1126mm, 1406mm and 2806mm and in a width of 40mm.
Powder painted extruded aluminium profile available in assorted finishes, customized RAL under request.
Opal extruded polycarbonate diffuser.
Highly efficient linear printed circuit board.
Built-in driver.
Passive temperature management.
The track version offers complete flexibility as the light sources may be moved all along the track.
Suggested applications: offices, boutiques, showrooms, leisure facilities, restaurants, hotels, shopping centers and similiar applications.

Product configurator

Tilt

Outer dimensions

Height

Colour Temperature

CRI

UGR

Beam angle

mA

Accessories

Search results
Beam angle
Reference
Watt
Luminous flux of the luminaire
CRI
Colour Temperature
Outer dimensions
Height

F901TRT
91
6W
735lm
80
2700K
566x40
75mm
951TRT.1-I723
DATA SHEET
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F901TRT
91
6W
756lm
80
3000K
566x40
75mm
951TRT.1-I724
DATA SHEET
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F901TRT
91
6W
794lm
80
4000K
566x40
75mm
951TRT.1-I725
DATA SHEET
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F901TRT
91
6W
794lm
80
5000K
566x40
75mm
951TRT.1-I726
DATA SHEET
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F901TRT
91
6W
655lm
90
3000K
566x40
75mm
951TRT.1-I728
DATA SHEET
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F901TRT
91
6W
680lm
90
4000K
566x40
75mm
951TRT.1-I729
DATA SHEET
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F901TRT
91
11W
1197lm
80
2700K
566x40
75mm
951TRT.1-I730
DATA SHEET
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F901TRT
91
11W
1235lm
80
3000K
566x40
75mm
951TRT.1-I731
DATA SHEET
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F901TRT
91
11W
1292lm
80
4000K
566x40
75mm
951TRT.1-I732
DATA SHEET
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F901TRT
91
11W
1292lm
80
5000K
566x40
75mm
951TRT.1-I733
DATA SHEET
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F901TRT
91
11W
1065lm
90
3000K
566x40
75mm
951TRT.1-I735
DATA SHEET
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F901TRT
91
11W
1109lm
90
4000K
566x40
75mm
951TRT.1-I736
DATA SHEET
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F901TRT
91
16W
1622lm
80
2700K
566x40
75mm
951TRT.1-I737
DATA SHEET
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F901TRT
91
16W
1670lm
80
3000K
566x40
75mm
951TRT.1-I738
DATA SHEET
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F901TRT
91
16W
1748lm
80
4000K
566x40
75mm
951TRT.1-I739
DATA SHEET
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
