TRIANGLE

TRIANGLE

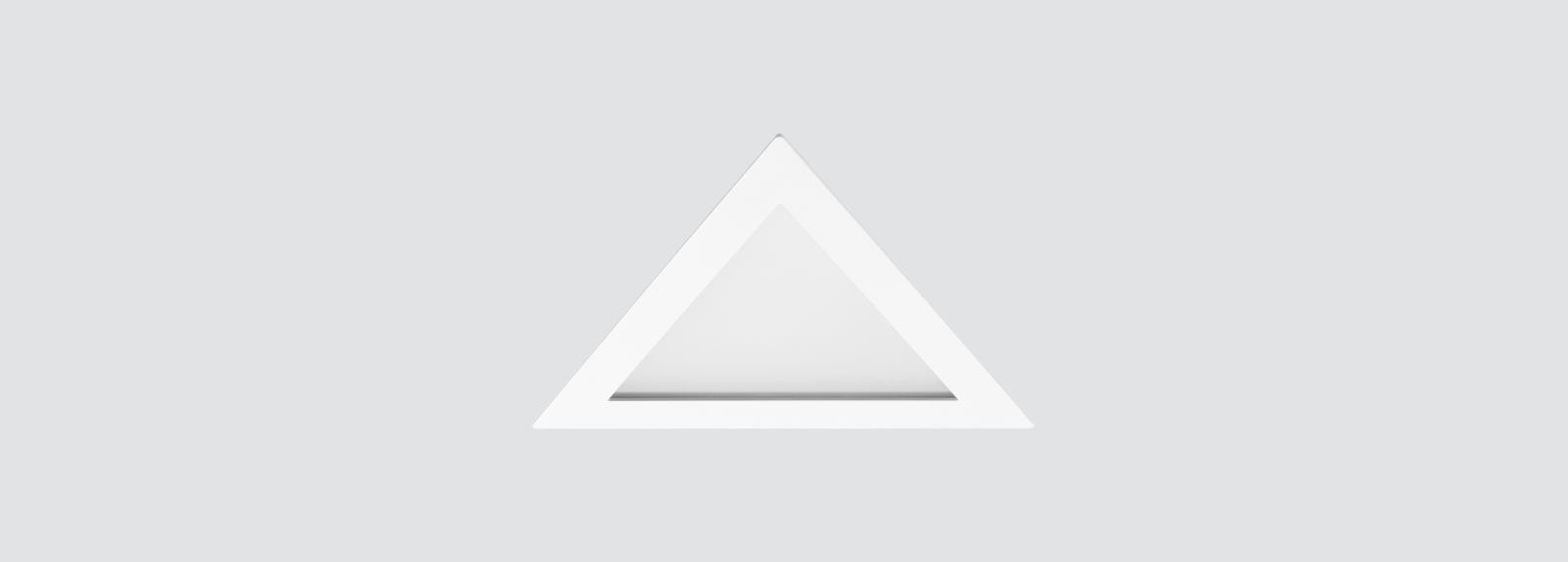

Recessed ceiling-mounted downlights with symmetrical light distribution to achieve an effective task or general lighting.
Triangular design in 216mm side.
Protection rating against dust and moisture: IP54 from underneath.
High-purity matt anodised aluminium reflector.
Powder painted aluminium frame available in assorted finishes, customized RAL under request.
Frosted protection glass.
Remote driver included.
Electronic options for lighting control: DALI/ DSI, phase cut or 1-10V.
Emergency kit as option.
Passive temperature management: heat dissipation flows through heat sink.
Ceiling-mounted using galvanised steel support with screws.

Suggested applications: shopping centers, airports, service stations, shops, hospitals, universities, conference halls, meeting rooms, showrooms, religious buildings, banks and similar installations.

Product configurator

Tilt

Dimensions recessed

Outer dimensions

Height

Colour Temperature

CRI

UGR

Beam angle

Watt

Accessories

Search results
Beam angle
Reference
Watt
Luminous flux of the luminaire
CRI
Colour Temperature
Embedding dimensions
Outer dimensions
Height

F101TRG
82
11W
1098lm
>80
2700K
196mm x 196mm x 196mm
216mm x 216mm x 216mm
88mm
101TRG.1-R863
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101TRG
82
11W
1142lm
>80
3000K
196mm x 196mm x 196mm
216mm x 216mm x 216mm
88mm
101TRG.1-R864
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101TRG
82
11W
1190lm
>80
4000K
196mm x 196mm x 196mm
216mm x 216mm x 216mm
88mm
101TRG.1-R865
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101TRG
82
11W
907lm
>90
2700K
196mm x 196mm x 196mm
216mm x 216mm x 216mm
88mm
101TRG.1-R866
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101TRG
82
11W
969lm
>90
3000K
196mm x 196mm x 196mm
216mm x 216mm x 216mm
88mm
101TRG.1-R867
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101TRG
82
11W
1016lm
>90
4000K
196mm x 196mm x 196mm
216mm x 216mm x 216mm
88mm
101TRG.1-R868
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101TRG
82
17W
1543lm
>80
2700K
196mm x 196mm x 196mm
216mm x 216mm x 216mm
88mm
101TRG.1-R869
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101TRG
82
17W
1607lm
>80
3000K
196mm x 196mm x 196mm
216mm x 216mm x 216mm
88mm
101TRG.1-R870
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101TRG
82
17W
1674lm
>80
4000K
196mm x 196mm x 196mm
216mm x 216mm x 216mm
88mm
101TRG.1-R871
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101TRG
82
17W
1277lm
>90
2700K
196mm x 196mm x 196mm
216mm x 216mm x 216mm
88mm
101TRG.1-R872
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101TRG
82
17W
1361lm
>90
3000K
196mm x 196mm x 196mm
216mm x 216mm x 216mm
88mm
101TRG.1-R873
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101TRG
82
17W
1428lm
>90
4000K
196mm x 196mm x 196mm
216mm x 216mm x 216mm
88mm
101TRG.1-R874
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101TRG
82
24W
2117lm
>80
2700K
196mm x 196mm x 196mm
216mm x 216mm x 216mm
88mm
101TRG.1-R875
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101TRG
82
24W
2204lm
>80
3000K
196mm x 196mm x 196mm
216mm x 216mm x 216mm
88mm
101TRG.1-R876
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101TRG
82
24W
2299lm
>80
4000K
196mm x 196mm x 196mm
216mm x 216mm x 216mm
88mm
101TRG.1-R877
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE
