VSTAR

VSTAR

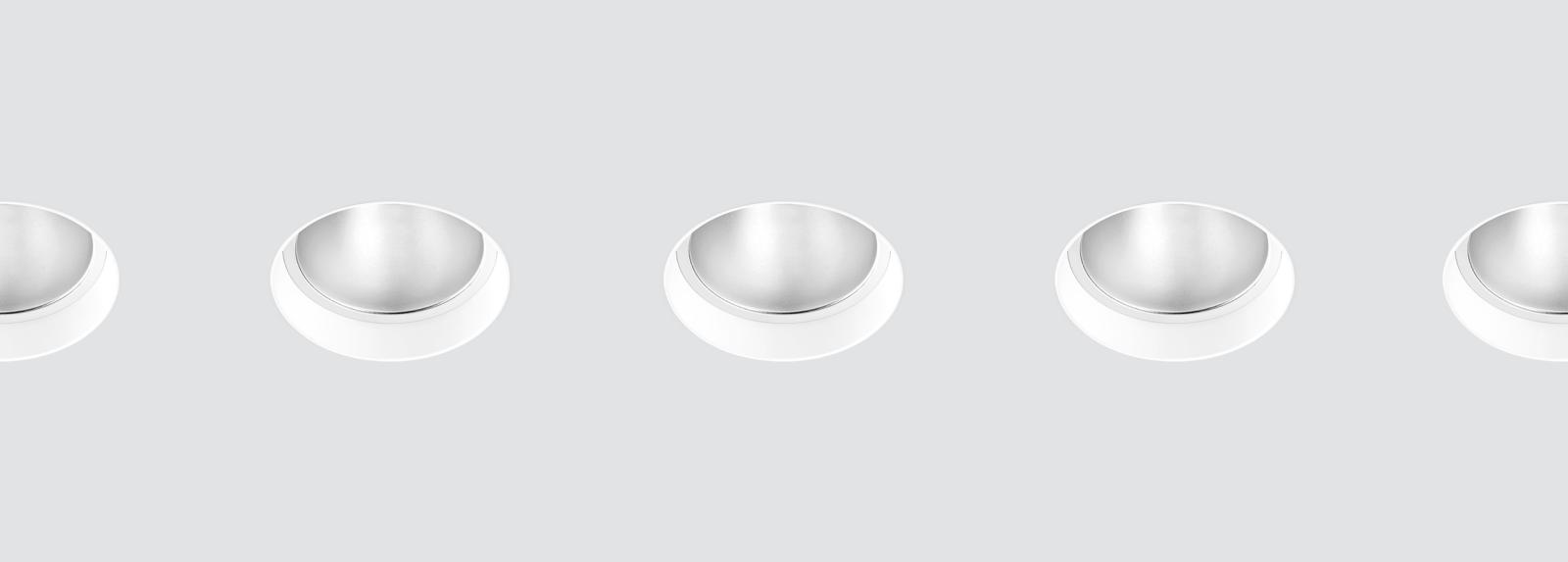

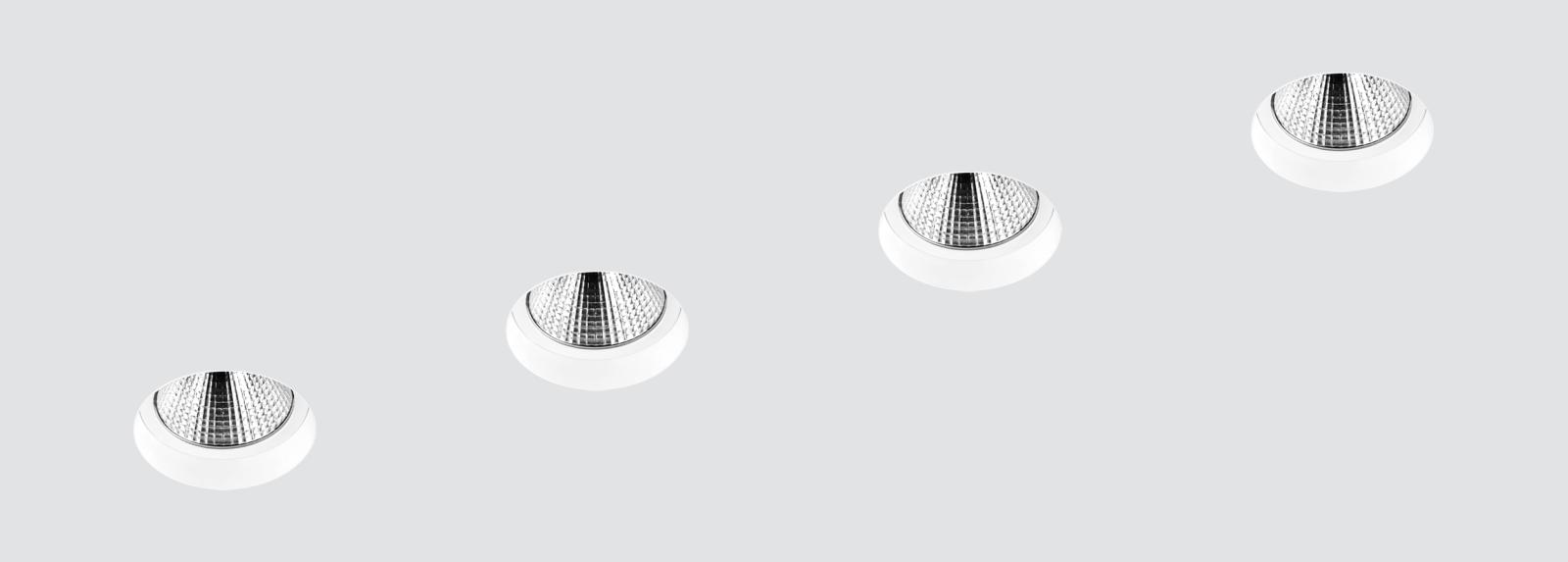

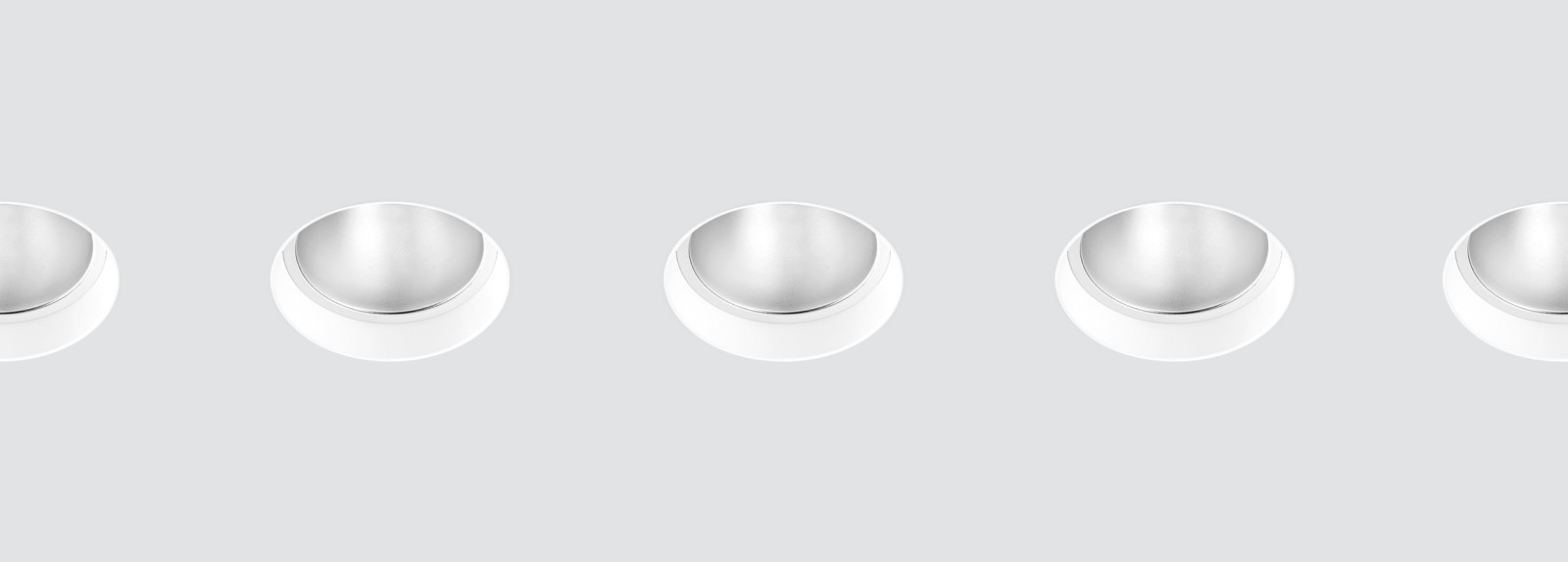

Recessed ceiling-mounted downlights with symmetrical light distribution to achieve an effective task, accent or general lighting.
Round trimless design for plasterboard ceilings. Circular design available in 4 diameters: 135mm, 168mm, 195mm and 219mm.
Powder painted aluminium circle available in various finishes, customized RAL under request.
To complete the effect of this fixture, it is suggested that the circle be painted the same RAL colour as the ceiling.
Total lighting control: high performance and high efficiency.
Large range of reflectors to obtain the best photometric results.

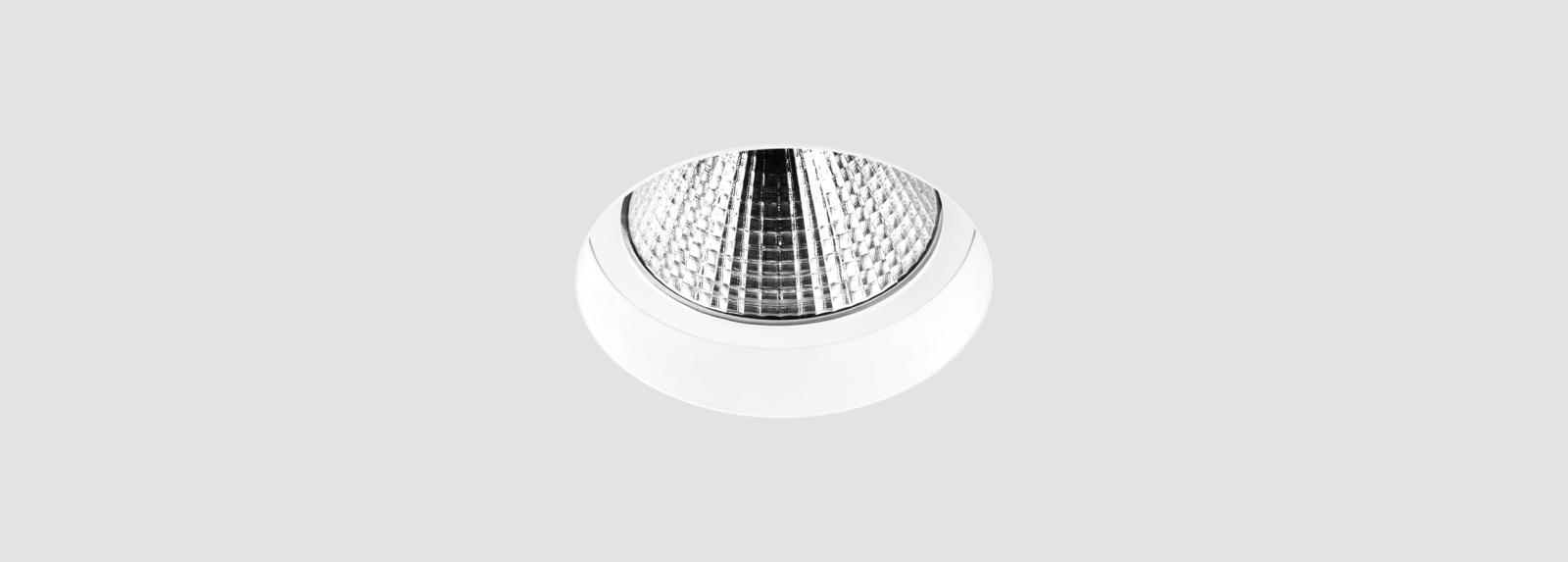

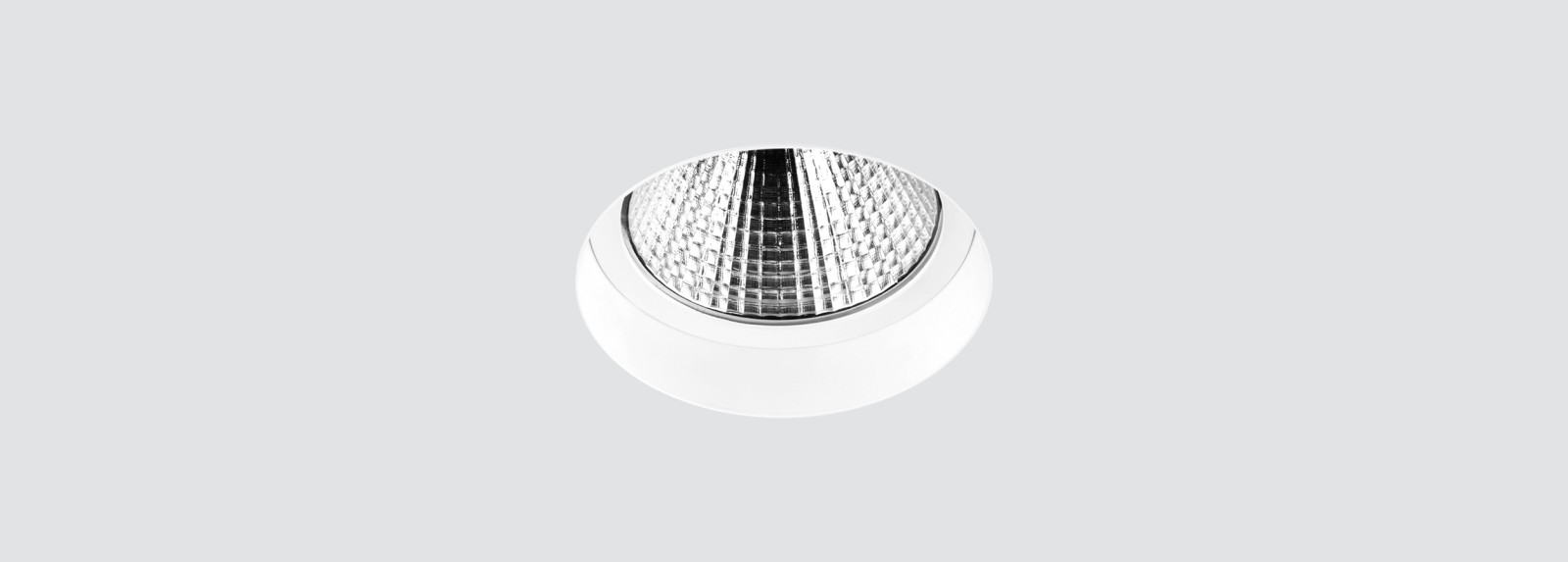

High-purity aluminium reflector in various finishes: specular anodised, facetted metalized or sandblasted anodised depending on the beam angle outcome.
Glass accessory available to increase the protection rating to IP54 from underneath.
Remote driver supplied depending on the reference. Electronic standard options for lighting control: DALI/ DSI or 1-10V.
Emergency kit as option.
Passive temperature management: heat dissipation flows through aluminium heat sink.
Ceiling-mounted using galvanised steel support with screws.

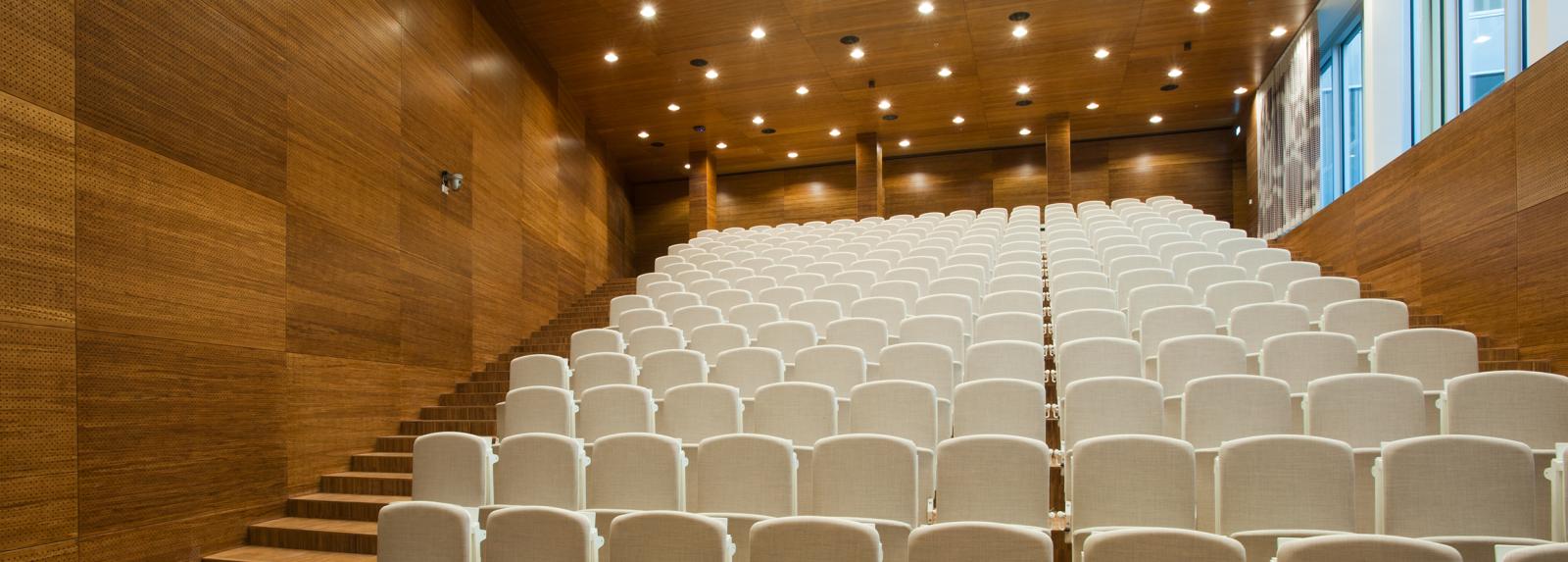

Suggested applications: Suggested applications:offices, apartments, shops, restaurants, bars, hotels and similar installations. Designed to get an exclusive clean and flush installation.

Product configurator

Tilt

Recessed diameter

Fixture diameter

Colour Temperature

CRI

UGR

Beam angle

Watt

Accessories

Search results
Beam angle
Reference
Watt
Luminous flux of the luminaire
CRI
Colour Temperature
Recessed diameter
Fixture diameter
Height

F101VST
12
11W
1784lm
>80
2700K
136mm
135mm
120mm
101VST.1-R863
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101VST
12
11W
1856lm
>80
3000K
136mm
135mm
120mm
101VST.1-R864
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101VST
12
11W
1934lm
>80
4000K
136mm
135mm
120mm
101VST.1-R865
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101VST
12
11W
1474lm
>90
2700K
136mm
135mm
120mm
101VST.1-R866
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101VST
12
11W
1574lm
>90
3000K
136mm
135mm
120mm
101VST.1-R867
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101VST
12
11W
1652lm
>90
4000K
136mm
135mm
120mm
101VST.1-R868
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101VST
24
11W
1784lm
>80
2700K
136mm
135mm
120mm
102VST.1-R863
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101VST
24
11W
1856lm
>80
3000K
136mm
135mm
120mm
102VST.1-R864
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101VST
24
11W
1934lm
>80
4000K
136mm
135mm
120mm
102VST.1-R865
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101VST
24
11W
1474lm
>90
2700K
136mm
135mm
120mm
102VST.1-R866
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101VST
24
11W
1574lm
>90
3000K
136mm
135mm
120mm
102VST.1-R867
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101VST
24
11W
1652lm
>90
4000K
136mm
135mm
120mm
102VST.1-R868
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101VST
40
11W
1744lm
>80
2700K
136mm
135mm
120mm
103VST.1-R863
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101VST
40
11W
1816lm
>80
3000K
136mm
135mm
120mm
103VST.1-R864
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F101VST
40
11W
1891lm
>80
4000K
136mm
135mm
120mm
103VST.1-R865
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE
