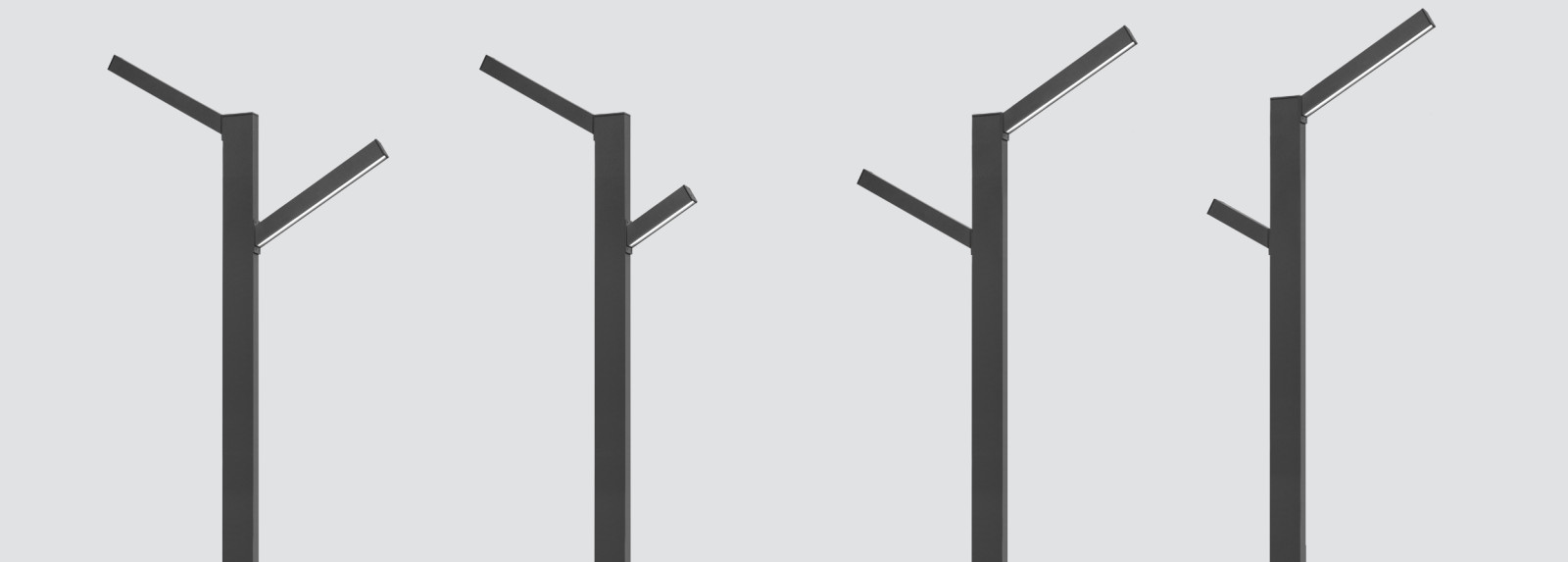

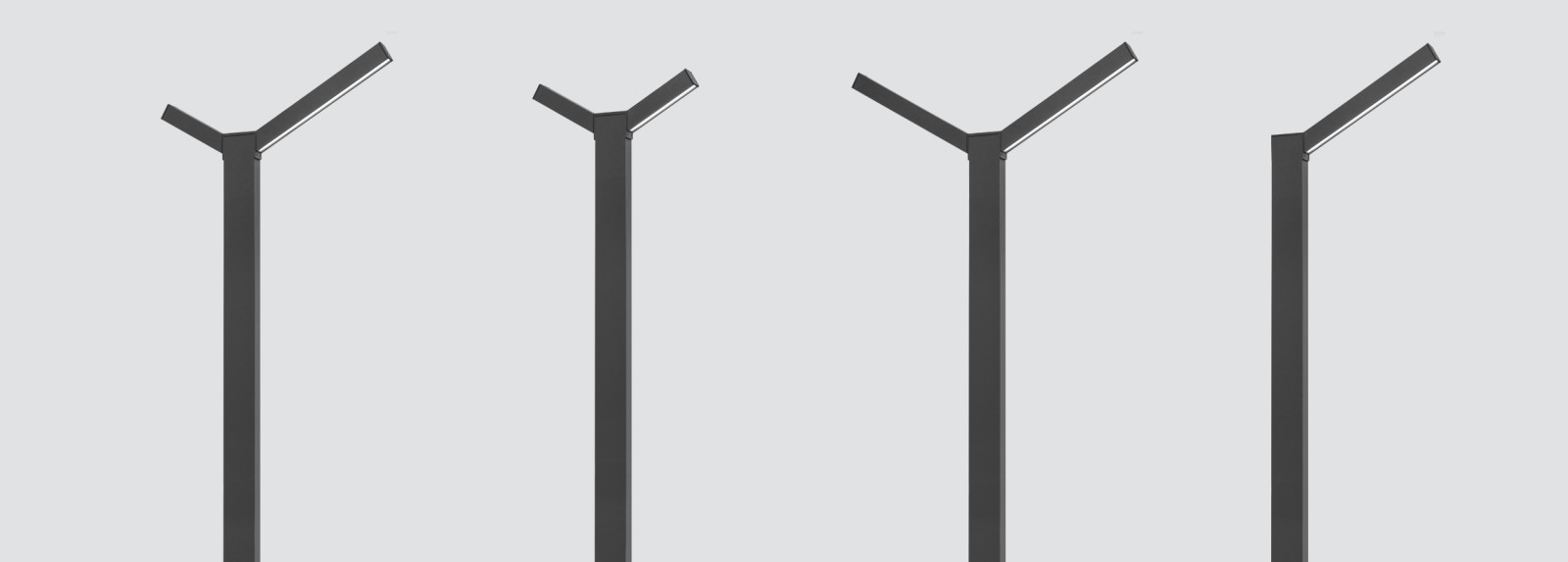

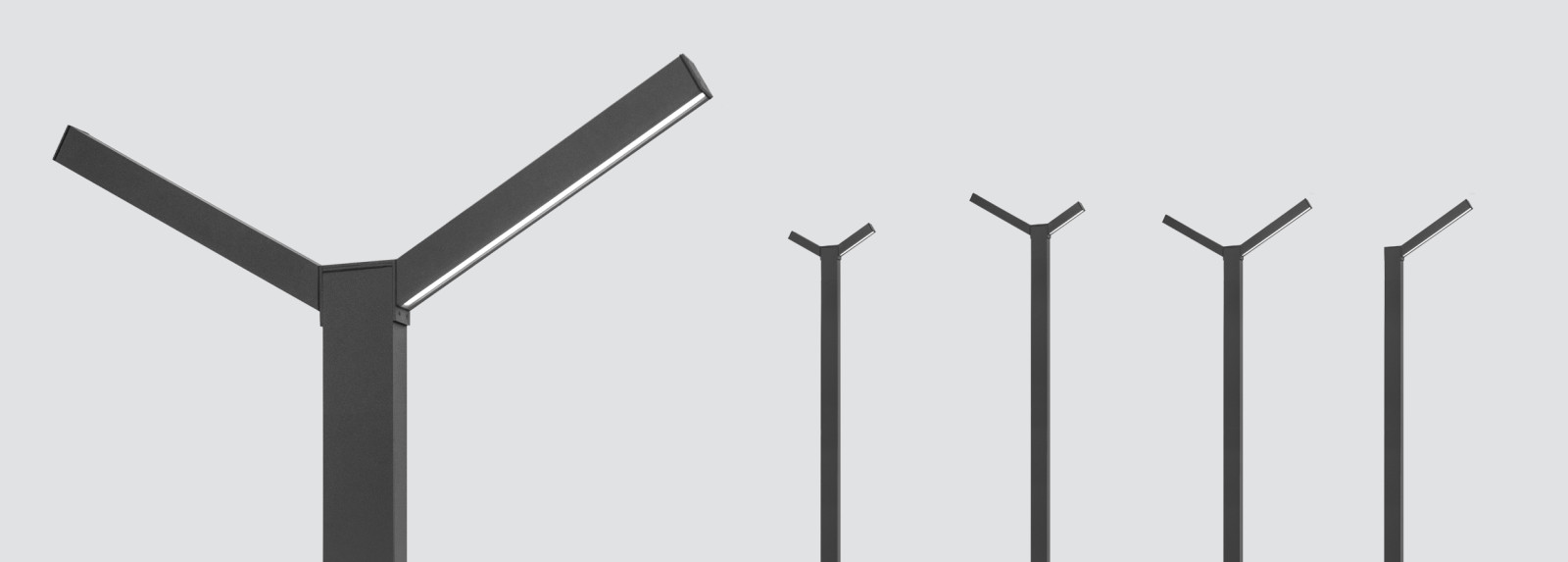

LAURUS | IP66 IK10 Vertical lighting elements
Vertical lighting element with symmetrical light distribution.
With single or double head
Luminous section length: 280 mm or 560 mm.
Heads inclined at 30° with respect to the horizontal plane.
Pole height: 2500 mm, pole dimensions 127,5 x 62 mm.
Protection rating against dust and moisture: IP66 – full protection.
Protection rating for resistance against harmful mechanical impacts: IK10.
Extruded aluminium profile coated with polyester powder along with C4 treatment for corrosion resistance to guarantee further durability. Textured paint finish. Different RAL colour finishes available under request. C5-M special coating for highly corrosive environments is available under request. 4mm frontal polycarbonate diffuser.
IP67 venting valve to reduce condensation.
Silicone gasket.
Highly efficient linear printed circuit board.
Built-in driver included.
A4 stainless steel locking screw. Optional supply of A2 stainless steel vandal-resistant screws.
Mounting plate for floor installation supplied with the fixture.
Access door for electrical connection, dimensions 100x200 mm. It is located 800 mm above ground level to ensure safe and comfortable working conditions.
