LUMIA 100 | IP66 IK10 Recessed linear downlights

LUMIA 100 | IP66 IK10 Recessed linear downlights

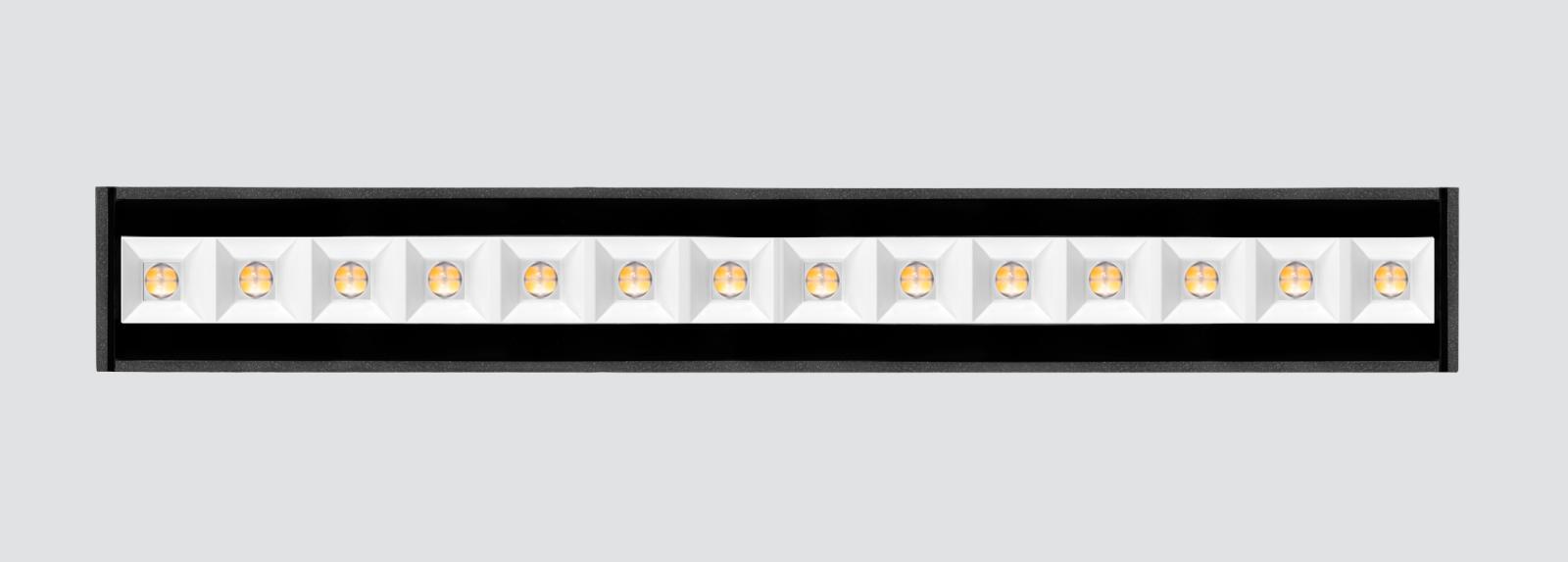

Recessed linear downlights with symmetrical light distribution.

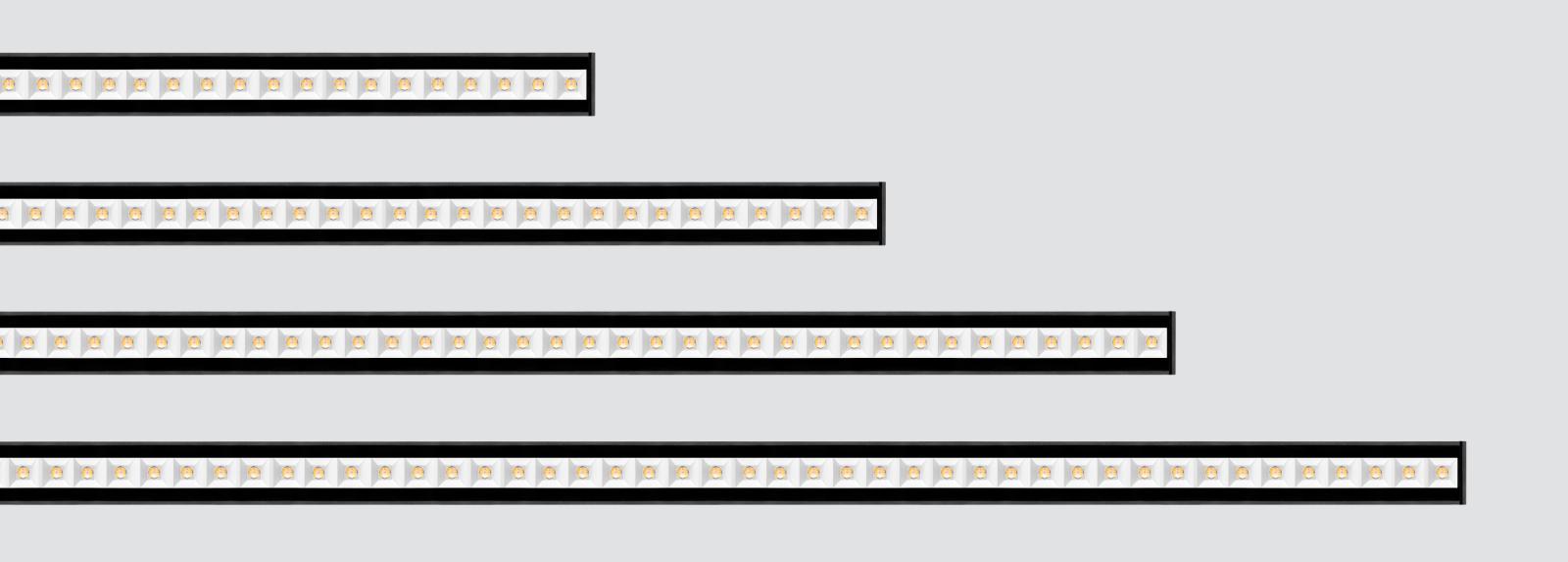

Linear fixtures available in 6 lengths : 309mm, 589mm, 869mm, 1149mm, 1429mm and 2830mm in a width of 75mm and height of 85mm.
Protection rating against dust and moisture: complete IP66.
Protection rating for resistance to harmful mechanical impacts: IK10.

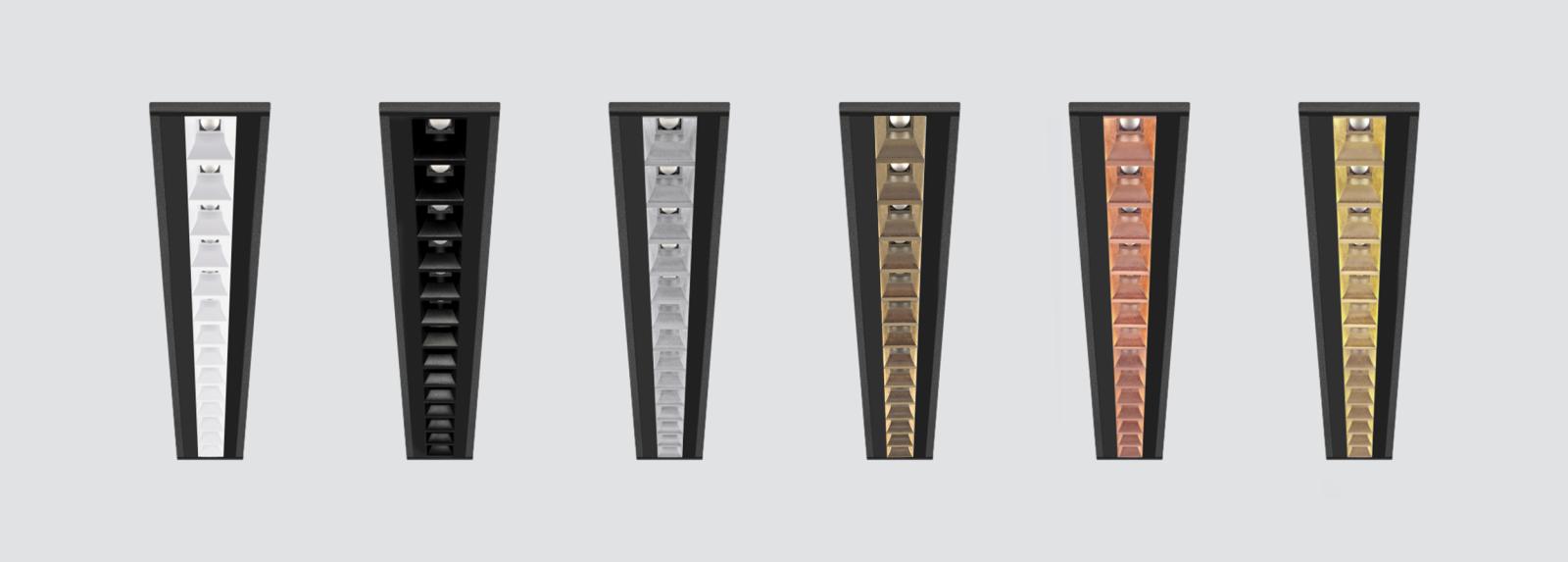

Powder painted extruded aluminium profile available in assorted finishes, customized RAL under request.
Highly efficient linear printed circuit board.
Protection polycarbonate diffuser in 4mm.

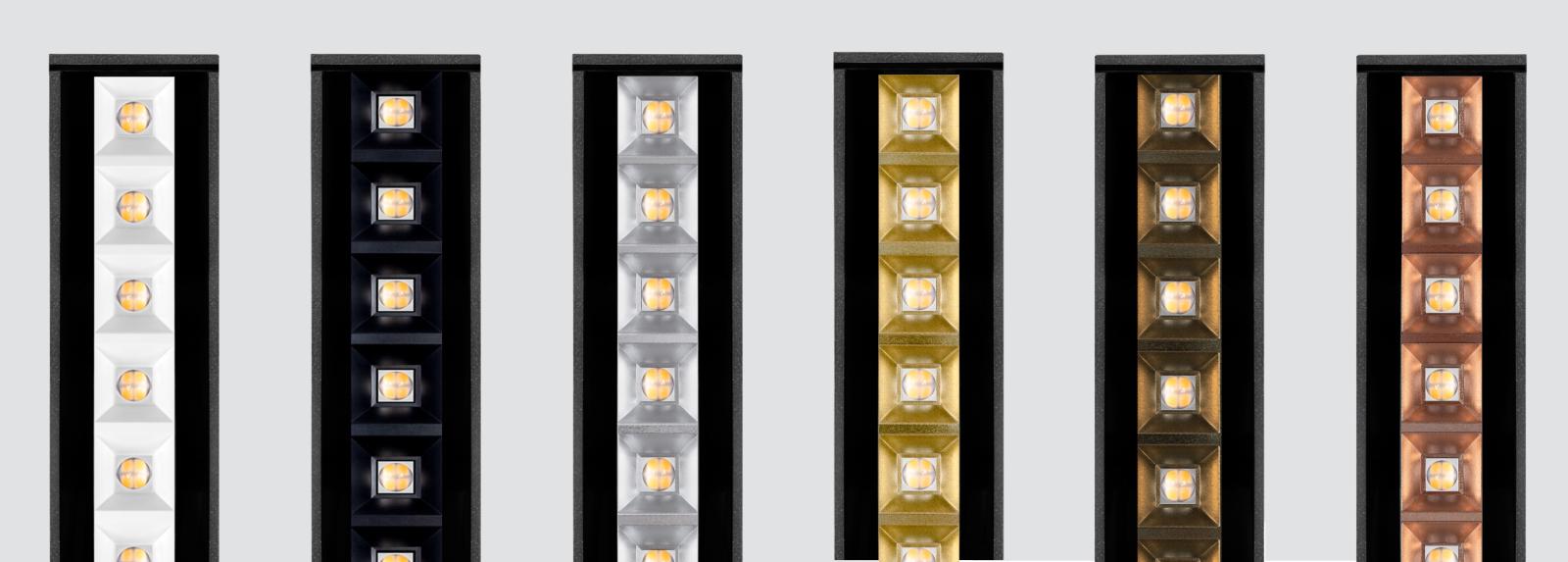

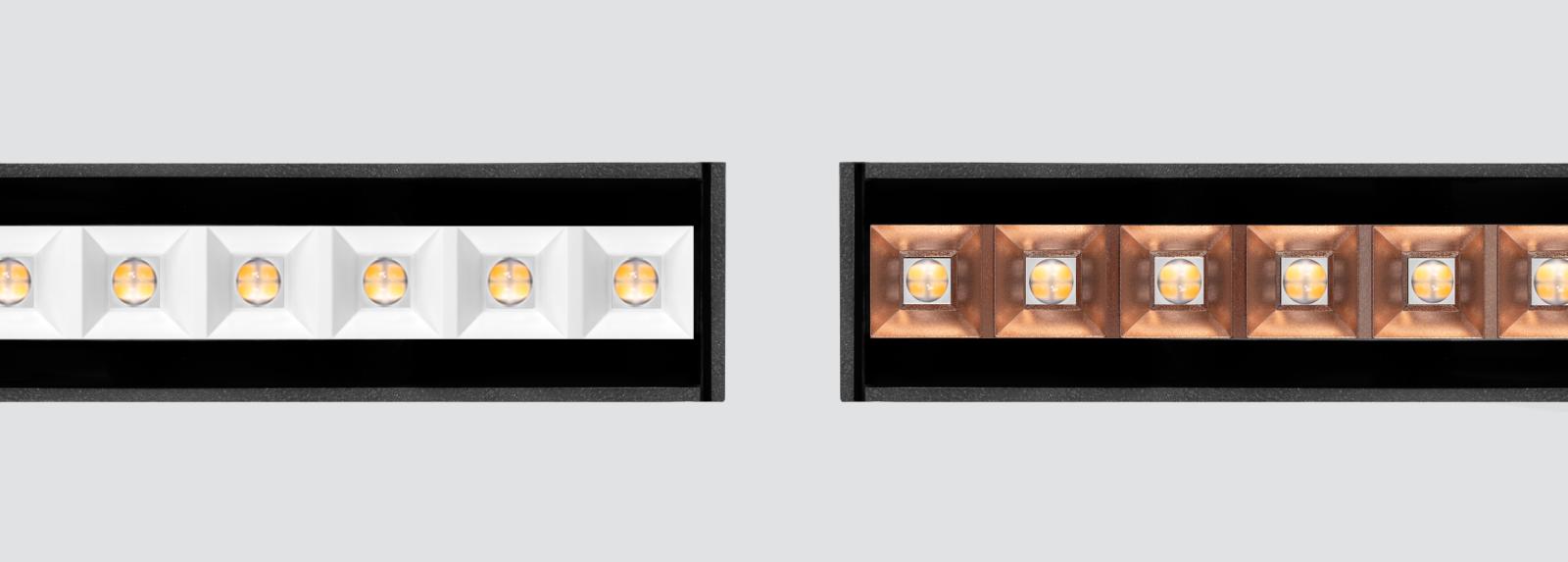

Metallised reflectors and modular optics designed to ensure visual comfort.
Built-in driver.
IP67 venting valve to reduce condensation.
Ceiling-mounted using steel support with screws.
Cable inlet hole on one side of the light fixture. Can also be supplied with two cable inlets, one on each side for serial installation.
Passive temperature management.

Suggested applications: porches, shopping centres, leisure areas, car parks, service stations, industrial facilities, outdoor ceilings in high humidity areas, or interior spaces that require low-maintenance. Solid ceilings or where there is not space for recessed mounting.

PRODUCT CONFIGURATOR

Tilt

Recessed dimensions

Outer dimensions

Height

Color Temperature

CRI

Luminous flux of the fixture

Beam angle

Diffuser

Power

mA

Electronic equipment

SEARCH RESULTS

Beam angle
Reference
Power
Luminous flux of the luminaire
CRI
Colour temperature
Embedding dimensions
Outer dimensions
Height
F1LMA.41
gen_downlight5  86
161LMA.41-I2905
5,6W
528lm
90
2700K
579mm x 65mm
589mm x 75mm
85mm
F1LMA.41
gen_downlight5  68
151LMA.41-I2905
5,6W
581lm
90
2700K
579mm x 65mm
589mm x 75mm
85mm
F1LMA.41
gen_downlight5  68
151LMA.41-I1215
5,6W
706lm
80
3000K
579mm x 65mm
589mm x 75mm
85mm
F1LMA.41
gen_downlight5  86
161LMA.41-I1215
5,6W
642lm
80
3000K
579mm x 65mm
589mm x 75mm
85mm
F1LMA.41
gen_downlight5  86
161LMA.41-I1216
5,6W
684lm
80
4000K
579mm x 65mm
589mm x 75mm
85mm
F1LMA.41
gen_downlight5  68
151LMA.41-I1216
5,6W
752lm
80
4000K
579mm x 65mm
589mm x 75mm
85mm
F1LMA.41
gen_downlight5  68
151LMA.41-I2906
7,4W
766lm
90
2700K
579mm x 65mm
589mm x 75mm
85mm
F1LMA.41
gen_downlight5  86
161LMA.41-I2906
7,4W
696lm
90
2700K
579mm x 65mm
589mm x 75mm
85mm
F1LMA.41
gen_downlight5  68
151LMA.41-I1217
7,4W
937lm
80
3000K
579mm x 65mm
589mm x 75mm
85mm
F1LMA.41
gen_downlight5  86
161LMA.41-I1217
7,4W
852lm
80
3000K
579mm x 65mm
589mm x 75mm
85mm
F1LMA.41
gen_downlight5  68
151LMA.41-I1218
7,4W
990lm
80
4000K
579mm x 65mm
589mm x 75mm
85mm
F1LMA.41
gen_downlight5  86
161LMA.41-I1218
7,4W
900lm
80
4000K
579mm x 65mm
589mm x 75mm
85mm
F1LMA.41
gen_downlight5  68
151LMA.41-I2907
9,4W
950lm
90
2700K
579mm x 65mm
589mm x 75mm
85mm
F1LMA.41
gen_downlight5  86
161LMA.41-I2907
9,4W
864lm
90
2700K
579mm x 65mm
589mm x 75mm
85mm
F1LMA.41
gen_downlight5  68
151LMA.41-I1219
9,4W
1168lm
80
3000K
579mm x 65mm
589mm x 75mm
85mm
F1LMA.41
gen_downlight5  86
161LMA.41-I1219
9,4W
1062lm
80
3000K
579mm x 65mm
589mm x 75mm
85mm
F1LMA.41
gen_downlight5  68
151LMA.41-I1220
9,4W
1234lm
80
4000K
579mm x 65mm
589mm x 75mm
85mm
F1LMA.41
gen_downlight5  86
161LMA.41-I1220
9,4W
1122lm
80
4000K
579mm x 65mm
589mm x 75mm
85mm
F1LMA.41
gen_downlight5  86
161LMA.41-I2908
13,4W
1200lm
90
2700K
579mm x 65mm
589mm x 75mm
85mm
F1LMA.41
gen_downlight5  68
151LMA.41-I2908
13,4W
1320lm
90
2700K
579mm x 65mm
589mm x 75mm
85mm
