68
5,6W
581lm
90
2700K
575mm x 62mm
85mm
LUMIA 300 | IP66 IK10 Surface-mounted linear downlights

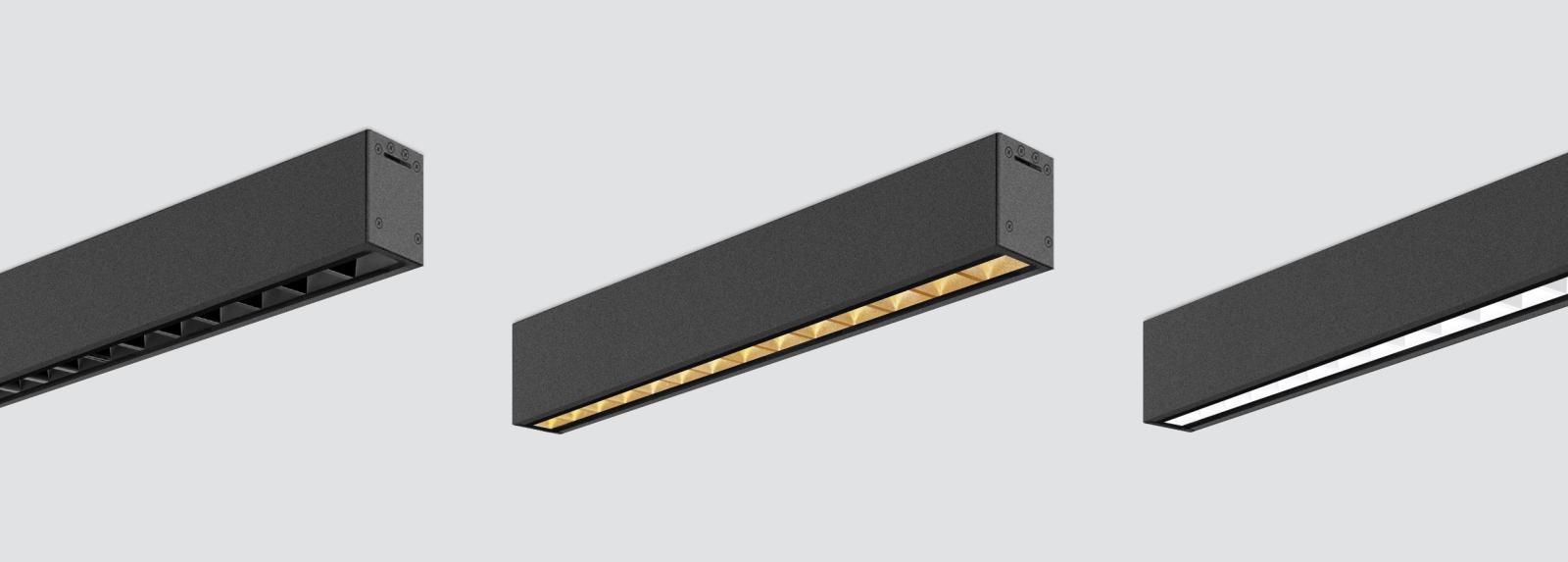

Surface mounted linear downlights with symmetrical light distribution.

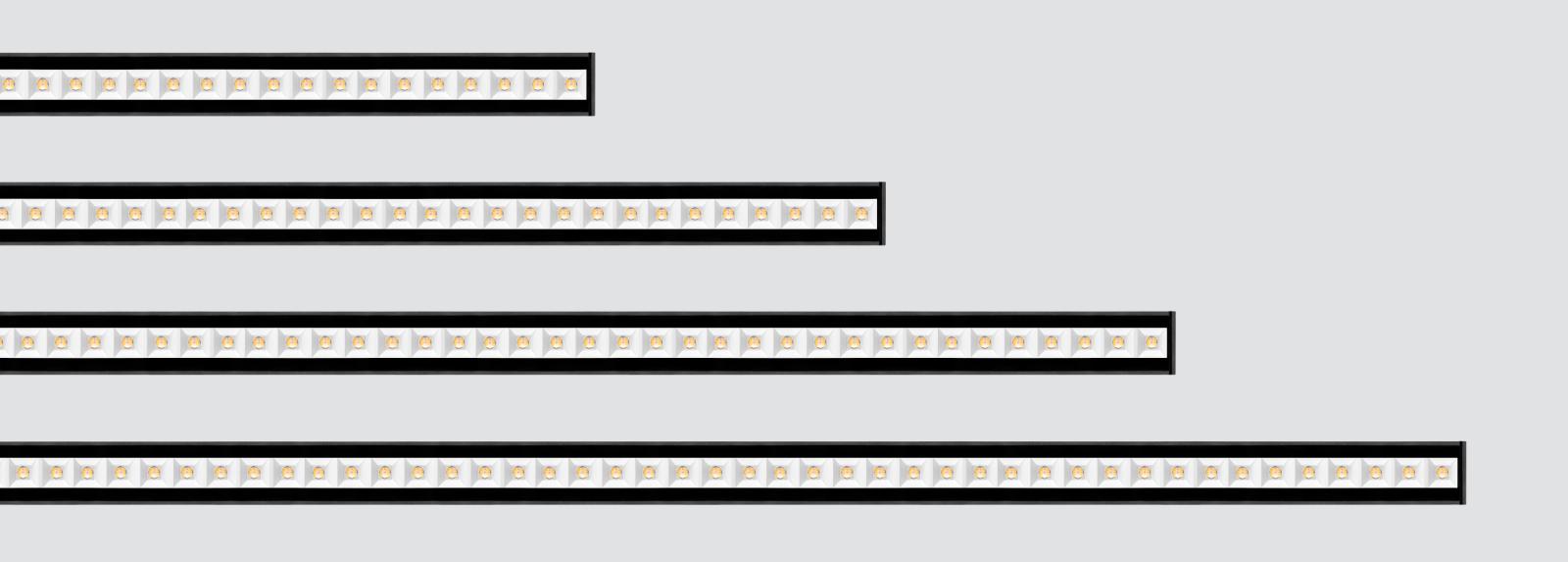

Linear fixtures available in 6 standard lengths 295mm, 575mm, 855mm, 1135mm, 1415mm and 2816mm in a width of 62mm and height of 85mm.
Protection rating against dust and moisture: complete IP66.
Protection rating for resistance to harmful mechanical impacts: IK10.
Powder painted extruded aluminium profile available in assorted finishes, customized RAL under request.
Highly efficient linear printed circuit board.
Protection polycarbonate diffuser in 4mm.

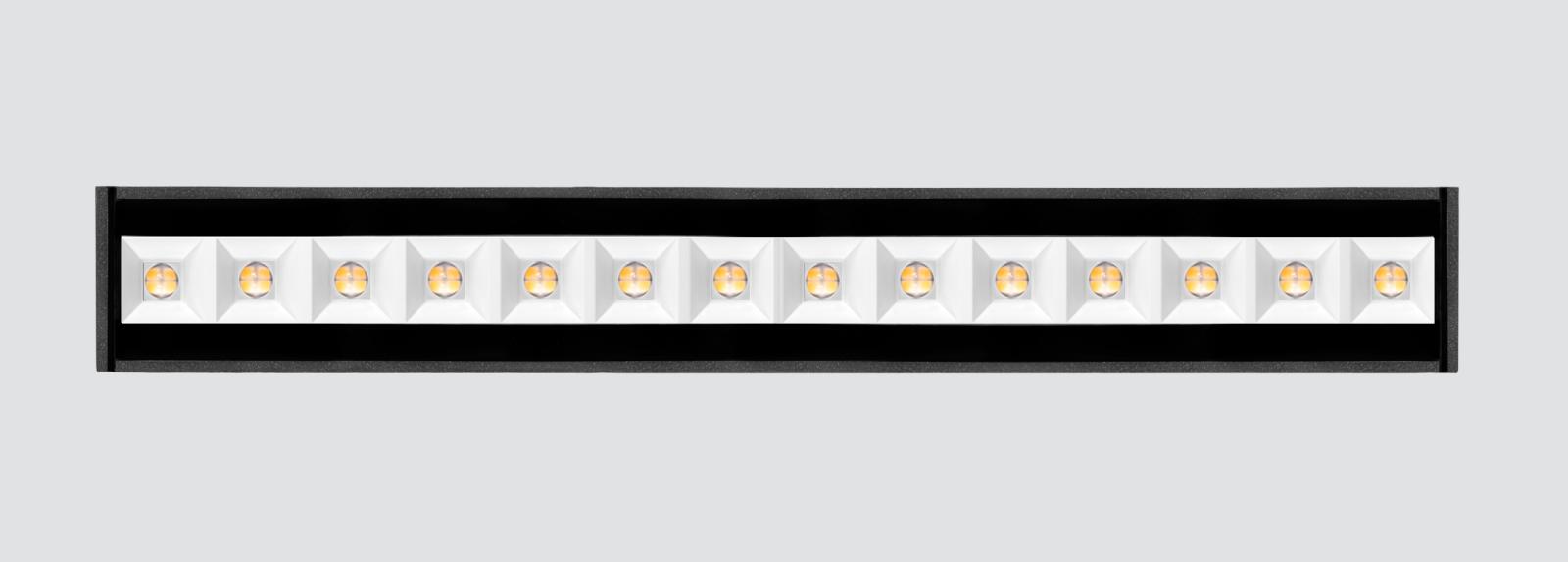

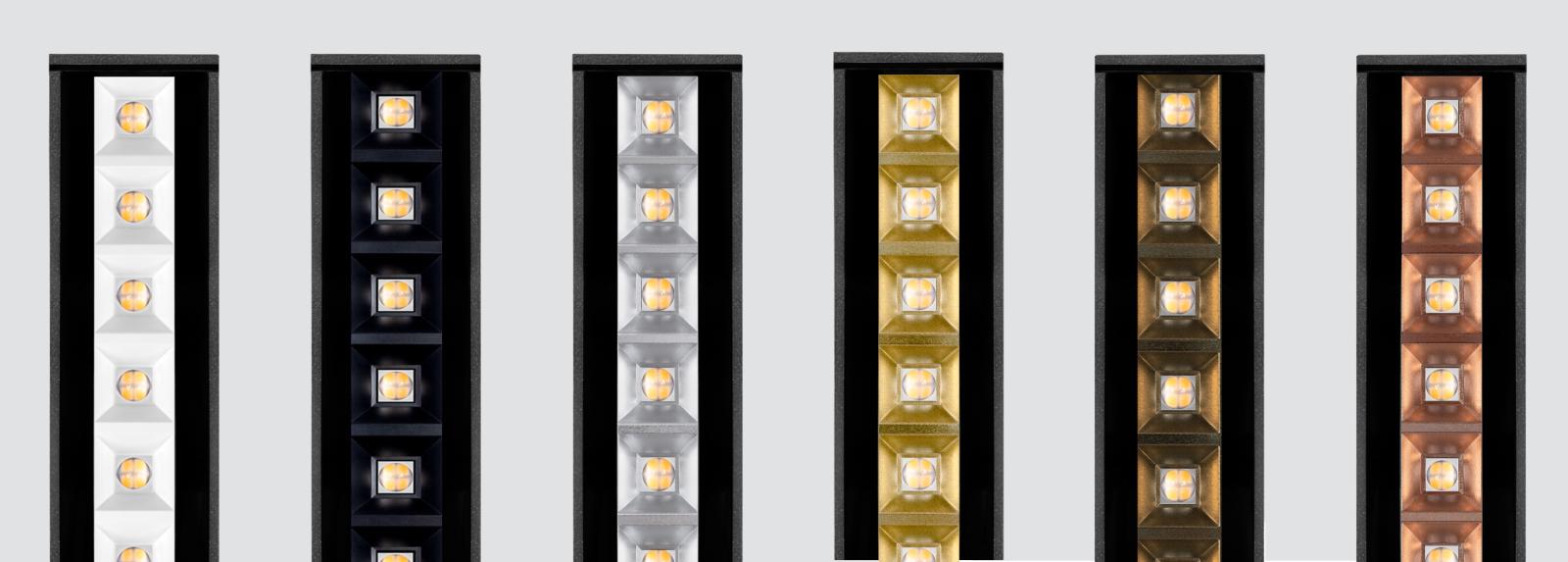

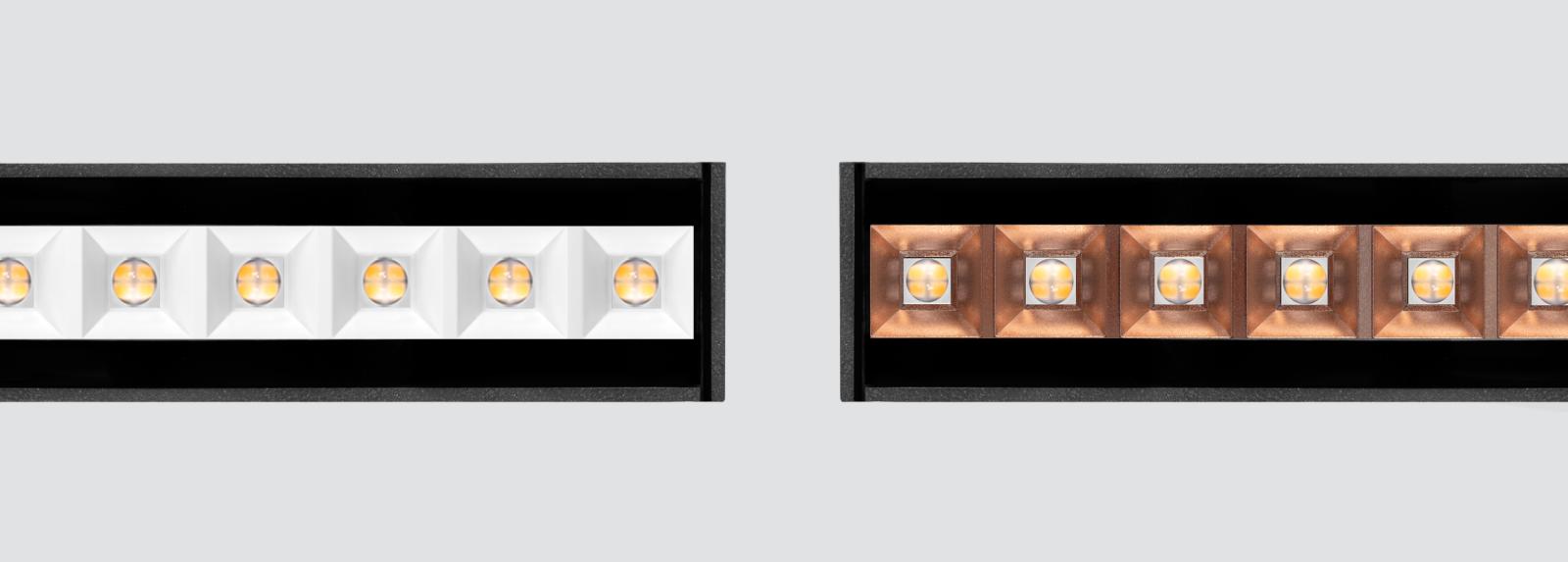

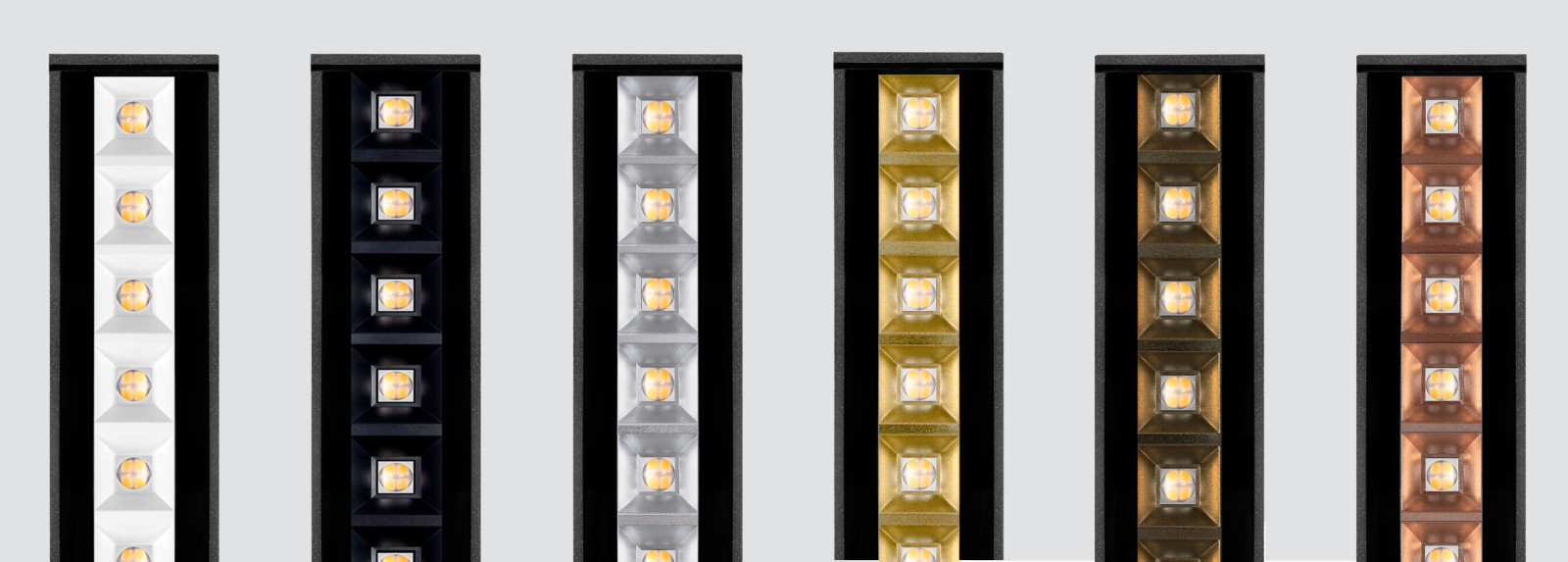

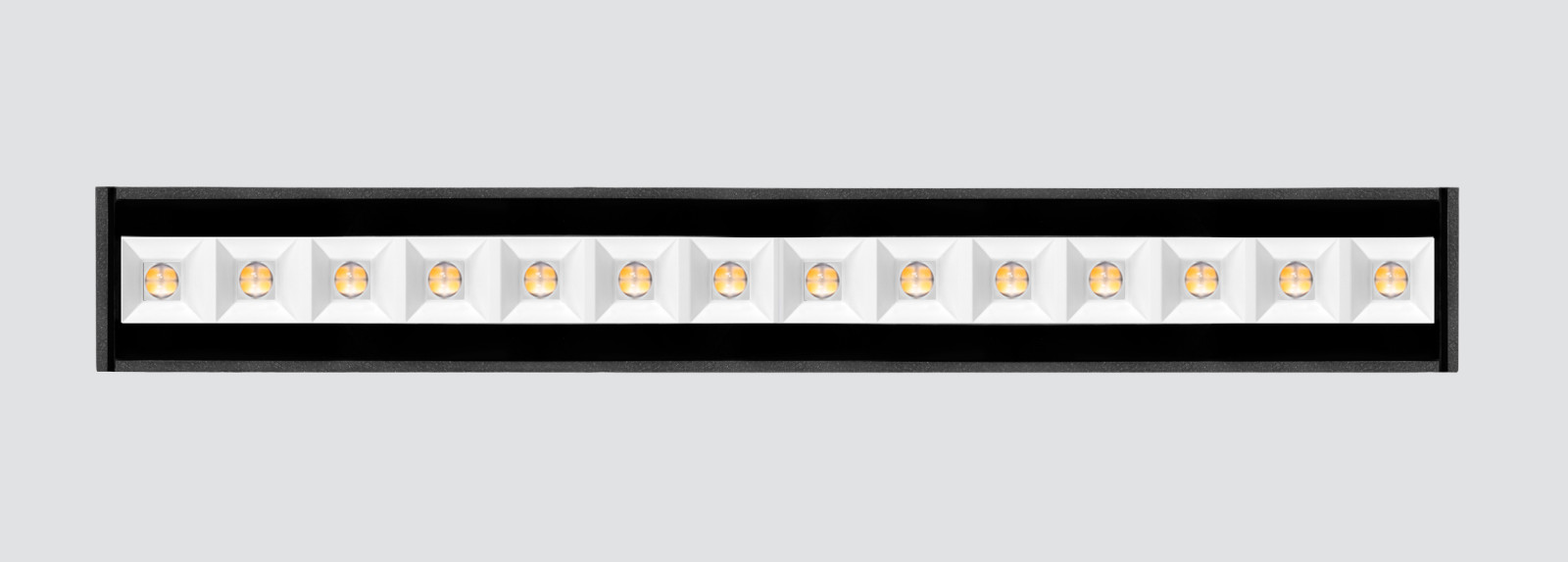

Metallised reflectors and modular optics designed to ensure visual comfort.
Built-in driver.
IP67 venting valve to reduce condensation.
Ceiling installation with two fixing plates.
Cable inlet hole on one side of the light fixture.
Passive temperature management.
Suggested applications: porches, shopping centres, leisure areas, car parks, service stations, industrial facilities, outdoor ceilings in high humidity areas, or interior spaces that require low-maintenance. Solid ceilings or where there is not space for recessed mounting.
PRODUCT CONFIGURATOR
SEARCH RESULTS
Beam angle
Reference
Power
Luminous flux of the luminaire
CRI
Colour temperature
Outer dimensions
Height
