BOLET 101BLT.4-I1195






Semi-recessed buried fixture with 360º light emission, radial beam to achieve an effective ground illumination.
Circular design available in a diameter of 140mm.
Protection rating against dust and moisture: complete IP67.
Protection rating for resistance to harmful mechanical impacts: IK10.
Robust and corrosion-resistant because of its black painted die-cast aluminium housing with C5-M special coating for environments with very high corrosivity.
Cover made of die-cast aluminium treated against corrosion and coated with polyester powder available in several colour finishes, customized RAL under request.
5mm extruded polycarbonate diffuser made by resins UV stabilized. Opal finish.
Temperature resistant silicone rubber gasket.
Integral driver included.
Electronic standard options for lighting control: DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
Passive temperature management: heat dissipation flows through the fixture body itself.
Supplied with aluminium insertion tube as standard.
Ground mounted by two fixing holes.
Pre-wiring of 0.5 metres cable 3x1mm2.
IP68 connector not included, it can be ordered separately: F3.A3. (On/Off) / F3.A5. (DALI).

DOWNLOADS
ACCESSORIES AND FINISHES

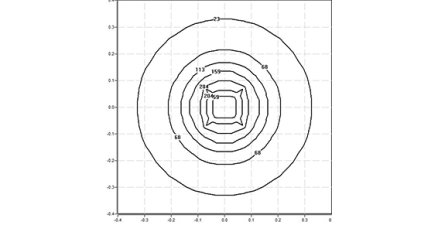

PHOTOMETRIC CHARACTERISTICS
- Luminaire luminous flux: 191lm
- Luminaire efficiency: 10 lm/W
- Light source luminous flux: 2895lm
- CRI: 80
- Colour temperature: 4000K
- Chromaticity Tolerance: MacAdam 3
- This product contains a light source of energy efficiency class: C
- LED reliability at nominal Ta = 25ºC: 53.000h L80B10

TECHNICAL DATA
- Class: I
- IP: 67
- Incandescent filament: 850 ºC
- Recessed diameter: 140mm
- Luminaire diameter: 148mm
- Weight: 2.65 Kg


ELECTRICAL CHARACTERISTICS
- Luminaire connected power: 18.8 W
- Light source power: 16.84 W
- Constant current: 500 mA
ELECTRONIC EQUIPMENT:
-
S: On/Off (AC/DC, NOT looping through capable)
-
D: DALI-2/switchDIM/corridorFUNCTION
-
B: Bluetooth-Casambi [ 5m ]
STANDARD FINISHES
-
80 Corten -
90 : RAL6005 Moss Green textured -
7: RAL9006: White Aluminium textured -
4: RAL7016: Anthracite Grey textured -
2: RAL9005: Jet Black textured -
1: RAL9010: Pure White textured
All RAL colours are available under request
TECHNICAL DATA
- Class: I
- IP: 67
- Incandescent filament: 850 ºC
- Recessed diameter: 140mm
- Luminaire diameter: 148mm
- Weight: 2.65 Kg


STANDARD FINISHES
-
80 Corten -
90 : RAL6005 Moss Green textured -
7: RAL9006: White Aluminium textured -
4: RAL7016: Anthracite Grey textured -
2: RAL9005: Jet Black textured -
1: RAL9010: Pure White textured
All RAL colours are available under request
