FOCUS OPTIMAL DISPLAY 101FCS.1-R1149
Adjustable to 30º.
Circular design in diameter 190mm.
Metalized specular aluminium reflector.
Interior reflector in assorted finishes: facetted metalized or sandblasted metalized depending on the beam angle outcome.
Powder painted die-cast aluminium trim available in assorted finishes, customized RAL under request.
LED ring decorative accessory as option [reference F1.B0190].
Glass accessory available to increase the protection rating to IP54 | IK05 from underneath [reference M2.B0190].
316L stainless steel trim accessory with flush glass and silicone rubber gasket to increase the protection rating to IP65 | IK07 from underneath [reference M2.C0190].
Remote driver supplied. LED module for special applications.
Electronic options for lighting control: DALI/DSI.
Passive temperature management: heat dissipation flows through aluminium heat sink.
Mounted to the ceiling by three fixing points.
Luminous flux of the light source: 1060lm
Luminous flux of the luminaire: 837lm
Light source power: 11 W
Luminaire power: 12.61 W
mA: 350 mA
Colour temperature: FRESH MEAT
Chromaticity Tolerance: MacAdam 4
CRI: >90

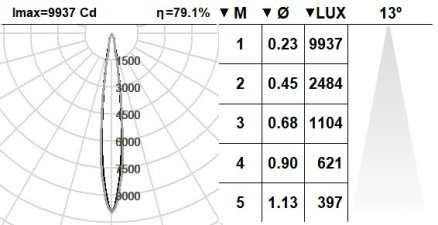

Beam angle: 13
Cd/Klm: 9375
Photobiological risk: 1
Rated Median useful life: 51000h L80B10
Class: 2
IP: 20
Incandescent filament: 850
Recessed diameter: 170mm
Luminaire diameter: 190mm
Weight: 1.62 Kg
Electronic Accessories:
K: On/Off (basic)
S: On/Off (AC/DC + looping through)
SE: On/Off (AC/DC+looping) + 3h battery
D: DALI-2/DSI switchDIM/corridorFUNCTION
DE: DALI-2/DSI switchDIM/corridorFUNCTION + Battery 3h
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
More finishes are available
