QUADRATIC 101QTC.1-R1150
Square design available in 220mm x 220mm.
Aluminium reflector with grey aluminium paint coating, metallized finish.
Powder painted aluminium frame available in assorted finishes, customized RAL under request.
Glass accessory available to increase the protection rating to IP54 | IK05 from underneath [reference M2.D0225].
Remote driver supplied. LED module for special applications.
Electronic options for lighting control: DALI-2 or Bluetooth.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤0,4.
Luminaire designed according to ecodesign principles, with replaceable light source and driver, to enable upgrades, ease maintenance and extend the product lifecycle.
Passive temperature management: heat dissipation flows through aluminium heat sink.
Ceiling-mounted using galvanised steel support with spring clamps for an easy installation.
DOWNLOADS
ACCESSORIES AND FINISHES

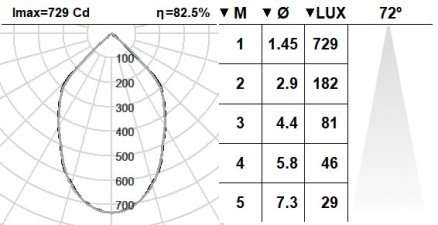

PHOTOMETRIC CHARACTERISTICS
- Luminaire luminous flux: 884lm
- Light source luminous flux: 1065lm
- CRI: >90
- Colour temperature: MEAT+
- Chromaticity Tolerance: MacAdam 3
- Beam angle: 72 º
- LED reliability at nominal Ta = 25ºC: 100.000h L90B10
- Cd/Klm: 684
UGR: C0º = 15,6 | C90º = 15,5 under the below indicated parameters
Room dimensions X=4H/Y=8H
Reflectance 20% | 50% | 70%
Luminaire spacing = 0.25
TECHNICAL DATA
- Class: II
- IP: 20
- Incandescent filament: 850 ºC
- Embedding dimensions: 210x210 mm
- Luminaire dimensions: 220x220 mm
- Height: 106 mm Kg
ELECTRICAL CHARACTERISTICS
- Luminaire connected power: 12.61 W
- Light source power: 11 W
- Constant current: 350 mA
ELECTRONIC EQUIPMENT:
-
K: On/Off (basic)
-
S: On/Off (AC/DC + looping through)
-
SE: On/Off (AC/DC+looping) + 3h battery
-
D: DALI-2/switchDIM/corridorFUNCTION
-
DE: DALI-2/switchDIM/corridorFUNCTION + Battery 3h
-
B: Bluetooth-Casambi
STANDARD FINISHES
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
All RAL colours are available under request
TECHNICAL DATA
- Class: II
- IP: 20
- Incandescent filament: 850 ºC
- Embedding dimensions: 210x210 mm
- Luminaire dimensions: 220x220 mm
- Height: 106 mm
STANDARD FINISHES
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
All RAL colours are available under request
